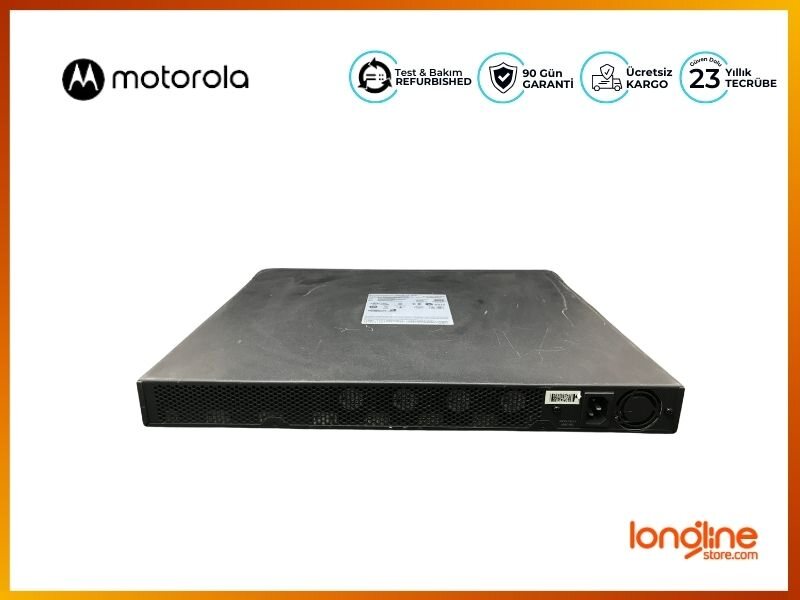

Motorola RFS6000 - 24 Port Wireless LAN Switch

Enterprise security - for voice and data

Designed to support large scale high bandwidth enterprise deployments, the Motorola RFS6000 offers a multicore multithreaded CPU-based architecture that is capable of supporting 2,000 to 20,000 mobile devices and up to 48 dual radio 802.11a/b/g access ports. In addition, the 802.11n ready device offers the failover capabilities and cluster management required to ensure high availability. A user accessible ExpressCard Slot allows the addition of a broadband card (3G/4G) for a redundant wireless WAN backhaul connection, increasing resilience for remote branch offices. The ability to cluster up to 12 RFS6000 RF Switches provides the high level of scalability required for large enterprise deployments.

General Information

• Product Type: Wireless LAN Controller
• Brand Name: Motorola
• Manufacturer:
• Product Model: RFS6000
• Product Name: RFS6000 Wireless LAN Switch

Physical Characteristics

• Compatible Rack Unit: 1U
• Height: 1.8"
• Depth: 15.4"
• Form Factor: Rack-mountable
• Weight (Approximate): 14 lb

Interfaces/Ports

• Fast Ethernet Port: Yes
• Gigabit Ethernet Port: Yes
• Number of Network (RJ-45) Ports: 8
• PoE (RJ-45) Port: Yes
• USB: Yes
• Management Port: Yes

Management & Protocols

• Management:
  • Telnet
  • SNMP v1,v2,v3
  • Syslog
  • QoS
  • DHCP
  • MIBs
  • VLAN
  • Web-based GUI

Other

• Green Compliant: Yes
• Green Compliance Certificate/Authority: RoHS
• Additional Information:
  • Supports: 24 Port Wireless Switch
  • MTBF: Greater than 65,000 Hours
  • Load Balancing
