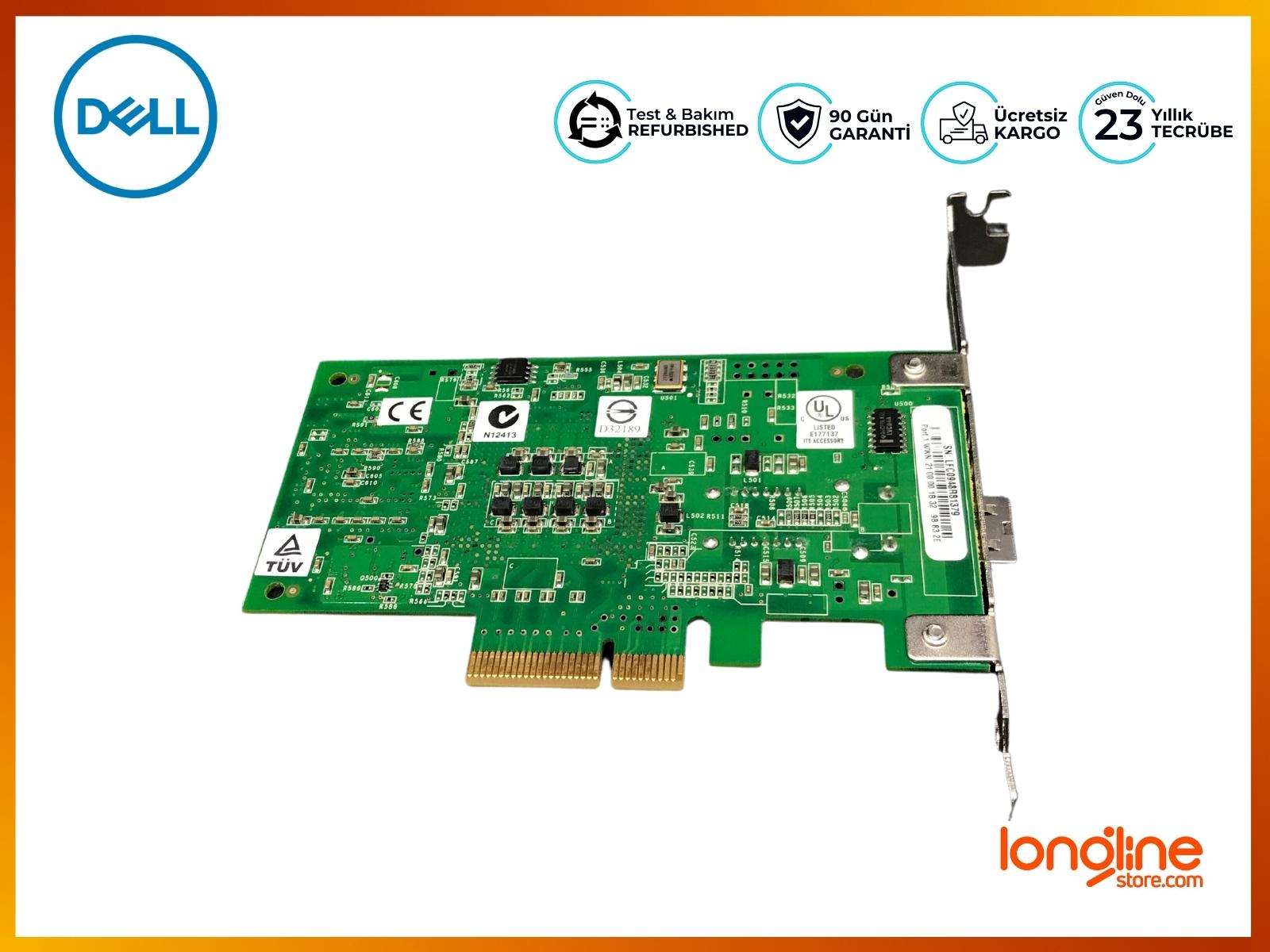

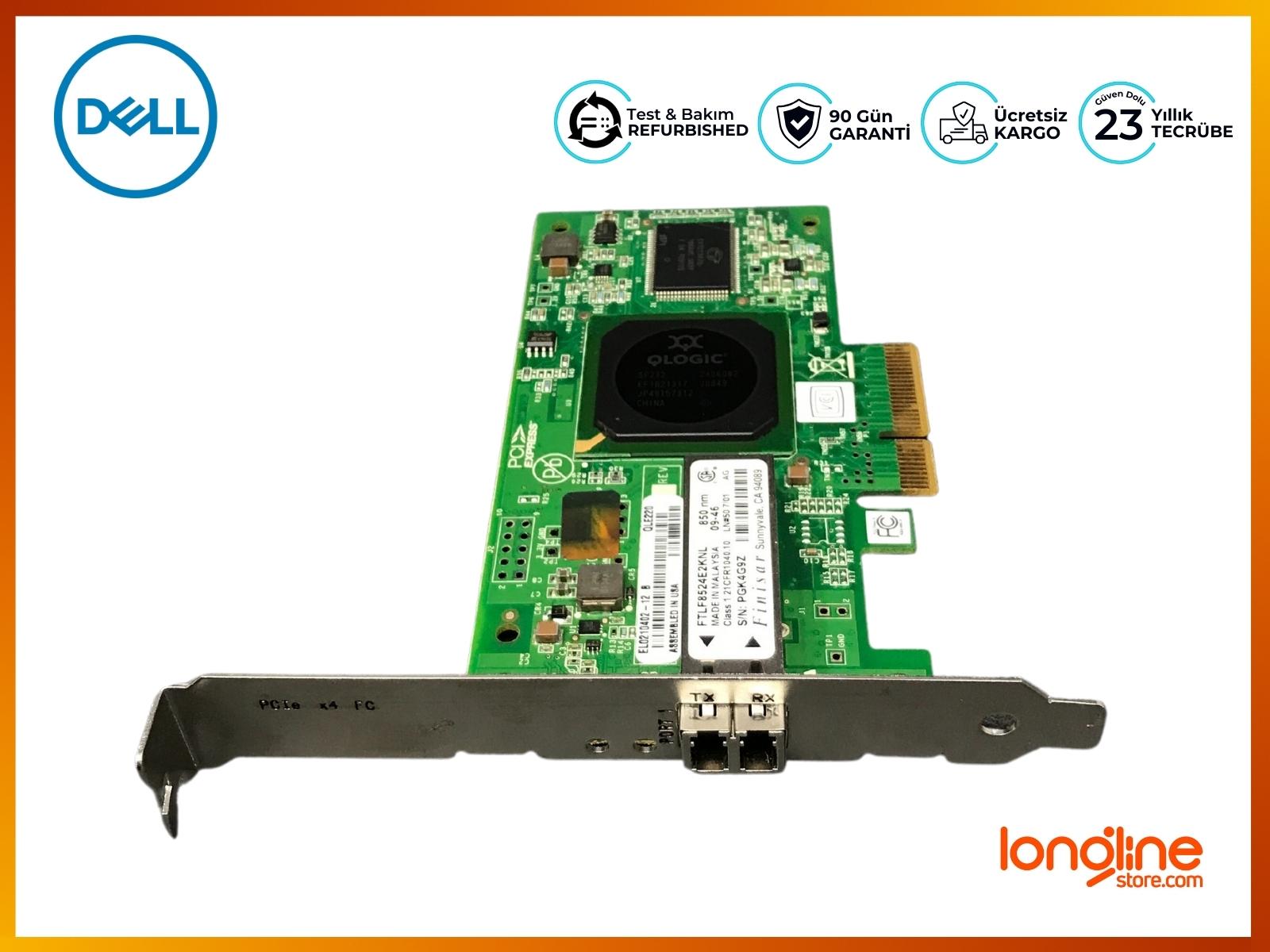

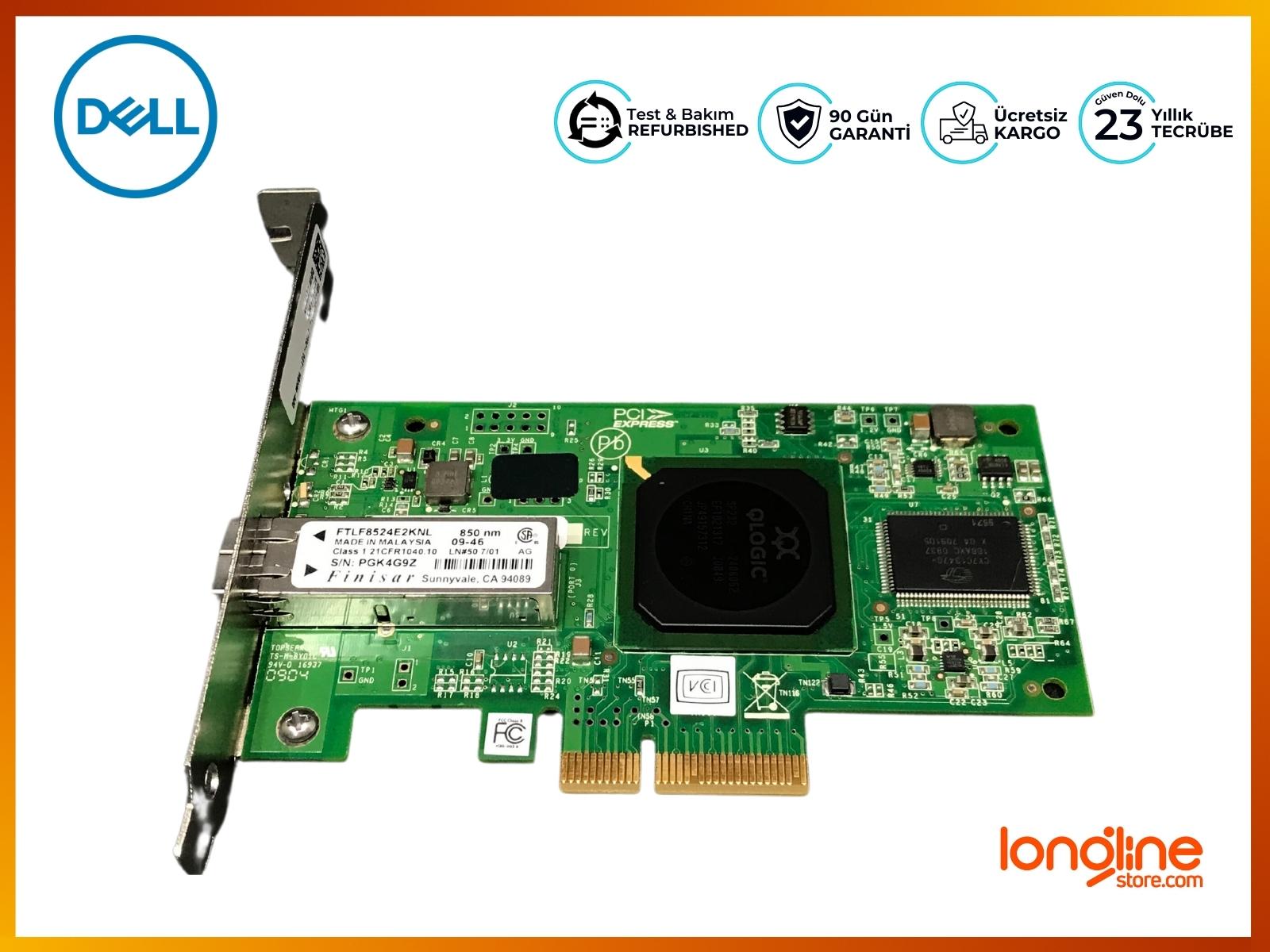

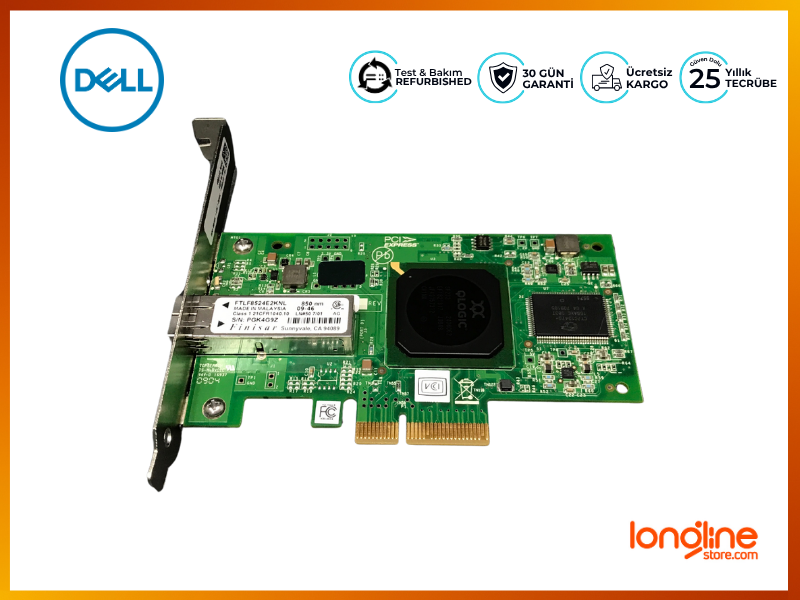

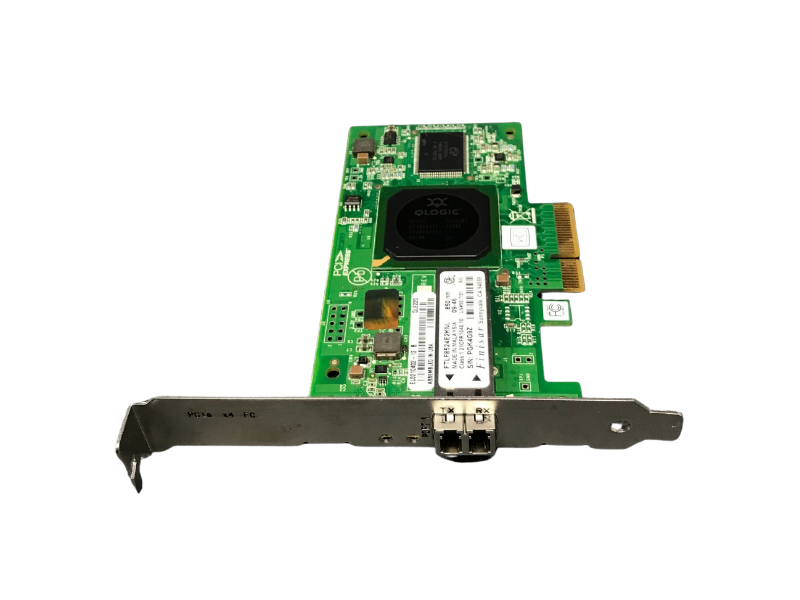

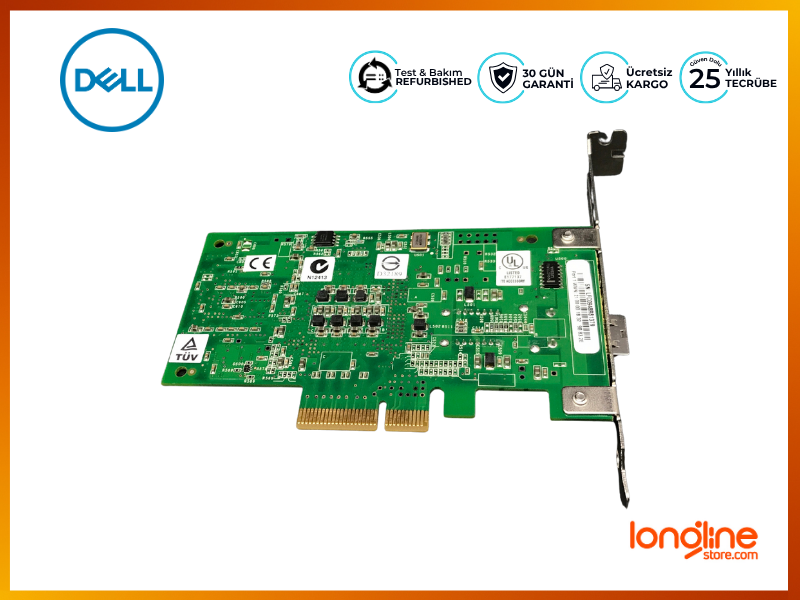

Dell NETWORK ADAPTER FC 4GB SP PCI-E HBA YY004 QLE220

• Speed:

  PCI Express x4

  Voltage:

  3.3V and 12VDC supported

  Compliance:

  Conforms to PCI Express Base specification, rev. 1.0a; PCI Express Card Electromechanical Specification, rev. 1.0a; PCI Bus Power Management Interface Specification, rev. 1.1; PCI Hot Plug Specification rev. 1.0; ACPI (Advanced Configuration and Power Interface) rev. 1.0


  Fibre Channel Specifications

  Data Rate:

  400 MBps maximum at half-duplex, 800 MBps maximum at full-duplex (4Gbps/2Gbps speed only)
  FC frame size 2K fixed

  Topology:

  FC-AL, FC-AL-2, switched fabric (F_Port)

  Logins:

  Logins and exchanges Up to 16 total logins in private loop (FC-AL/FC-AL-2 connect) topology, 8 (target) logins in fabric (F-Port connect) topology, and up to 64 FCP/FCP-2 exchanges

  Class of Service:

  Class 3 Fibre Channel service

  Protocols:

  SCSI-FCP, Tape (FCP-2)

  Buffer Credits:

  2 credits issued

  Compliance:

  Second Generation FC Generic Services Definition (FC-GS-2), Third Generation FC Generic Services Definition (FC-GS-3), Fibre Channel-Physical and Signaling Interface (FC-PH), SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel-Arbitrated Loop-2 (FC-AL-2), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Framing and Signaling (FC-FS)

Form Factor

• Ports: One
  LEDs: Two
  Media: Multimode optic
  Optics: Short wave laser
  Connections: Small Form Factor Fixed (SFF) multimode optic with LC-style connector
  Form factor: Low-profile MD1: 11.99 cm x 6.44 cm (4.721" x 2.536")
  Bracket size: Standard size with optional low profile size
  Connectors: LC-style connector that supports non-OFC, multimode fibre optic cabling using a small form factor optical transceiver module
  Power consumption: ~ 5.0 watts

Software Environments

• Applications
  SANsurfer Express: Easy to use, auto-configuration, wizard-based HBA management application with preconfigured settings.

  Operating Systems
  Windows® Server™ 2003, Windows® 2000, Windows® XP Pro; Windows® Professional x64; Mac OS X; Linux (Red Hat AS 2.1 and 3.0; SuSE SLES 8 and 9), Solaris 10 x86. A single common driver supports the QLE220 and all QLogic FC HBAs.

  Flash Utilities
  Configuration utilities resident with boot code

  Boot Support
  BIOS

Environmental Operating Conditions

• Temperature

  Operating: 0°C/32°F to 55°C/131°F
  Storage: -20°C/-4°F to 70°C/158°F

  Humidity

  Relative (non-condensing): 10% to 90%
  Storage: 5% to 95%

  Cable distances

  2Gbps: 300 meters 50/125 µm fiber, 150 meters 62.5/125 µm fiber.
  4Gbps: 150 meters 50/125 µm fiber, 70 meters 62.5/125 µm fiber

  Cable

  50/125 µm multimode fiber, 62.5/125 µm multimode fiber

  Multi -Switch Fabric

  Supports up to 2 switches
