Product Description |

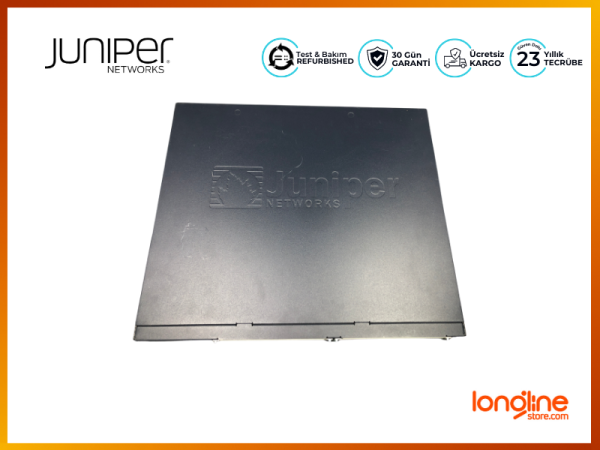

Juniper Networks Secure Services Gateway SSG 320M - security appliance |
|
|
Device Type |
Security appliance |
|
|
Form Factor |
External - 2U |
|
|
RAM |
1 GB |
|
|
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, FRF.15, FRF.16 |
|
|
Performance |
Firewall throughput (large packets): ¦ Firewall throughput (IMIX): 400 Mbps ¦ 3DES+SHA1 VPN performance (large packets): 175 Mbps |
|
|
Capacity |
Concurrent sessions: 48000 ¦ Security policies: 750 ¦ Connection / user qty: unlimited ¦ Security zones: 40 ¦ Authenticated users (internal database): 1500 ¦ Concurrent VPN tunnels: 250 ¦ VPN tunnel interfaces: 100 ¦ Static routes: 10000 |
|
|
VoIP Protocols |
H.323, MGCP, SCCP, SIP |
|
|
Power |
AC 120/230 V (50/60 Hz) |
|
|
Dimensions (WxDxH) |
44.5 cm x 38.3 cm x 4.5 cm |
|
|
Weight |
6.8 kg |
|
|
Extended details |
||
|
General |
||
|
Device Type |
Security appliance |
|
|
Height (Rack Units) |
2U |
|
|
Installed Modules Qty (Max) |
0 (3) |
|
|
Width |
44.5 cm |
|
|
Depth |
38.3 cm |
|
|
Height |
4.5 cm |
|
|
Weight |
6.8 kg |
|
|
Processor / Memory / Storage |
||
|
RAM |
1 GB |
|
|
Networking |
||
|
Form Factor |
External |
|
|
Connectivity Technology |
Wired |
|
|
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, FRF.15, FRF.16 |
|
|
Network / Transport Protocol |
L2TP, IPSec, PPPoE, SMTP, POP3, IMAP |
|
|
Routing Protocol |
OSPF, RIP-1, RIP-2, BGP, IGMPv2, IGMP, PIM-SM, static IP routing, PIM-SSM, ECMP |
|
|
Remote Management Protocol |
SNMP 2, Telnet, HTTP, HTTPS |
|
|
Performance |
Firewall throughput (large packets): ¦ Firewall throughput (IMIX): 400 Mbps ¦ 3DES+SHA1 VPN performance (large packets): 175 Mbps |
|
|
Capacity |
Concurrent sessions: 48000 ¦ Security policies: 750 ¦ Connection / user qty: unlimited ¦ Security zones: 40 ¦ Authenticated users (internal database): 1500 ¦ Concurrent VPN tunnels: 250 ¦ VPN tunnel interfaces: 100 ¦ Static routes: 10000 |
|
|
Features |
Modular design, firewall protection, 56-bit encryption, routing, 168-bit encryption, DHCP support, NAT support, VPN support, PAT support, LDAP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, High Availability, URL filtering, 256-bit encryption, DDos attack prevention, Quality of Service (QoS), RADIUS support |
|
|
Encryption Algorithm |
DES, Triple DES, RSA, MD5, AES, IKE, SHA-1, PKI |
|
|
Authentication Method |
SecurID, RADIUS, X.509 certificates |
|
|
Compliant Standards |
IEEE 802.1x, X.509 |
|
|
IP Telephony |
||
|
VoIP Protocols |
H.323, MGCP, SCCP, SIP |
|
|
Expansion / Connectivity |
||
|
Expansion Slots |
3 (total) / 3 (free) x expansion slot |
|
|
Interfaces |
1 x management - RJ-45 ¦ 4 x 1000Base-TX ¦ 1 x management ¦ 2 x USB |
|
|
Miscellaneous |
||
|
Compliant Standards |
FCC Class B certified, CSA, UL, C-Tick, BSMI, cUL, VCCI Class A ITE, CB |
|
|
Power |
||
|
Power Device |
Internal power supply |
|
|
Voltage Required |
AC 120/230 V (50/60 Hz) |
|
|
Power Provided |
275 Watt |
|
|
Software / System Requirements |
||
|
OS Provided |
ScreenOS |
|
|
Environmental Parameters |
||
|
Min Operating Temperature |
0 °C |
|
|
Max Operating Temperature |
50 °C |
|
|
Humidity Range Operating |
10 - 90% |
|
