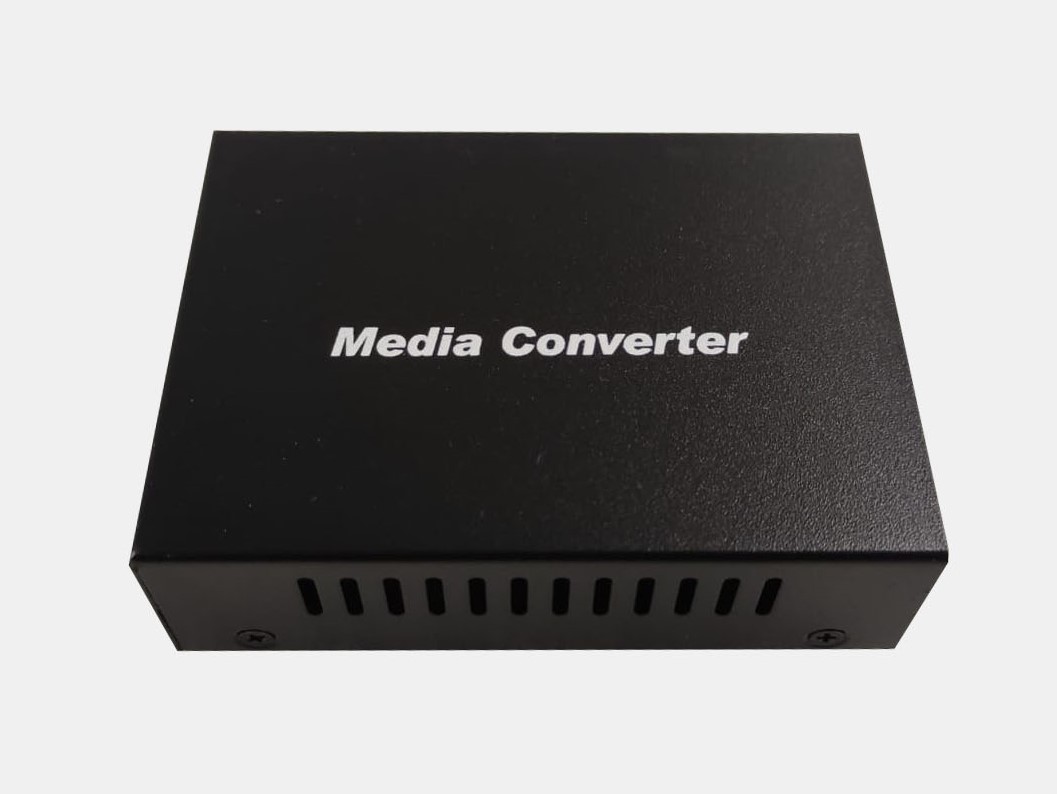

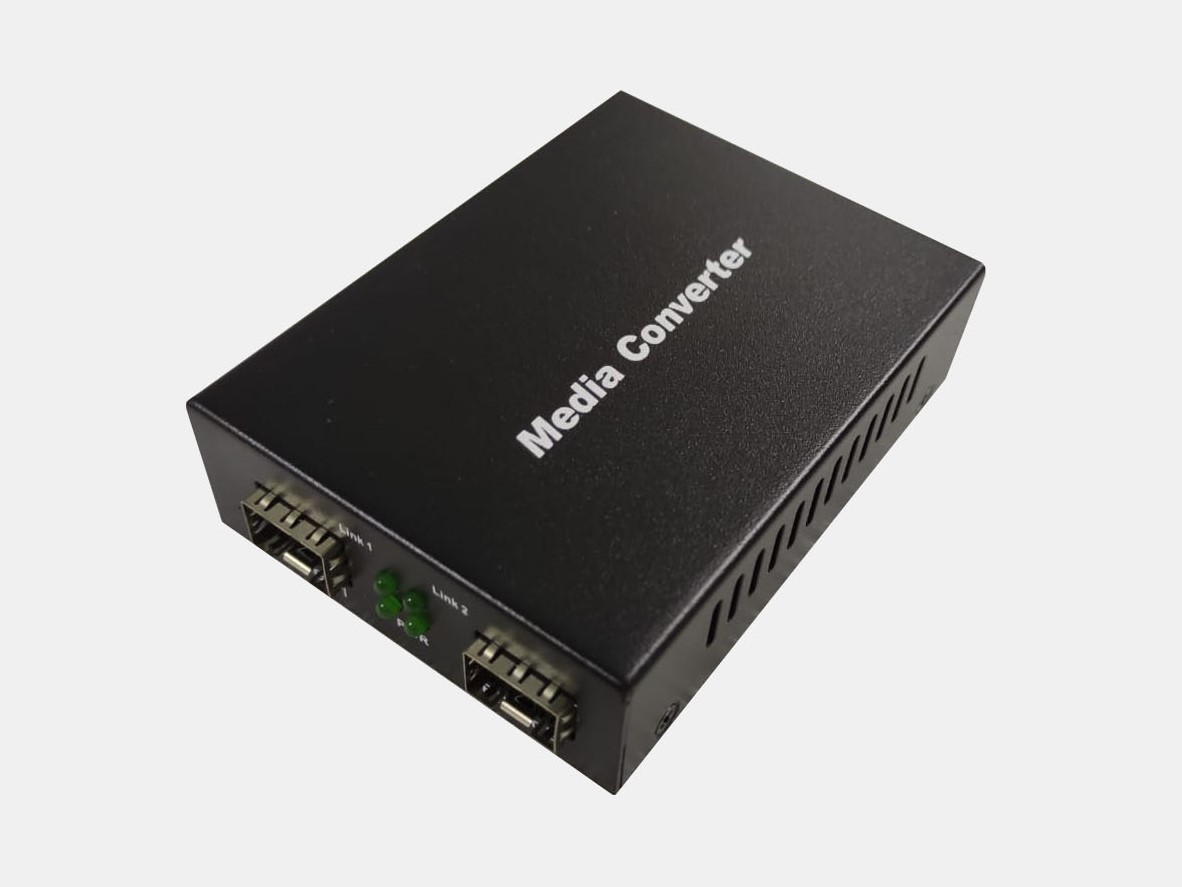

Longline 10/100/1000M Ethernet to fiber media converter with 1 GE SFP Slot LNG-8110G-SS
Data transfer speed: 1000 Mbps (1 Gbps)
Data transfer port speed: 1000 Mbps (SFP)
Optical communication: with SFP module
Connector type: SFP socket/SFP socket
Design: standard size, cased version (metal housing)
SFP 1000 Mbps: 2
MAC addresses board: 1 Kb

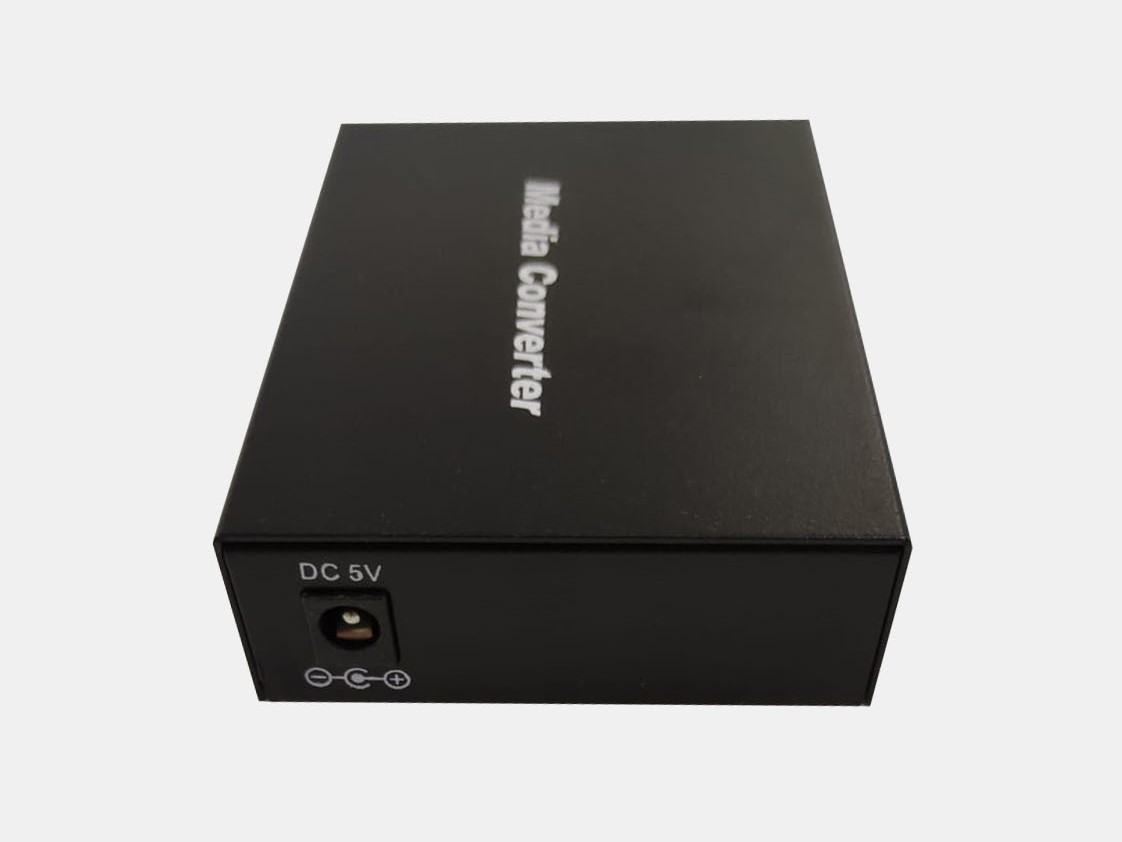

Power supply: 5V DC
Accessories: Power supply
Description: Gigabit converter with SFP module slots.
The converter has two 1000 Mbps SFP sockets. Any SFP module with a gigabit, optical or RJ-45 port can be inserted into the SFP sockets. Using the converter is completely automatic (Plug and Play). The converter can only be connected to a network according to its specifications. Operation in other networks is not guaranteed.
The converter complies with the following standards:
- IEEE 802.3z 1000 Base-TX/FX
- Automatic duplex detection (Half and Full duplex)
- Automatic cable detection (Cross or straight cable)
Physical parameters:
- Power supply: with external power adapter
- Input power supply: AC 230V
- Output power supply: DC 5V, 1A
- DC connector size: 2.5/55 mm
- Operating temperature: 0 °C - 60 °C
- Storage temperature: -20 °C - 85 °C
- Humidity: 5% - 90%
- Dimensions: 26mm x 70mm x 95mm
Important warning:
- This product is suitable for indoor use.
- When inserting an optical SFP module, always place the dust cover in the optical connector if the device is not connected to a network.
- When using an optical SFP module, it is forbidden to look into the TX part of the optical connector with the naked eye when it is switched on.
- The converters are only suitable for establishing communication in pairs.
