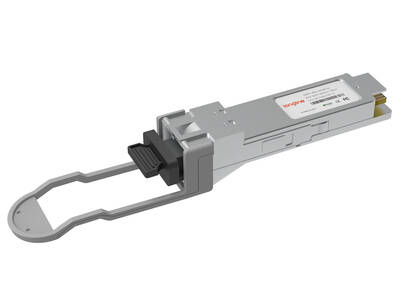

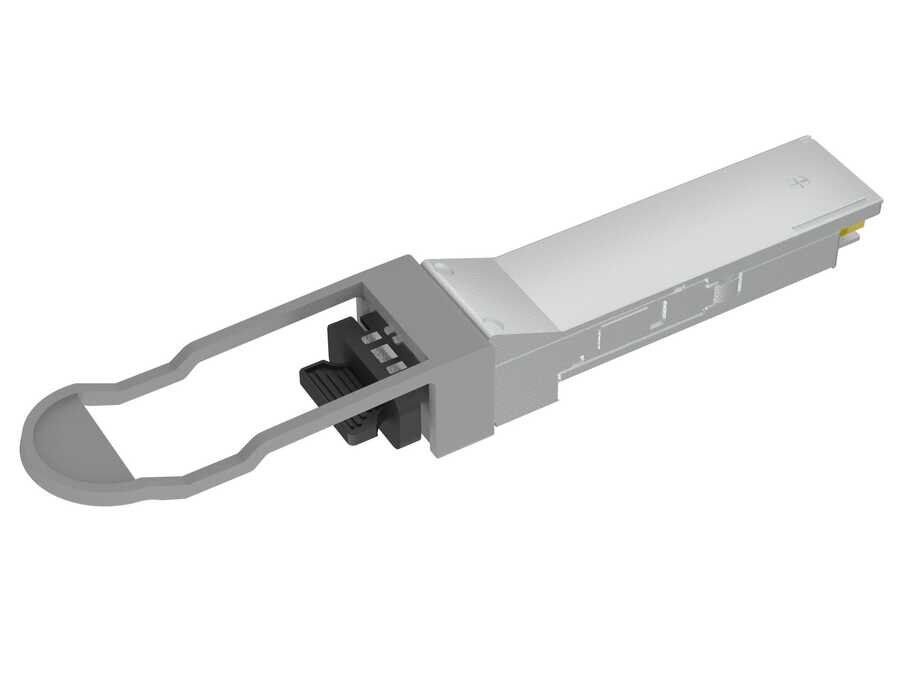

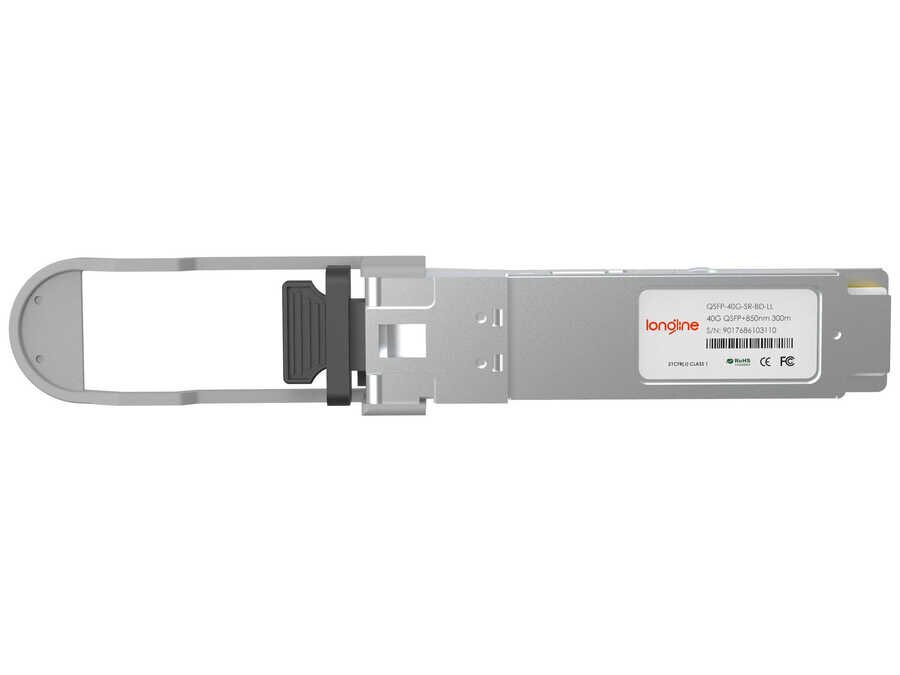

The QSFP+ module is designed for use in 40 Gigabit Ethernet links over duplex multimode fiber (MMF). This transceiver is compliant with the QSFP+ MSA and IEEE 802.3ba XLPPI electrical interface. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters.
With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 40G Ethernet and Enterprise Data Center.
Specifications | |||
Cisco Compatible | QSFP-40G-SR-BD-LL | Vendor Name | Longline |
Form Factor | QSFP+ | Max Data Rate | 41.2Gbps |
Wavelength | 850nm | Max Cable Distance | 300mOM3/400m@OM4/500m@OM5 |
Connector | Duplex LC | Cable Type | MMF |
Power Consumption | ≤3.5W | DDM/DOM | Supported |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -7.5~3dBm | Receiver Sensitivity | <-9.1dBm |
Receiver Overload | 3.0dBm | Extinction Ratio |
>2.0dB
|
MTBF | 10,500,000 Hours | CDR | CDR |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | EMC | 4,761,904 Hours |
