Key Features:

 1)Comply with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX standard.

 2).All ports support 10M full/half duplex mode, 100/1000M full/half duplex mode,

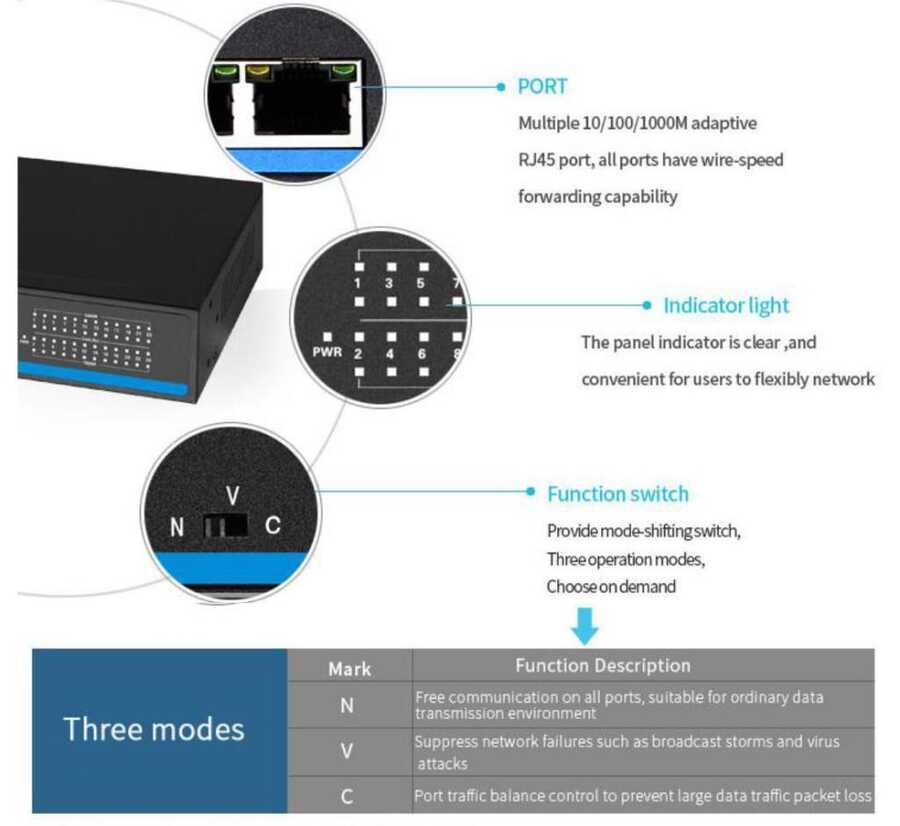

 3). Three working modes: Provide mode-conversation switch, with three working modes of "standard exchange", "VLAN isolation", "network clone".

 4). Each port support MDI/MDIX automatic rollover and half-duplex/rate self-negotiation.

 5). Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.

 6). Panel board’s indicator monitors working conditions and helps diagnose faults.

 7). Store and forward switching to ensure data integrity and speed matching.

 8). 8K MAC address table.

Specifications:

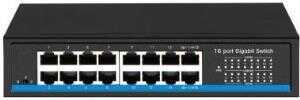

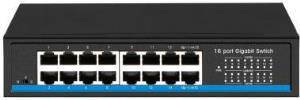

Fixed Port	16*10/100/1000Base-TX RJ45 port (Data)
Function	N:(standard normal) V:(port isolation) C:(Flow Control mode)
Network Protocol	IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x IEEE 802.1q VLAN
Port Specification	10/100/1000BaseT（X）Auto
Transmission Mode	Store and Forward（full wirespeed）
Bandwidth	56Gbps
Packet Forwarding	40.32Mpps Supports 9K jumbo packet length forwarding at wire speed
MAC Address	8K
Buffer	4.1M
Transmission Distance	10BASE-T：Cat3,4,5 UTP(≤250 meter) 100BASE-TX：Cat5 or later UTP(150 meter) 1000BASE-TX：Cat6 or later UTP(150 meter)
Watt	Standby Power Consumption：≤15W；
LED Indicator	PWR: Power LED 1-16：（Link LED=10/100M、1000M=Gigabit Link)
Power Input	Built-in Power AC：100～240V 50-60Hz 1A
