ENTEGRON TS6208PENTG2G 8 port 10/100M Poe Switch

With 2 Gigabit RJ45 Uplink Ports

Product Description:



 ·         8*10/100mbps POE port;2*10/100mbps UP Link port *250m Distance; Vlan Support *REALTEK Chipset

 ·         Support IEEE802.3AF/AT

 ·         Whole Power:120W(52V 2.3A)

 ·         All port supported by MDI/MDIX auto flip and self negotiation

 ·         Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port. *Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

 ·         Each port max. power supply reached 30W.



Fast Ethernet Access+Gigabit Uplink:



·        8*10/100M PoE port+2*1000M Uplink port

·        All ports support non-blocking transmission at wirespeed

·        Support IEEE 802.3x and Backpressure



PoE Function:

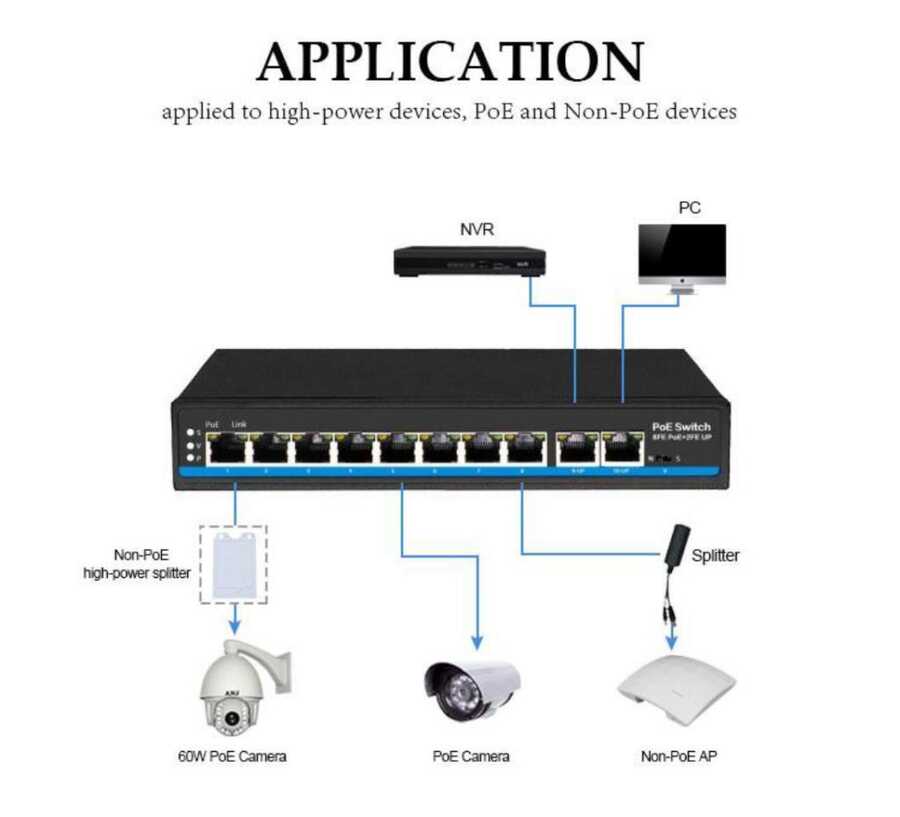

·         8*10/100M PoE port(satisfied in environment in security monitoring, phone meeting system and wireless coverage.)

·         Have PoEdog function that when PoE is on, the switch can achieve real-time detection on powered devices. And the switch automatically sets the ports and then restores PoE power supplying to make no duty come true.

·         Complied to IEEE 802.3af/at/PoE++/HiPoE,whole device PoE output power up to 120W(first port can output HiPoE_60W and other single port PoE power up to 30W).

·         Automatically detect and supply power for PoE devices.

·         Priority mechanism(prior protection on port power supply).

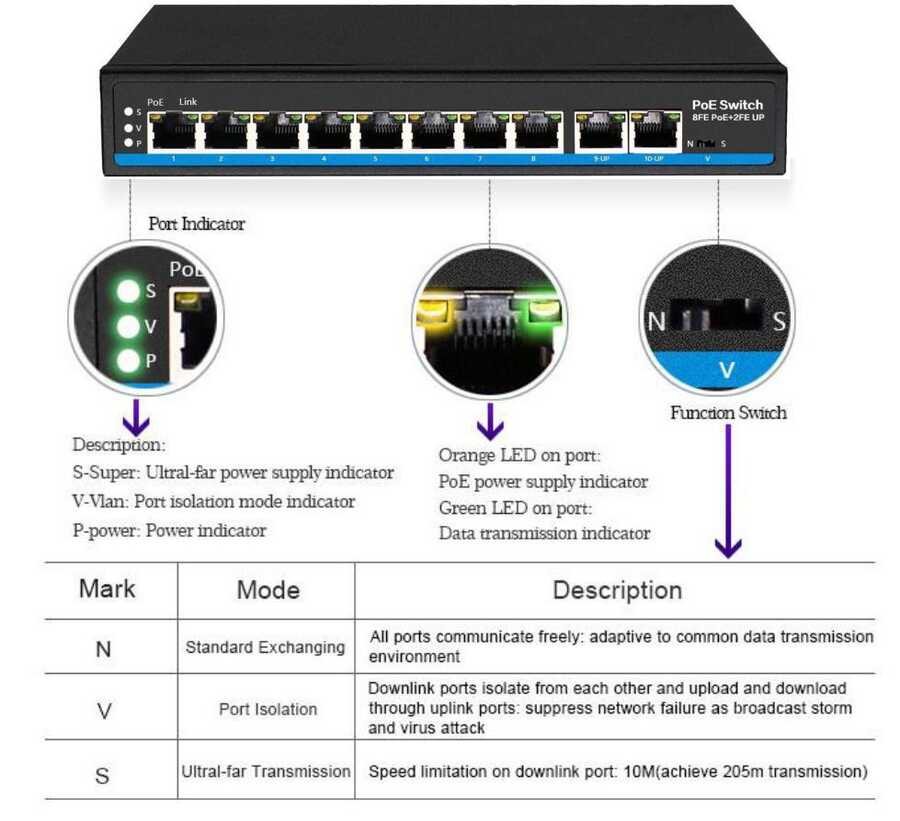

Operating Modes:



·         N---Standard Normal(all ports communicate freely and adapts to common transmission environment)

·         V---Port isolation(8 fast ethernet ports isolate from each other and suitable for using environment connected to wireless AP to suppress network storm and promote network performance.



·         S---Ultral-far mode(designed specially for long-distance application environment up to 250 meter)

Specification:

Product	8FE +2GE Uplink Port POE Switch
Model	TS6208PENTG2G
POE Port	1 to 8 support IEEE802.3AF/AT Standard
Output Power	15.4W/30W IEEE802.3af/at
Power Pin	Both 1/2+、3/6- and 4/5+7/8-
Whole Power	≤120W (52V 2.3A)
POE Protocol	IEEE 802.3af/IEEE 802.3at
Power Distance	≤250m
Network Standard	IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
Network Medium	10/100BASE-TX:5 class and above non shielded twisted pair
Data Distance	≤250m
Switch Capability	16Gbps
Forwarding Mode	Store and forward
Forwarding Rate	100Mbps:14880pps
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator	LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
Working Environment	Working temperature：-10°-- 55°C
Weight	1.3kg
Size	210mm*140mm*44mm(L*W*H)
