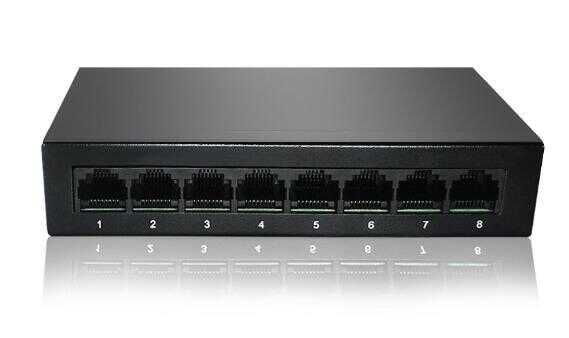

ENTEGRON ES1000ENTG8G
8 Port 10/100/1000M
Network Switch
This item is 8 port 10/100/1000Mbps unmanaged switch, offer 8 port 10/100/1000Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using storeand-forward technology, combined with dynamic memory allocation, ensure allocate to each port effectively. Its wirespeed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
Key Features:
· Complies with IEEE 802.3, IEEE 802.3u standards
· 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
· Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
· Supports MAC address auto-learning and auto-aging
· LED indicators for monitoring power, link, activity
· Plastic case, desktop
· External Power Adapter supply
· Desktop or wall-mounting design
· Plug and Play design simplifies installation
| Product Model | ES1000ENTG8G |
| Chipset | RTL8370N |
| Standards | IEEE802.3 10Base-T,IEEE802.3u 100Base-TX |
| Network Media(Cable) | 10 Base-T:UTP catagory 3,4,5 cable(maximum 100m), EIA/TIA-568 100U STP(maximum 100m),100Base-Tx, UTP catagory 5,5e cable(maximum 10m),EIA/TIA-568 100U STP (maximum 100m) |
| Switching Capacity | 16G |
| MAC Address Learning | Automatically learning,automatically Update |
| Number of ports | 8x 10/100/1000Mbps Auto-Negotiation ports |
| LED 10/100/1000 Indicators Other | Link/Actor Power |
| Dimension | 140MM*80MM*25MM |
| Environment | Operating Temperature:0°C~40°C(32°F~104°F) Storage Temperature:-40°C~70°C(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
