| Item | Details |
|---|---|

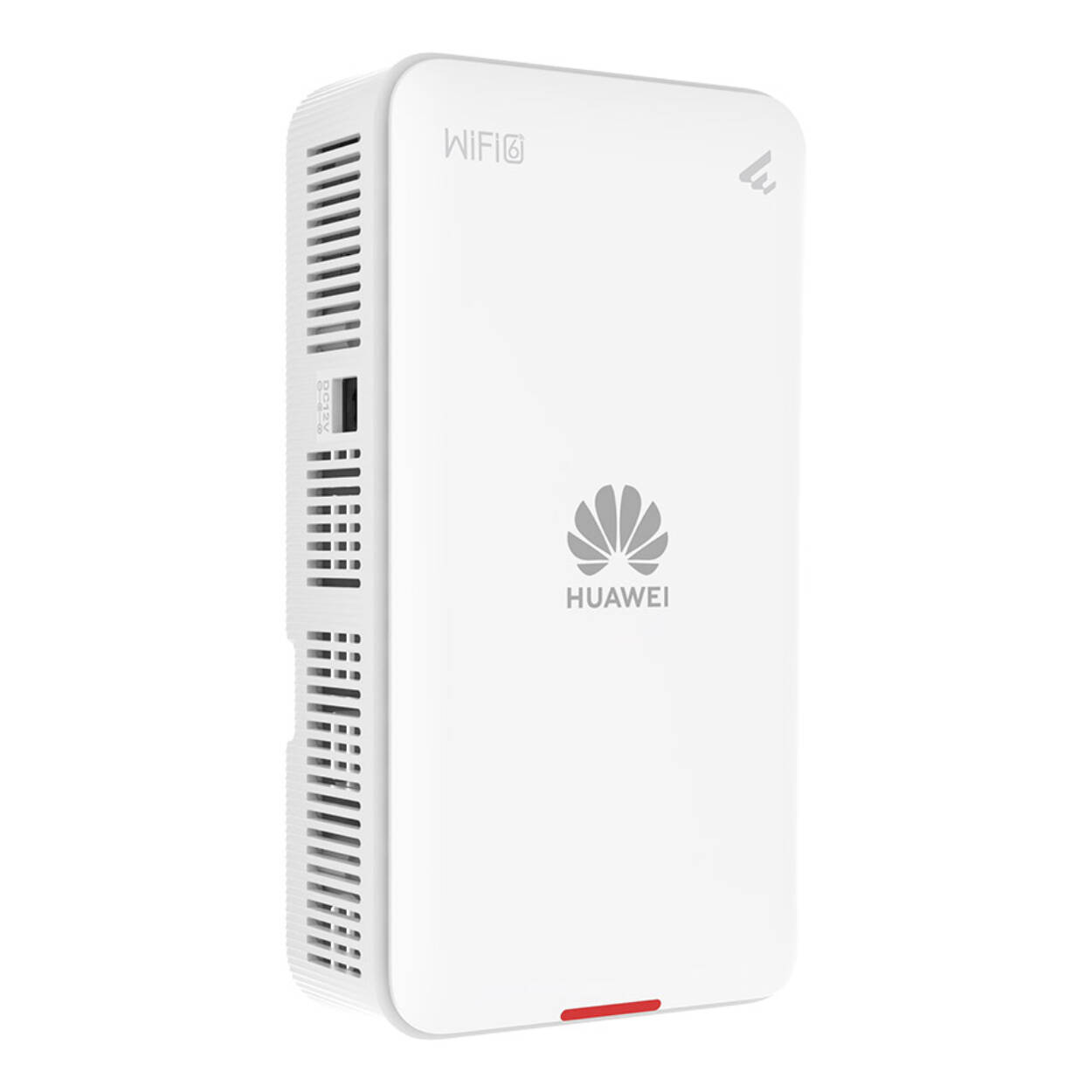

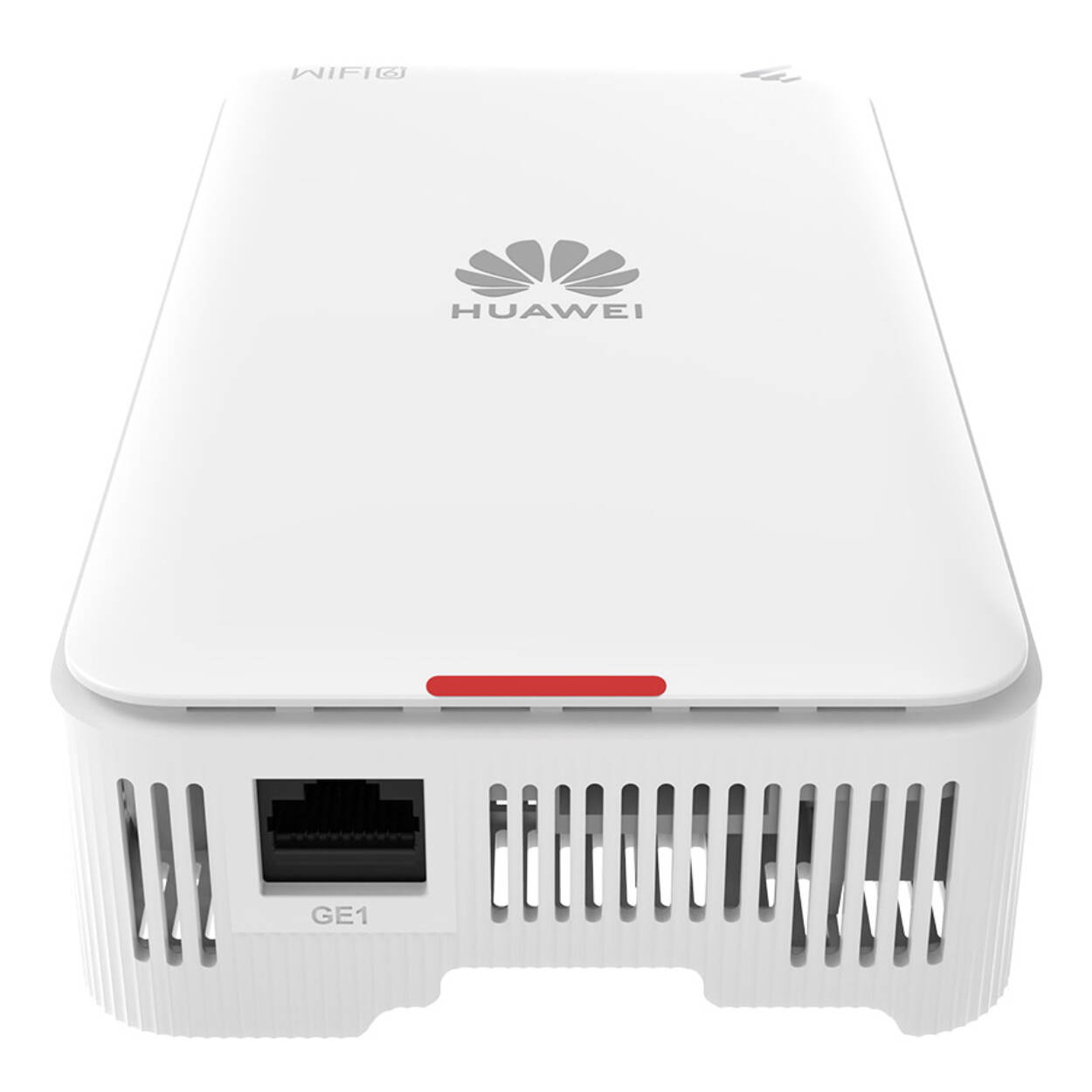

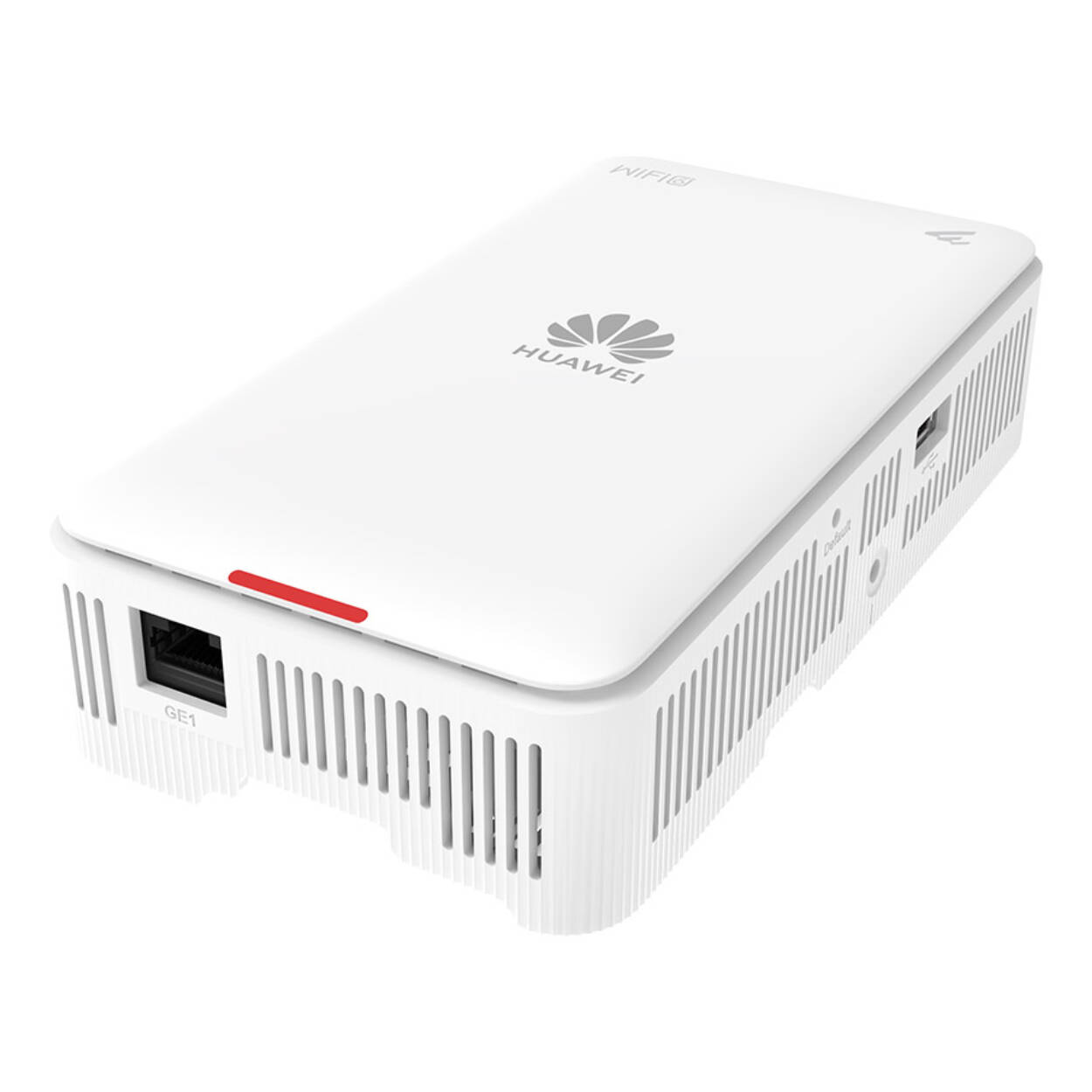

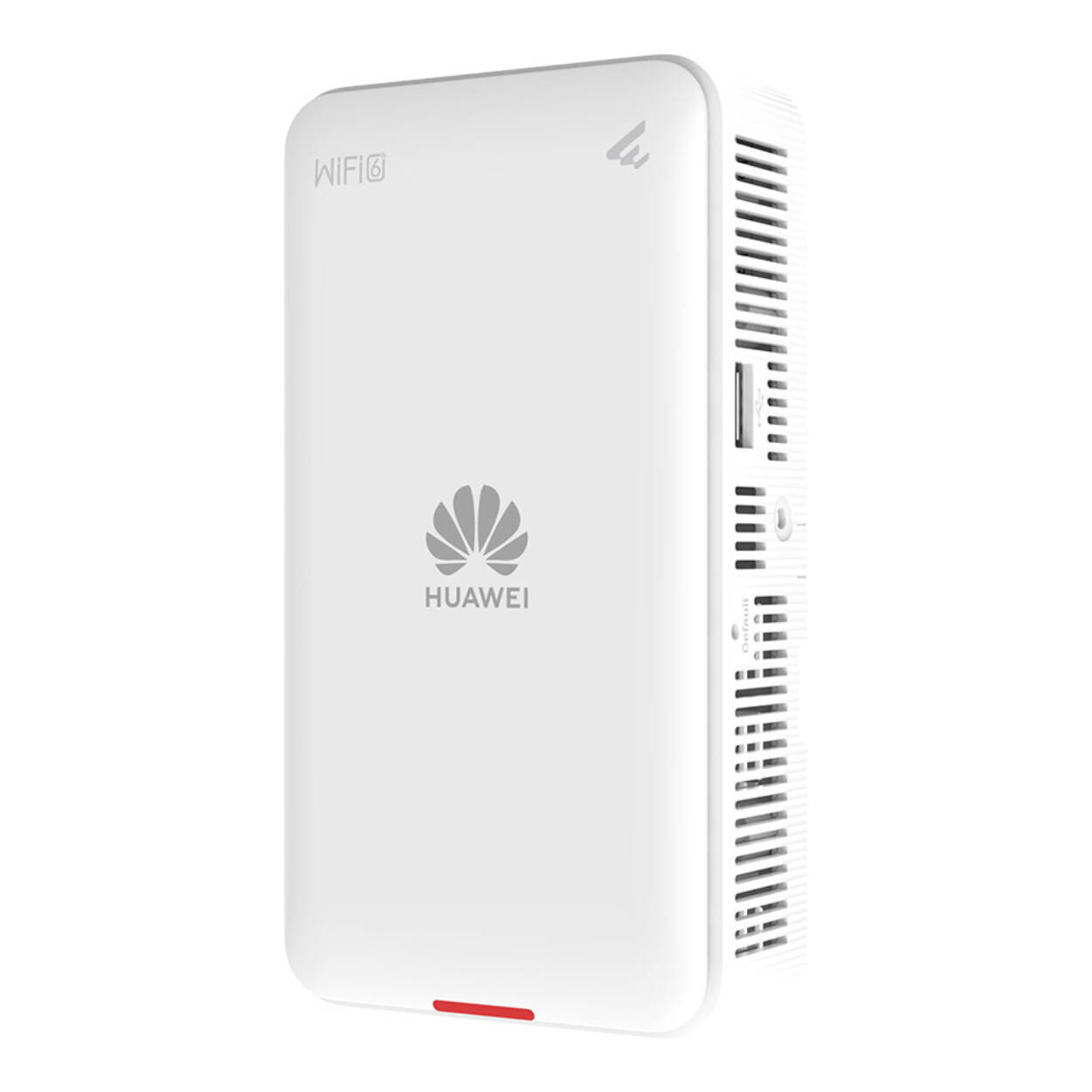

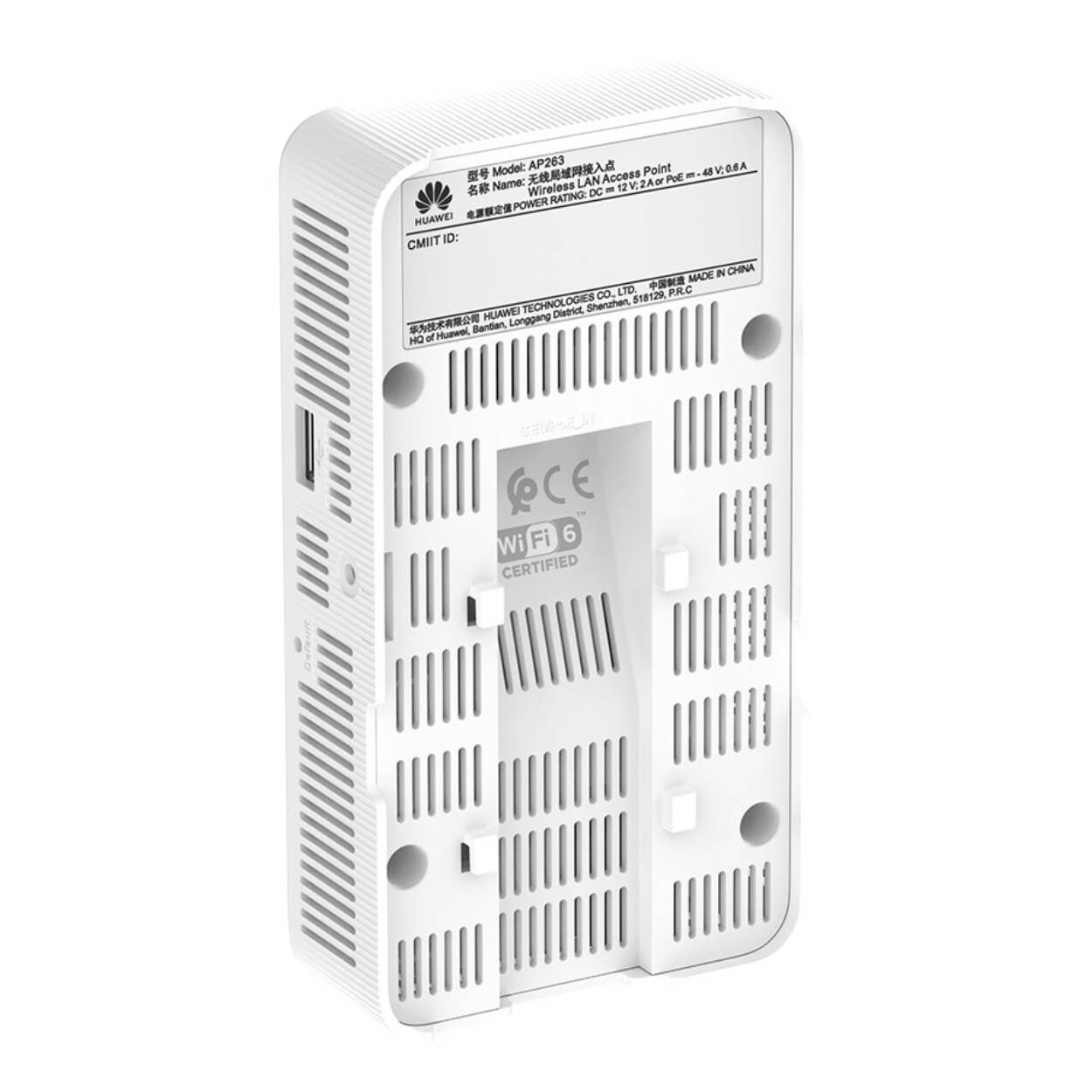

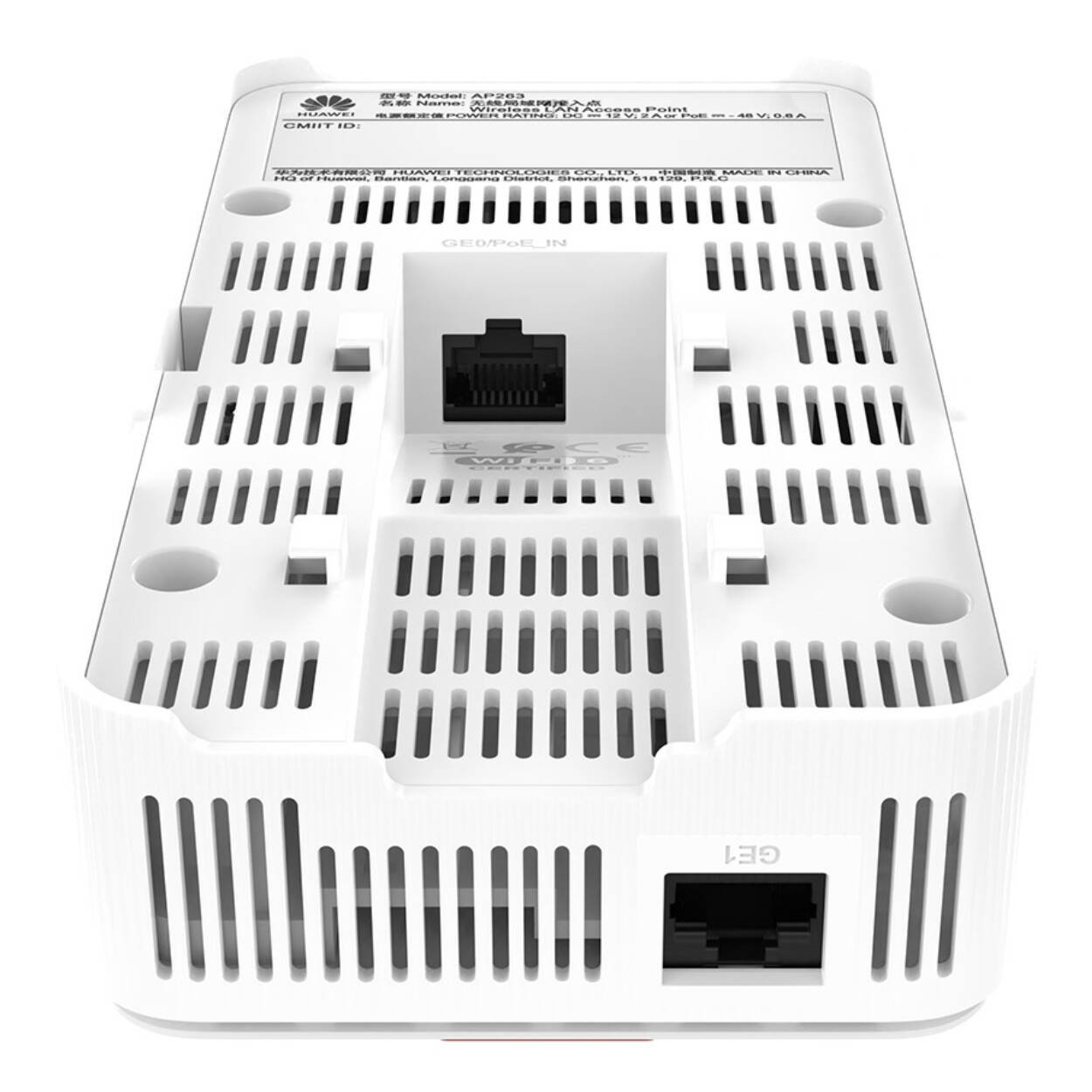

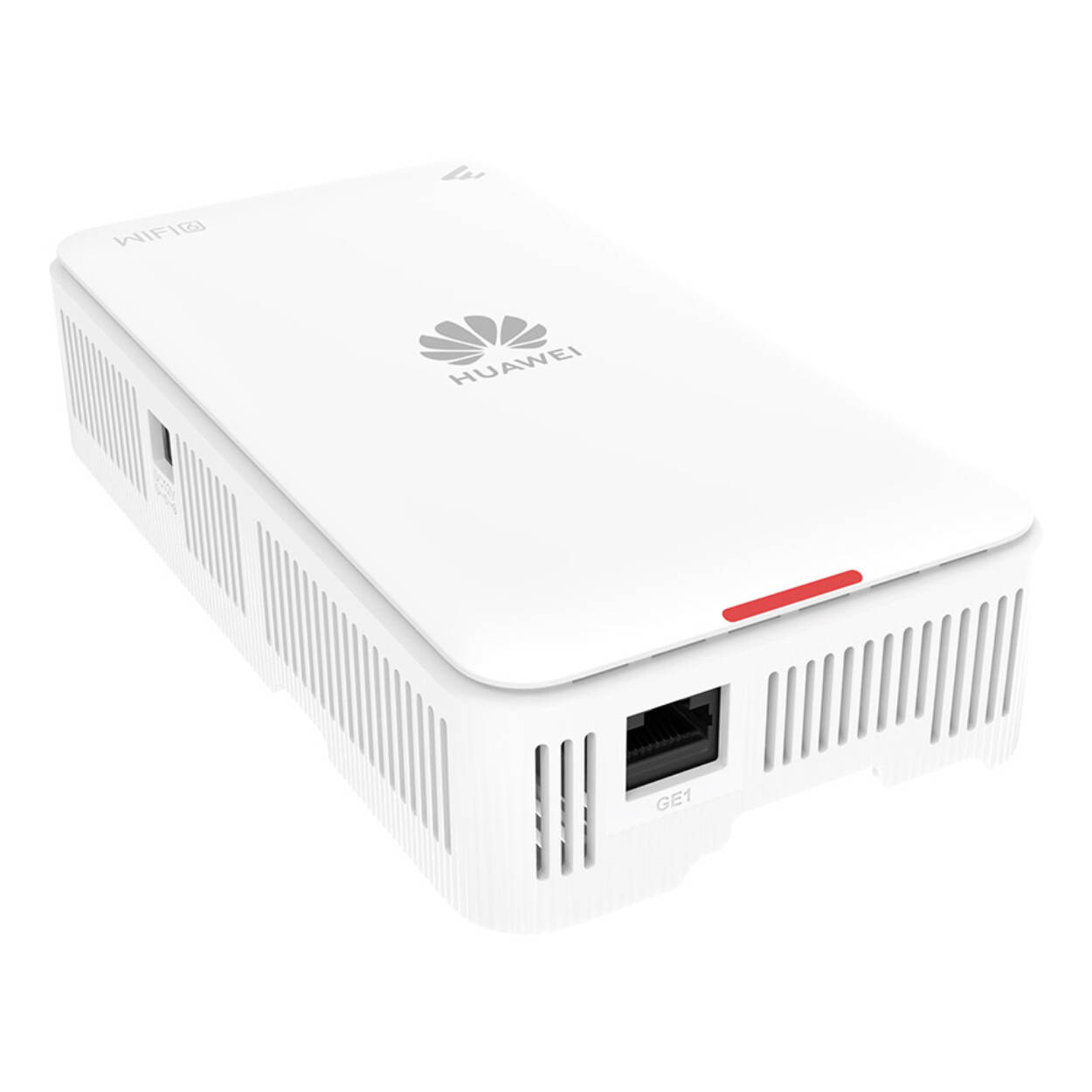

| Description | AP263(11ax indoor,2+2 dual bands,smart antenna,USB,BLE) |
| Part Number | 50084981 |
| Model | AP263 |
| First supported version | V200R021C01 |
1 | GE0/PoE_IN | 2 | GE1 |
3 | USB | 4 | DC 12V |
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| GE0/PoE_IN | RJ45 | 10/100/1000M auto-sensing Ethernet electrical port that connects to the wired Ethernet and supports PoE input. | Network cable |
| GE1 | RJ45 | Ethernet electrical port that supports 10/100/1000M auto-sensing and connects to the wired Ethernet. | Network cable |
| DC 12V | DC connector | Connects to a 12 V power adapter. | 12 V DC power adapter |
| USB | USB 2.0 Type A | Connects to an IoT terminal to implement IoT applications. | IoT module |
The indicator is located inside the panel, which turns on after the AP is powered on.
1 | Indicator | 2 | Default |
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| - | System indicator | Green | Steady on | Default status after power-on. The AP is just powered on and the software is not started yet. |
| Green | Steady on after blinking once | Software startup status. After the system is reset and starts uploading the software, the indicator blinks white once. Until the software is uploaded and started, the indicator remains steady white. | ||
| Green | Slow blinking (0.5 Hz) | The AP is running properly, the Ethernet connection is normal, and STAs are associated with the AP. This state is supported in V200R022C00 and later versions. | ||
| Green | Slow blinking (0.2 Hz) | The AP is running properly, and the Ethernet connection is normal. For V200R022C00 and later versions, this state also indicates that no STA is associated with the AP. | ||
| Green | Blinking once every 0.25s (4 Hz) | Alarm.
| ||
| Red | Steady on | Fault. A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually. |
| Silkscreen | Name | Description |
|---|---|---|
| Default | Reset button |
|
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) |
| Weight without packaging [kg(lb)] | 0.320 kg (0.705 lb) |
| Weight with packaging [kg(lb)] | 0.542 kg (1.195 lb) |
| Storage | NAND Flash 256 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 12 W |
| Maximum heat dissipation [BTU/hour] | 41 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | 12±10% PoE: 802.3at/af |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 (supporting 5 W power supply) |
| BLE | BLE5.0 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 69.7 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | The USB function is unavailable. |
| DC power supply description | No function is limited. |
