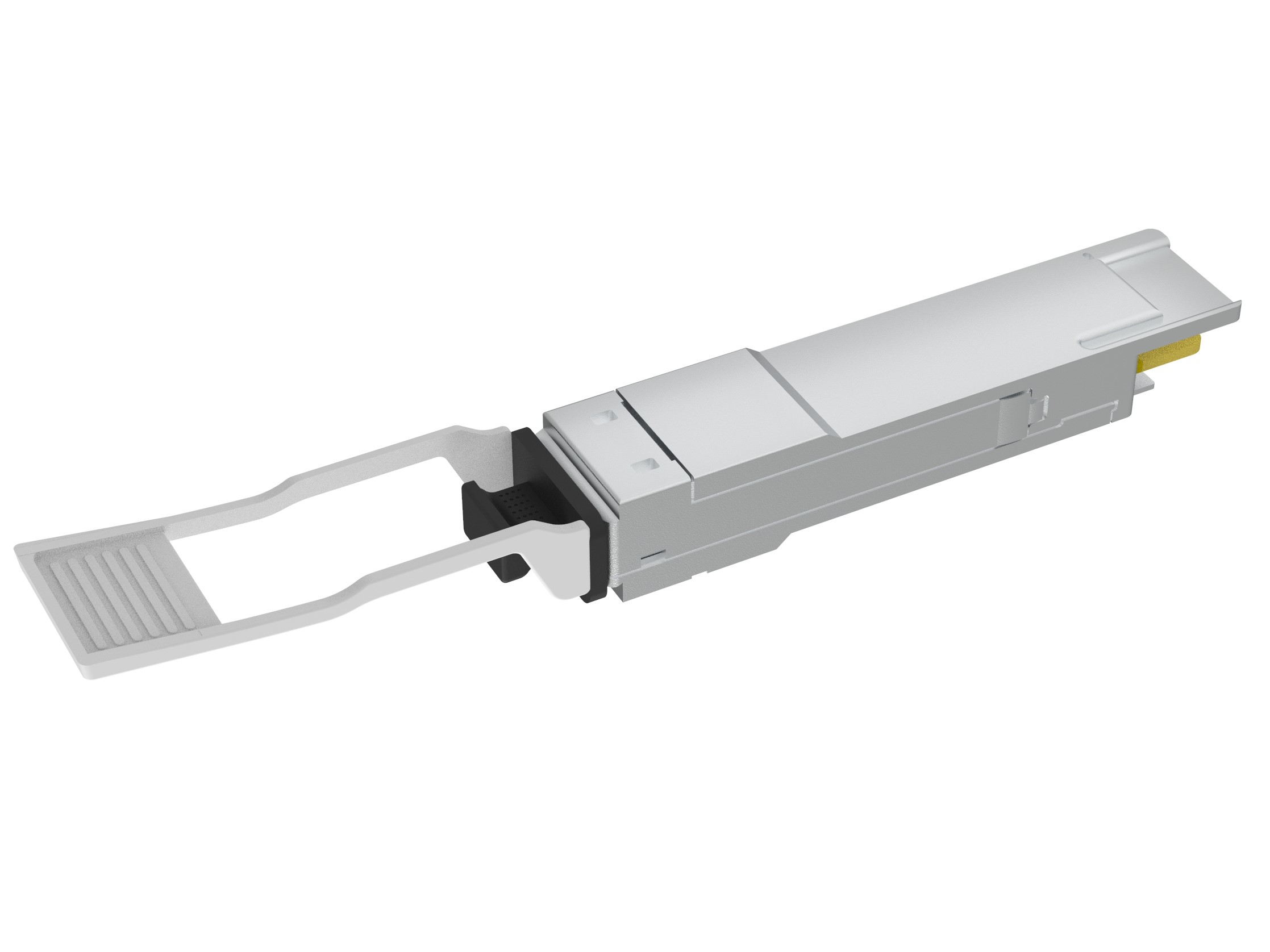

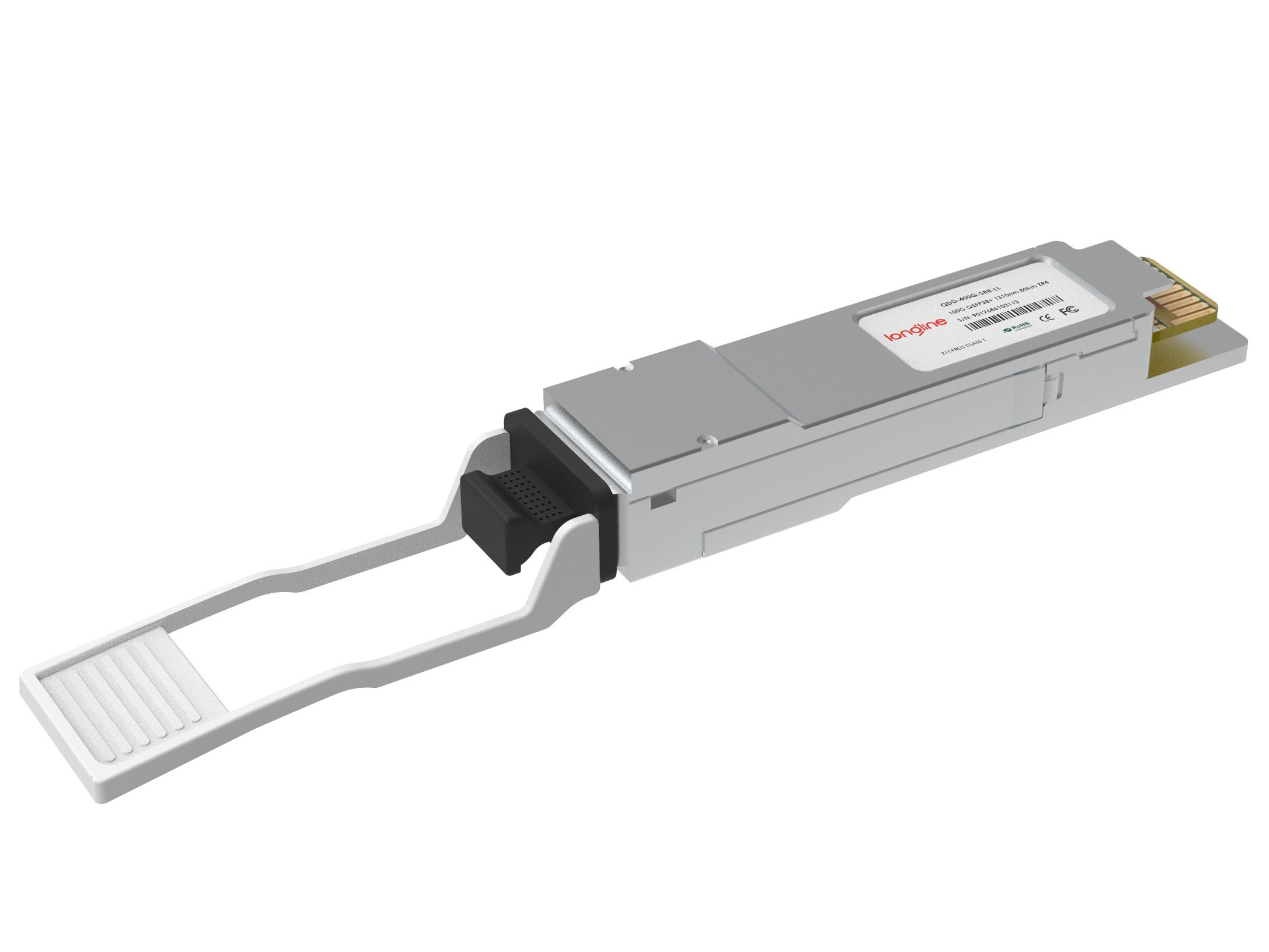

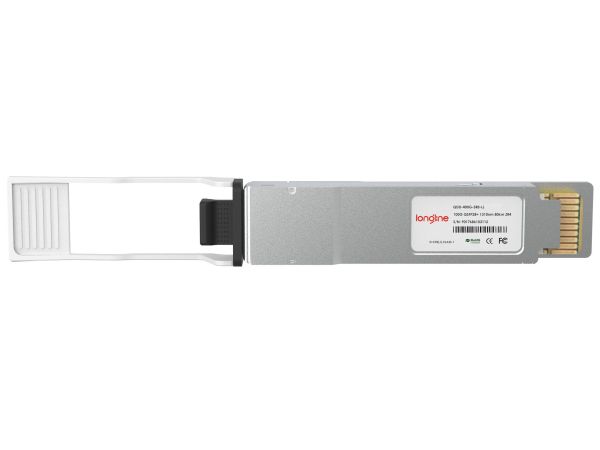

The 400GBASE-SR8 module, MTP/MPO-16 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. And it can Support 2× 200G-SR4 and 8× 50G-SR.
Specifications
Arista Networks Compatible | QDD-400G-SR8 | Vendor Name | Longline |
Form Factor | QSFP-DD | Max Data Rate | 206.24Gbps(8x 25.78Gbps) |
Wavelength | 850nm | Max Cable Distance | 100m |
Connector | MTP/MPO-16 (APC) | Media | MMF |
Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
TX Power | -6~4dBm | Receiver Sensitivity | ＜-10.3dBm |
Powerbudget | 1.9dB | Receiver Overload | 3.4dBm |
Power Consumption | ≤10W | Extinction Ratio | ＞2dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
DSP | TX and RX | Inbuilt FEC | No |
Core Size | 50/125µm | Packaging Technology | COB |
Protocols | IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0 | Warranty | 5 Years |
