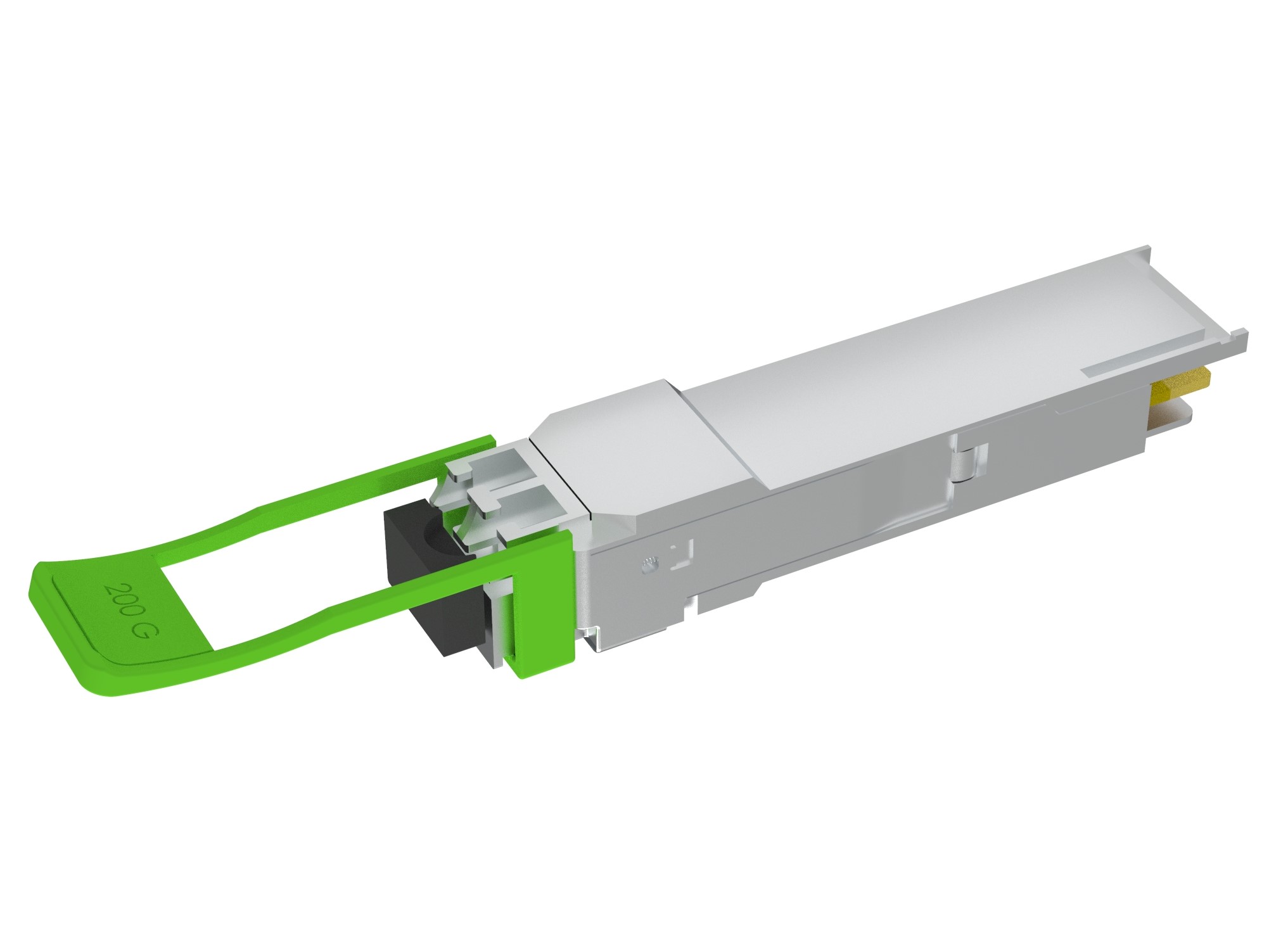

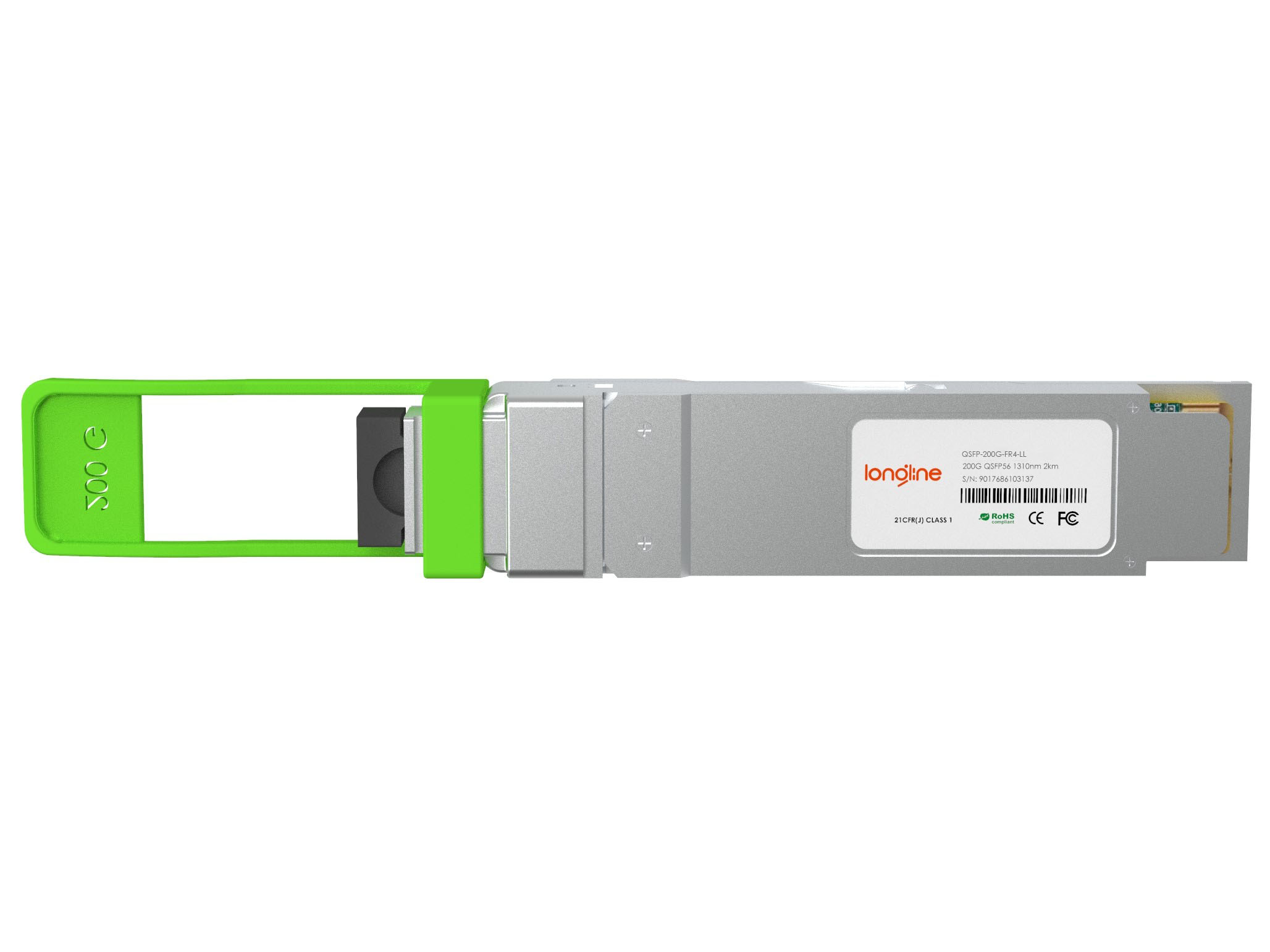

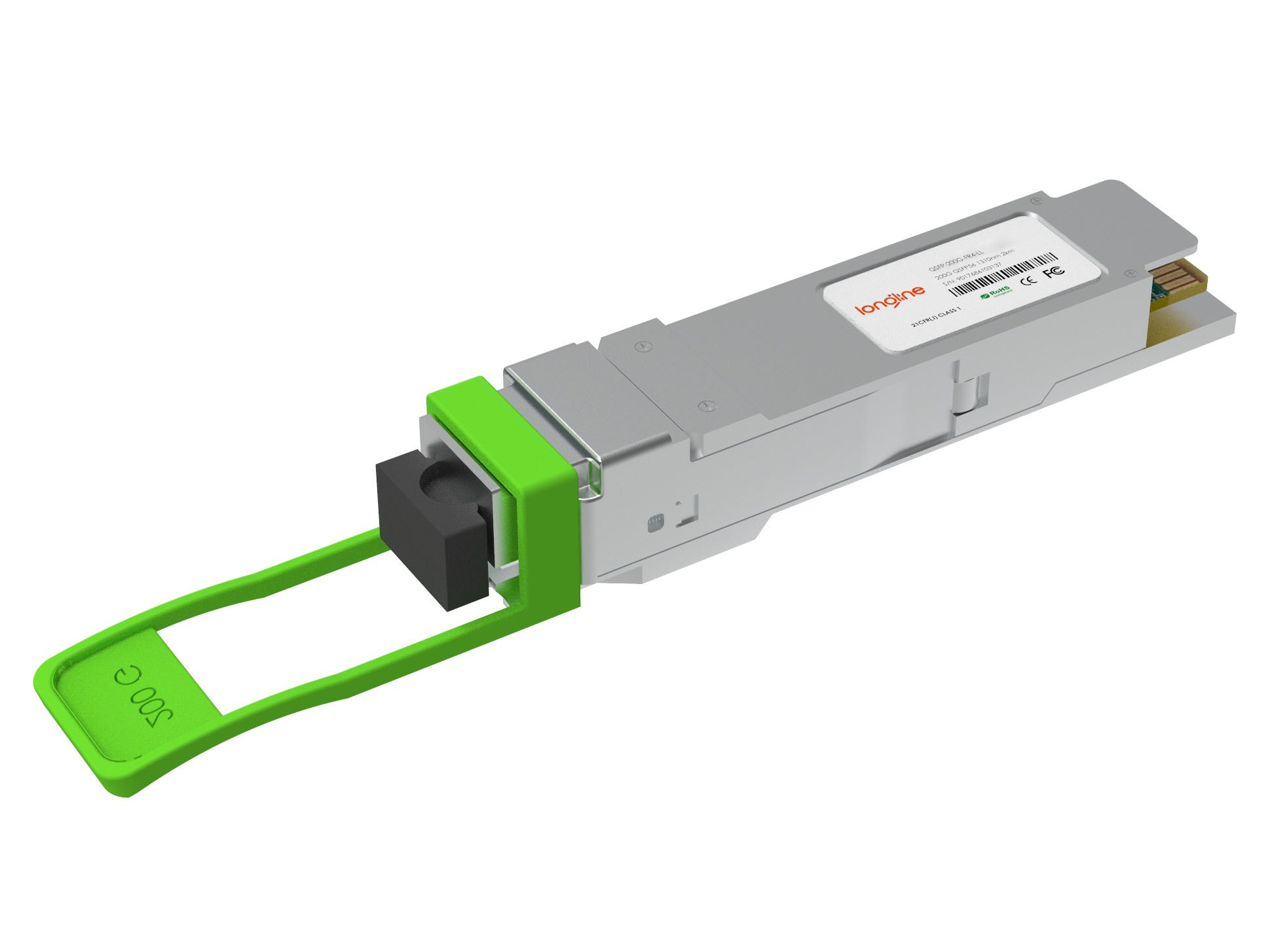

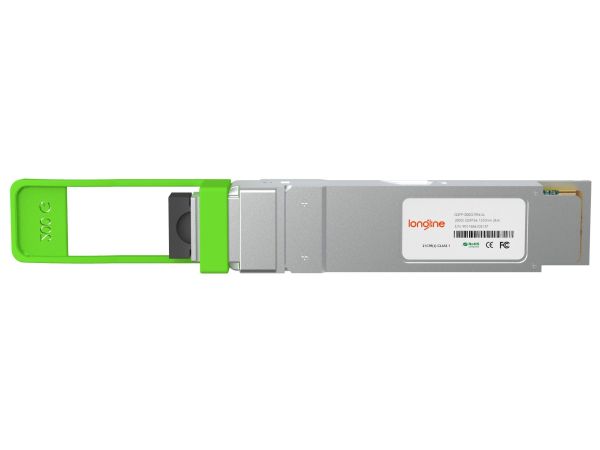

The Arista Networks QSFP-200G-FR4 Compatible QSFP56 Transceiver Module is designed for 200GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm with duplex LC connectors.
This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, Data Center, and Cloud Networks.
Specifications
Arista Compatible | QSFP-200G-FR4 | Vendor Name | Longline |
Form Factor | QSFP56 | Max Data Rate | 200Gbps (4x50Gbps) |
Wavelength | 1271nm, 1291nm, 1311nm and 1331nm | Max Cable Distance | 2km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -4.2~4.7dBm | Receiver Sensitivity | < -8.2dBm |
Powerbudget | 4dB | Receiver Overload | 4.7dBm |
Power Consumption | ≤6.5W | Extinction Ratio | >3.5dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Protocols | IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, SFF-8679 | Warranty | 5 Years |
