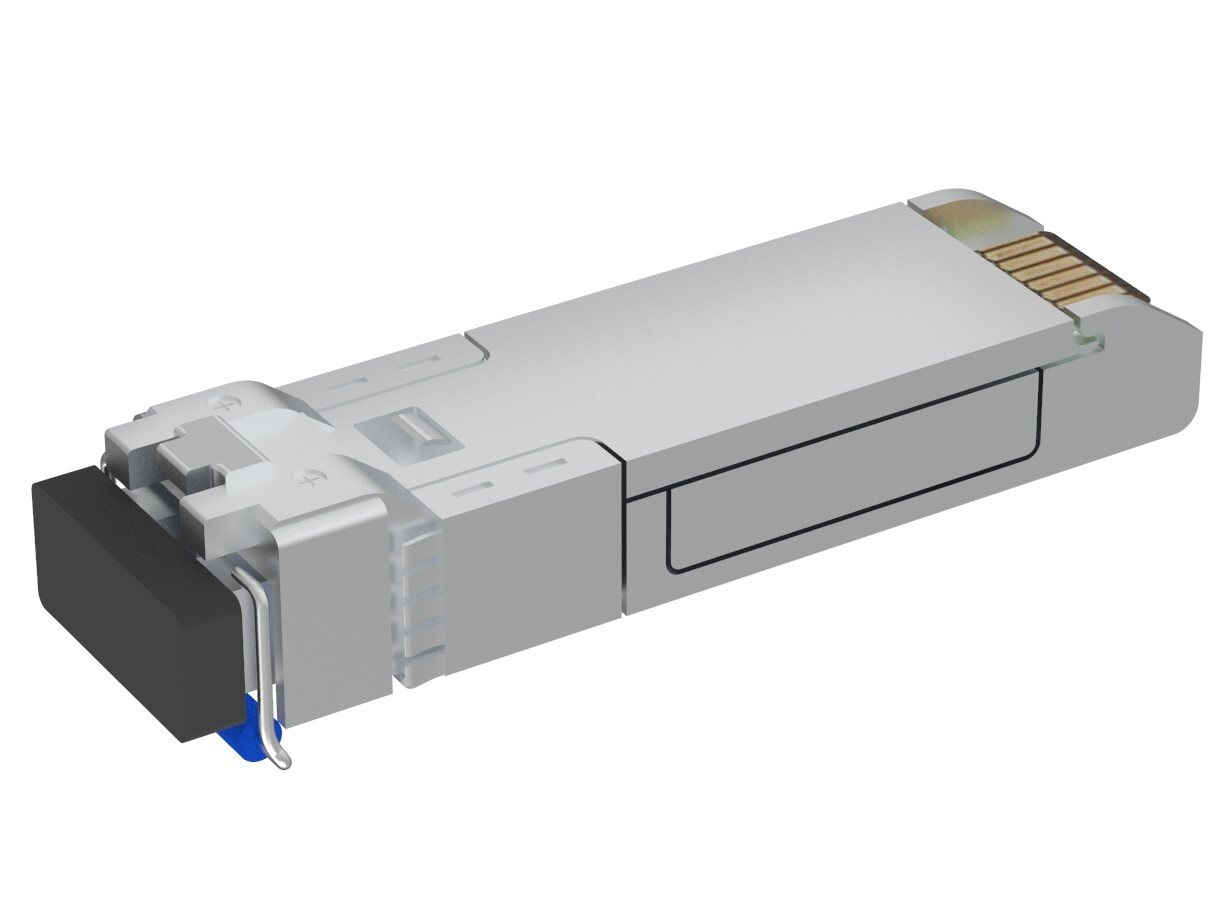

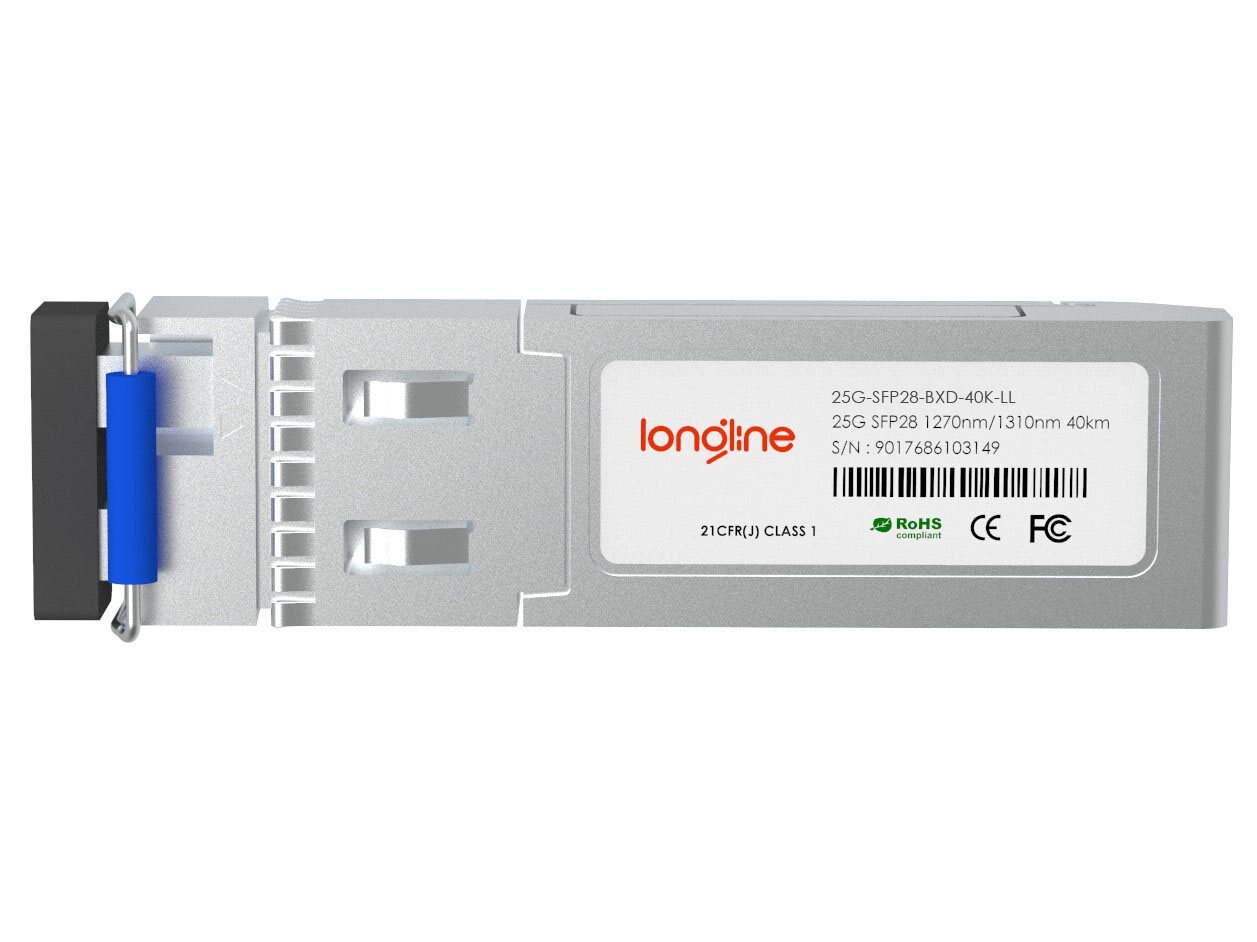

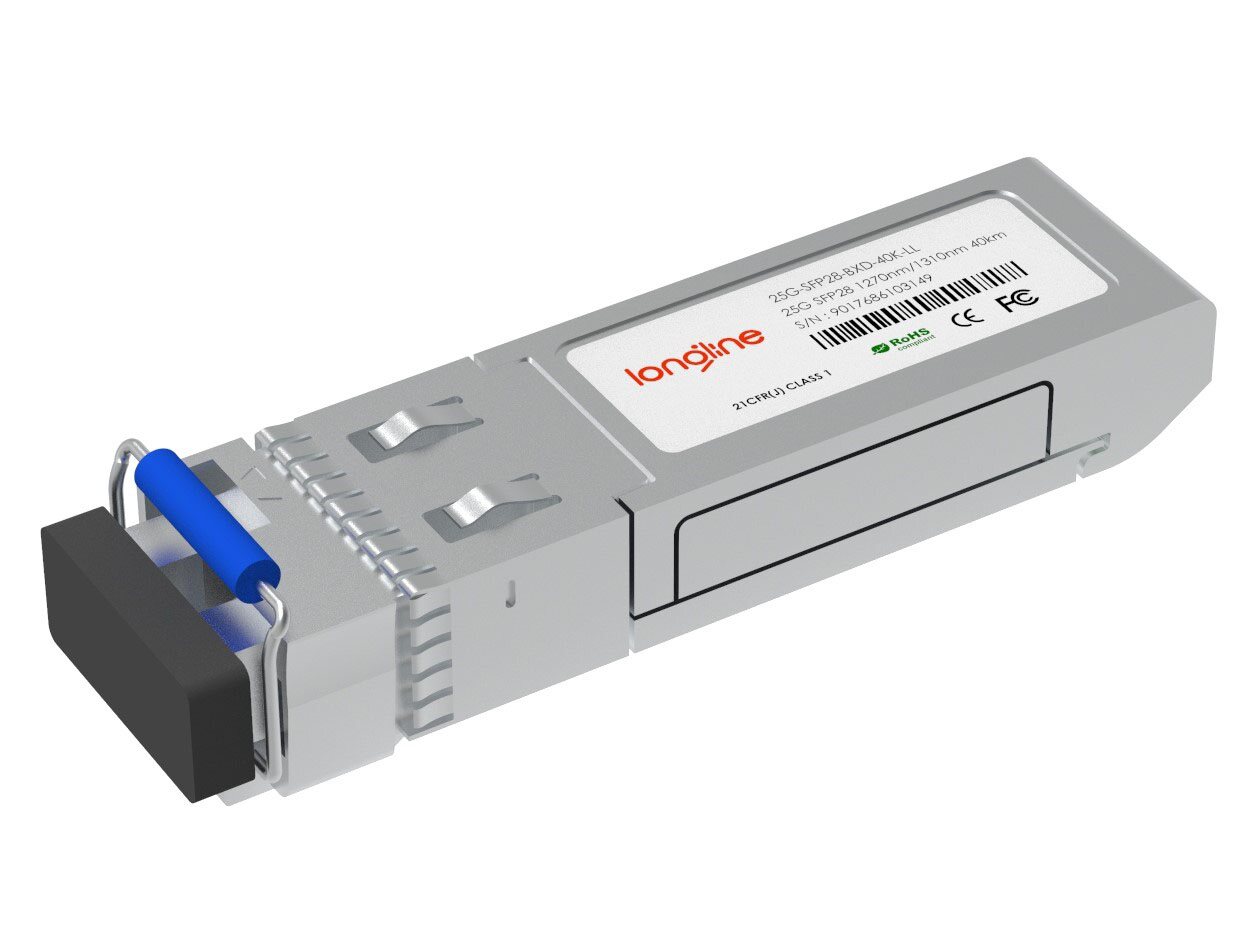

This Brocade 25G-SFP28-BXD-40K-I compatible SFP28 transceiver provides 25GBase-BX throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm-TX/1270nm-RX via an LC simplex connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Brocade Compatible | 25G-SFP28-BXD-40K | Vendor Name | Longline |
Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
Wavelength | 1310nm-TX/1270nm-RX | Max Cable Distance | 40km |
Connector | Simplex LC | Media | SMF |
Transmitter Type | DFB BiDi | Receiver Type | APD |
TX Power | 0~6dBm | Receiver Sensitivity | <-18dBm |
Powerbudget | 18dB | Receiver Overload | 2dBm |
Power Consumption | 1.2W | Extinction Ratio | 3.5dB |
CDR | TX and RX | FEC Function | Supported @ 40km, Not Supported @ 30km |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant, CPRI, eCPRI |
