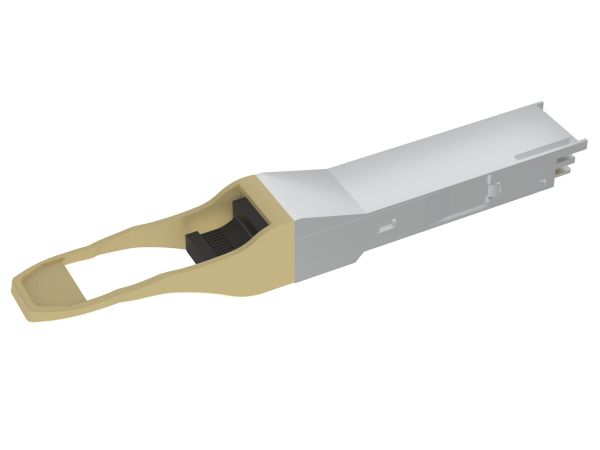

The Cisco QSFP-100G-SR4-I Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via an MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core, distribution layer and telecom applications.
Specifications
Cisco Compatible | QSFP-100G-SR4-I | Vendor Name | Longline |
Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
Connector | MTP/MPO-12 Male | Media | MMF |
Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
TX Power | -8.4~2.4dBm | RX Power | -10.3~ 2.4dBm |
Powerbudget | 1.9dB | Extinction Ratio | ＞3dB |
Typical Power Consumption | ≤2W | Modulation | 4x 25G NRZ |
DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
Core Size | 50μm/125μm | Packaging Technology | COB |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI | Warranty | 5 Years |
