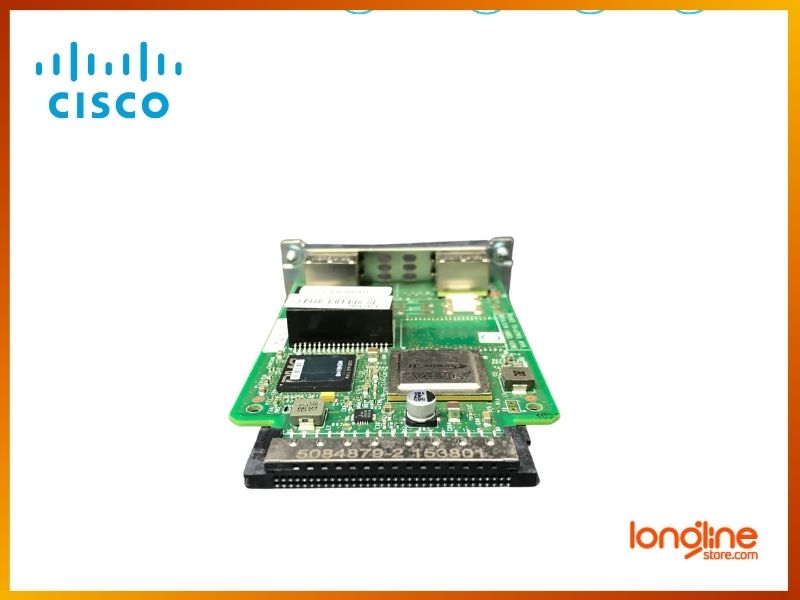

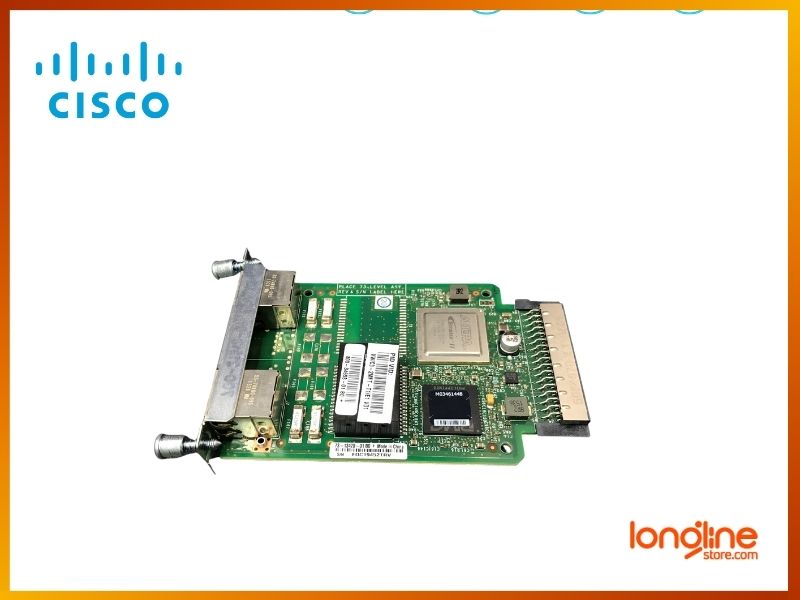

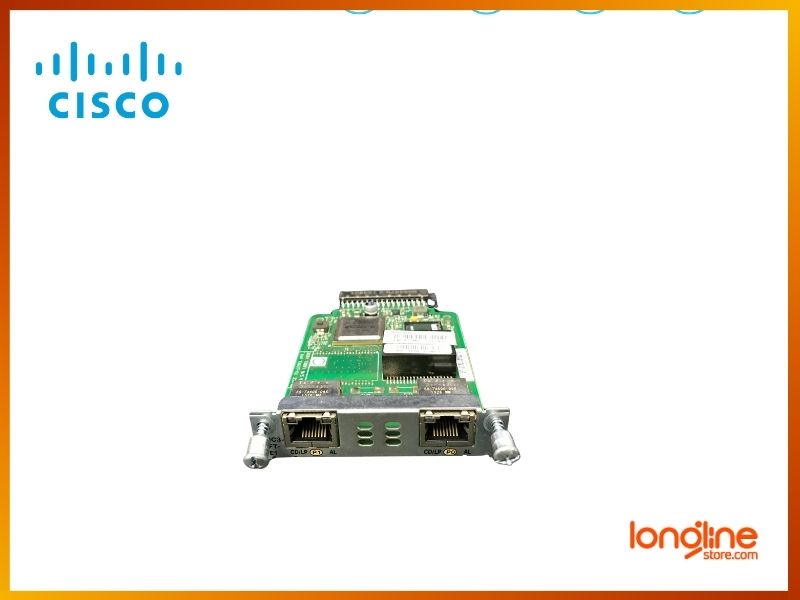

Manufacturer | Cisco |
Part Number | VWIC3-2MFT-T1/E1 |
Device Type | Interface module |
Form factor | 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card |
Specifications | |
Number of Ports | 2 |
T1 Support | Yes |
E1 Support | Yes |
Unstructured E1 (G.703) Support | No |
Data Support WIC Mode | Yes |
Voice Support VIC* | Yes |
Drop-and-Insert Multiplexing | Yes |
Configuration Comparison | |
Serial Data (channel-group*) | 2 total |
Voice CAS (ds0-group**) | 48 total (T1) |
PRI (pri-group***) | 2 total |
Drop & Insert (tdm-group****) | 48 total (T1) |
Network Management Features | |
Telnet or Console | Remote and local configuration, monitoring, and troubleshooting from Cisco IOS Software CLI |
Simple Network Management Protocol (SNMP) | • Router and DSU/CSU managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user • Standard MIB (MIB II) • Cisco Integrated DSU/CSU MIB |
