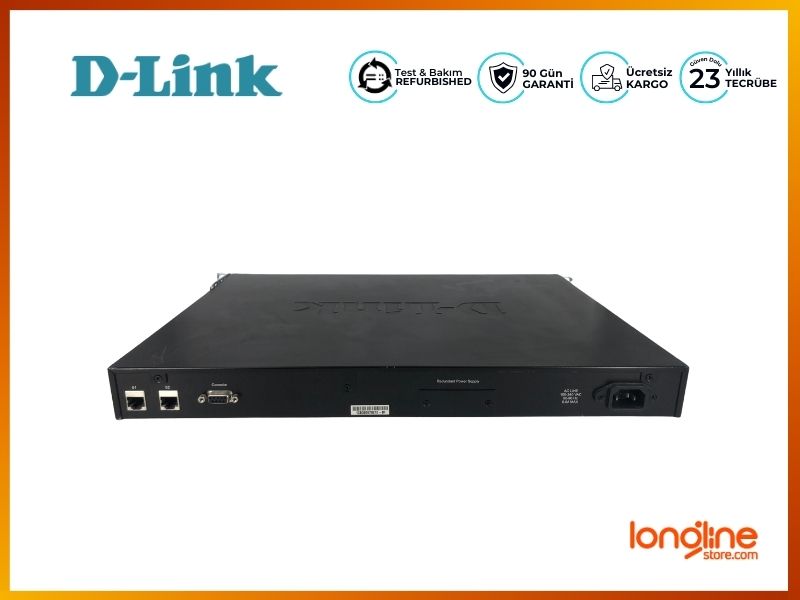

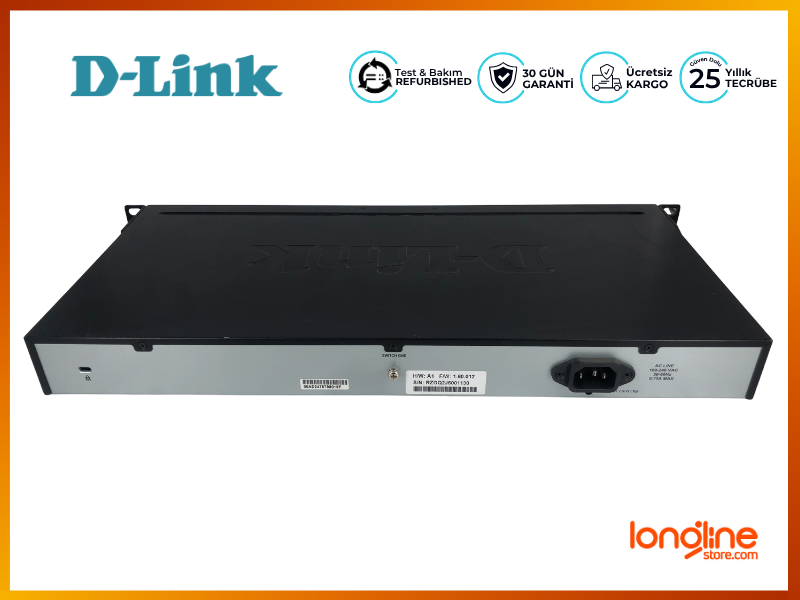

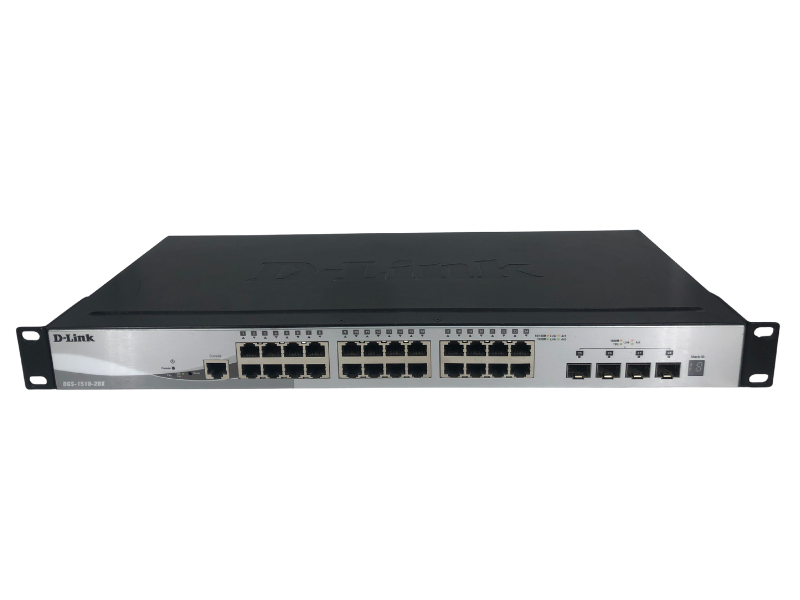

D-LINK DGS-1510-28X 24P 10/100/1000Mbps + 4 10Gp SmartPro Switch

DGS-1510-28X Specification

1000Base-T Interface

24

10G SFP+ Interface

4

Auto MDI/MDIX

Yes

Console Port

Yes

10/100/1000BASE-T ports

24

10G SFP+ ports

4

Max. Packet Forwarding Rate

95.24 Mpps

Switch Capacity

128 Gbps

Dimension

440mm x 210mm x 44mm

Operation Temperature

-5 -50°C

Storage Temperature

-20-70°C

Operation Humidity

0% ~ 95% RH

Storage Humidity

0% ~ 95% RH

Maximum Power Consumption

22.3 W

Standby Power Consumption

14.6 W/100V, 15.2 W/240V

Maximum Heat Dissipation

76.04 BTU/hr

Acoustic

42.7 dB(A)

MTBF

516,593 hours

Power Input

100 - 240 VAC

CPU Speed

400MHz

DRAM Size

256MB

Flash Memory Size

32MB

Packet Buffer Size

1.5MB

FAN

1 DC Fan

Comply witd RoHS 6

Yes

Energy Efficiency Etdernet (EEE)

Yes

Power Saving By Link Status

Yes

Power Saving By LED Shut-Off

Yes

Power Saving By Port Shut-Off

Yes

Power Saving By System Hibernation

Yes

Physical Stacking

Yes

Physical Stacking Bandwidtd

40 G

Units Per Physical Stack

6

D-Link Single IP Management (SIM)

Yes

Units Per SIM Stack

32

MAC Address Table Size

16384

Black Hole MAC Address

Yes

802.3x Flow Control

Yes

Head-of-line (HOL) Blocking Prevention

Yes

802.1D Spanning Tree (STP)

Yes

802.1w Rapid Spanning Tree (RSTP)

Yes

802.1s Multiple Spanning Tree (MSTP)

Yes

Root Restriction

Yes

G.8032 ERPS

Yes

802.1AX Link Aggregation

Yes

Link Aggregation Group Per Device

32

802.3ad Link Aggregation

Yes

Max Port Per Link Aggregation Group

8

Port Mirroring

Yes

Flow-based (ACL) mirroring

Yes

Jumbo Frame

9216

Loopback Detection (LBD)

Yes

IGMP Snooping

Yes

Max IGMP Snooping Groups

512

IGMP Snooping Fast Leave

Yes

IGMP Proxy Reporting

Yes

MLD Snooping

Yes

MLD Snooping Groups

Yes

MLD Snooping Fast Leave

Yes

MLD Proxy Reporting

Yes

802.1Q VLAN

Yes

VLAN Groups

4094

Port-based VLAN

Yes

802.1v Protocol-based VLAN

Yes

Voice VLAN

Yes

MAC-based VLAN

Yes

Auto Surveillance VLAN

Yes, 2.1

GVRP

Yes

Asymmetric VLAN

Yes

IP Interface

Yes

Max Number of IP Interface

16

ARP

Yes

ARP Entries

512

Gratuitous ARP

Yes

ND Entries

Yes

UDP Helper

Yes

Default Route

Yes

Static Route

Yes

Number of Queue

8

Class of Service (CoS)

Yes

Remark 802.1p priority

Yes

Remark ToS/DSCP

Yes

Rate Limiting

Yes

Queue Handling

Yes

Strict Priority Queue (SPQ)

Yes

Weighted Round Robin (WRR)

Yes

Deficit Round Robin (DRR)

Yes

SPQ + WRR

Yes

Port-based Bandwidtd Control

Yes

Max Access Control List (ACL) Entries

Yes

MAC Access List

Yes

IP Access List

Yes

IPv6 Access List

Yes

Time based ACL

Yes

SSH

Yes

SSL

Yes

Port Security

Yes

Broadcast/Multicast/Unicast Storm Control

Yes

Traffic Segmentation

Yes

IP Source Guard

Yes

DHCP Snooping

Yes

IPv6 Snooping

Yes

Dynamic ARP Inspection (DAI)

Yes

DHCPv6 Guard

Yes

IPv6 Route Advertisement (RA) Guard

Yes

IPv6 ND Inspection

Yes

Duplicate Address Detection (DAD)

Yes

D-Link Safeguard Engine

Yes

DHCP Server Screening

Yes

ARP Spoofing Prevention

Yes

BPDU Attack Protection

Yes

DoS Attack Prevention

Yes

802.1X

Yes

Port based 802.1X Autdentication

Yes

Host based 802.1X Autdentication

Yes

Identity Driven 802.1X Policy Assignment

Yes

Web-based Access Control (WAC)

Yes

Port based WAC Autdentication

Yes

Host based WAC Autdentication

Yes

Identity Driven WAC Policy Assignment

Yes

Japanese Web-based Access Control (JWAC)

Yes

Host based JWAC Autdentication

Yes

Port based JWAC Autdentication

Yes

Identity Driven JWAC Policy Assignment

Yes

Port based MAC Autdentication

Yes

MAC-based Access Control (MAC)

Yes

Host based MAC Autdentication

Yes

Identity Driven MAC Policy Assignment

Yes

Compound Autdentication

Yes

Guest VLAN

Yes

Autdentication for Management Access

Yes

Privilege Level for Management Access

5

RADIUS

Yes

RADIUS Accounting

Yes

TACACS+

Yes

TACACS+ Accounting

Yes

Cable Diagnostics

Yes

Optical Transceiver Digital Diagnostic Monitoring (DDM)

Yes

Network Time Protocol (NTP)

Yes

Simple Network Time Protocol (SNTP)

Yes

Command Line Interface (CLI)

Yes

Web-based GUI

Yes

Telnet Server

Yes

Telnet Client

Yes

SNMP

Yes

TFTP Client

Yes

SNMP Trap

Yes

ZModem

Yes

RMONv1

Yes

System Log

Yes

LLDP

Yes

D-Link Discover Protocol (DDP)

Yes (v0.25)

LLDP-MED

Yes

DHCP/BootP Client

Yes

DHCP Auto-configuration

Yes

Flash file system

Yes

DHCP relay

Yes

Multiple Images

Yes

Multiple Configurations

Yes

Editable System Prompt

Yes

Editable Login Banner

Yes

DNS Client

Yes

Password Encryption

Yes

Debug Command

Yes

Ping

Yes

sFlow

Yes

Traceroute

Yes

D-Link Network Assistant

Yes

Smart Wizard

Yes

SSH

Yes

SSL

Yes

Store-and-Forwarding

Yes
