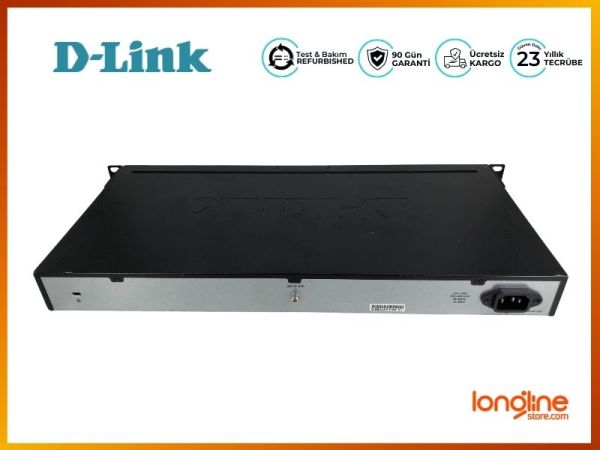

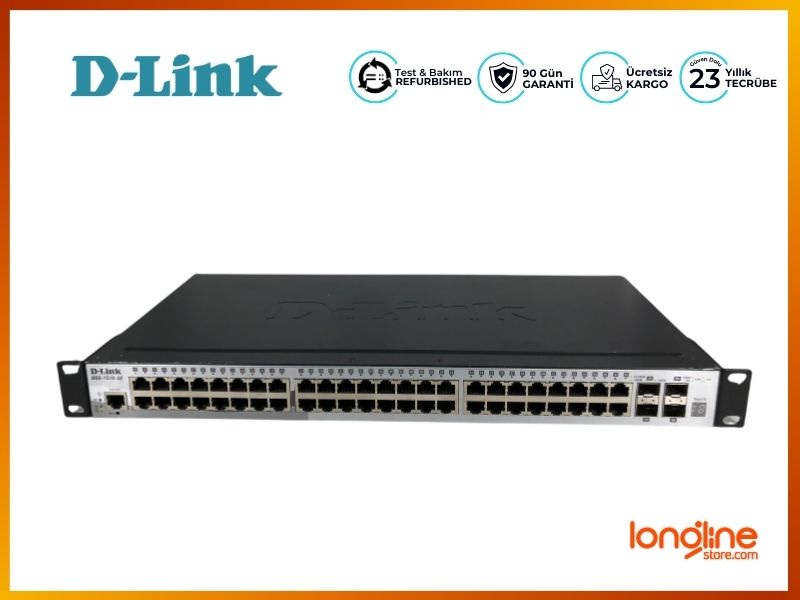

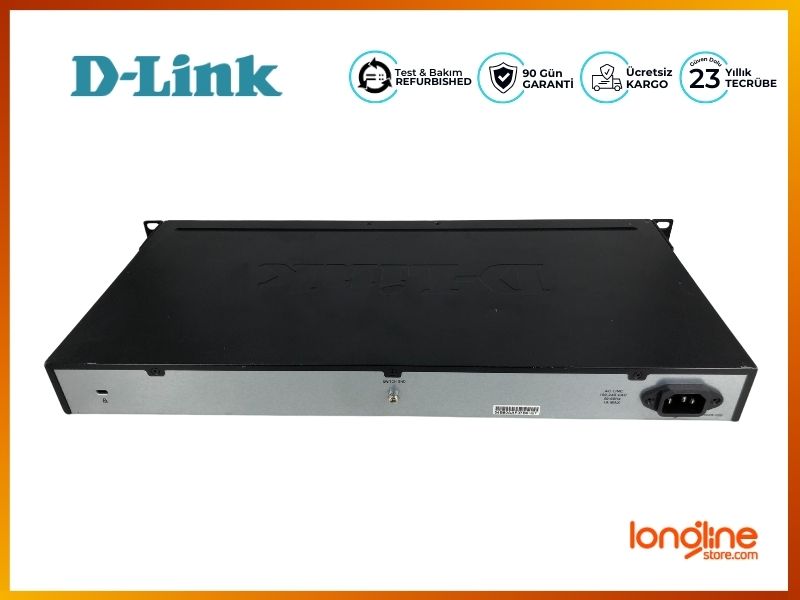

D-Link DGS-1510-52 52x Gigabit SmartPro Switch with 10G Uplinks

Software Features

Stackability
 • Virtual Stacking Support
     • D-Link Single IP Management
     • Up to 32 devices per virtual stack
     • Up to 20G stacking bandwidth
 • Physical Stacking
     • Supports Duplex Chain/Ring topology
     • Up to 40G stacking bandwidth full duplex
     • Up to 6 units per stack

L2 Features
 • MAC Address Table: 16K
 • Flow Control
     • 802.3x Flow Control
     • HOL Blocking Prevention
 • Jumbo Frame up to 9000 Bytes
 • IGMP Snooping
     • IGMP v1/v2/v3 Snooping
     • IGMP v3 awareness
     • Supports 512 IGMP groups
     • Supports 128 static multicast addresses
     • IGMP per VLAN
     • Supports IGMP Snooping Querier
     • Host-based IGMP Snooping Fast Leave
 • MLD Snooping
     • Supports MLD v1/v2 awareness
     • Supports 512 groups
     • Supports 128 Static Multicast Addresses
     • Per VLAN MLD Snooping
     • Host-based MLD Fast Leave
     • MLD Snooping Querier
 • Spanning Tree Protocol
     • 802.1D STP
     • 802.1w RSTP
     • 802.1s MSTP
 • Loopback Detection
 • 802.3ad Link Aggregation
     • Max. 32 groups per device/8 ports per group
 • Port Mirroring
     • Support 4 mirroring groups
     • One-to-One, Many-to-One
     • Supports Mirroring for Tx/Rx/Both
 • Multicast Filtering
     • Forwards all unregistered groups
     • Filters all unregistered groups
 • LLDP, LLDP-MED

VLAN

• 802.1Q Tagged VLAN
• 4K VLAN Groups
• Configurable VID: 0~4094
• MAC-based VLAN
• Asymmetric VLAN
• ISM VLAN
• Auto Voice VLAN
• Auto Surveillance VLAN

Quality of Service (QoS)
 • 802.1p Quality of Service
 • Queue Handling
     • Strict
     • Weighted Round Robin (WRR)
 • 8 queues per port
 • Bandwidth Control
     • Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)
 • CoS based on
     • 802.1p priority
     • VLAN
     • MAC address
     • Ether type
     • IP address
     • DSCP
     • Protocol type
     • TCP/UDP port number
     • DSCP of IPv6 Traffic Class
     • IPv6 flow label

L3 Features
 • ARP
     • 256 Static ARP
     • Supports Gratuitous ARP
 • IPv6 Neighbour Discovery (ND)
 • Default Routing
 • Static Routing
     • 64 IPv4 Static Route Entries
     • 32 IPv6 Static Route Entries

Access Control List (ACL)
 • ACL based on
     • 802.1p priority
     • VLAN
     • MAC address
     • Ether type
     • IP address
     • DSCP
     • Protocol type
     • TCP/UDP port number
     • DSCP of IPv6 Traffic Class
     • IPv6 flow label
 • ACL Actions
     • Permit
     • Deny
 • Max. 256 access list
 • Max. 768 rules
 • Single or multiple ports (each rule)
 • Time-based ACL
 • ACL Statistics
