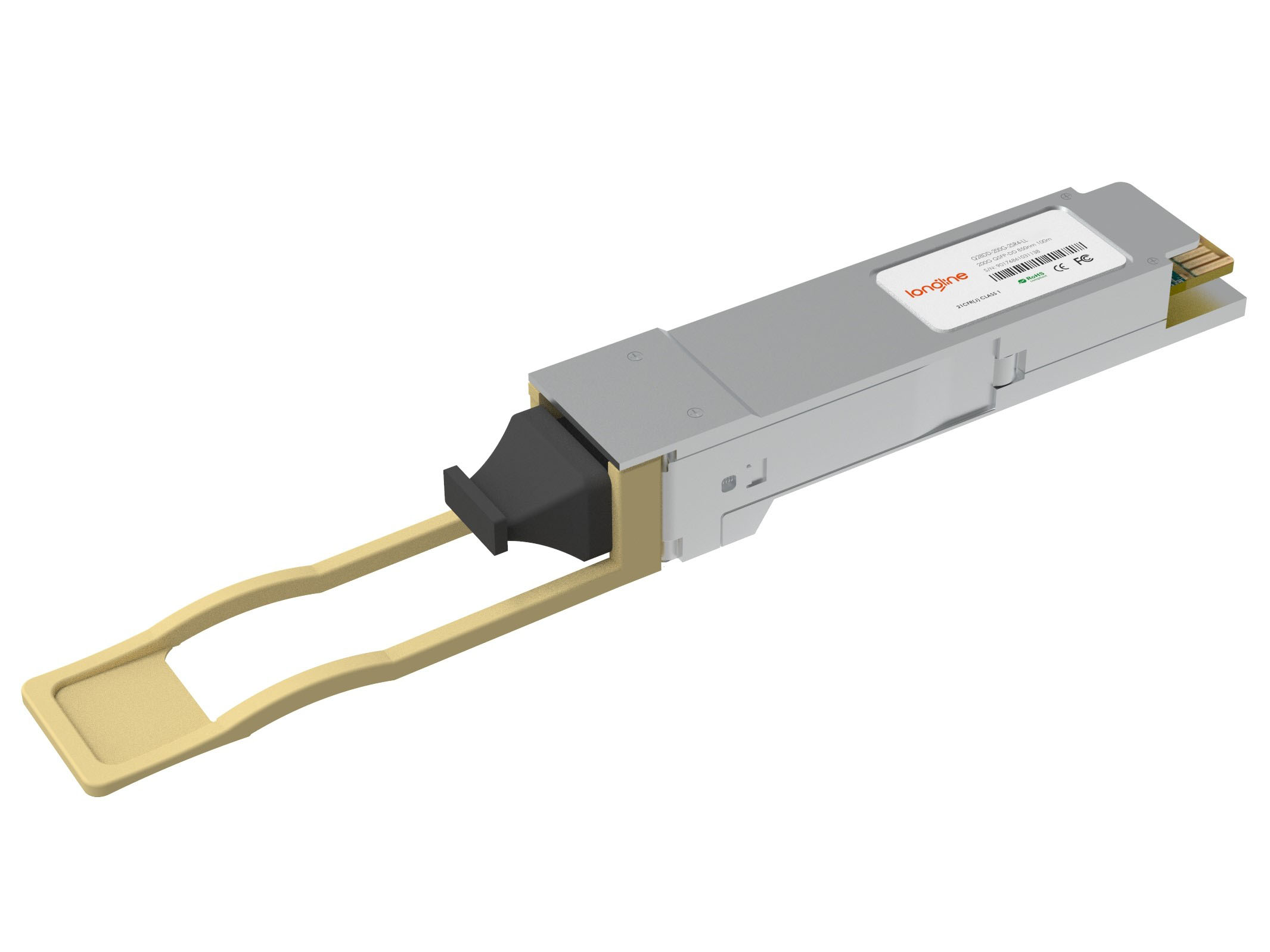

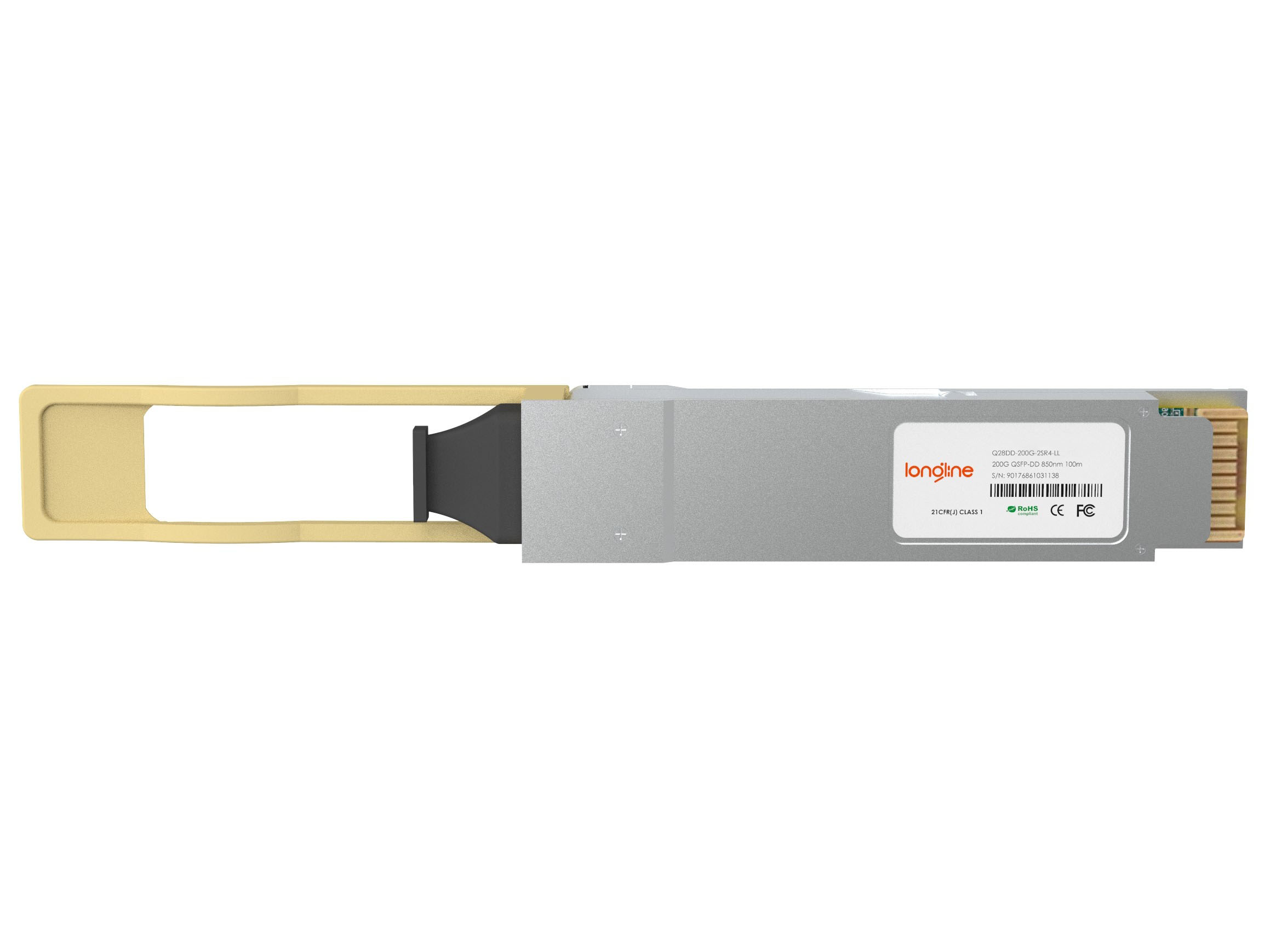

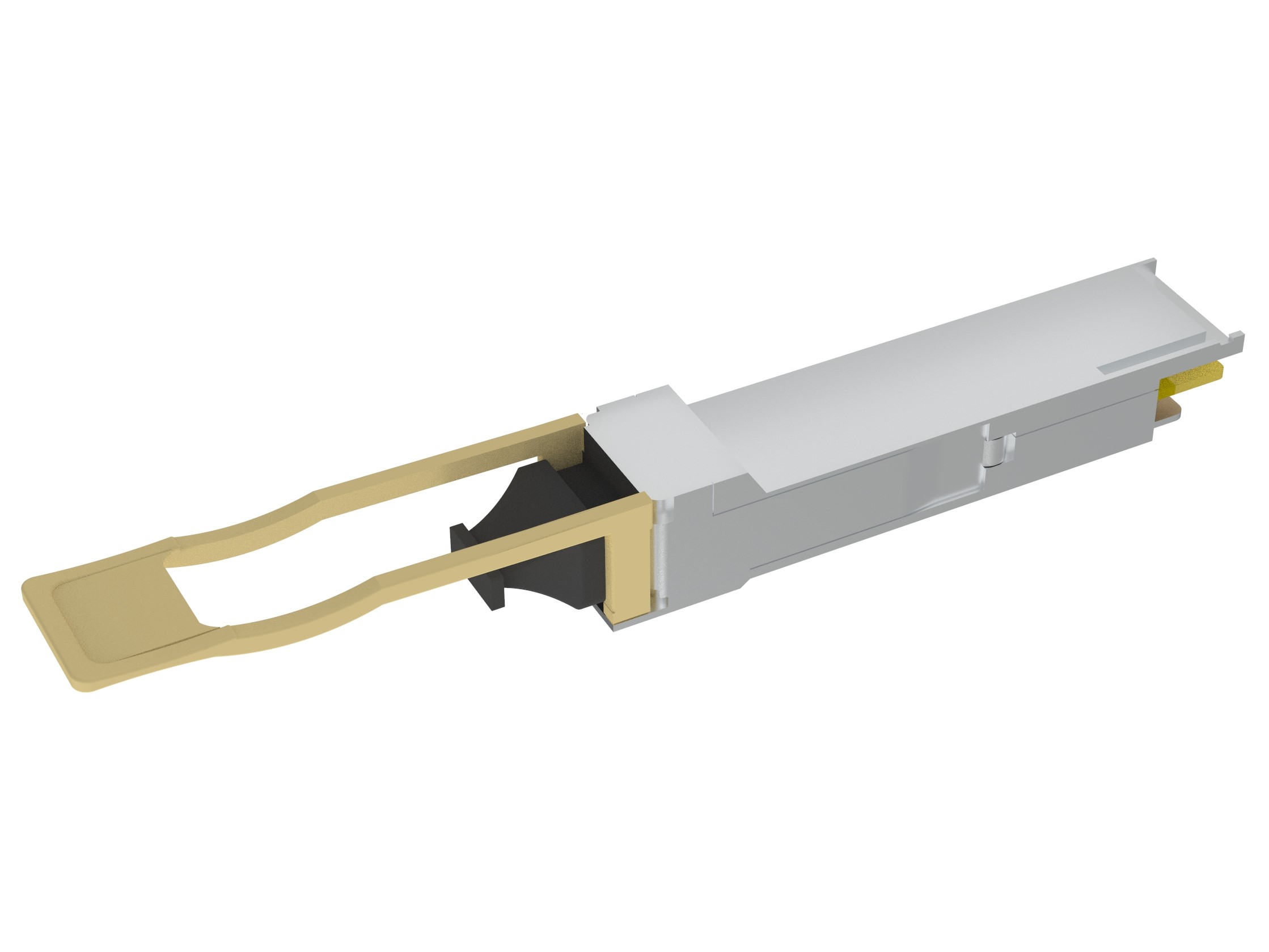

The Dell Q28DD-200G-2SR4 Compatible QSFP-DD transceiver supports up to 100m link lengths over multimode fiber (MMF) via MTP/MPO-24 connectors.
This transceiver is compliant with IEEE 802.3bm and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2×100GBASE-SR4 Ethernet, Data Centers and Switch & Router Connections.
Specifications
Dell Compatible | Q28DD-200G-2SR4 | Vendor Name | Longline |
Form Factor | QSFP-DD | Max Data Rate | 206.24Gbps(8x 25.78Gbps) |
Wavelength | 850nm | Max Cable Distance | 100m |
Connector | MTP/MPO-24 | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -8.4~2.4dBm | Receiver Sensitivity | ＜-10.3dBm |
Powerbudget | 1.9dB | Receiver Overload | 3.4dBm |
Power Consumption | ≤4.5W | Extinction Ratio | ＞2dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
Protocols | IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 | Warranty | 5 Years |
AÇIKLAMA
- Ürünler faturalı olarak tarafınıza gönderilecektir.
- Ürünler 2 yıl süreyle garantilidir.
- Ürün iade süresi 14 gün olup, iade durumunda kargo bedeli alıcıya aittir.
- Saat 16:00'ya kadar verilen siparişler aynı gün kargoya verilir.
- Pazartesi - Cuma 09:00-18:00 mesai saatleridir..
ARAYIPTA BULAMADIĞINIZ TÜM NETWORK VE SERVER YEDEK PARÇALARINI TEDARİK EDİYORUZ
