Entegron 48V or 24V POE Output 8-Port Gigabit Managed POE Switch with 2 SFP Slots

Barkod : 8682138033208
Ürün Kodu : ENTDPS8200-8P-2FM
0 TL
Fiyat Alarmı

 Whatsapp

Tükendi

Gelince Haber Ver

Teklif Al
0 TL
Gelince Haber Ver
0-Gu-venli-Al-s-veris-3

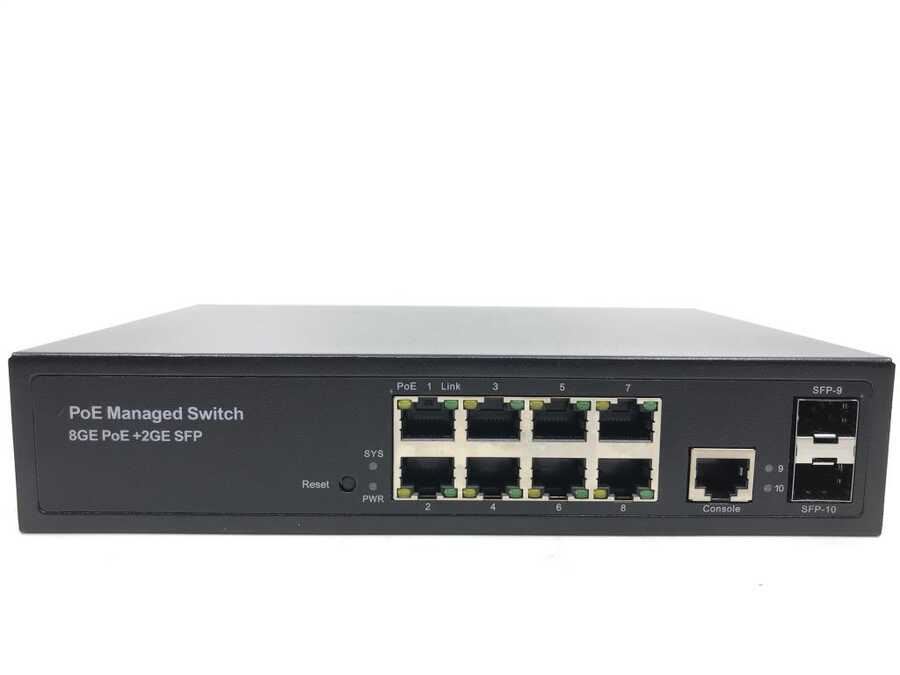

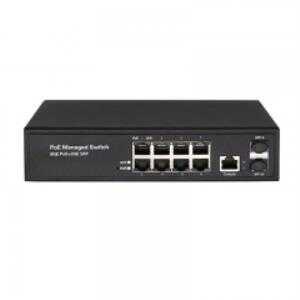

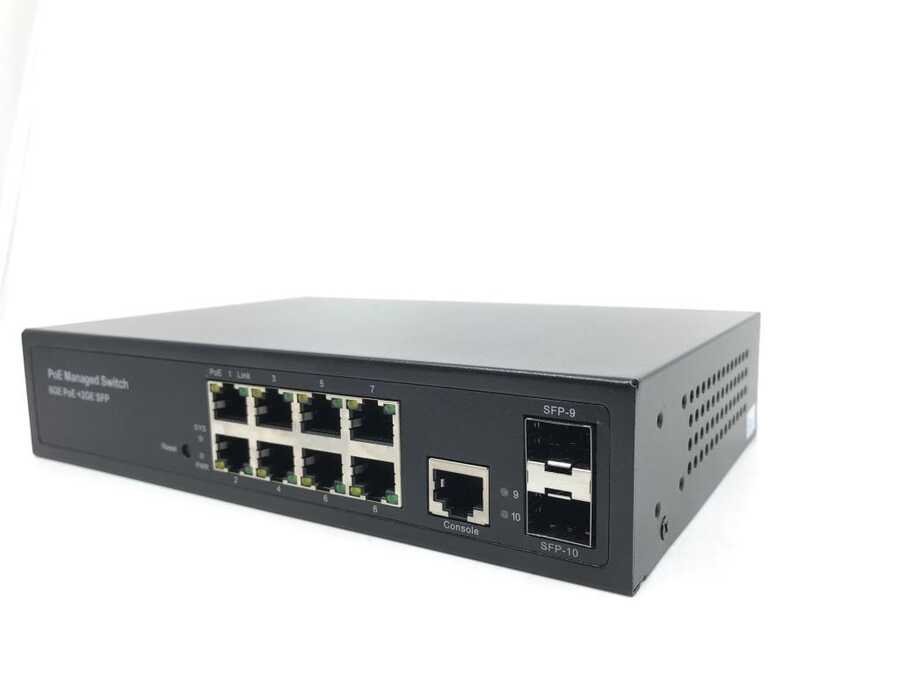

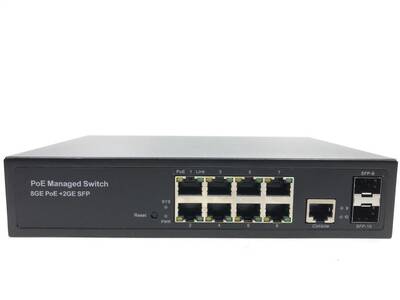

ENTEGRON ENTDPS8200-8P-2FM Full Gigabit

10/100/1000Mbps 8 Ports Web Yönetilebilir-Managed Switch



Overview

 TS8200-8P-2FM-Auto is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. 8 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC) ，Provide a comprehensive security protection system Perfect QoS strategy and rich VLAN function，Management and maintenance are simple and can be applied to small and medium enterprise core layer of community and school.



Main Features



1.Support port based vlan and 802.1q tag vlan



2.Support port-based QOS, quality of service, higher priority traffic experiences less delay than lower priority traffic under congested conditions



3.Support IEEE 802.1p Qos ,TOS/DSCP Qos



4.Support port trunking/aggregation



5.Support rate control, broadcast storm suppression



6.Support port flow control



7.Support port mirror



8.Support IGMP Snooping V1/V2, MLD snooping



9.Support IEEE802.1X based port security



10.Support loop detection, loop prevention



11.Support Dos attack prevention



12.Support configure port speed, status, poe status, poe reset



13.Support SNMP,web GUI, CLI management



14.Support mac list,mac search



Specifications:

Model ENTTS8200-8P-2FM
Port 8*10/100/1000M
Reset KEY 1
bandwidth 56G
Packet forwarding Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
CPU 500MHZ
RAM 128M
MAC 8K
Buffer 1.5Mb
Transmission Store and forward
Environmental
Working Temperature：-20℃～65℃
Storage temperature ：-40℃～70℃
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing
Product size 158(L)*101(W)*25(H)mm
Packing size 410mm*280mm*100mm（L*W*H）
Weight 3.5kg
Power in AC 90~265V 50/60hz MAX 150W
DC 44-57V MAX 3A
Power IEEE802.3af/at,  Port PoE MAX 30W，
Active 24V  Port PoE MAX 25W
Configurable 48V/24V POE output
Support 48V or 24V POE device power
