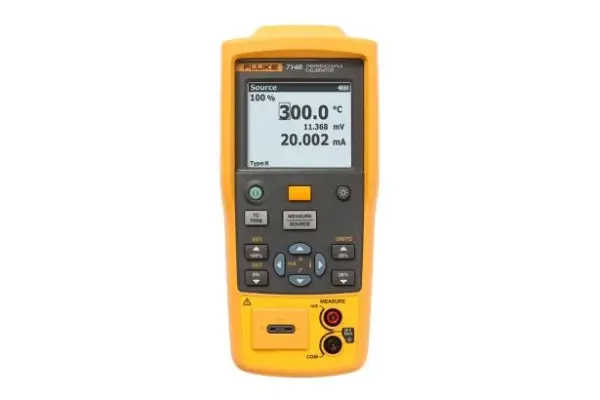

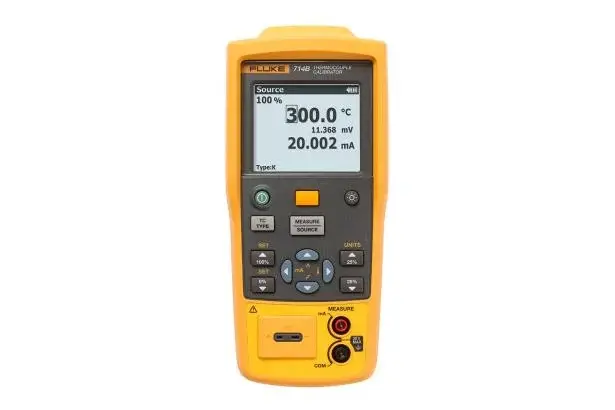

FLUKE 714B/EN Termokupl Kalibratörü

Name: FLUKE 714B/EN Termokupl Kalibratörü
Brand: FLUKE
SKU: T10109
Price: 98760.00 TRY
Availability: InStock

Ürün Kodu : FLUKE 714B/EN

82.300 TL + KDV

Fiyat Alarmı

Listeye Ekle Tavsiye Et

General Specifications
Maximum voltage applied between any terminal and earth ground or between any two terminals	30 V
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Operating altitude	2,000 m
Storage altitude	12,000 m
Relative humidity (% RH operating without condensation)	Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
Vibration requirements	MIL-T-28800E, Class 2
Drop text requirements	1 m
IP Rating	IEC 60529: IP52
Electromagnetic environment	IEC 61326-1, Portable
Safety	IEC 61010-1, Max 30 V to earth, Pollution Degree 2
Power supply	4 AA NEDA 1.5A IEC LR6 batteries
Size (H x W x L)	52.5 x 84 x 188.5 mm
Weight	515 g
DC mA Measurement
Resolution	Range	Accuracy (% of reading + counts)
0-24 mA	0.001 mA	0.010% + 2 μA
Temperature coefficient	±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)
Millivolt Measurement and Source
Resolution	Range	Accuracy (% of reading +counts)
-10 mV to 75 mV	0.01 mV	0.015% + 10 μA
Temperature coefficient	±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)

Thermocouple Input and Output
TC Type	Range (°C)	Measure (°C)		Source (°C)
TC Type	Range (°C)	1 year	2 year	1 year	2 year
E	-250 to 200°C	1.3	2.0	0.6	0.9
	-200 to -100°C	0.5	0.8	0.3	0.4
	-100 to 600°C	0.3	0.4	0.3	0.4
	600 to 1000°C	0.4	0.6	0.2	0.3
N	-200 to -100°C	1.0	1.5	0.6	0.9
	-100 to 900°C	0.5	0.8	0.5	0.8
	900 to 1300°C	0.6	0.9	0.3	0.4
J	-210 to -100°C	0.6	0.9	0.3	0.4
	-100 to 800°C	0.3	0.4	0.2	0.3
	800 to 1200°C	0.5	0.8	0.3	0.3
K	-200 to -100°C	0.7	1.0	0.4	0.6
	-100 to 400°C	0.3	0.4	0.3	0.4
	400 to 1200°C	0.5	0.8	0.3	0.4
	1200 to 1372°C	0.7	1.0	0.3	0.4
T	-250 to -200°C	1.7	2.5	0.9	1.4
	-200 to 0°C	0.6	0.9	0.4	0.6
	0 to 400°C	0.3	0.4	0.3	0.4
B	600 to 800°C	1.3	2.0	1.0	1.5
	800 to 1000°C	1.0	1.5	0.8	1.2
	1000 to 1820°C	0.9	1.3	0.8	1.2
R	-20 to 0°C	2.3	2.8	1.2	1.8
	0 to 100°C	1.5	2.2	1.1	1.7
	100 to 1767°C	1.0	1.5	0.9	1.4
S	-20 to 0°C	2.3	2.8	1.2	1.8
	0 to 200°C	1.5	2.1	1.1	1.7
	200 to 1400°C	0.9	1.4	0.9	1.4
	1400 to 1767°C	1.1	1.7	1.0	1.5
C	0 to 800°C	0.6	0.9	0.6	0.9
	800 to 1200°C	0.8	1.2	0.7	1.0
	1200 to 1800°C	1.1	1.6	0.9	1.4
	1800 to 2316°C	2.0	3.0	1.3	2.0
L	-200 to -100°C	0.6	0.9	0.3	0.4
	-100 to 800°C	0.3	0.4	0.2	0.3
	800 to 900°C	0.5	0.8	0.2	0.3
U	-200 to 0°C	0.6	0.9	0.4	0.6
U	0 to 600°C	0.3	0.4	0.3	0.4
BP	0 to 1000°C	1.0	1.5	0.4	0.6
	1000 to 2000°C	1.6	2.4	0.6	0.9
	2000 to 2500°C	2.0	3.0	0.8	1.2
XK	-200 to 300°C	0.2	0.3	0.2	0.5
XK	300 to 800°C	0.4	0.6	0.3	0.6
G	100 to 300°C	1.6	2.4	1.2	1.8
	300 to 1500°C	1.0	1.5	1.0	1.5
	1500 to 2320°C	2.0	3.0	1.6	2.4 Ürün Durumu Sıfır BENZER ÜRÜNLER FLUKE Fluke-712B RTD Temperature Calibrator 19.750 TL KDV FLUKE Fluke 700G06 Precision Pressure Test Gauge 15.500 TL KDV FLUKE Fluke 715 Volt/mA Loop Calibrator 20.000 TL KDV FLUKE FLUKE 700G04 PSIG PRESSURE GAUGE 15.000 TL KDV FLUKE Fluke 773 Miliamper Proses Pensmetre 78.800 TL KDV FLUKE Fluke 772 Miliamper Proses Pensmetre 56.050 TL KDV FLUKE Fluke 717-10000G Basınç Kalibratörü 101.980 TL KDV FLUKE Fluke 717 5000G Basınç Kalibratörü 100.800 TL KDV FLUKE Fluke 717 3000G Basınç Kalibratörü 100.800 TL KDV FLUKE Fluke 717 500G Basınç Kalibratörü 91.200 TL KDV FLUKE Fluke 717 300G Basınç Kalibratörü 91.200 TL KDV FLUKE Fluke 717 100G Basınç Kalibratörü 91.060 TL KDV AYNI GÜN KARGO 5.000 TL Üzeri Ücretsiz Kargo %100 GÜVENLİ ALIŞVERİŞ 256 BIT SSL Sertifika ile Güvenli Alışveriş KOLAY İADE VE DEĞİŞİM Tüm Ürünlerde 14 Gün İade Garantisi KREDİ KARTI İLE ÖDEME Kredi Kartına Uygun Taksit Seçenekleri MAĞAZADA TESLİMAT Online Sipariş Ver Mağazadan Teslim Al E - BÜLTEN ABONELİĞİ Kampanya ve indirimlerden haberdar olmak için e-bültenimize abone olun. İLETİŞİM Kartaltepe Mah. Hakan Sk. Longline Plaza No:18 Bayrampaşa - İstanbul 0212 321 75 15 - 0545 321 1515 Longline Anasayfa İletişim Ürünler Blog Müşteri Hizmetleri İşlem Rehberi Sepetim Üye Ol Üye Girişi Bayi Başvuru Bayi Girişi Müşteri Hizmetleri Teslimat Koşulları Üyelik Sözleşmesi Satış Sözleşmesi Garanti ve İade Koşulları Gizlilik ve Güvenlik Kategoriler İkinci El Server Server Yedek Parça Switch SFP Modül Test ve Ölçüm Cihazları Copyright 2025 © Kredi kartı bilgileriniz 256Bit SSL sertifikası ile korunmaktadır. T-Soft E-Ticaret Sistemleriyle Hazırlanmıştır.
