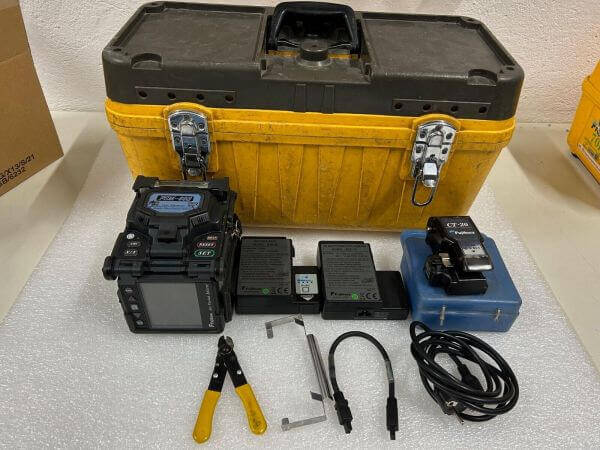

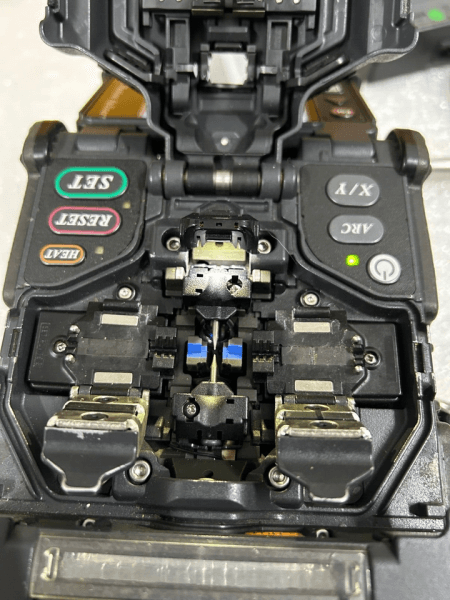

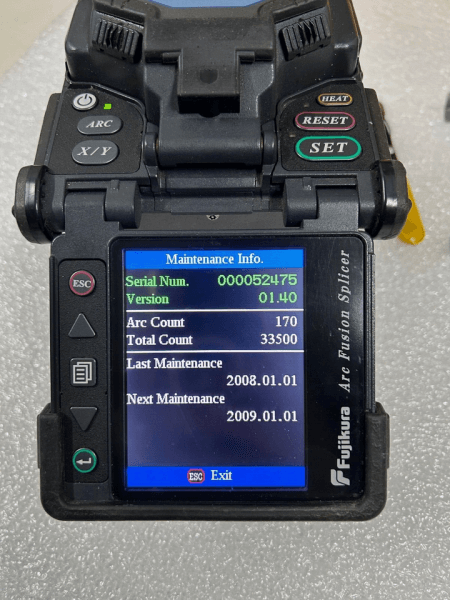

FUJIKURA FSM60S WITH CT30 NEXT MAINTEMAMCE

Applicable Fibers

Single-mode (ITU-T G.652),  multimode (ITU-T G.651), DS (ITU -T G.653), NZDS (ITU-T G.655)

Cladding Diameter

80µm to150µm

Coating Diameter

100µm to 1,000µm

Fiber Cleave Length

8 to 16mm with 250µm coating diameter, 16mm with 900µm coating diameter

Typical Average Splice Loss

0.02dB with Sm, 0.01dB with  mm, 0.04dB with DS, 0.04dB with NZDS

Measured by cut-back method relevant to ITU-T and IEC standards

Splicing Time

Typical 9 seconds with standard single-mode fiber

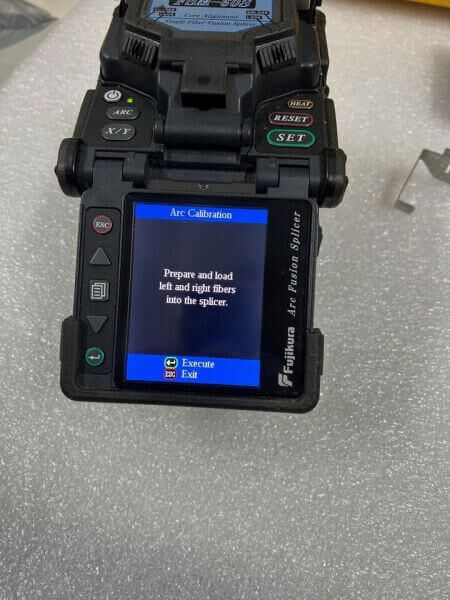

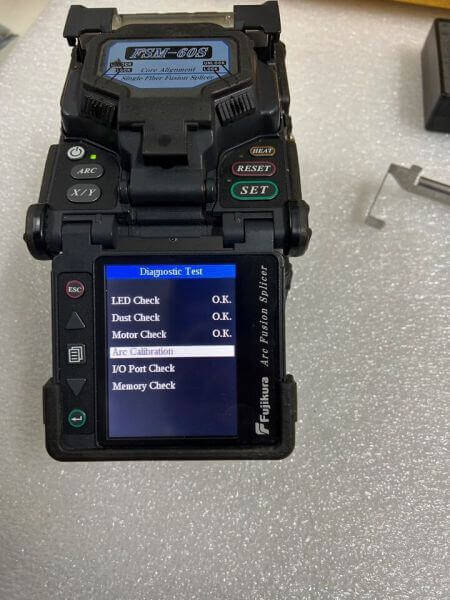

Arc Calibration  method

Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available

Splicing  modes

100 preset and user programmable modes

Splice Loss Estimate

Based upon dual camera core alignment data

Storage of Splice Result

Last 2000 results to be stored in the internal memory

Fiber Display

X or Y, or both X and Y simultaneously. Front or rear monitor display options with automated image orientation

Magnification

300X for single X or Y view, or 187X for X and Y view

Viewing  method

Dual cameras with 4.1 inch TFT color LCD monitor

Operating Condition

0 to 5,000m above sea level, 0 to 95%RH and -10 to 50°C respectively

Mechanical Proof Test

1.96 to 2.25N

Tube Heater

Built-in tube heater with 30 heating modes; auto-start function

Tube Heating Time

Typical 30 seconds with FP-03 sleeve, 35 seconds with FP3 (40), 35-55 seconds with Fujikura micro sleeves

Protection Sleeve Length

60mm, 40mm, micro

Splice/Heat Cycles with Battery

Typical 160 cycles with power save functions activated

Power Supply

Auto voltage selection from 100 to 240V AC or 10 to 15V DC with ADC-11, 13.2V DC with BTR-08 battery

Terminals

USB 1.1 (USB-B type) for PC communication.  mini-DIN (6-pin) for HJS-02/03 and SH-8 tube heater

Wind Protection

Maximum wind velocity of 15m/s. (34 mph)
