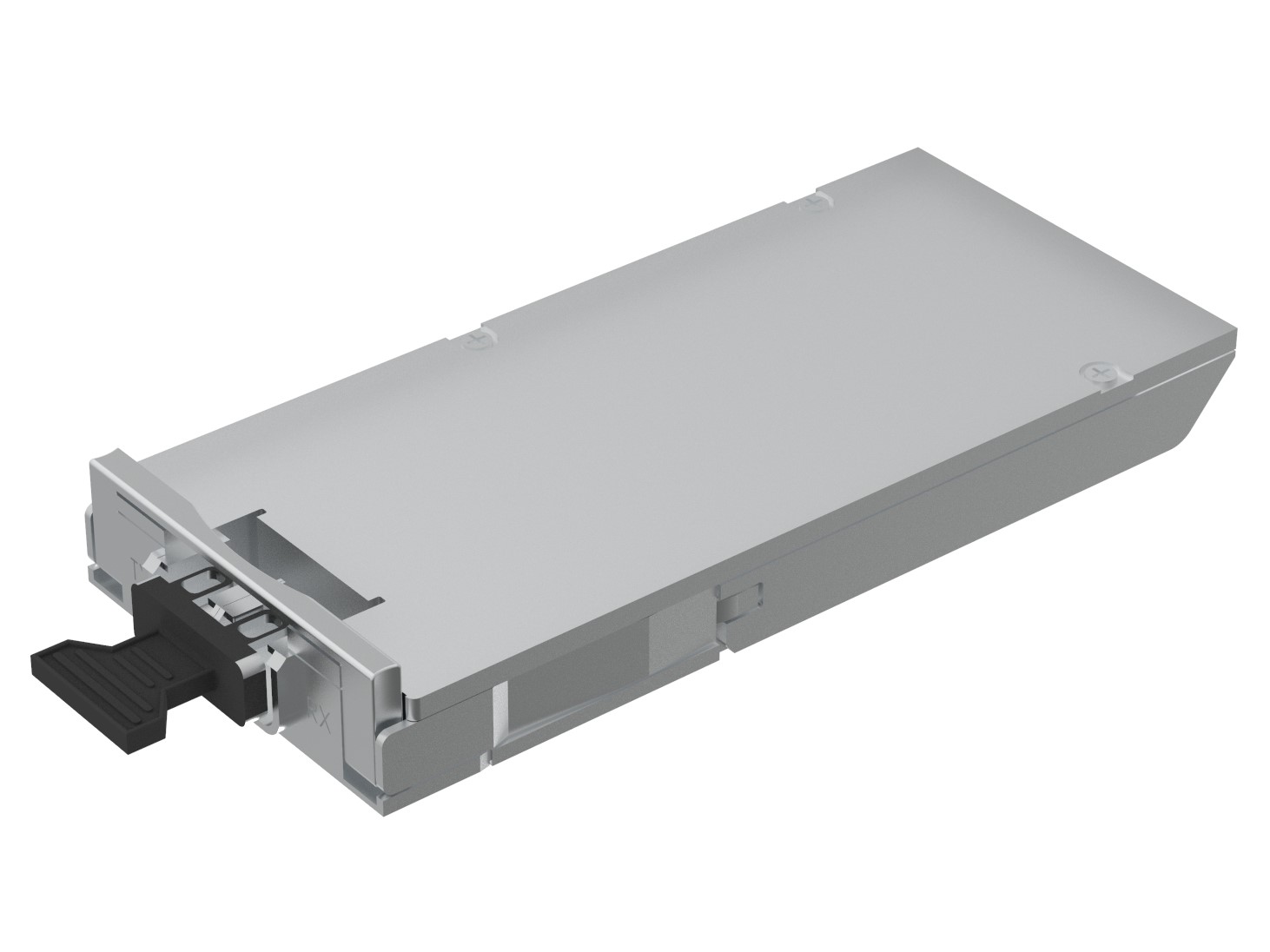

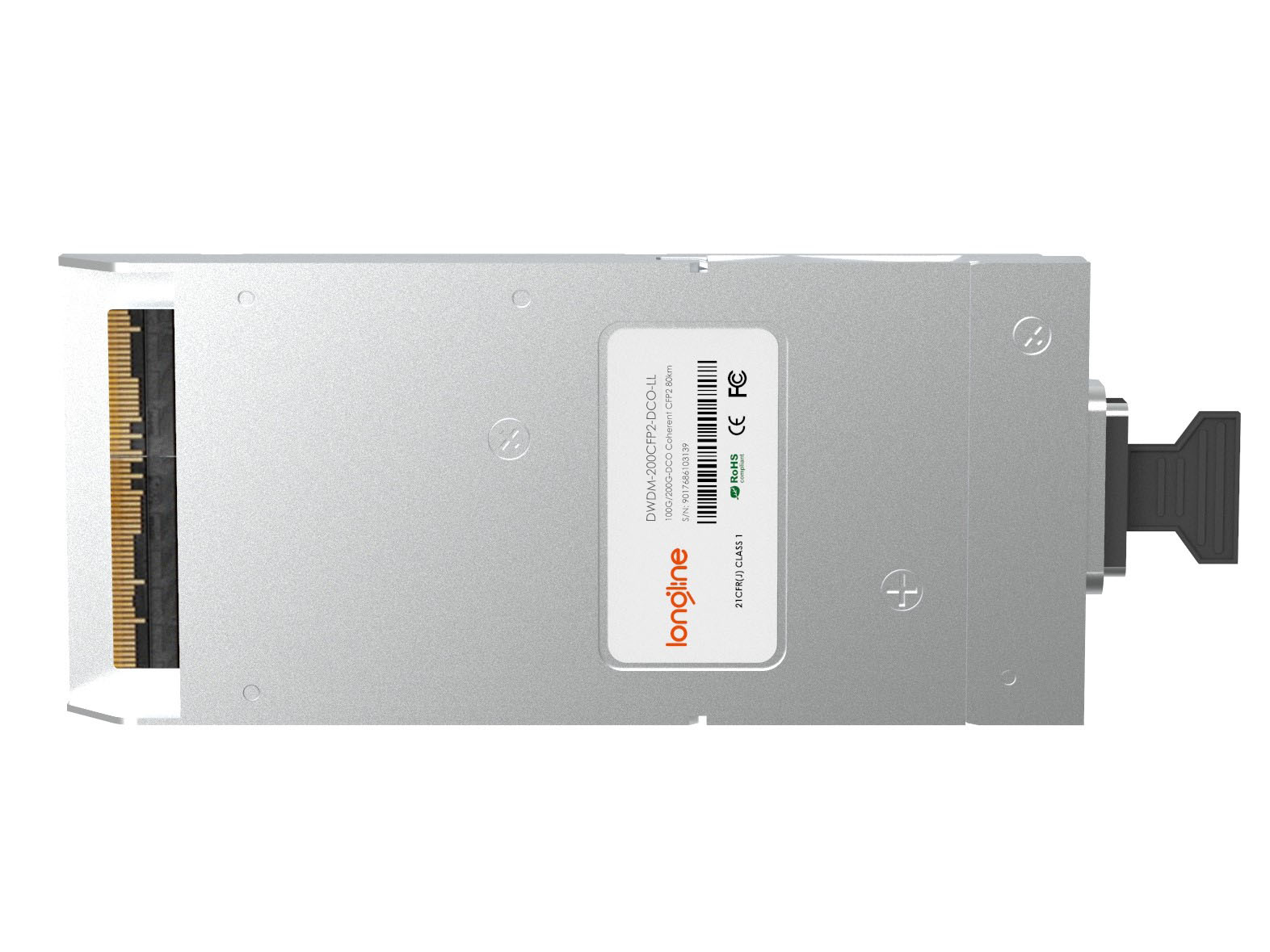

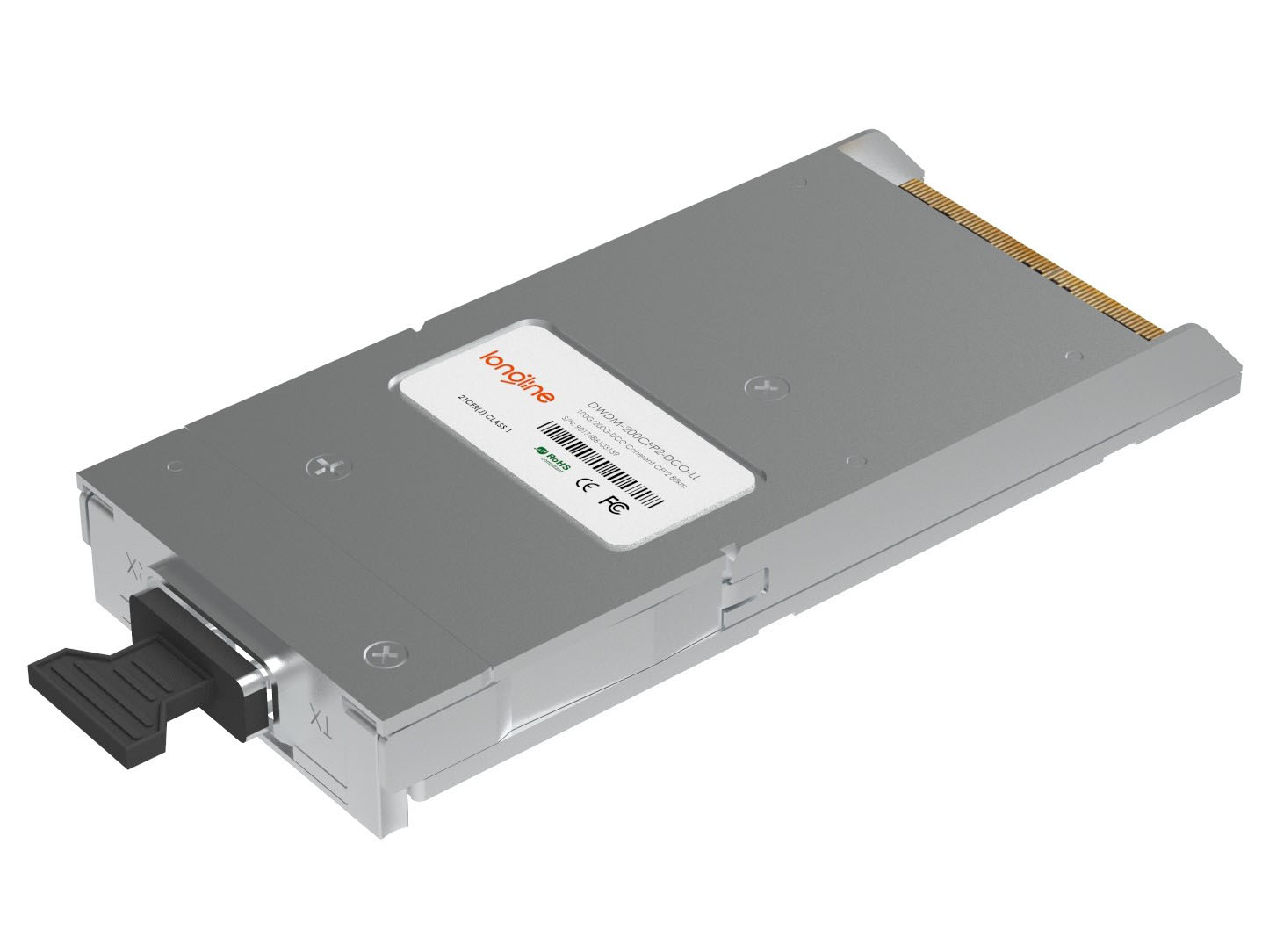

The CFP2-DCO coherent transceiver supports flex-grid DWDM tuning and provides 200GBase-DCO throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1528.578-1567.337nm via an LC/UPC connector. It can operate at temperatures between 0 and 70°C. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. It is designed for line-side trunk DWDM data center interconnect (DCI) and OTU4/OTUC1/OTUC2 metro optical transport network.
Part Number | DWDM-200CFP2-DCO | Vendor Name | Longline |
Form Factor | CFP2 | Max Data Rate | 100/200Gbps |
Grid Spacing | 50GHz | Frequency Range | 191.275-196.125 THz |
Optical channels | 48/64/96 | Tunable Wavelength | 1528.578-1567.337nm |
Transmission Protocols | PM-QPSK (100G) PM-16QAM (200G) PM-8QAM (200G) | Max Cable Distance | 1000km (100G) w/ EDFA 800km (200G) w/ EDFA |
Connector | Duplex LC | Media | SMF |
Tx Output Power | -10~+3dBm | Input Power Range | -23~+1dBm |
Line Modulation | PM-QPSK (100G) PM-16QAM (200G) PM-8QAM (200G) | Power Consumption | ≤23W |
Operating Temperature | 0 to 70°C (32 to 158°F) | Protocols | Electrical interfaces OTL4.4, OTLC1.4, CAU-I4, OTLC2.8 and CEI-28G-MR CFP2 MSA Hardware Specification 1.0 with modifications compliant CFP MSA Management Interface Specification 2.2 with modifications compliant IEEE 802.3 clause 45 |
