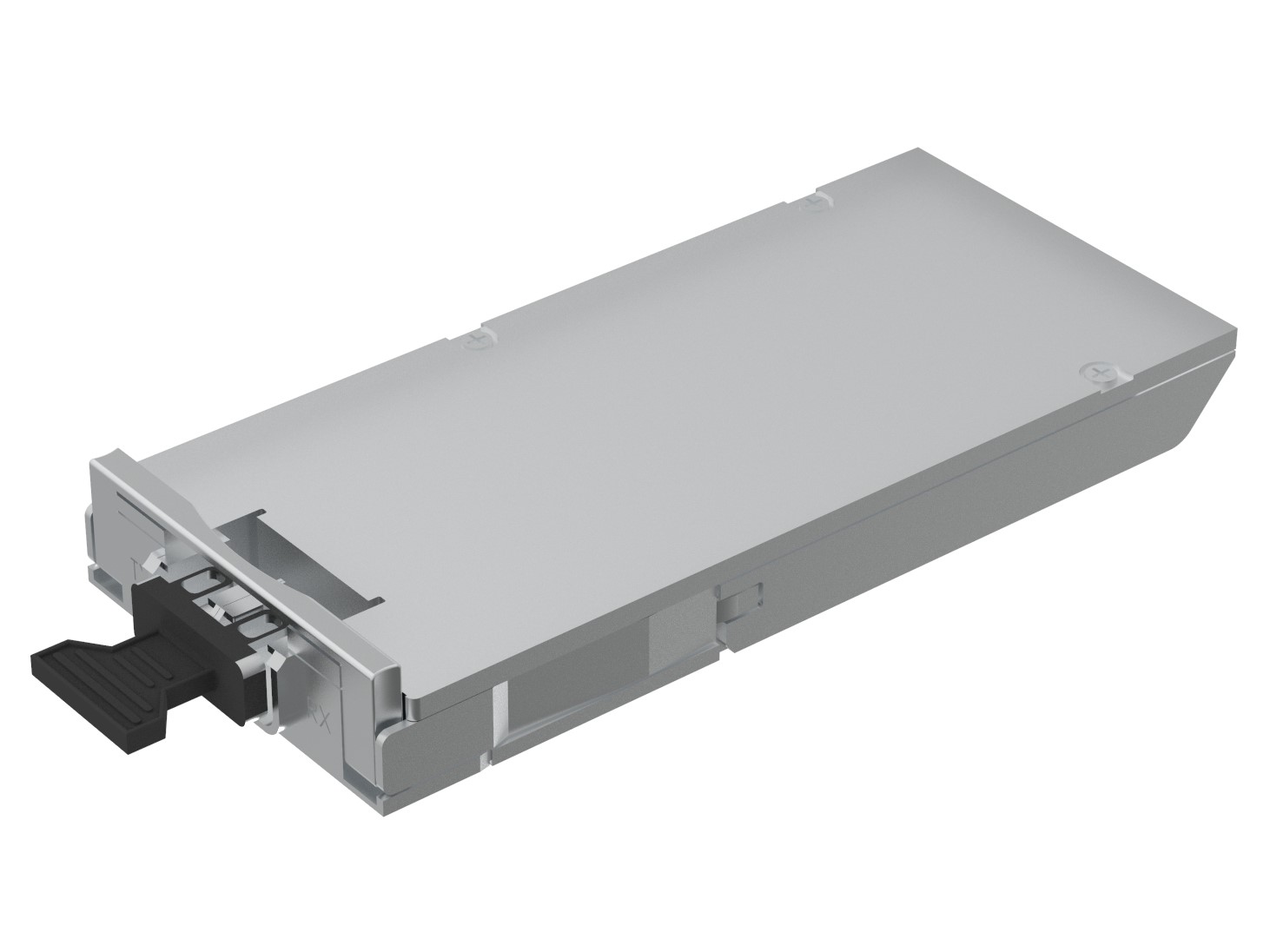

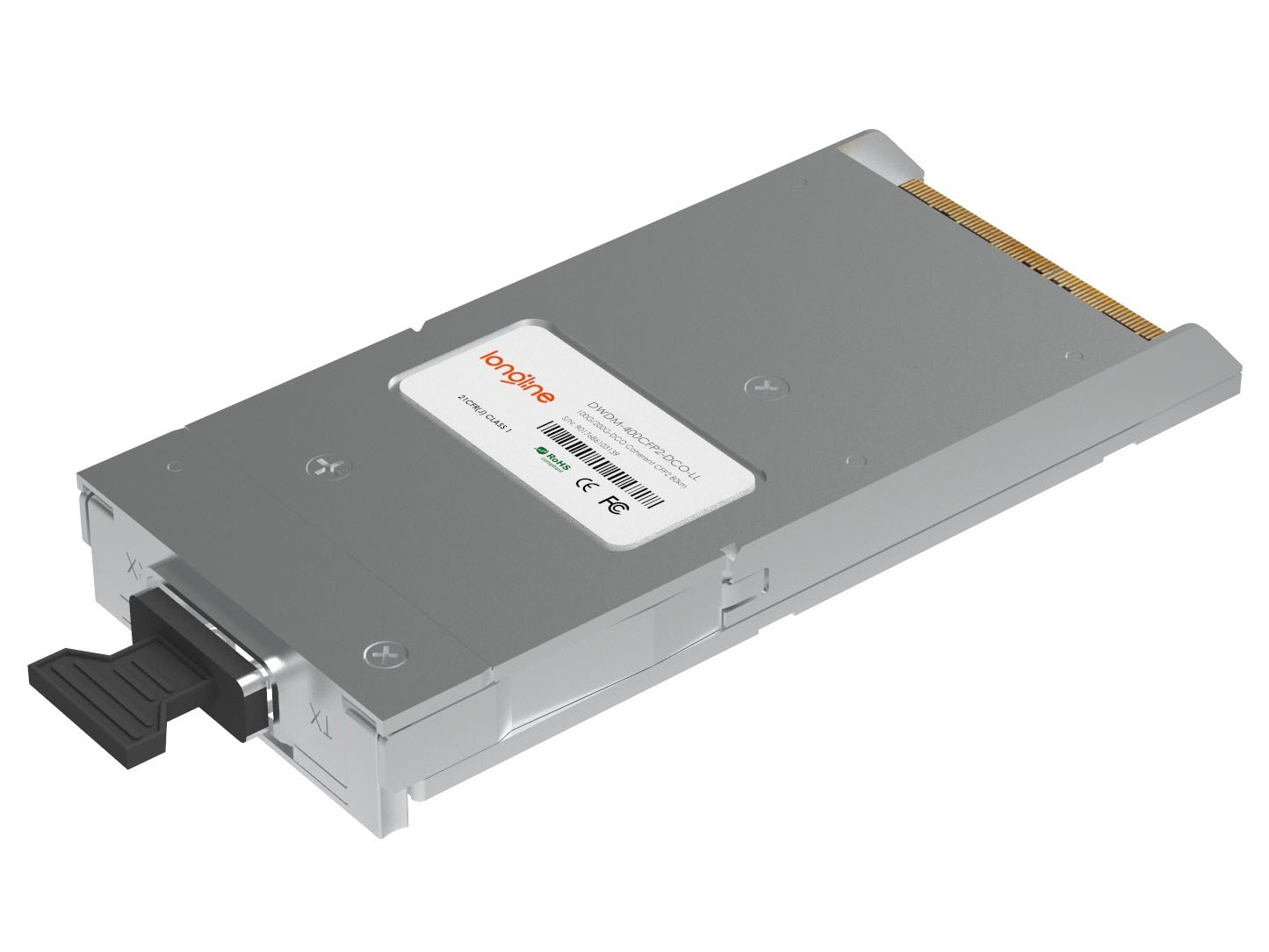

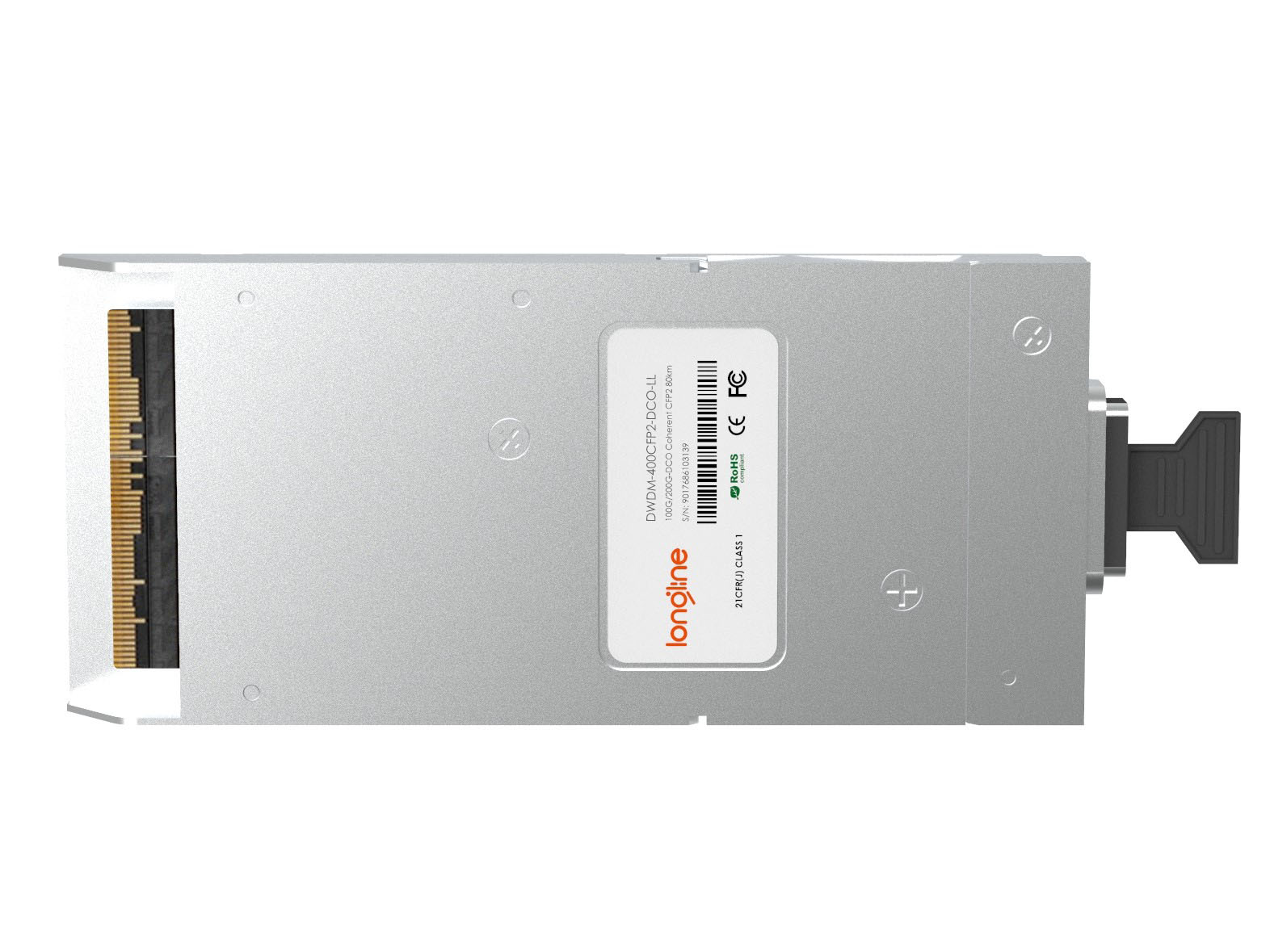

CFP2-DCO coherent transceivers support flex-grid DWDM tuning and provide 400GBase-DCO throughput up to 80km over single-mode fiber (SMF) via an LC connector. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
It is designed for line-side trunk DWDM data center interconnect (DCI) and OTU4/OTUCn metro optical transport network.
Part Number | DWDM-400CFP2-DCO | Vendor Name | Longline |
Form Factor | CFP2 | Max Data Rate | 200/300/400Gbps |
Grid Spacing | 50GHz/75GHz/100GHz (200G) 75GHZ/100GHz(400G) | Frequency Range | 191.275 to 196.125 THz |
Optical channels | 48/64/96(200G) 48/64(400G) | Tunable Wavelength | 1528.578-1567.337nm |
Transmission Protocols | 200G/300G/400G/OTU4/OTUCn | Max Cable Distance | 80km 1000km (200G) w/ EDFA 200km (400G) w/ EDFA |
Connector | Duplex LC | OSNR Tolerance | 14.5dB（200G PM-QPSK） 16.5dB（200G PM-16QAM PS) 23 dB（400G PM-16QAM） |
Tx Output Power | -8~-2.5dBm | Input Power Range | -20~+1dBm |
Line Modulation | PM-16QAM (400G/200G) PM-8QAM（300G/200G） PM-QPSK(200G) | Power Consumption | ≤25W |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | CFP2 MSA Hardware Specification 1.0 with modifications compliant CFP MSA Management Interface Specification 2.2 with modifications compliant IEEE 802.3bm OIF CEI-28G VSR OIF CEI-56G VSR PAM-4 |
