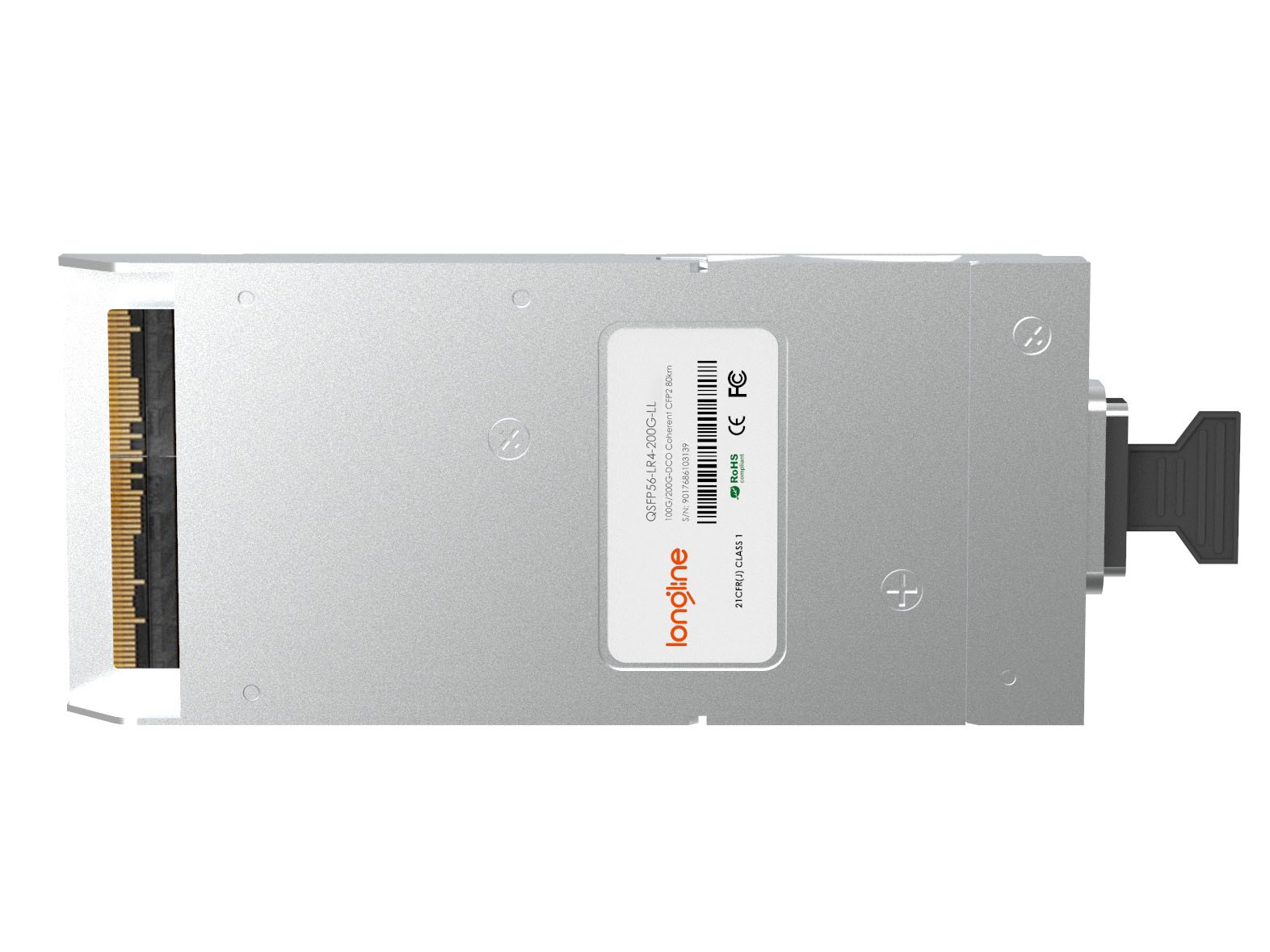

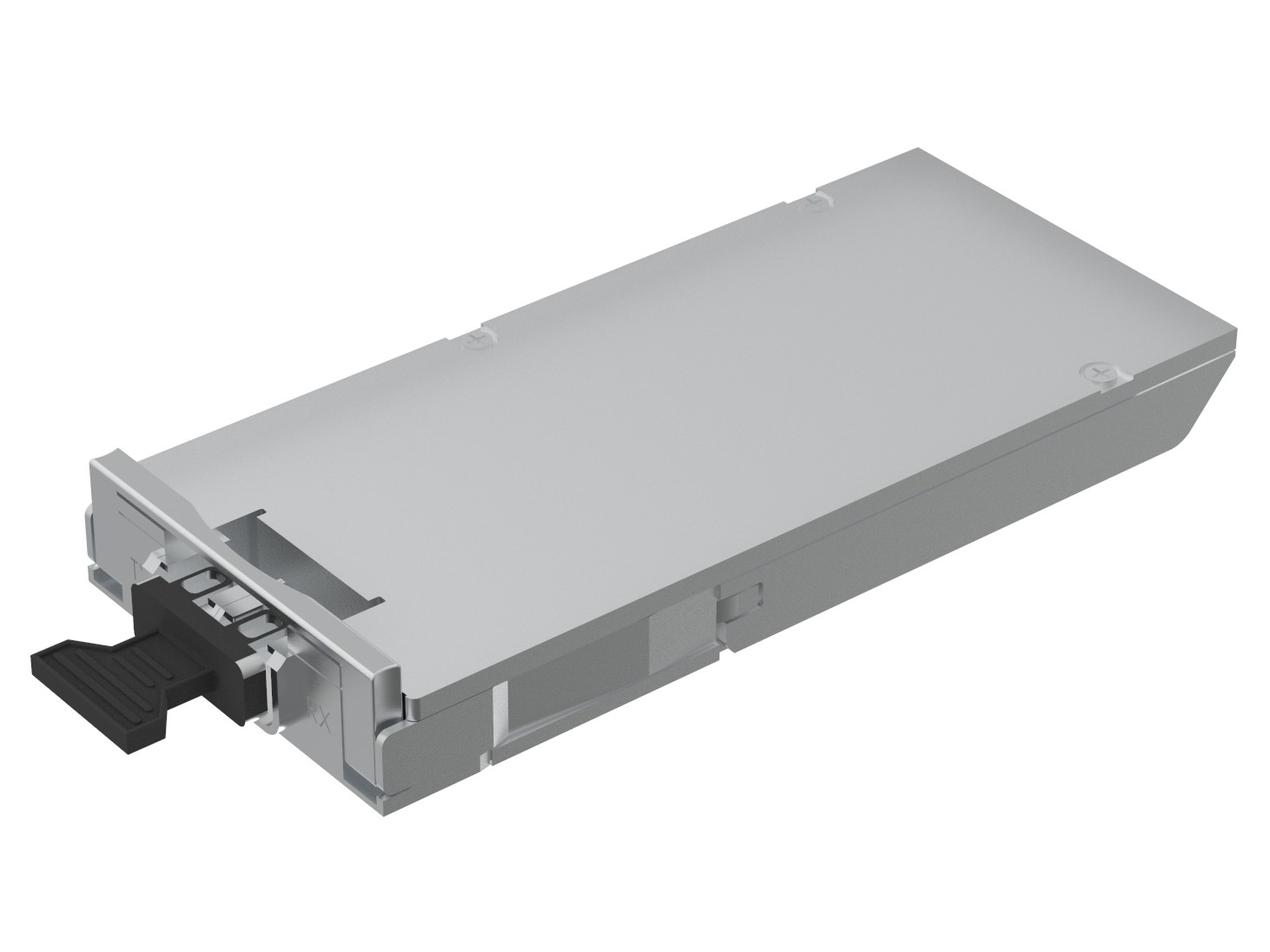

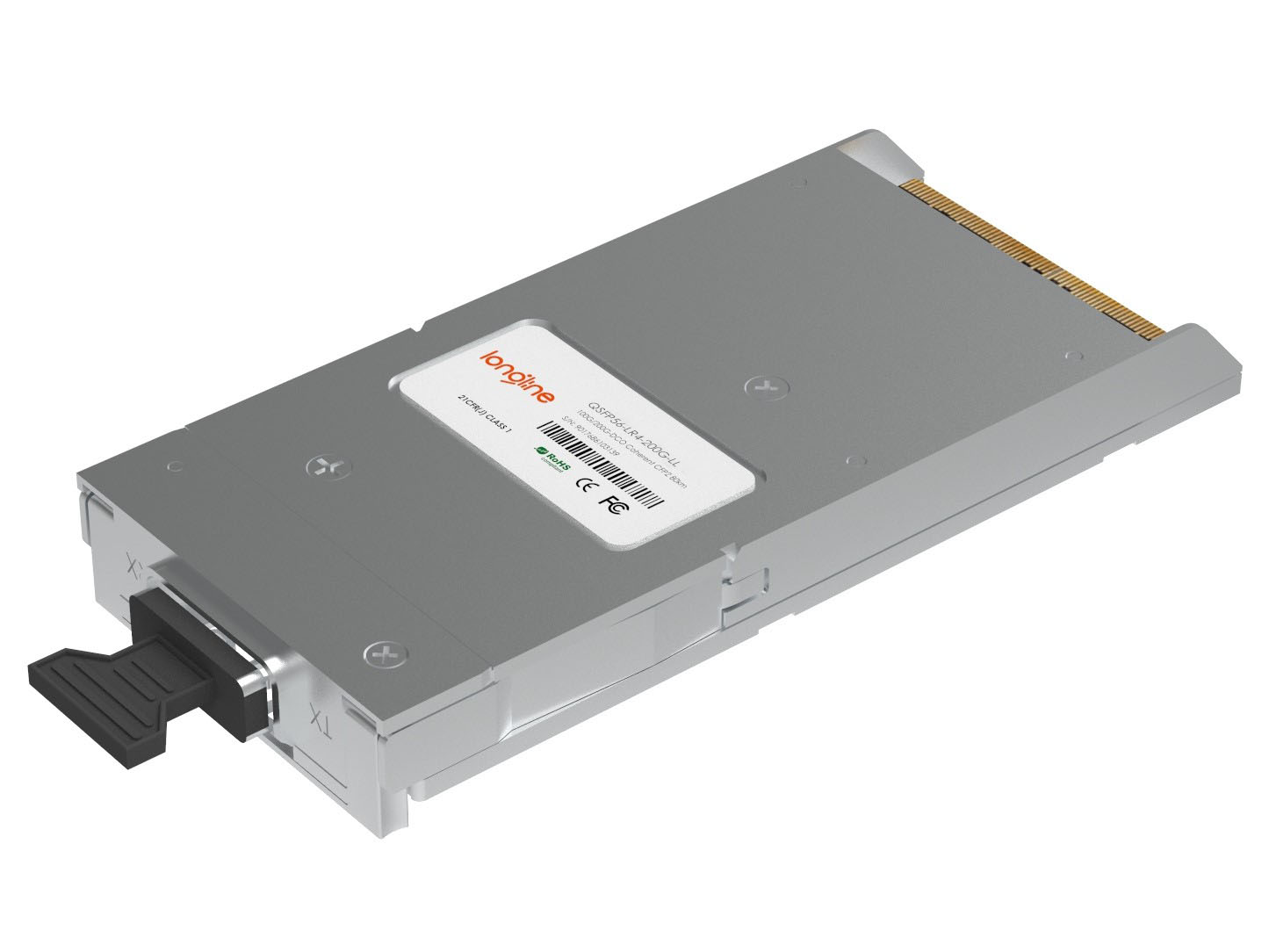

Generic Compatible QSFP56 transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector.
This transceiver is compliant with SFF-8661,and IEEE 802.3bs standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.
Specifications
Part Number | QSFP-LR4-200G | Vendor Name | Longline |
Form Factor | QSFP56 | Max Data Rate | 200Gbps |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -3.4~5.3dBm | Receiver Sensitivity | ＜-9.7dBm |
Powerbudget | 6.3dBm | Receiver Overload | 5.1dBm |
Power Consumption | ≤8W | Extinction Ratio | ＞3.5dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Modulation Format | PAM4 | Inbuilt FEC | No |
Protocols | IEEE 802.3bs, QSFP56 MSA, SFF-8661 | Warranty | 5 Years |
