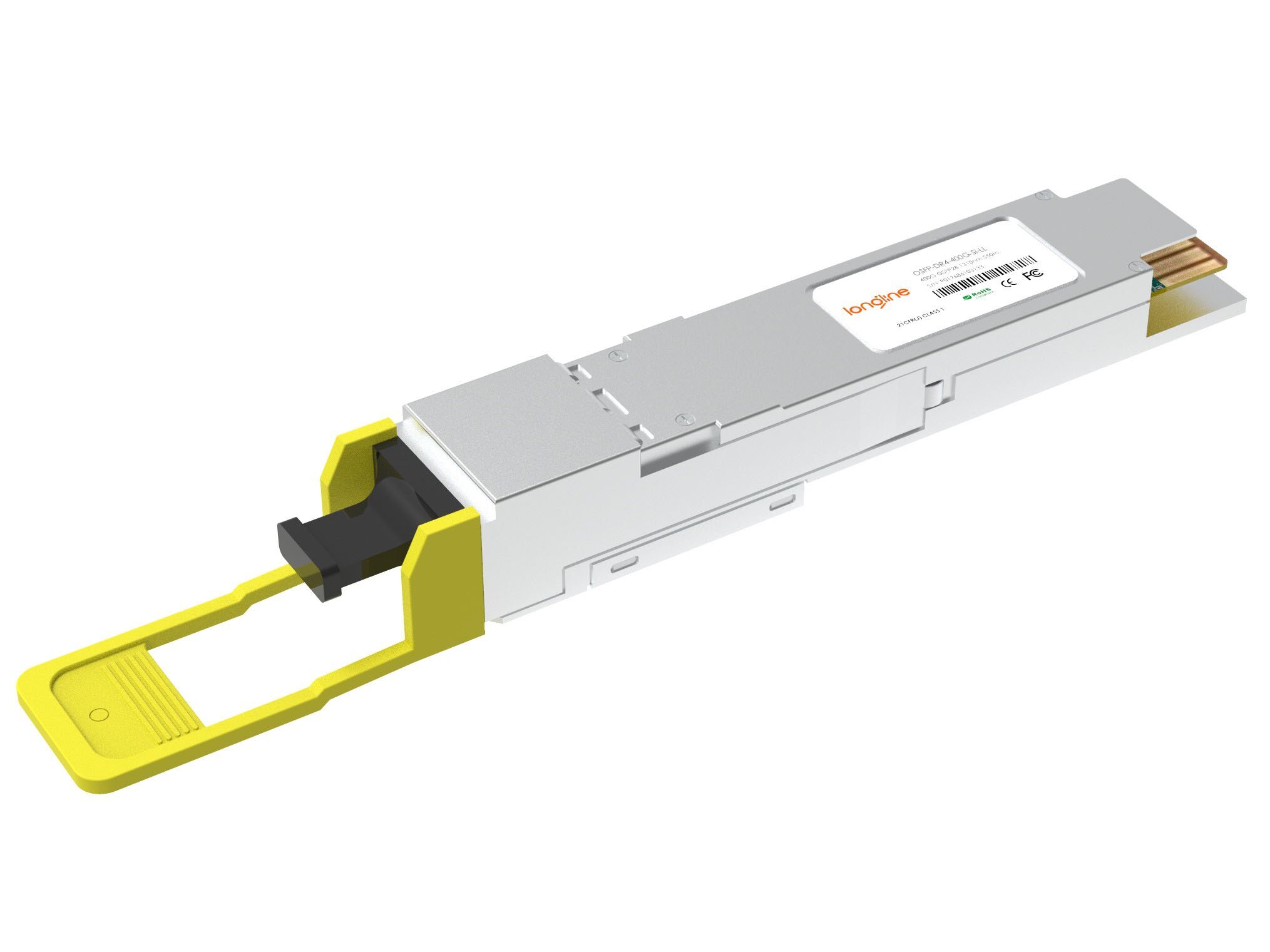

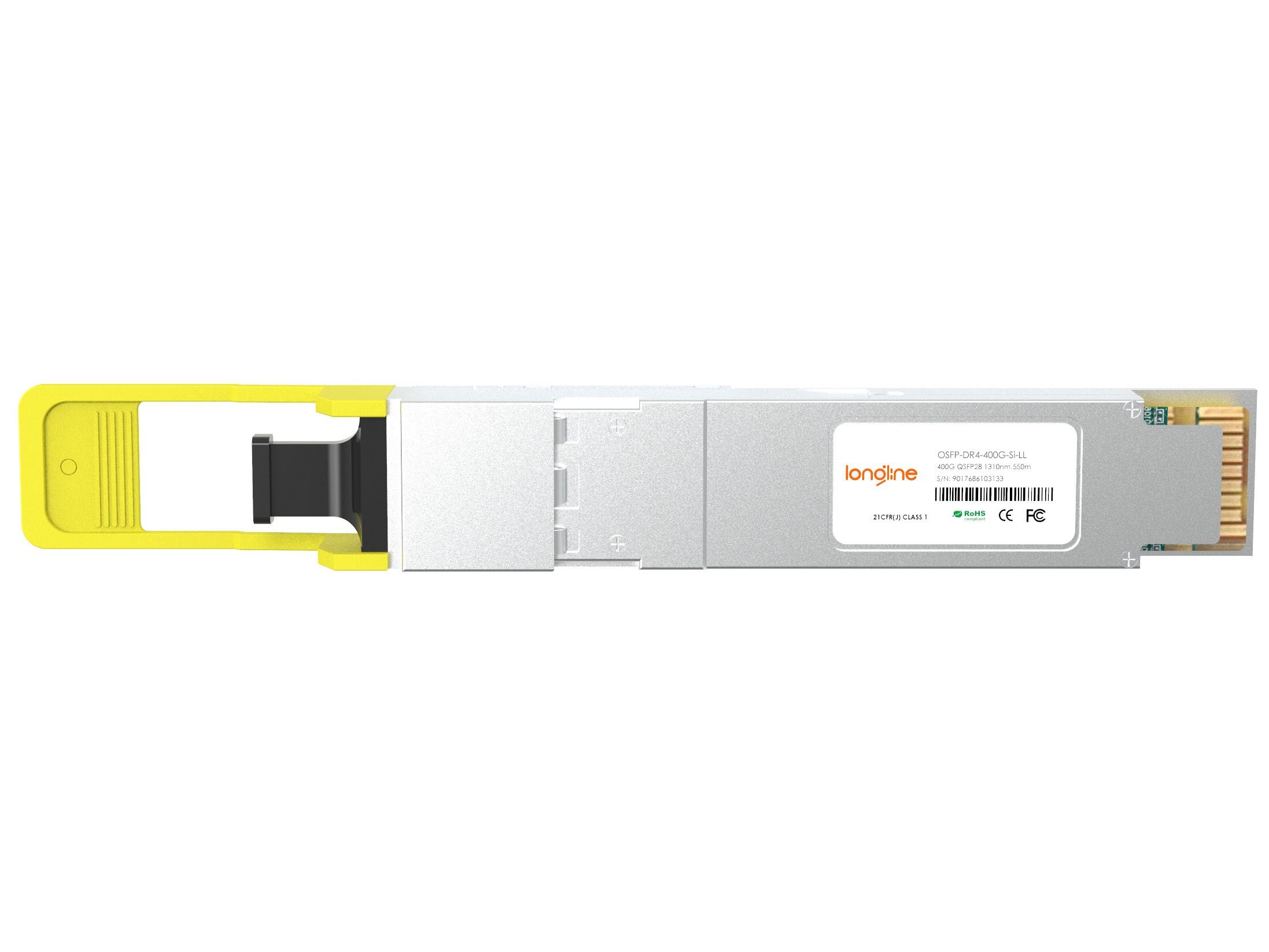

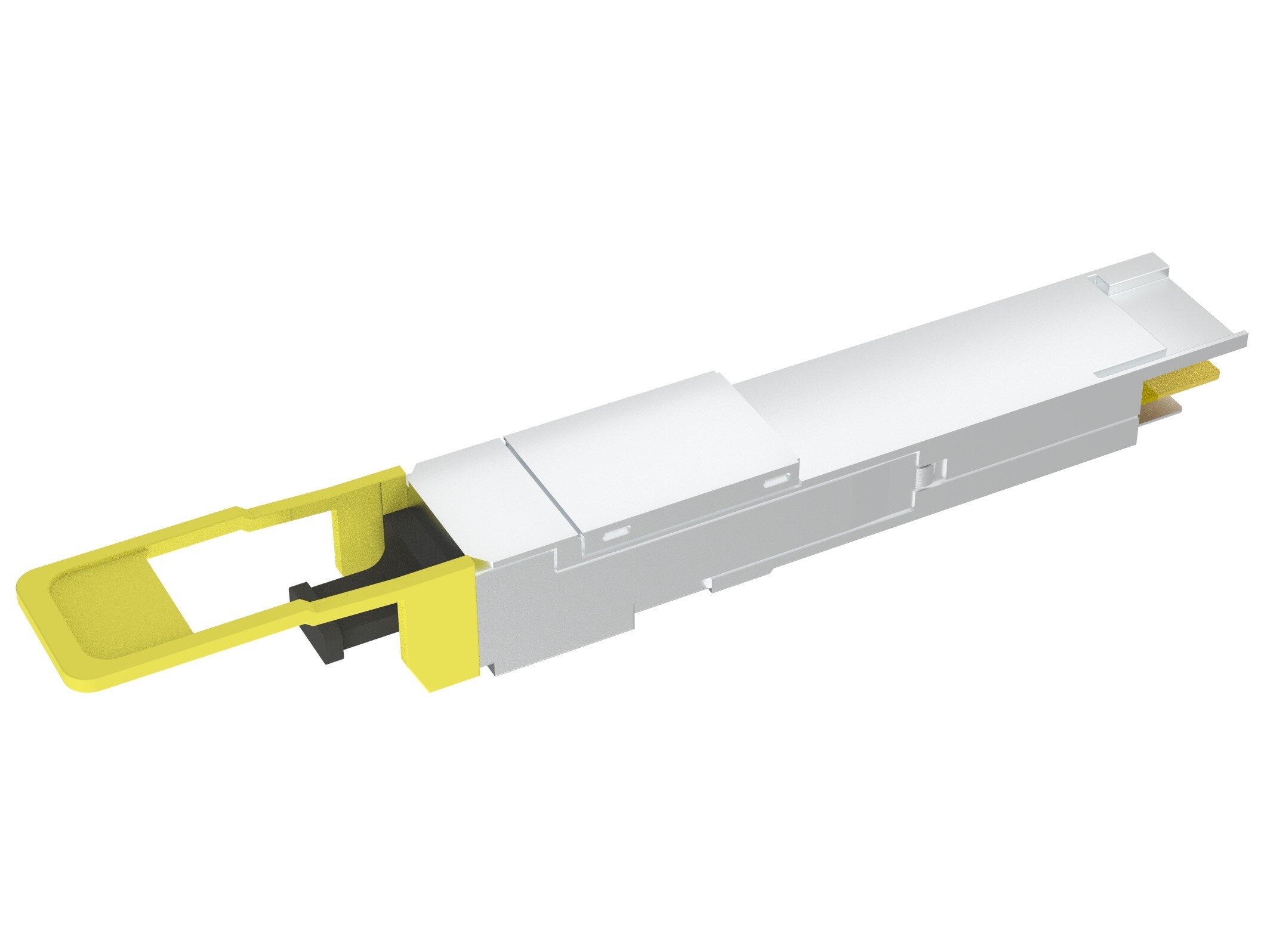

The 400GBASE-DR4 silicon photonics module, MTP/MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with OSFP MSA, CMIS 4.0 I2C Interface and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel 1310nm optical lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-DR-100G.
Dell Compatible | OSFP-DR4-400G-Si | Vendor Name | Longline |
Form Factor | OSFP Finned Top | Max Data Rate | 425Gbps (4x106.25Gb/s) |
Wavelength | 1310nm | Max Cable Distance | 500m |
Connector | MTP/MPO-12 (APC) | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -2.9~4.0dBm | RX Power | -5.9~5.0dBm |
Powerbudget | 3dB | Modulation | 8x 50G PAM4 |
Power Consumption | ≤10W | Extinction Ratio | >3.5dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
Core Size | 8.4~9.3um | Packaging Technology | COB |
Protocols | IEEE 802.3bs, OSFP MSA, CMIS 4.0 | Warranty | 5 Years |
