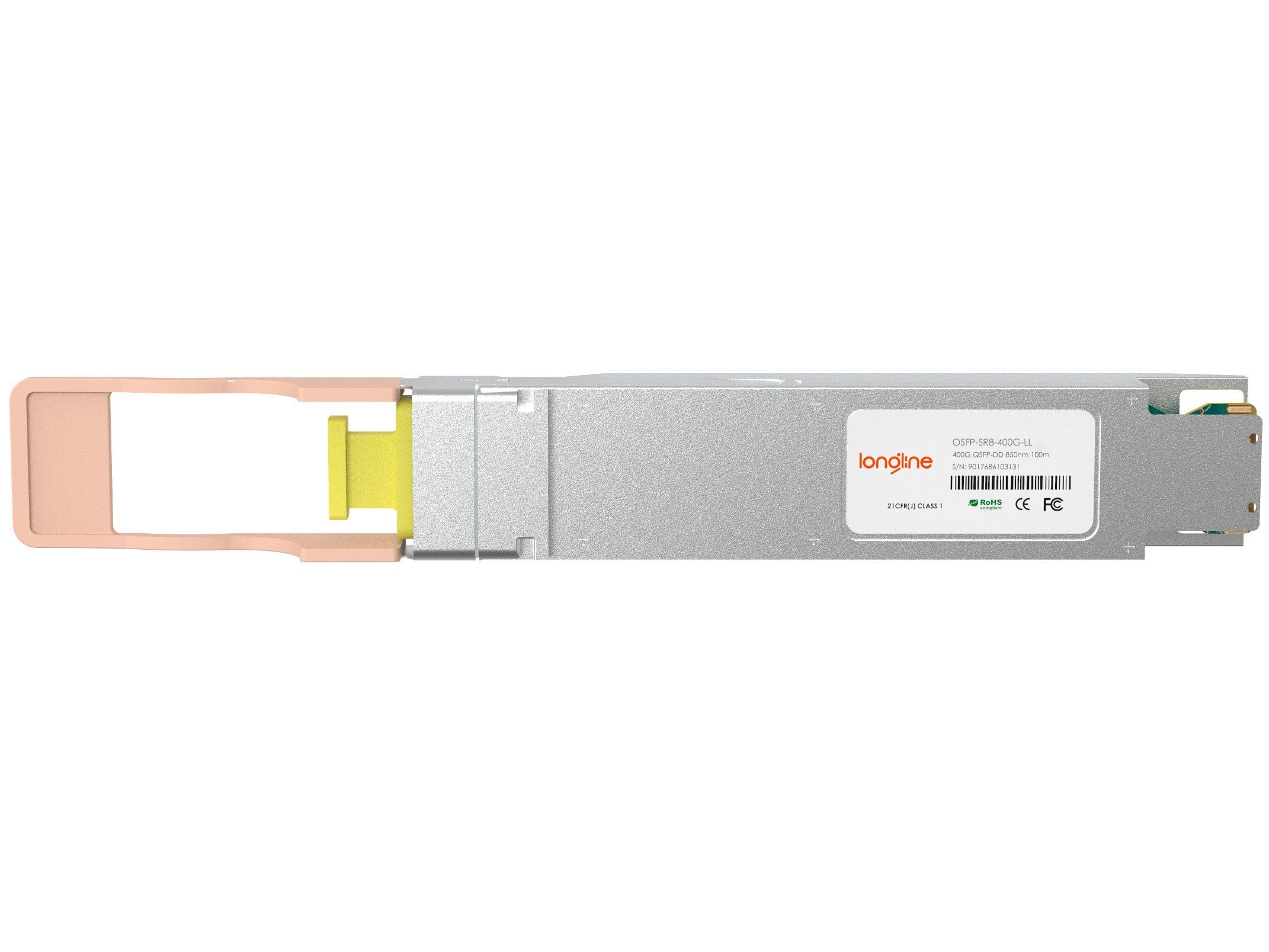

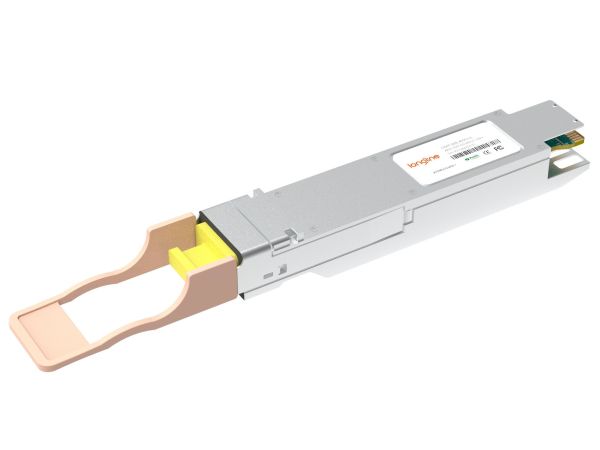

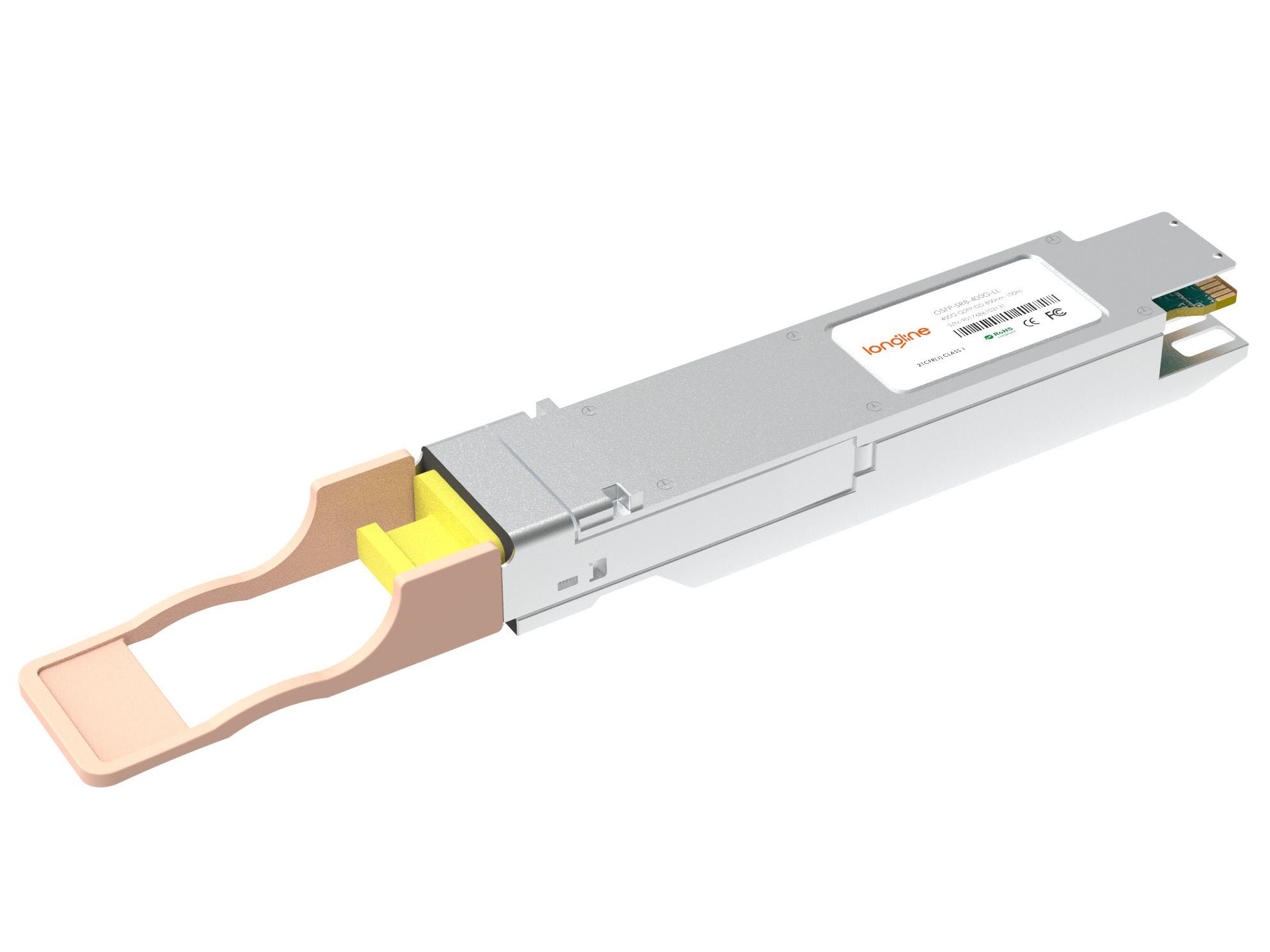

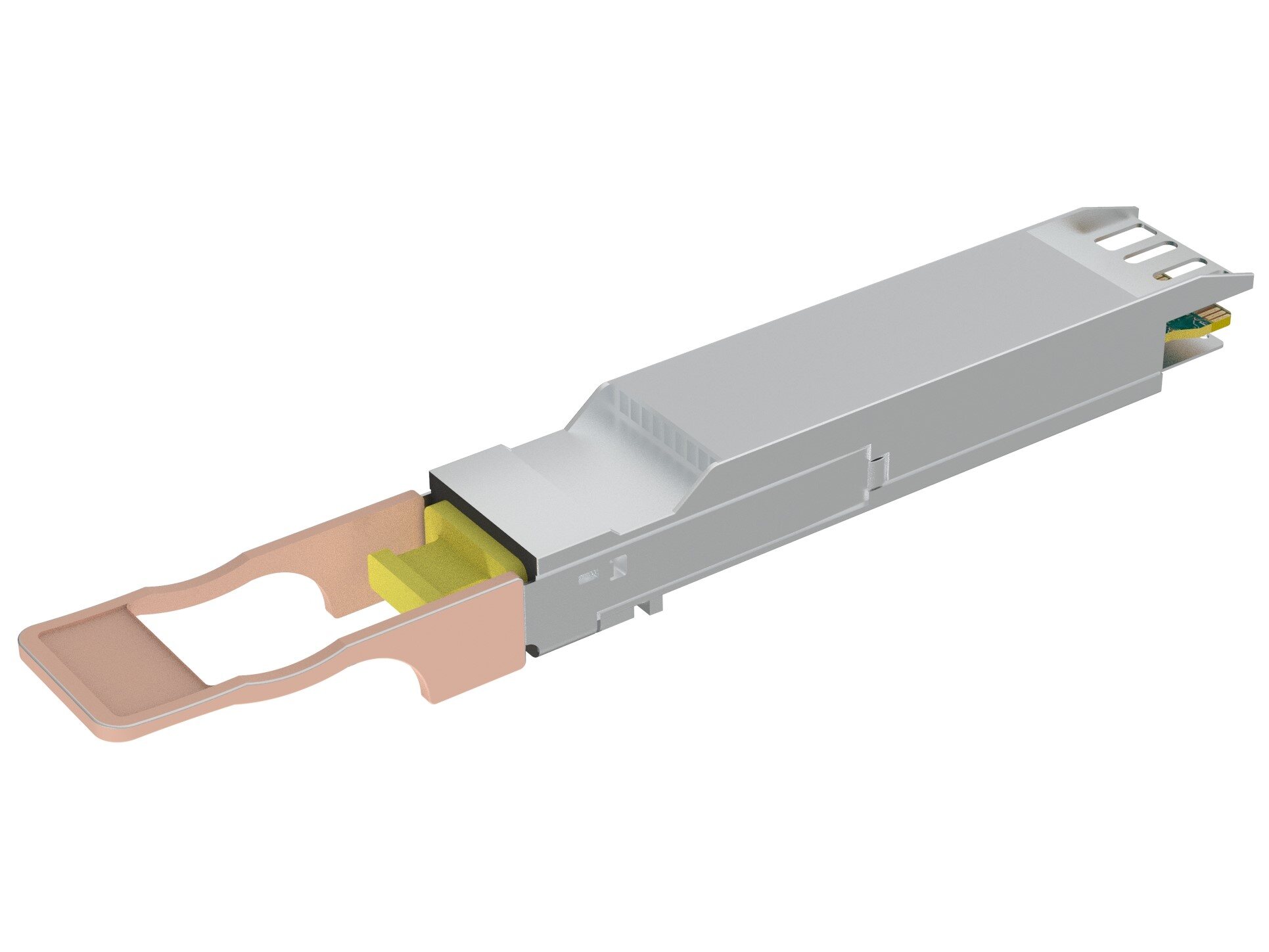

The 400GBASE-SR8 OSFP module, MTP/MPO-16 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant with OSFP MSA, IEEE 802.3cd protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. It is suitable for 400G Ethernet, Data Center and Cloud Networks. It also support 8 x 50G-SR connections, ensuring seamless performance.
Part Number | OSFP-SR8-400G | Vendor Name | Longline |
Form Factor | OSFP Finned Top | Max Data Rate | 425Gbps |
Wavelength | 850nm | Max Cable Distance | 100m@OM4 |
Connector | MTP/MPO-16 (APC) | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -6.5~4dBm | RX Power | -8.4~4.0dBm |
Powerbudget | 1.9dB | Modulation | 8x 50G PAM4 |
Power Consumption | ≤10W | Extinction Ratio | ＞2dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
Core Size | 50μm | Packaging Technology | COB |
Protocols | IEEE 802.3cd, OSFP MSA, CMIS 4.1 | Warranty | 5 Years |
