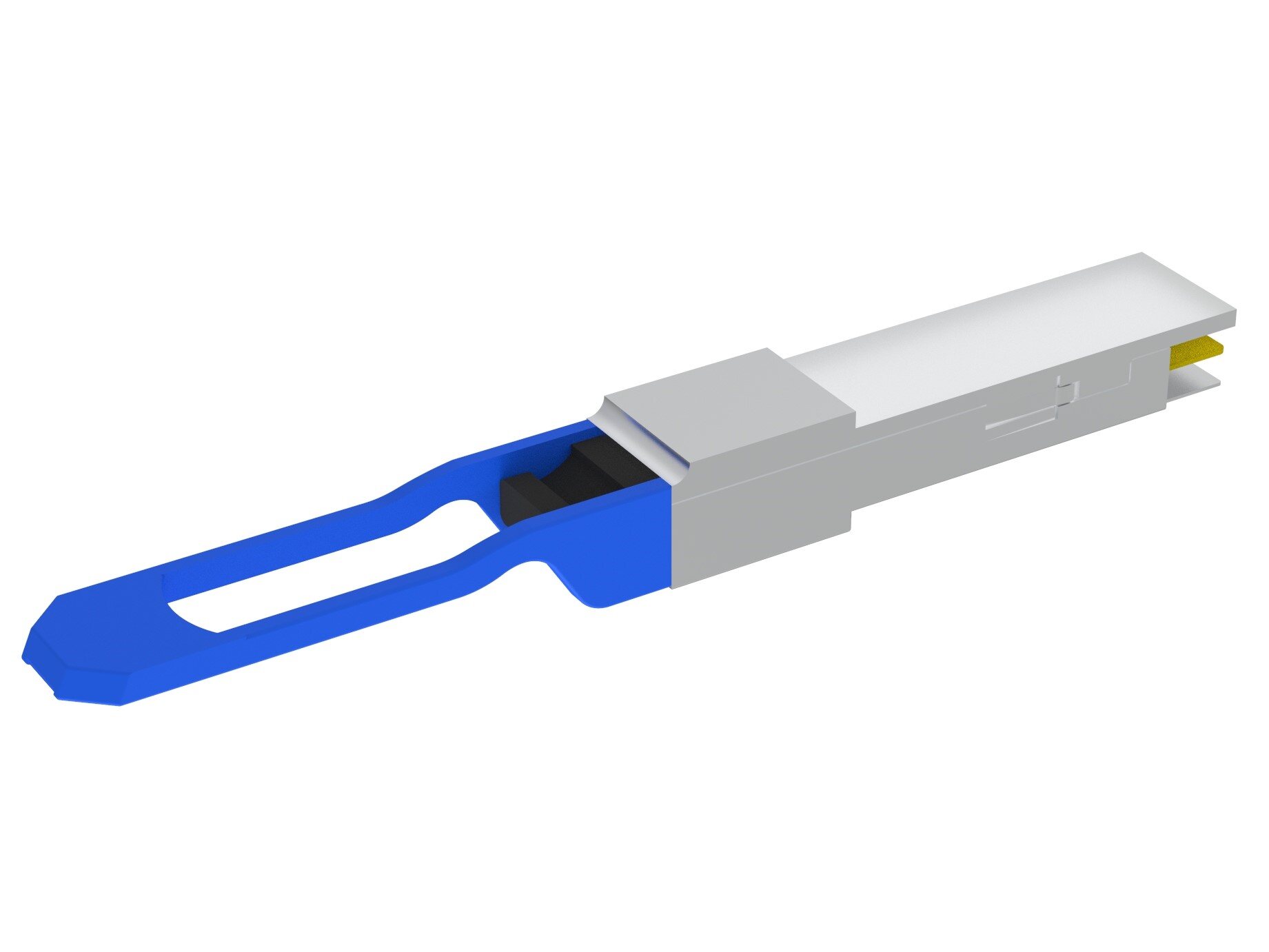

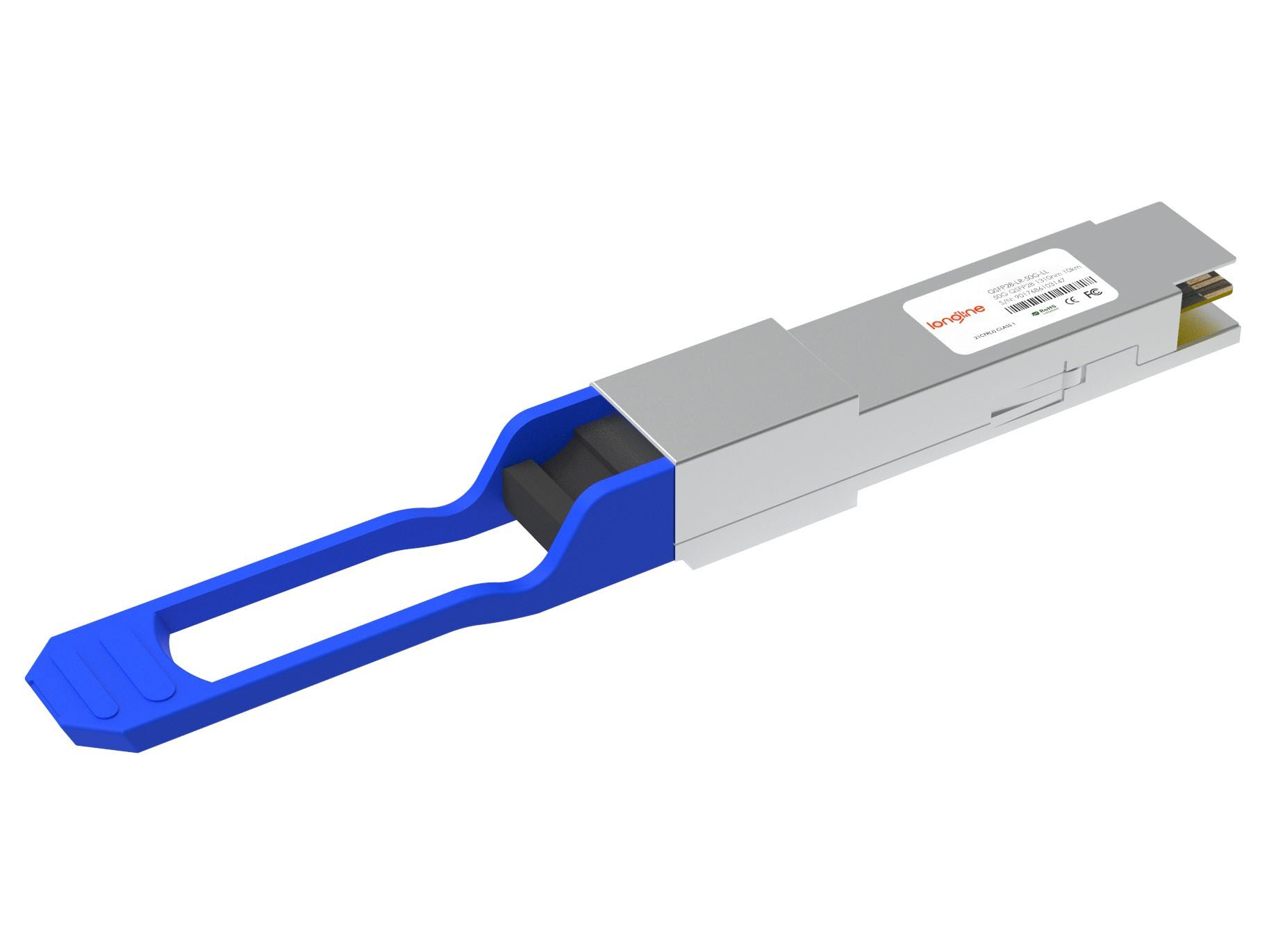

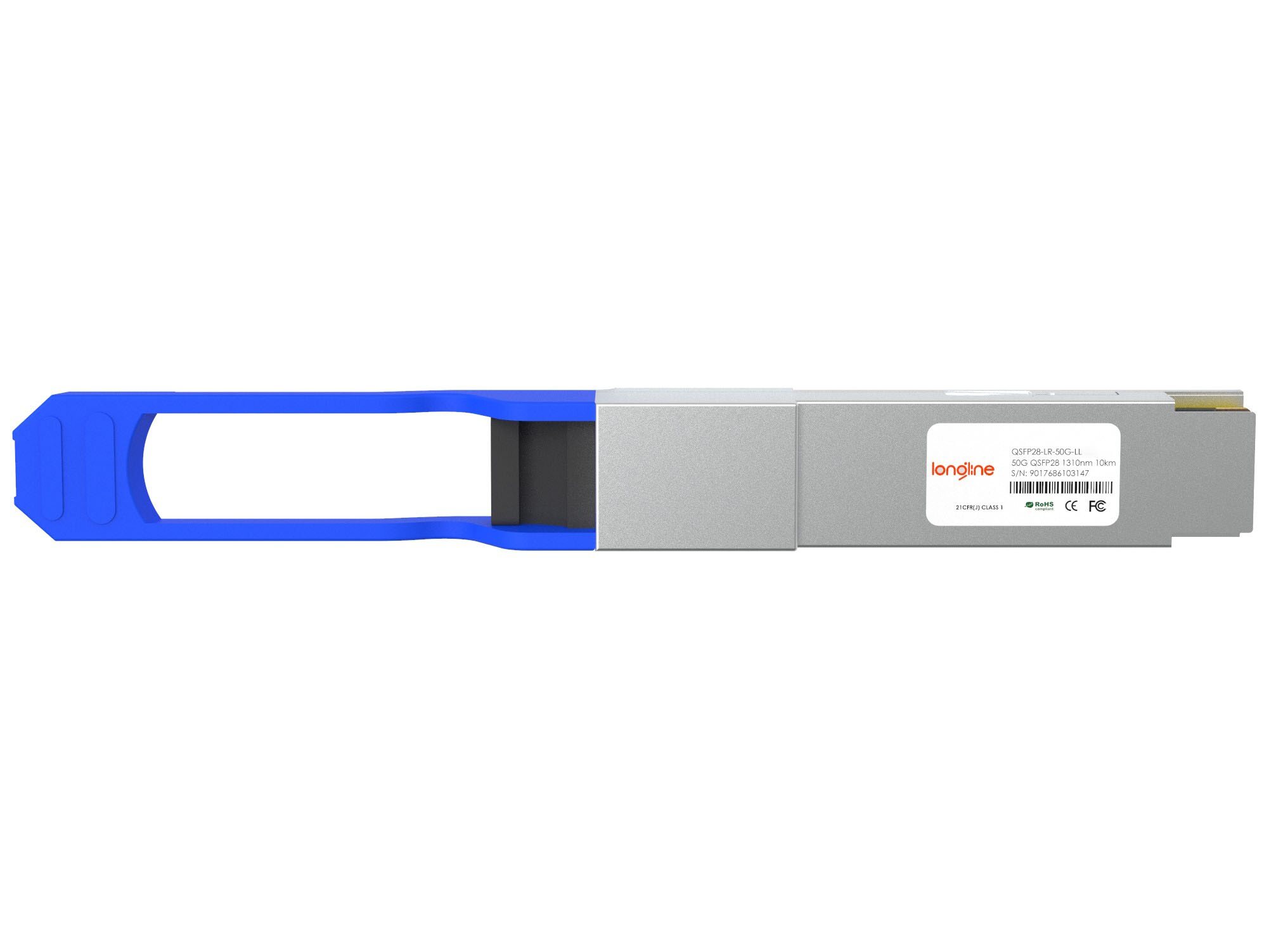

Generic Compatible 50GBASE-LR QSFP28 transceiver supports up to 10km link lengths over OS2 SMF via a LC duplex connector. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters via the I2C interface. This transceiver is compliant with QSFP28 MSA, SFF-8636 and SFF-8679 standard, and is suitable for 50GBASE Ethernet, 5G Network Mid/Backhaul applications.
Specifications
Part Number | QSFP-LR-50G | Vendor Name | Longline |
Form Factor | QSFP28 | Max Data Rate | 53.125Gbps |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -4.5~4.2dBm | Receiver Sensitivity | <-10.8dBm |
Powerbudget | 6.3dB | Receiver Overload | 5.2dBm |
Power Consumption | <3.5W | Extinction Ratio | 3.5dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Protocols | MSA Compliant | Warranty | 5 Years |
