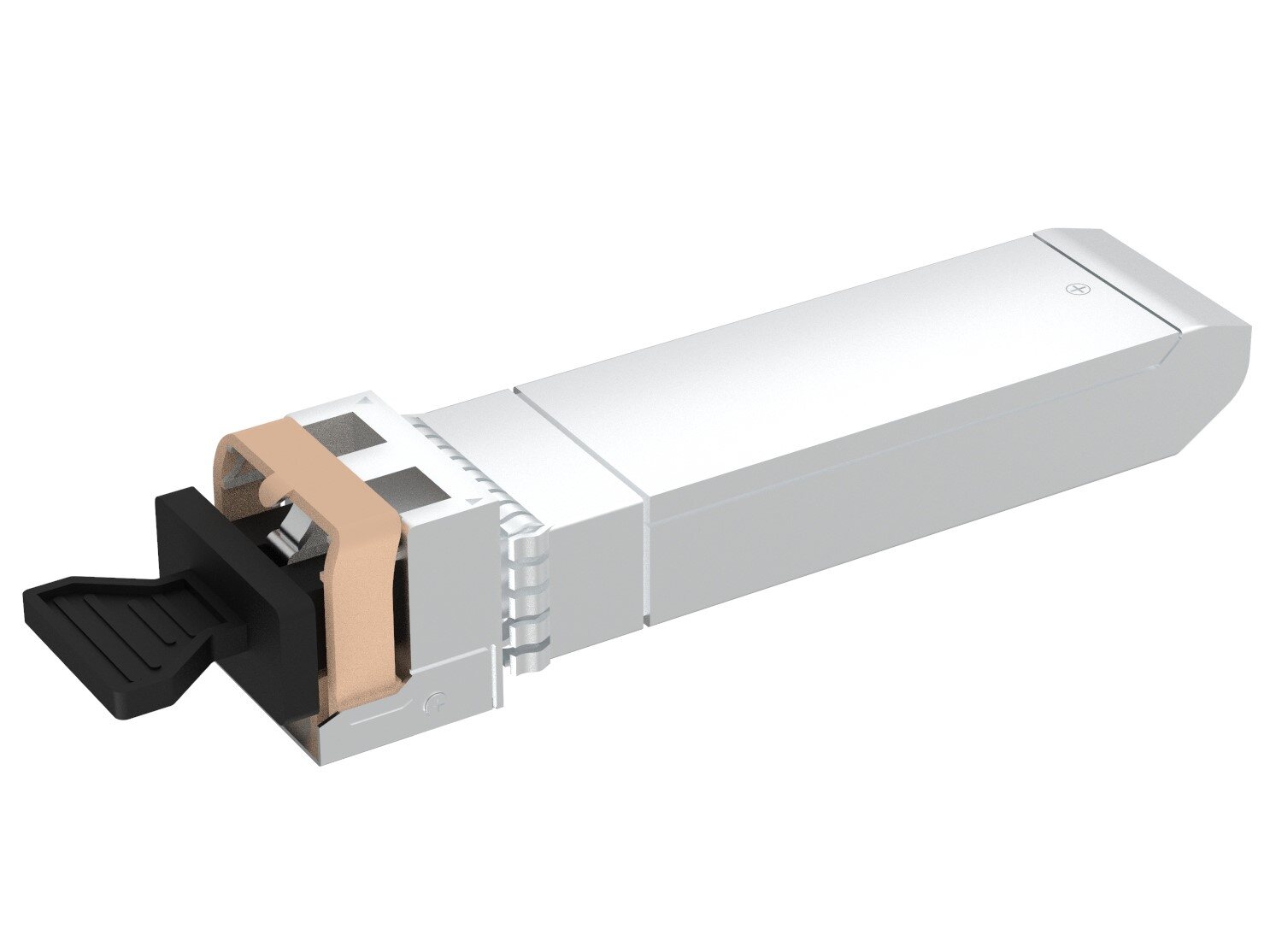

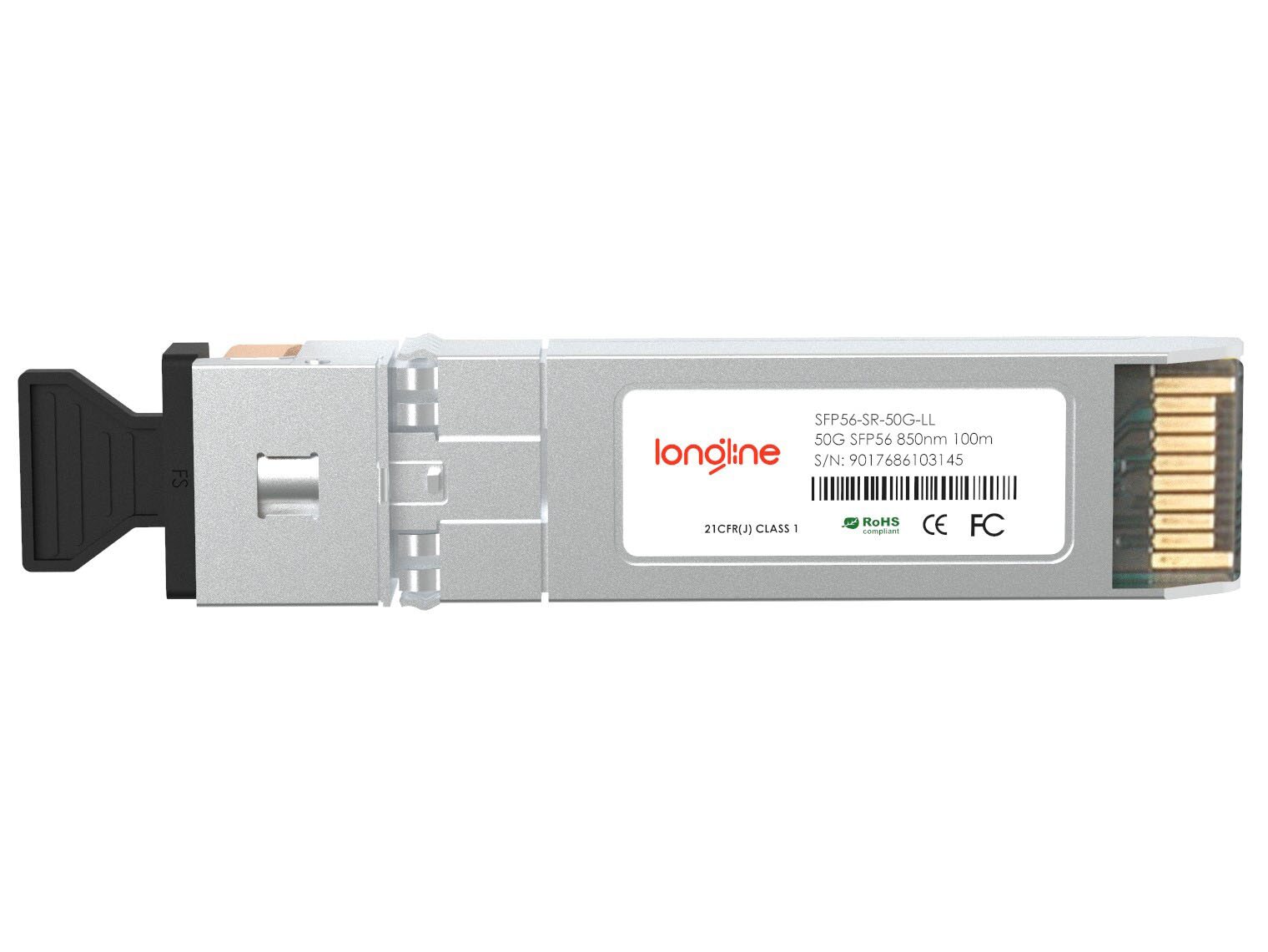

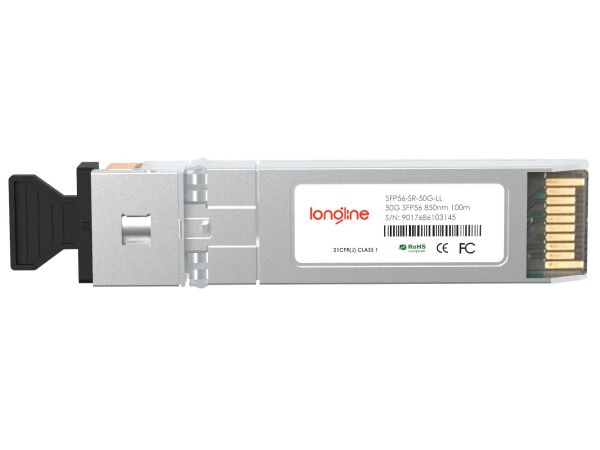

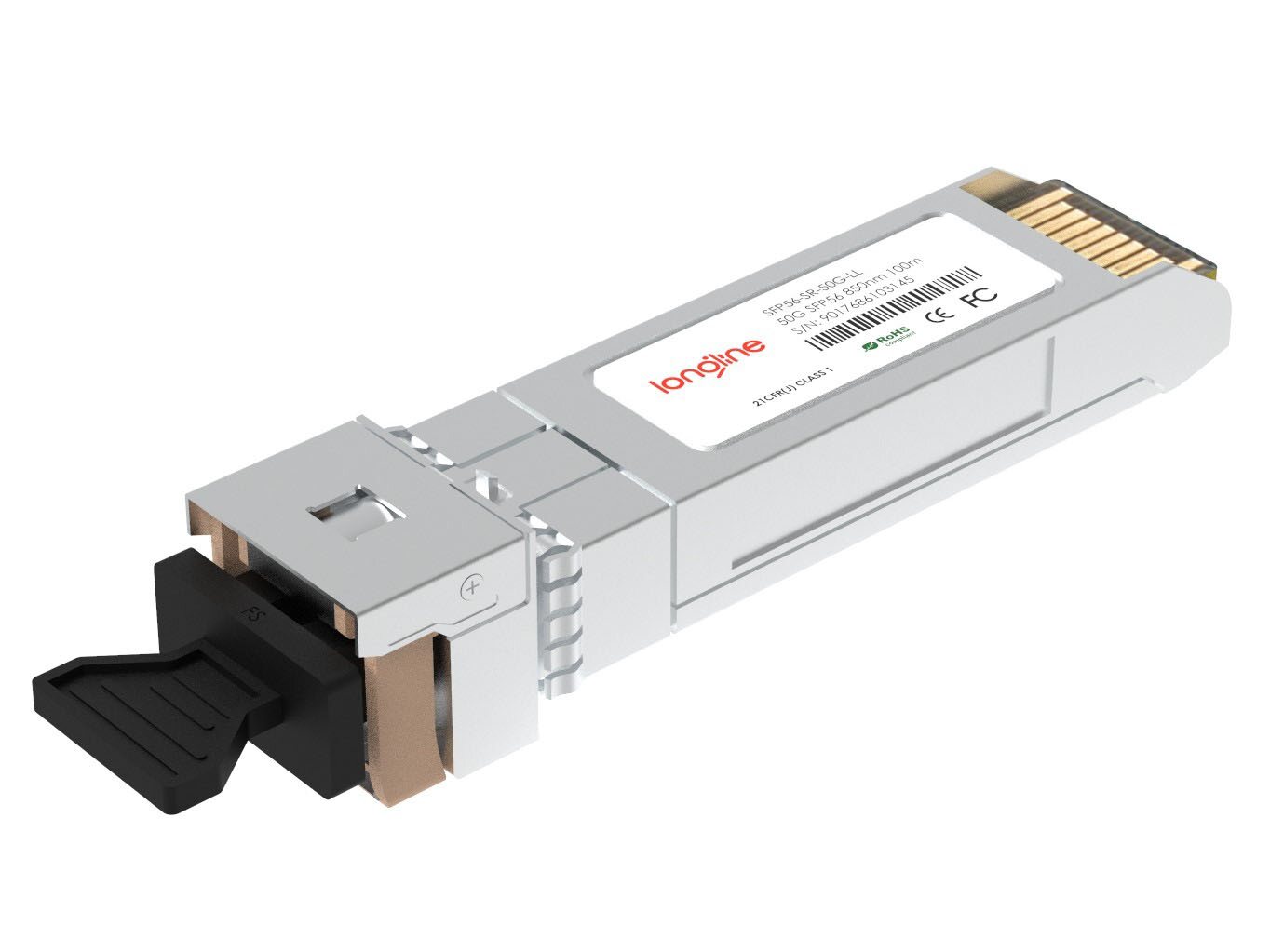

Generic Compatible 50GBASE-SR SFP56 transceiver supports up to 100m link lengths over OM4 MMF via a LC duplex connector. Digital Diagnostics functions are available via a 2-wire serial interface. The transceivers are compliant with the applicable requirements defined in SFF-8402, SFF-8472, IEEE 802.3cd, OIF-CEI-04.0, and RoHS-6 compliant. It is suitable for 50GBase Ethernet applications.
Specifications
Part Number | SFP-50GSR-85 | Vendor Name | Longline |
Form Factor | SFP56 | Max Data Rate | 53.125Gbps |
Wavelength | 850nm | Max Cable Distance | 100m@OM4 |
Connector | Duplex LC | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -6.5~4dBm | Receiver Sensitivity | <-8.4dBm |
Powerbudget | 1.9dB | Receiver Overload | 4dBm |
Power Consumption | ≤1.5W | Extinction Ratio | ＞3dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | PAM4 |
Protocols | IEEE802.3cd, SFF-8472, SFF-8402, SFF-8419, OIF-CEI-04.0 | Warranty | 5 Years |
