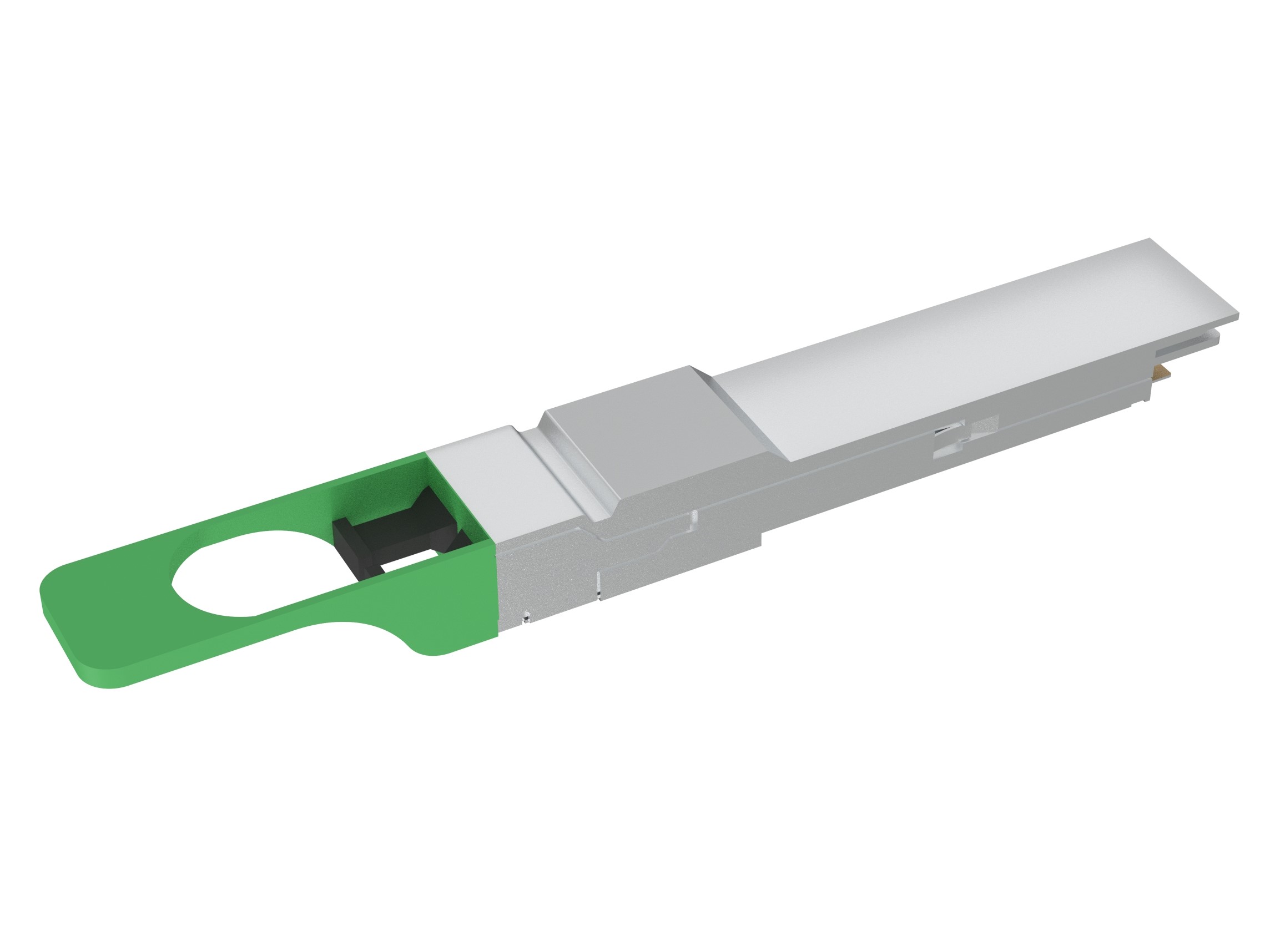

The 800GBASE-2FR4 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) with duplex LC connectors. The 800 Gigabit Ethernet signal is carried over four wavelengths at 1271, 1291, 1311, 1331 nm. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu, OSFP MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G FR4, Data Center, Cloud Networks.
Specifications
Part Number | OSFP-2FR4-800G | Vendor Name | Longline |
Form Factor | OSFP Finned Top | Max Data Rate | 850Gbps (8x 106.25Gbps) |
Wavelength | 1271nm, 1291nm, 1311nm and 1331nm | Max Cable Distance | 2km |
Connector | Dual LC Duplex/UPC | Media | SMF |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -3.2~4.4dBm | Minimum Receiver Power | -7.2dBm |
Powerbudget | 4dB | Extinction Ratio | >3.5dB |
Power Consumption | ≤16.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
DDM/DOM | Supported | Warranty | 5 Years |
Protocols | IEE802.3ck, IEEE 802.3cu, OSFP MSA | Receiver Overload | Receiver Overload 4.4dBm |
AÇIKLAMA
- Ürünler faturalı olarak tarafınıza gönderilecektir.
- Ürünler 2 yıl süreyle garantilidir.
- Ürün iade süresi 14 gün olup, iade durumunda kargo bedeli alıcıya aittir.
- Saat 16:00'ya kadar verilen siparişler aynı gün kargoya verilir.
- Pazartesi - Cuma 09:00-18:00 mesai saatleridir..
ARAYIPTA BULAMADIĞINIZ TÜM NETWORK VE SERVER YEDEK PARÇALARINI TEDARİK EDİYORUZ
