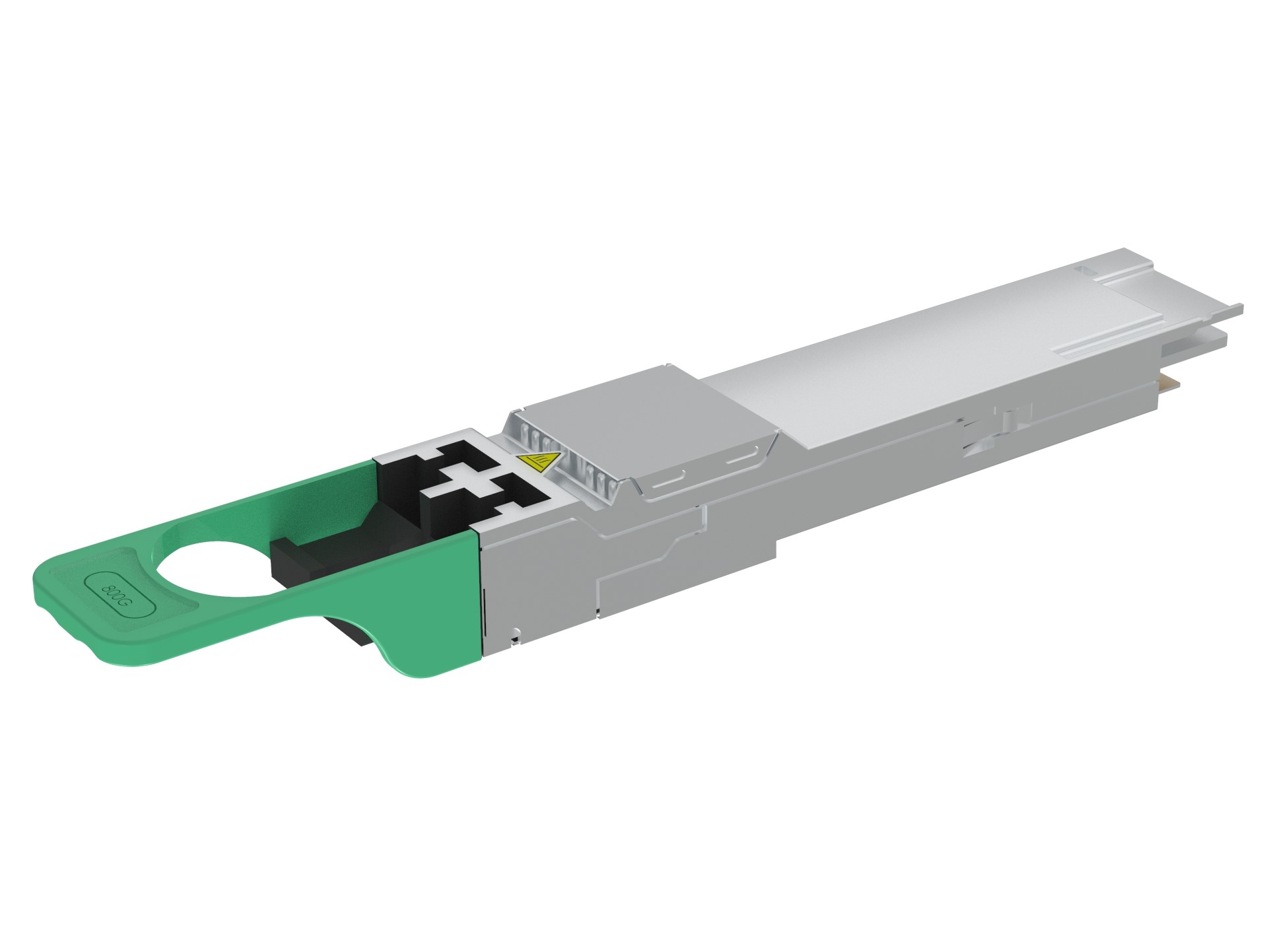

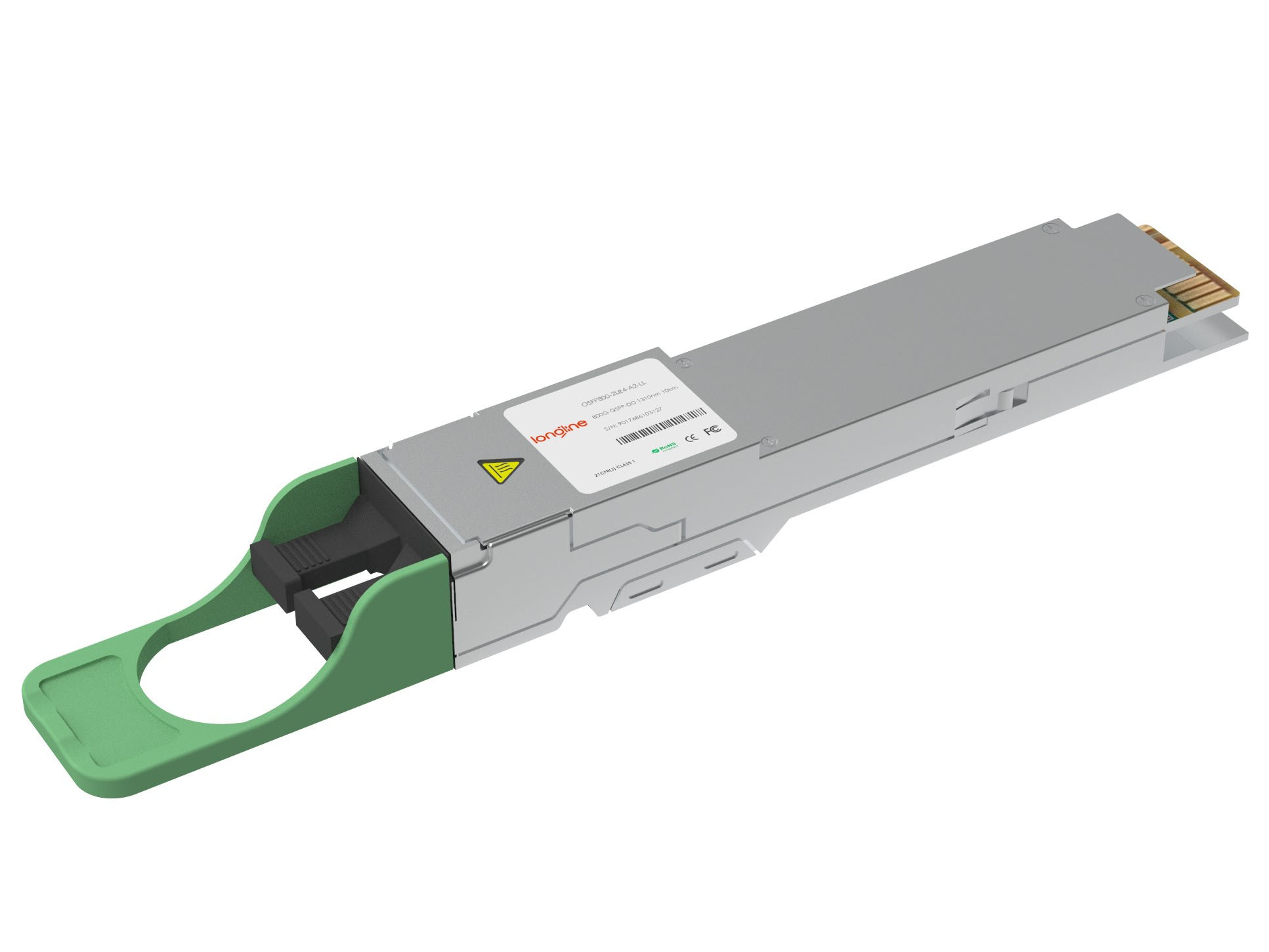

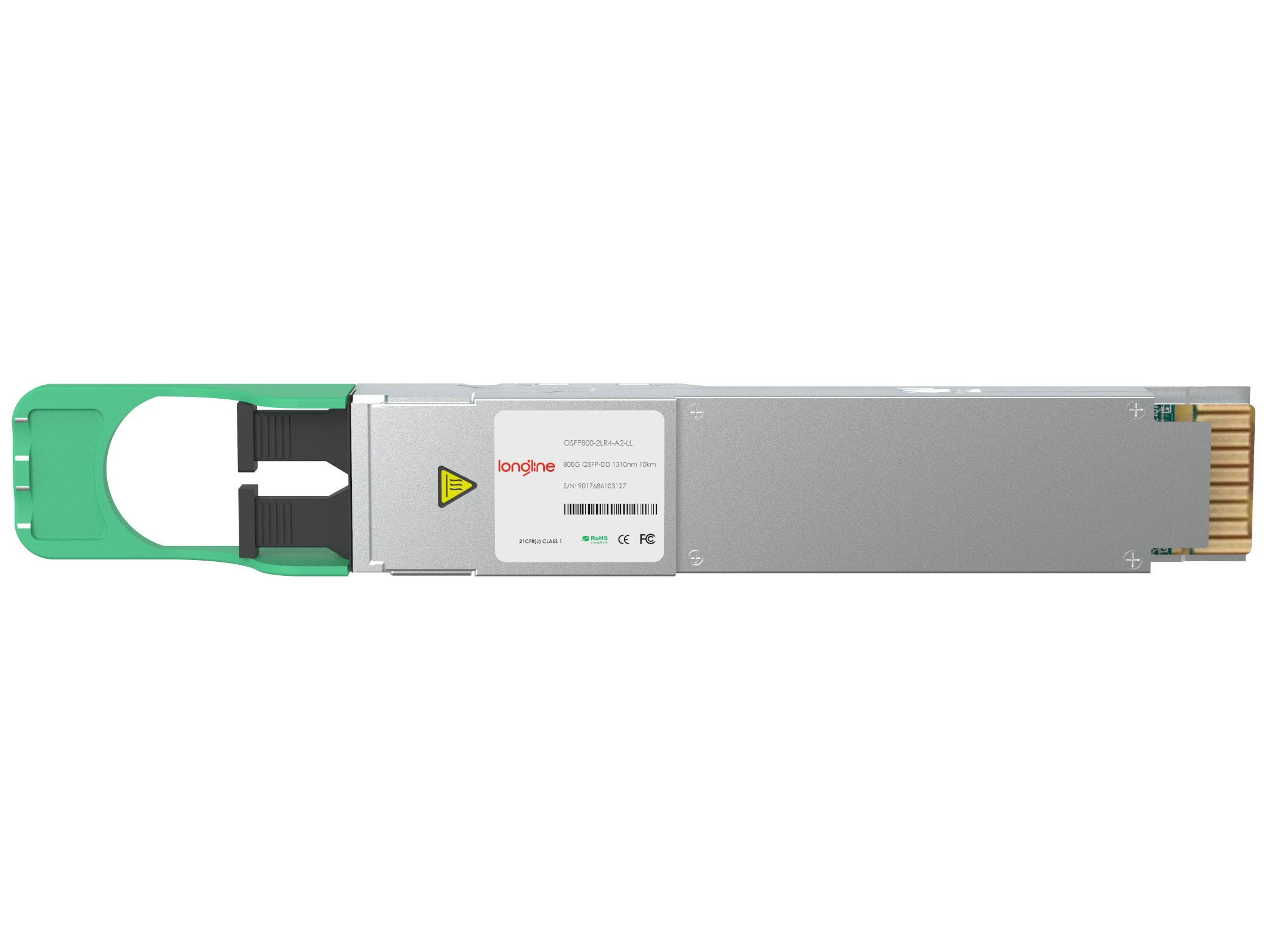

The Generic Compatible OSFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) via dual LC connectors. This transceiver is compliant with IEEE 802.3ck, OSFP MSA and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G LR4 and Data Center applications.
Part Number | OSFP800-2LR4-A2 | Vendor Name | Longline |
Form Factor | OSFP Finned Top | Max Data Rate | 850Gbps (8x 106.25Gbps) |
Wavelength | 1271nm, 1291nm, 1311nm and 1331nm | Max Cable Distance | 10km |
Connector | Dual LC Duplex/UPC | Media | MMF |
Transmitter Type | EML | Receiver Type | Siphotonics PIN PD |
TX Power | -2.7~5.1dBm | Minimum Receiver Power | -9dBm |
Powerbudget | 6.3dB | Receiver Overload | 5.1dBm |
Power Consumption | ≤18W | Extinction Ratio | >3.5dB |
Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
CDR (Clock and Data Recovery) | TX & RX Built-in DSP | Inbuilt FEC | No |
Protocols | IEE802.3ck, OSFP MSA, CMIS Rev 5.0 | Warranty | 5 Years |
