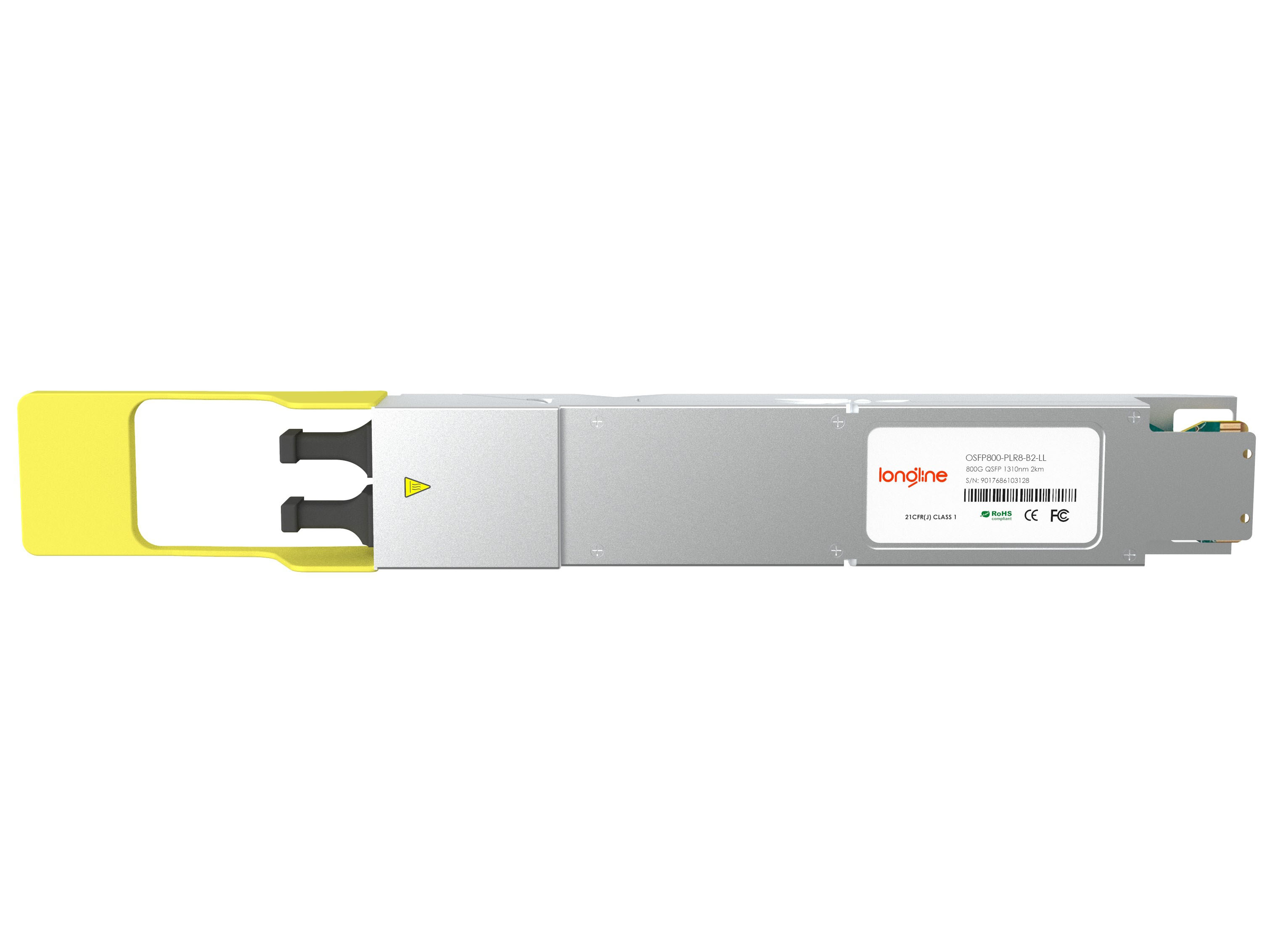

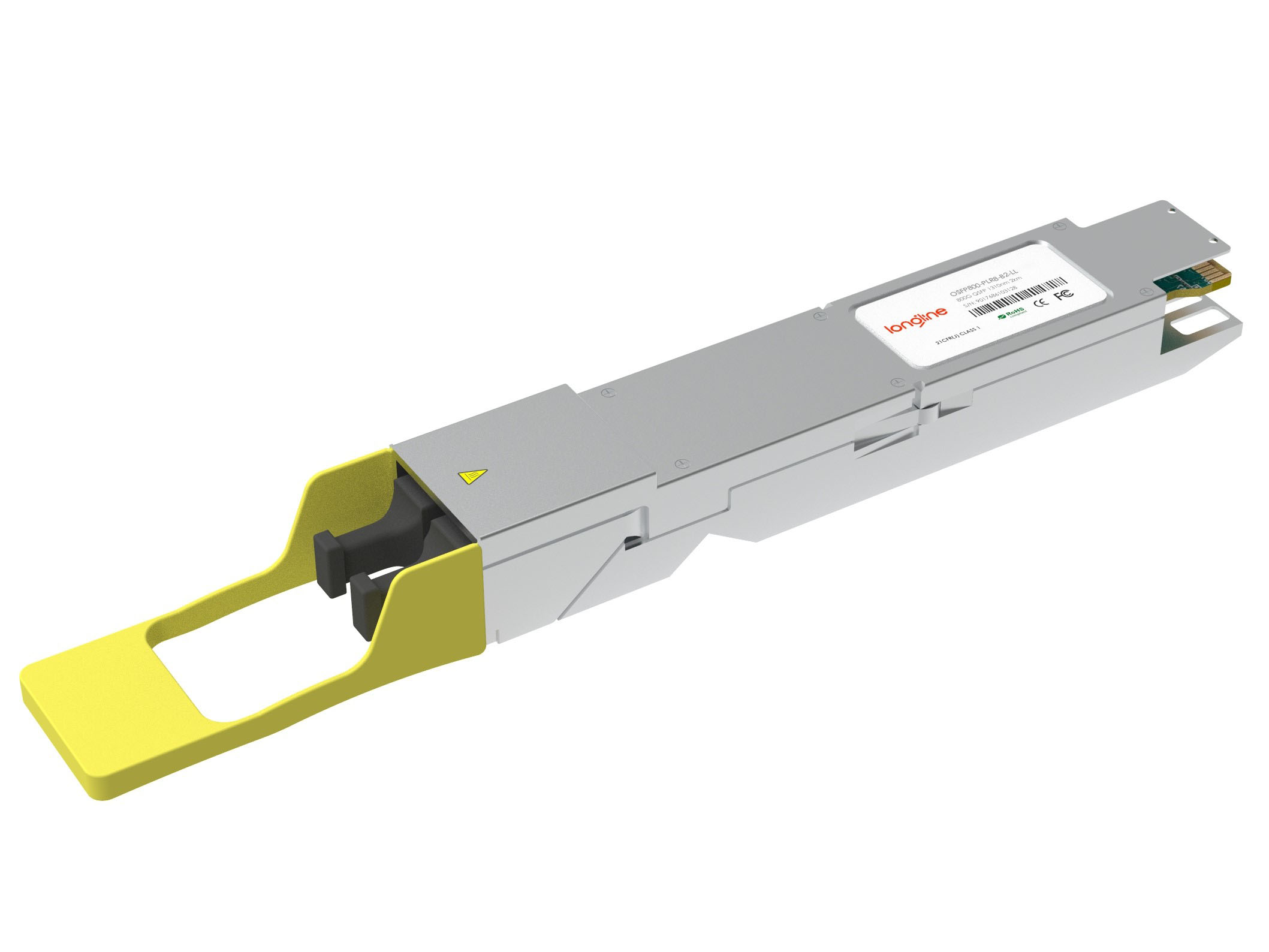

The Generic Compatible OSFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu-2021 and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for Breakout 2x 400G PLR4 or 8x 100G LR, 800G Ethernet and Data Center Applications.
Part Number | OSFP800-PLR8-B2 | Vendor Name | Longline |
Form Factor | OSFP Finned Top | Max Data Rate | 850Gbps (8x 106.25Gbps) |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | Dual MTP/MPO-12 APC | Media | SMF |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -1.9~4.8dBm | Minimum Receiver Power | -8.2dBm |
Powerbudget | 6.3dB | Receiver Overload | 4.8dBm |
Power Consumption | ≤16.5W | Extinction Ratio | >3.5dB |
Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
Protocols | IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 | Warranty | 5 Years |
