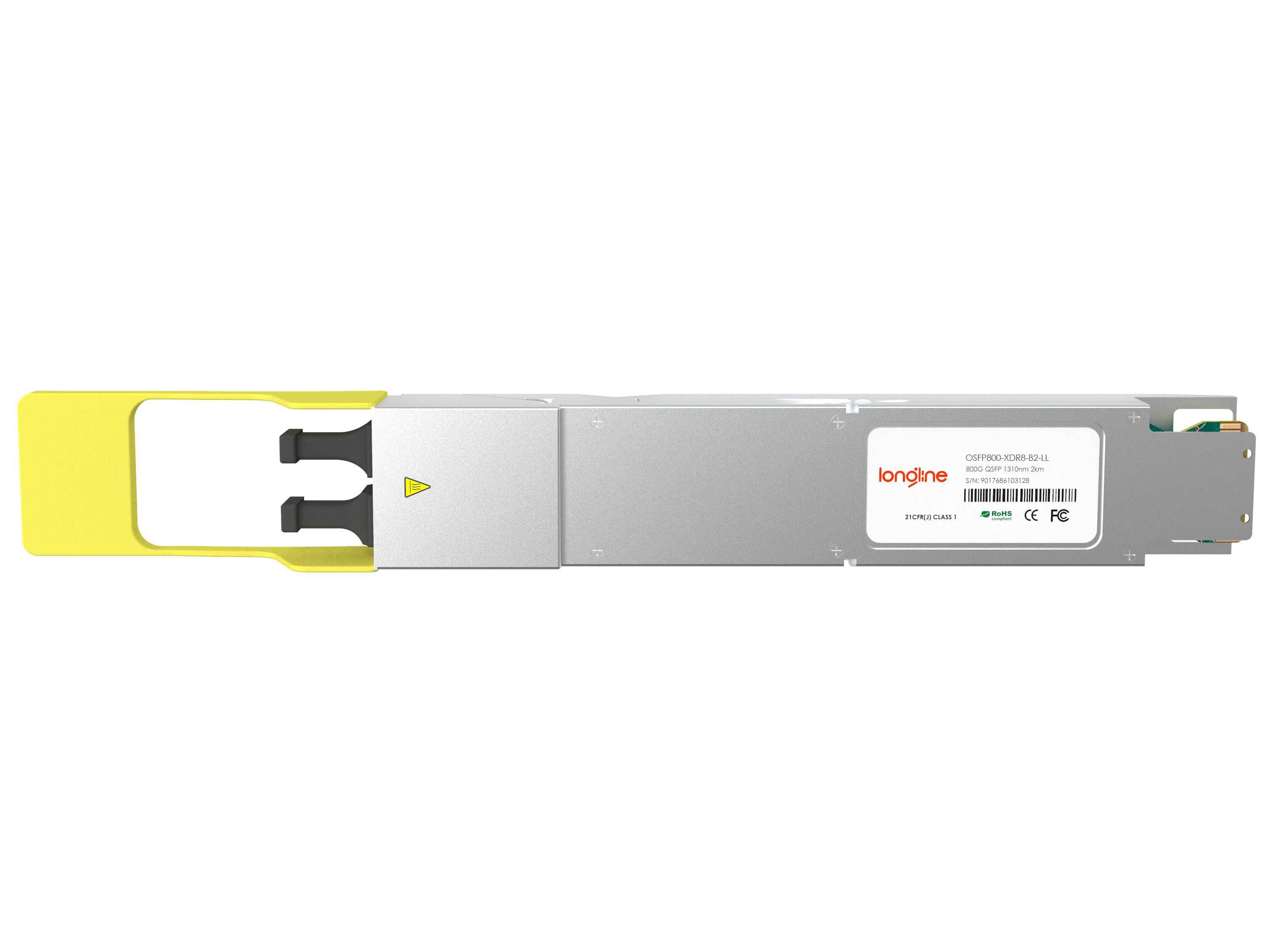

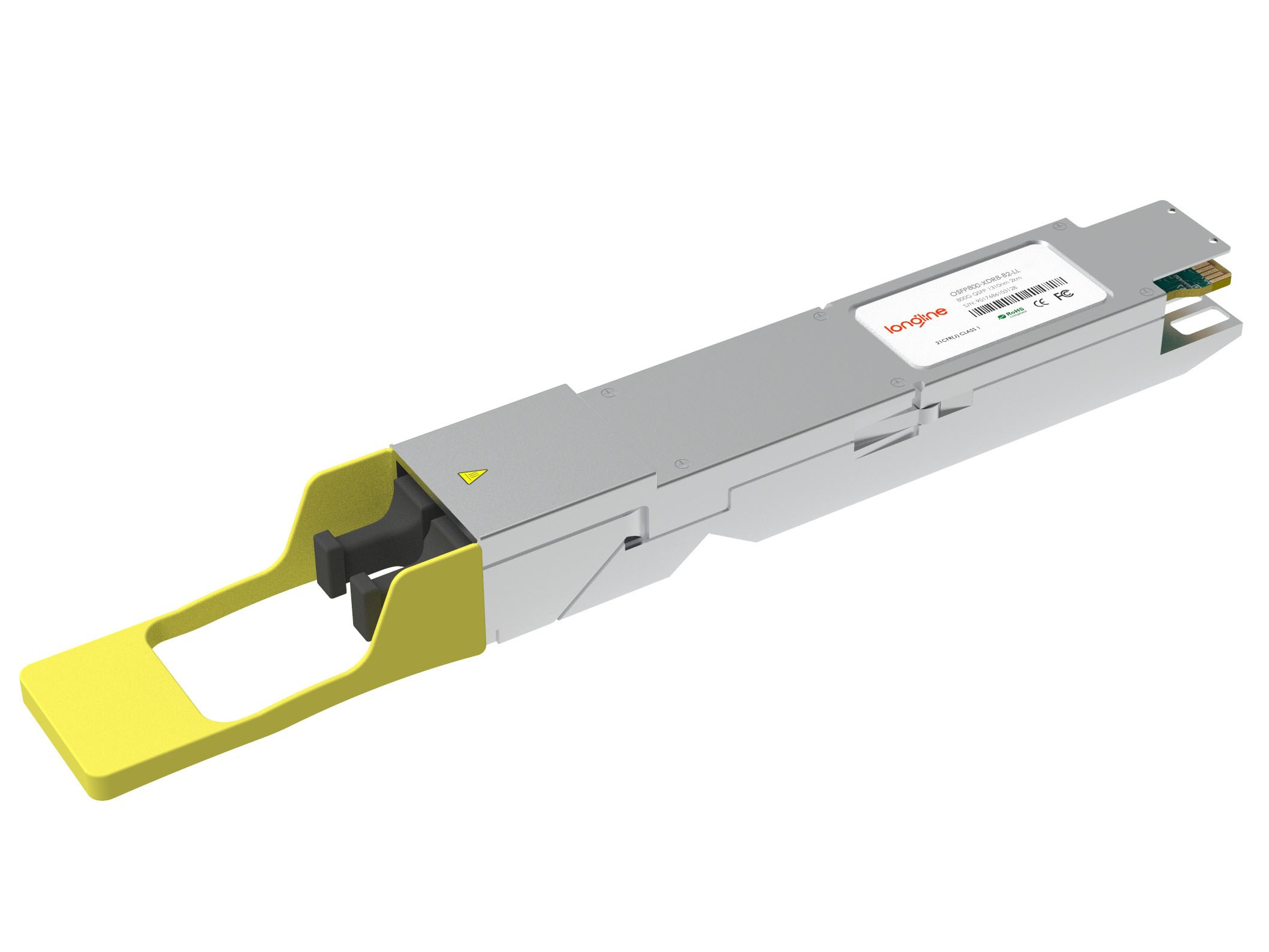

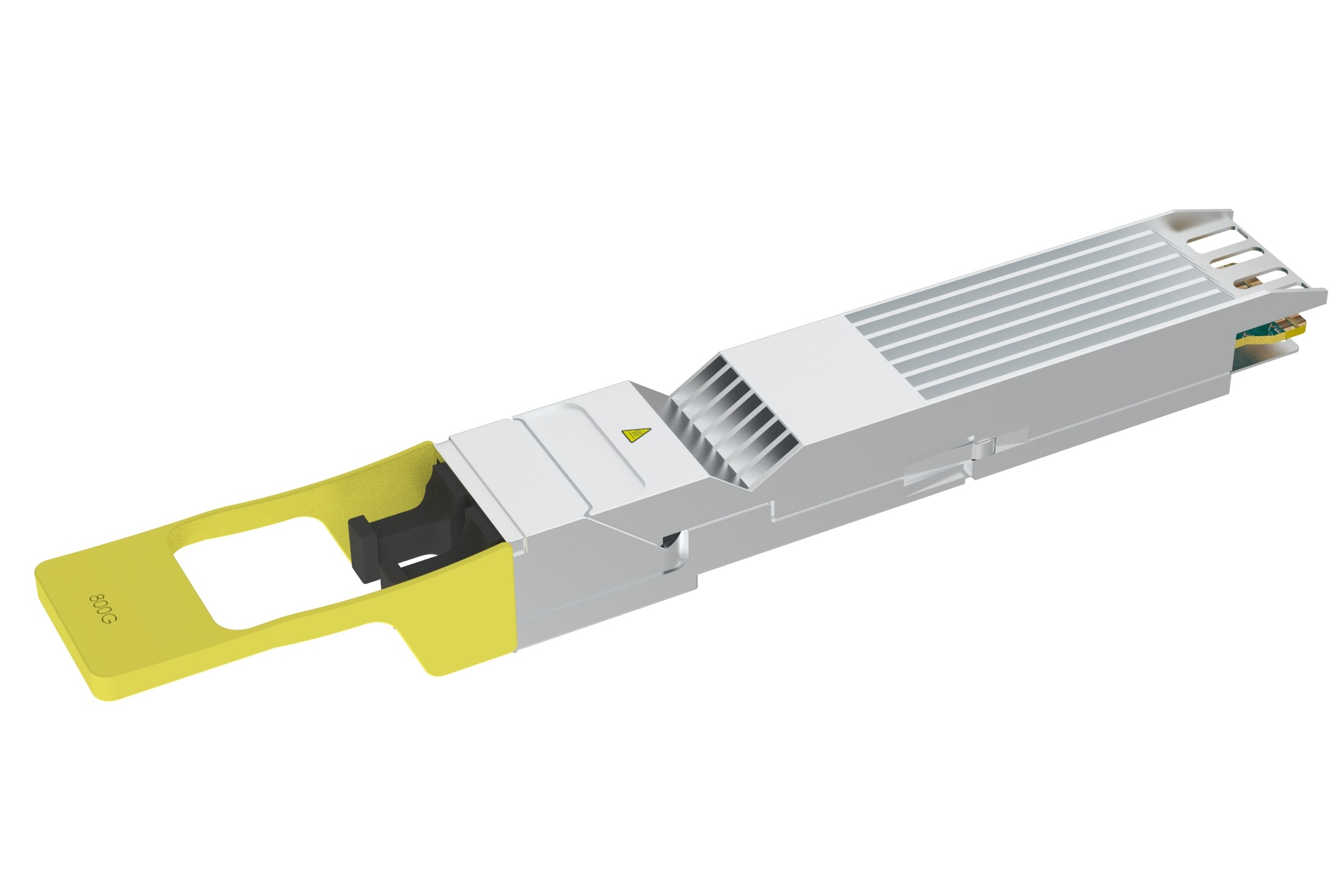

The 800GBASE-XDR8 OSFP Optical Transceiver Module supports up to 2km link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu-2021, OSFP MSA and CMIS Rev 5.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2x 400G XDR4 or 8x 100G FR, 800G Ethernet and Data Center applications.
Part Number | OSFP800-XDR8-B2 | Vendor Name | Longline |
Form Factor | OSFP | Max Data Rate | 206.24Gbps(8x 25.78Gbps) |
Wavelength | 1310nm | Max Cable Distance | 100m |
Connector | Dual MTP/MPO-12 | Media | MMF |
Transmitter Type | EML | Receiver Type | Siphotonics PIN PD |
TX Power | -3.1~4dBm | Minimum Receiver Power | -7.1dBm |
Powerbudget | 4dB | Receiver Overload | 4dBm |
Power Consumption | ≤16.5W | Extinction Ratio | >3.5dB |
Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | PAM4 |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
Protocols | IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 | Warranty | 5 Years |
