Specification
Brand: HPE
MPN: 836260-001
Option Part Number: 804331-B21
Spare Part Number: 804334-001
Spare Part Number: 836260-001
General

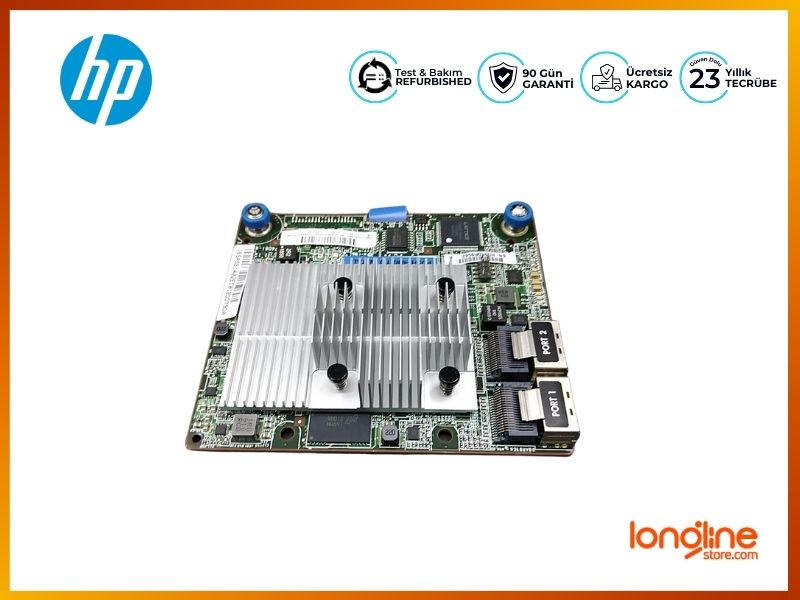

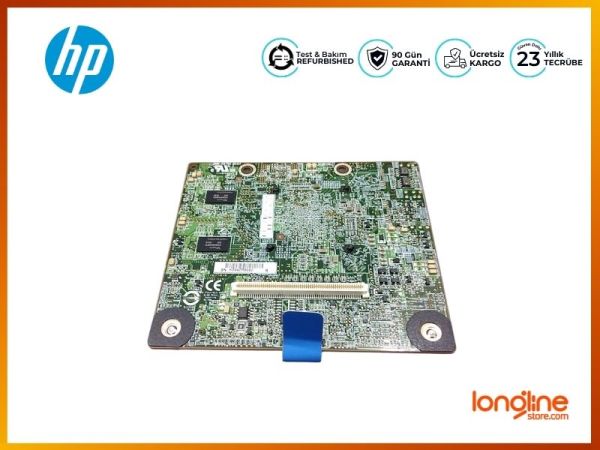

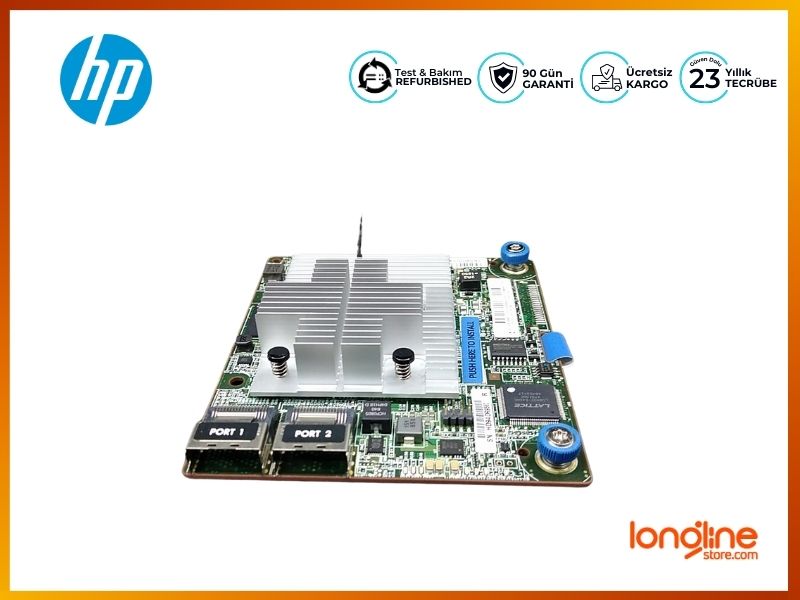

Device Type: Storage Controller (RAID) - Plug-in Card
Host Bus: PCI Express 3.0 x8 Lane Width
Storage Controller
Data Transfer Rate: 12Gb/s SAS per lane; 6Gb/s SATA per lane; PCI Express 3.0 x8 lane width
Interface: SATA 6Gb/s / SAS 12Gb/s
Form Factor: Type-a Modular Controller
Ports (Internal): 8 SAS lanes across 2 x4 Mini-SAS ports
Cache (Buffer): 2 GB Flash-Backed Write Cache
Supported Devices: Hard Drive, Disk Array (RAID)
Servers Supported: HPE ProLiant DL360 Gen10; HPE ProLiant DL380 Gen10; HPE ProLiant ML350 Gen10; HPE ProLiant XL450 Gen10
Additional features: HPE Smart Array SR Secure Encryption (optional license); HPE Smart Array SR SmartCache (optional license)
Certifications: FIPS 140-2 Level 1 Implementation Under Test with expected validation in 2018
Channel Qty: 8
SATA Speed: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Maximum LUNs: 64
Expansion & Connectivity
Interfaces: 2 x SATA 6Gb/s / SAS 12Gb/s (internal)
Miscellaneous
Compliant Standards: FIPS 140-2 Level 1
Software / System Requirements
OS Required: Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Compatibility Information
Designed for
HPE ProLiant DL Series: DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 High Performance, DL380 Gen10 Performance Servers
HPE ProLiant XL Series: XL450 Gen10 Server
AÇIKLAMA
Arayıp da bulamadığınız tüm Network ve Server yedek parçalarını tedarik ediyoruz.
(Cisco, Avaya, Lenovo, HP, IBM, Fujitsu, Samsung, Huawei, Enterasys, Juniper, Alcatel, Sun, Qlogic, Dell, Emulex)
