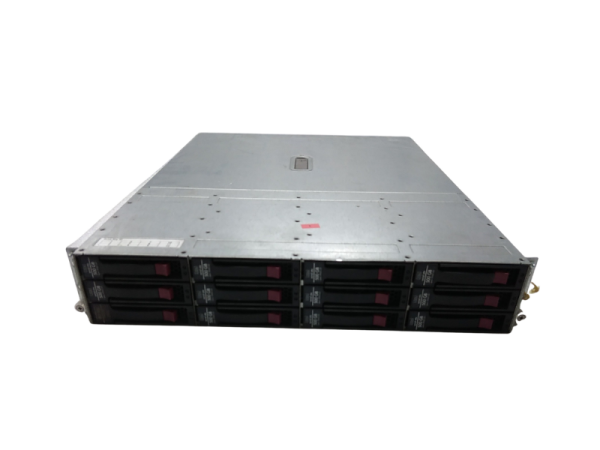

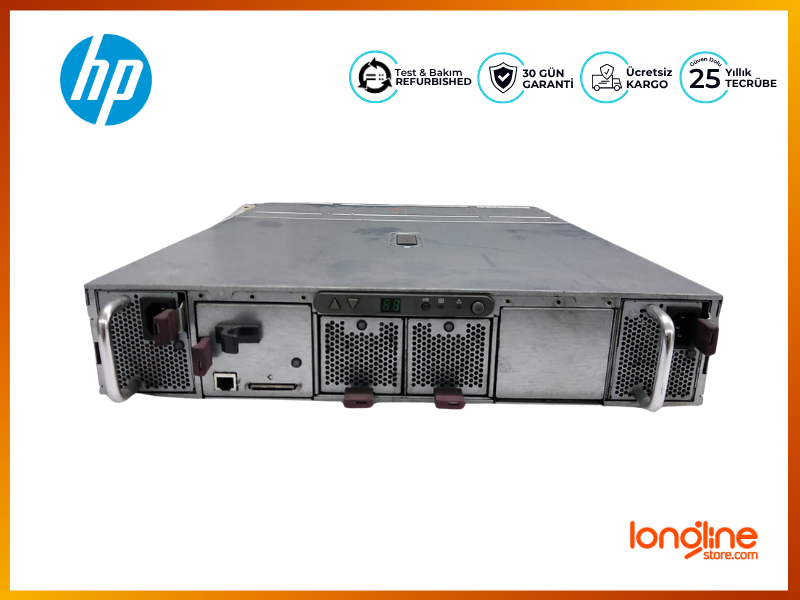

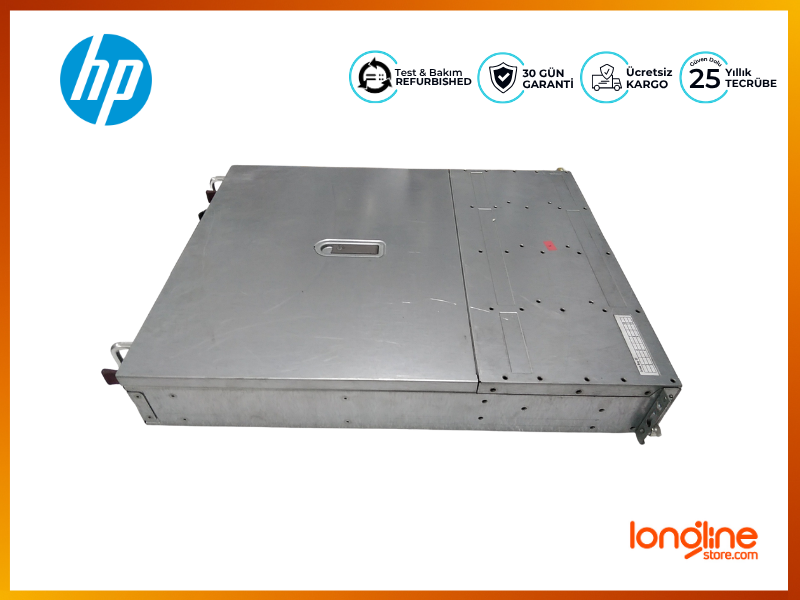

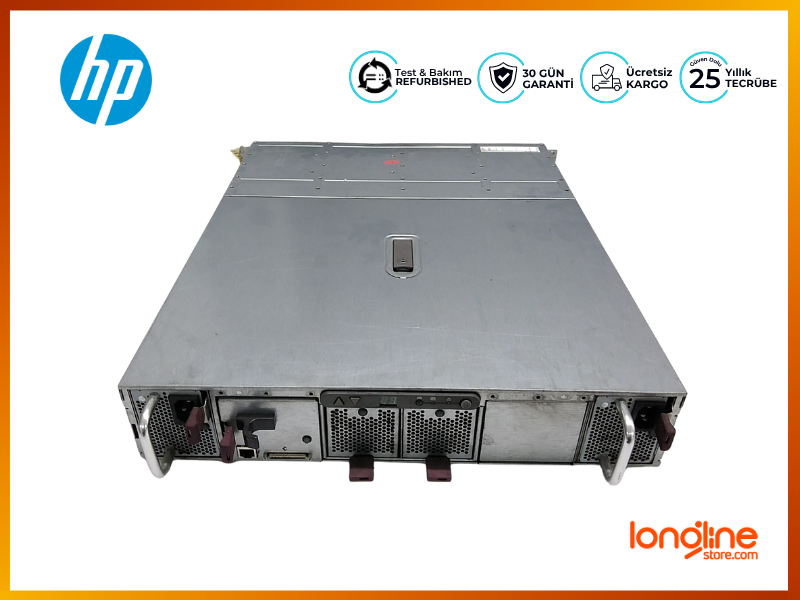

HP StorageWorks Modular Smart Array 60 MAS60 w/12 LFF 418408-B21

Overview:

The HP 60 Modular Smart Array enclosure is a 2U Serial Attach SCSI (SAS) disk drive storage enclosure supporting 3.5 inch SAS SAS serial and SAS Midline (MDL) drives. This enclosure delivers industry-leading data performance availability storage density and upgradeability to meet customers' demanding and growing storage needs.

Specifications:

Category

Controller

Sub-Category

Smart Array

Generation

MSA60

Part Number

418408-B21

Manufacturer

HP

Product Type

Modular Smart Array

LED Indicators

HDDs, Front, Rear

Host Interface

4 x wide SAS 3 Gb/s ports

Max. Number of Drives

12 @ 3.5 in SAS/SATA

Operating Temperature

50° to 95° F (10° to 35° C)

Rated Input Voltage

100 to 240 VAC

Rated Input Frequency

50 to 60 Hz

Input Power (max)

345 W

RAID Support

0, 1, 1+0

Upgradeable

Yes, Online Only

Drive & Enclosure Support

3.5 inch SAS 3 Gb/s

Number of Ports

2

Form Factor

2U Rack

Dimensions (WxHxD)

17.6 x 3.5 x 23.3 in (44.8x8.8x59 cm)
