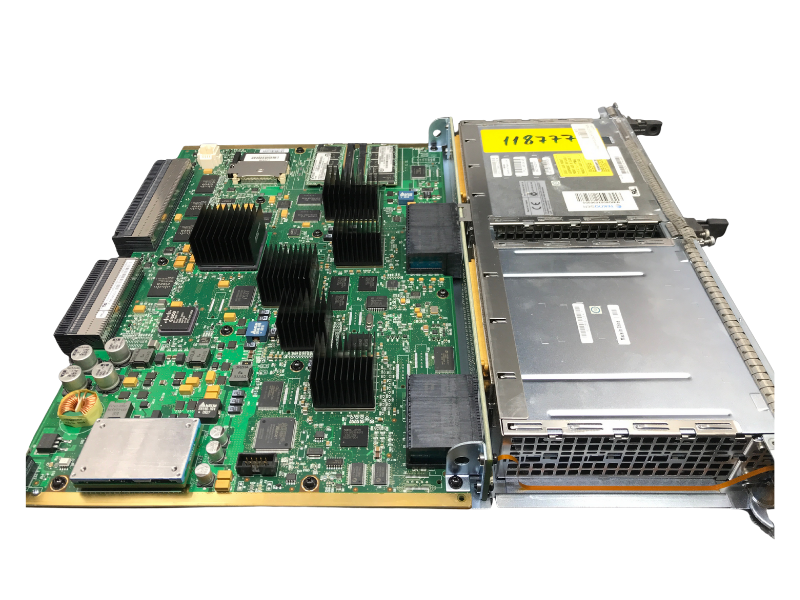

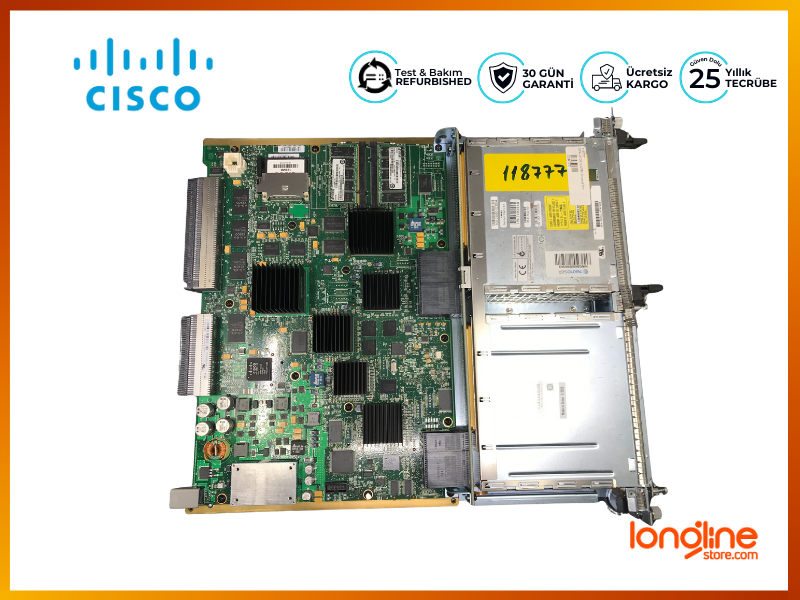

CISCO 7600-SIP-200 Interface Processor-200

7600 SIP-200 Specification

Compatibility

Cisco 7600 Series SUP32-3B, SUP720-3B, SUP720-3BXL, RSP720-3C, RSP720-3CXL, RSP720-3C-10G, and RSP720-3CXL-10G systems

Minimum Software Compatibility

Cisco IOS® Software Release 12.2(18)SXE, or later

Protocols

●  TCP

●  User Datagram Protocol (UDP)

●  IPv4 Unicast and Multicast

●  IPv6 Unicast and Multicast

●  MPLS

Encapsulation

●  Frame Relay

●  Multilink Frame Relay – FRF.16

●  PPP

●  MLPPP

●  Bridge Control Protocol (BCP)

●  High-Level Data Link Control (HDLC)

●  ATM permanent virtual circuit (PVC)-constant bit rate (CBR), variable bit rate real-time (VBR-rt), VBR non-real-time (VBR-nrt), and unspecified bit rate (UBR)

●  ATM switched virtual circuit (SVC)-CBR, VBR-rt, VBR-nrt, UBR, and UBR+

●  POS

Cards, Ports, and Slots

Four SPA bays per Cisco 7600 SIP-200. The SIP-200 supports oversubscription.

QoS, Access Control Lists (ACLs), and Low-Speed Aggregation Features

QoS

●  Modular QoS CLI (MQC)

●  Classification

◦   ACLs

◦   IP Precedence

◦   IPv4 and IPv6

◦   Differentiated services code point (DSCP)

◦   MPLS experimental values (MPLS EXP)

◦   Frame Relay Discard Eligibility

◦   ATM cell loss priority (CLP)

●  QoS mappings – CLP, DE to IP type of service (ToS), MPLS EXP; and conversely

●  Hierarchical QoS

Queuing

●  Per-virtual circuit queuing

●  Low-latency queuing (LLQ)

●  Weighted Fair Queuing (WFQ)

●  Class-Based Weighted Fair Queuing (CBWFQ)

Congestion Avoidance

Weighted Random Early Detection (WRED)

Traffic Marking, Shaping, and Bandwidth Policing

●  Marking – IP Precedence, DSCP, MPLS EXP, ATM CLP, and FR DE

●  Policing

●  Distributed traffic shaping (DTS)

●  Hierarchical traffic shaping

●  Distributed network-based application recognition (NBAR)

Fragmentation

●  Distributed link fragmentation and interleaving (dLFI)

●  Frame Relay Forum FRF.12

ACLs and Security

●  Standard, extended, dynamic, reflexive, and time-based ACLs

●  Classification based on packet length

Bandwidth Efficiency

●  cRTP

●  ATM permanent-virtual-circuit (PVC) bundles

●  Frame Relay virtual circuit bundles

Layer 2 Bridging and Interworking

●  RFCs 1483 and RFC 2684 ATM Virtual Circuits – Routed and Bridged

●  RFC 1490 Frame Relay Virtual Circiuts – Routed and Bridged

●  Multipoint Bridging for RFC 1483 virtual circuits

●  Multipoint Bridging for RFC 1490 virtual circuits

●  Bridge Control Protocol

●  Bridging of routed encapsulation

●  Routed bridged encapsulation

Layer 2 and Layer 3 VPNs

●  RFC 2547 MPLS VPNs

●  Ethernet over MPLS (EoMPLS)

●  ATM over MPLS (ATMoMPLS)

●  ATM Adaptation Layer 5 (AAL5) virtual circuit mode, single-cell relay virtual circuit mode

●  Frame Relay over MPLS (FRoMPLS)

●  PPP over MPLS (PPPoMPLS)

●  HDLC over MPLS (HDLCoMPLS)

●  Virtual circuit-to-virtual circuit local switching – Frame Relay, ATM – AAL0, AAL5

High Availability

●  Nonstop forwarding (NSF)

●  Stateful switchover (SSO)

●  Automatic Protection Switching (APS) with ATM, POS SPAs

●  OIR

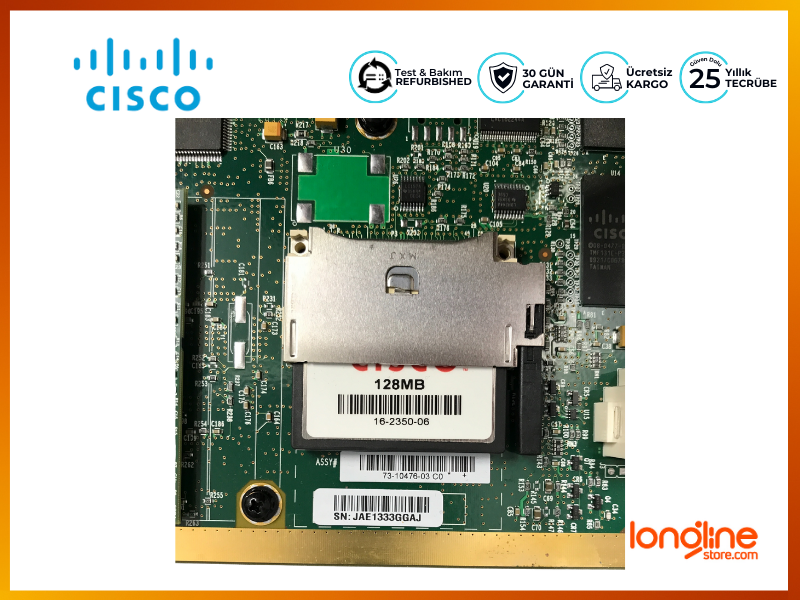

Memory

●  512-MB default Double Data Rate (DDR) synchronous dynamic RAM (SDRAM)

●  Optionally upgradable to 1-GB DDR SDRAM memory

Supported SPAs

ATM

●  Cisco 2-Port OC-3c/STM-1c ATM Shared Port Adapter

●  Cisco 4-Port OC-3c/STM-1c ATM Shared Port Adapter

POS/Channelized

●  Cisco 2-Port OC-3c/STM-1c POS Shared Port Adapter

●  Cisco 4-Port OC-3c/STM-1c POS Shared Port Adapter

●  Cisco 1-Port Channelized OC-3c/STM-1c POS Shared Port Adapter

Copper/Channelized

●  Cisco 8-Port Channelized T1/E1 Shared Port Adapter

●  Cisco 2-Port Clear Channel T3/E3 Shared Port Adapter

●  Cisco 4-Port Clear Channel T3/E3 Shared Port Adapter

●  Cisco 2-Port Channelized T3 (DS0) Shared Port Adapter

●  Cisco 4-Port Channelized T3 (DS0) Shared Port Adapter

●  Cisco 4-Port Serial Shared Port Adapter

Fast Ethernet

●  Cisco 4-Port Fast Ethernet Shared Port Adapter

●  Cisco 8-Port Fast Ethernet Shared Port Adapter

Environmental Conditions

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Storage temperature: –40 to 167°F (–20 to 70°C)

●  Relative humidity: 10 to 90%, noncondensing

●  Operating altitude: –60 to 2000m

MIBs

●  Cisco Entity MIB (CISCO-ENTITY-MIB)

●  Cisco Entity Asset MIB

●  CISCO-ENTITY-VENDOR-OIDTYPE-MIB OID

●  Cisco Entity Field-Replaceable Unit (FRU) Control MIB

●  CISCO-ENHANCED-MEMPOOL-MIB

●  CISCO-PROCESS-MIB

●  CISCO-ENVMON-MIB

●  Cisco Entity Alarm MIB

●  Simple Network Management Protocol (SNMP) MIB II (RFC 1213)

●  Remote Monitoring (RMON) MIB (RFC 1757)

Network Management

●  Supported with CiscoWorks CiscoView

●  CiscoWorks Resource Manager Essentials (RME)

●  Cisco IP Solution Center (ISC)

Physical Specifications

●  Occupies one slot in a Cisco 7600 Series Router

●  Supports up to 12 Cisco 7600 SIP-200s in a 13-slot chassis

●  Requires Supervisor Engine SUP32-3B, SUP720-3B, SUP720-3BXL, RSP720-3C, RSP720-3CXL, RSP720-3C-10G, or RSP720-3CXL-10G

●  Dimensions (H x W x D): 1.74 x 15.3 x 17 in.

●  Weight: 8.5 lb

Power

●  160W power consumption per Cisco 7600 SIP-200

●  240W maximum power consumption with Cisco 7600 SIP-200 and 4 SPAs

Indicators

Cisco 7600 SIP-200 status:

●  green (operational)

●  orange (faulty)

Regulatory Compliance

CE marking

Safety

●  UL 60950

●  CSA C22.2 No. 60950

●  EN60950

●  TS001

●  IEC 60950

●  AS/NZS3260

EMC

●  FCC Part 15 Class A

●  ICES-003 Class A

●  VCCI Class A

●  EN55022 Class A

●  EN55024

●  EN50082-1

●  CISPR22 Class A

●  ETS-300 386

Telecommunications Standards

●  ITU-T G.610

●  ITU-T G.703

●  ITU-T G.707

●  ITU-T G.783 Sections 9-10

●  ITU-T G.784

●  ITU-T G.803

●  ITU-T G.813

●  ITU-T G.825

●  ITU-T G.826

●  ITU-T G.841

●  ITU-T G.957 Table 3

●  ITU-T G.958

●  ITU-T I.361

●  ITU-T I.363

●  ITU I.432

●  ITU-T Q.2110

●  ITU-T Q.2130

●  ITU-T Q.2140

●  ITU-T O.151

●  ITU-T O.171

●  ETSI ETS 300 417-1-1

●  ACA TS 026 (1997)

●  BABT/TC/139 (Draft 1e)
