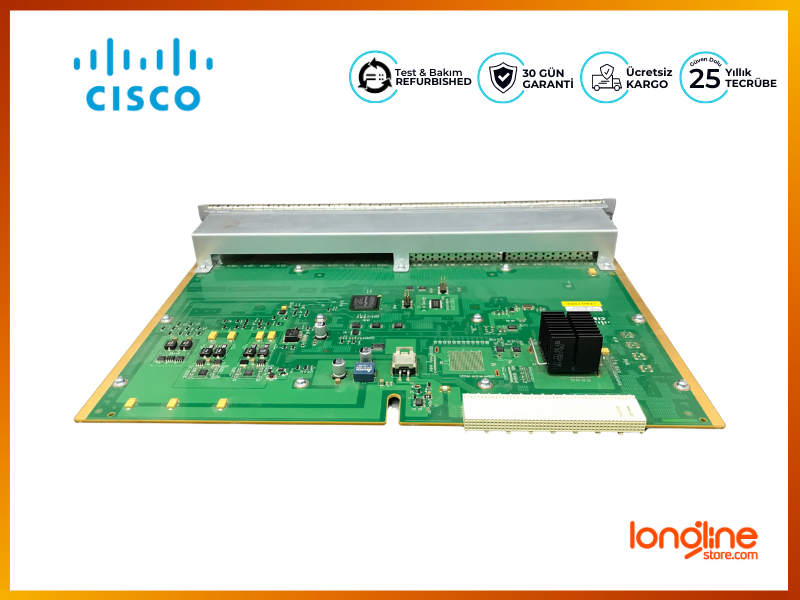

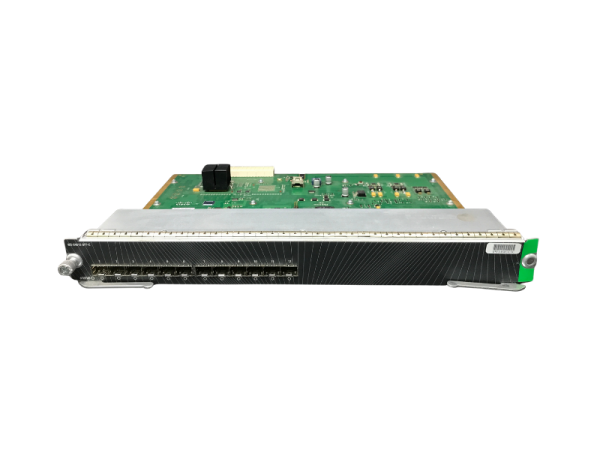

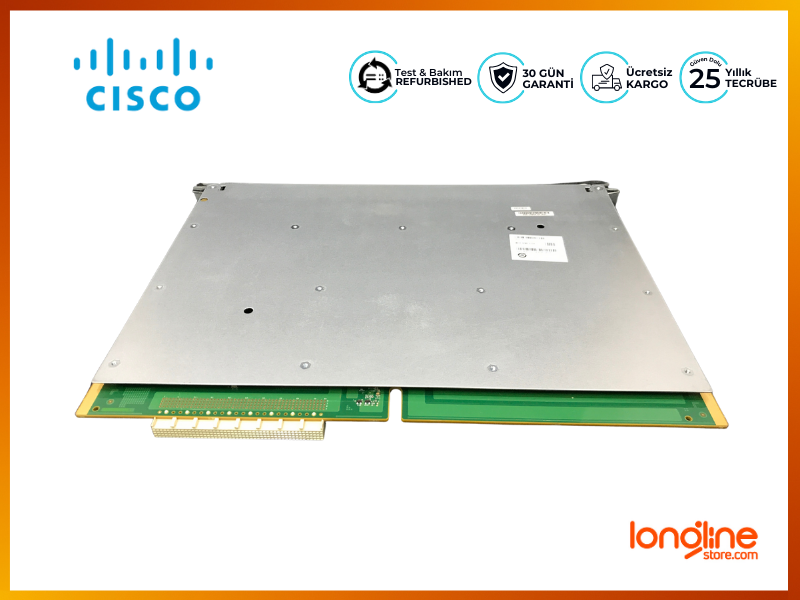

Cisco Catalyst 4500 E-Series 12-Port GE (SFP) WS-X4612-SFP-E

Type

E-Series Gigabit Ethernet SFP Line Cards

Number of Ports

12

Port Speed

1000

Port Type

Pluggables

Wire Rate

1:1

Feature

Standards

●  Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az

●  1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM

EtherChannel Technology

●  Gigabit EtherChannel: All 1000 Mbps ports

●  10 Gigabit EtherChannel: All 10Gbps ports

●  IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports

●  Port Aggregation Protocol (PagP): Yes

●  Number of ports per tuple: 8

●  EtherChannel and IEEE 802.3ad technology across line cards: Yes

Physical Dimensions

●  Occupies one slot in the Cisco Catalyst 4500 Series platform

●  Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm)

Environmental Conditions

●  Operating temperature: 32° to 104°F (0° to 40°C)

●  Storage temperature: -40° to 167°F (-40° to 75°C)

●  Relative humidity: 10 to 90%, noncondensing

●  Operating altitude: -60 to 3000m

Safety Conditions

Fiber optic lasers: Class 1 laser products

Safety Certifications

●  UL 1950

●  EN 60950

●  CSA-C22.2 no 950

●  IEC 950

●  IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11

Electromagnetic Emissions Certifications

●  FCC 15J Class A

●  VCCI Class A

●  CE Marking

●  EN 55022 Class A

●  EN 55024 Class A

●  CISPR 22 Class A

●  AS/NZ 3548

●  NEBS Level 3 (GR-1089-CORE, GR-63-CORE)

●  ETSI ETS-300386-2

●  EN 50121-4

ROHS Compliance

ROHS5

Power and MTBF Information

Max Rated Power (W)

30

Rated MTBF (Hours)

676,740
