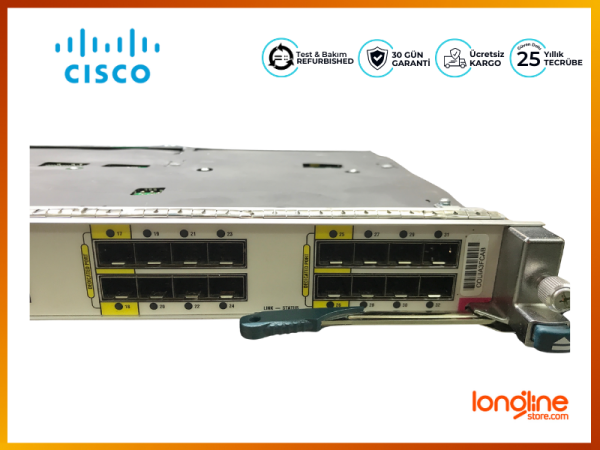

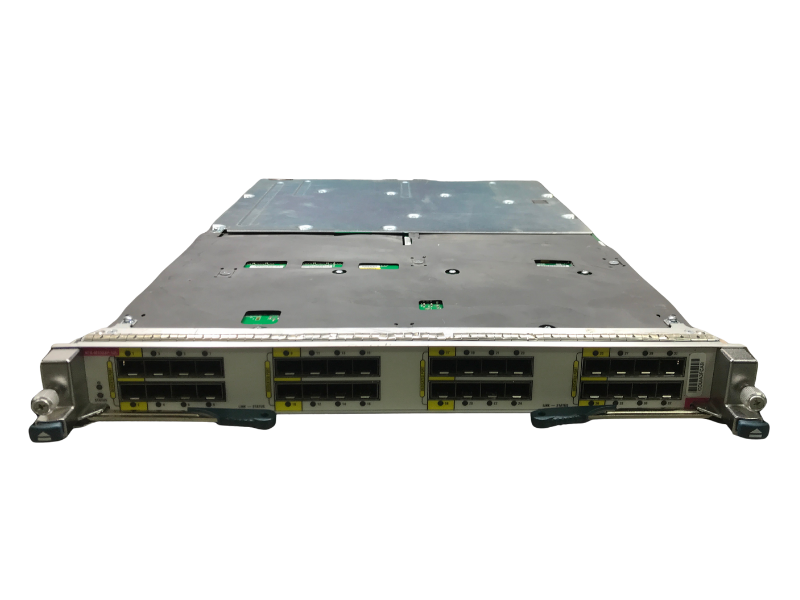

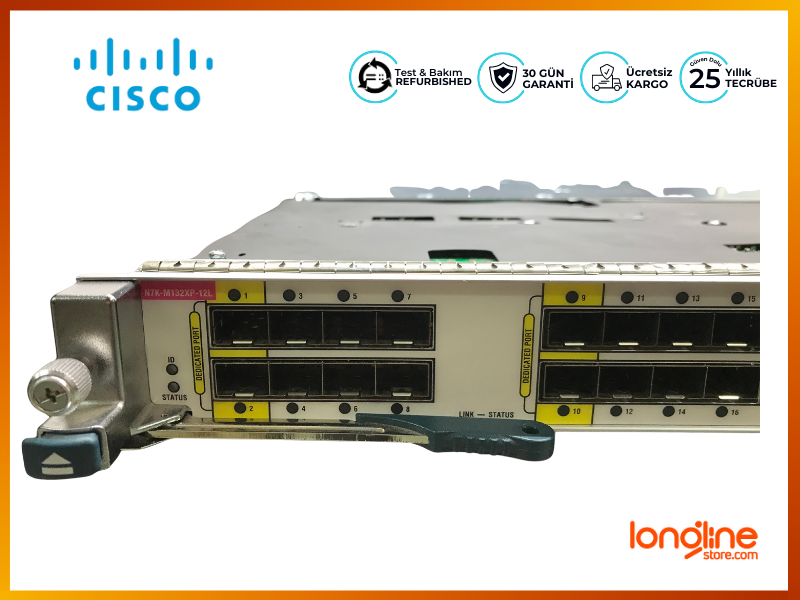

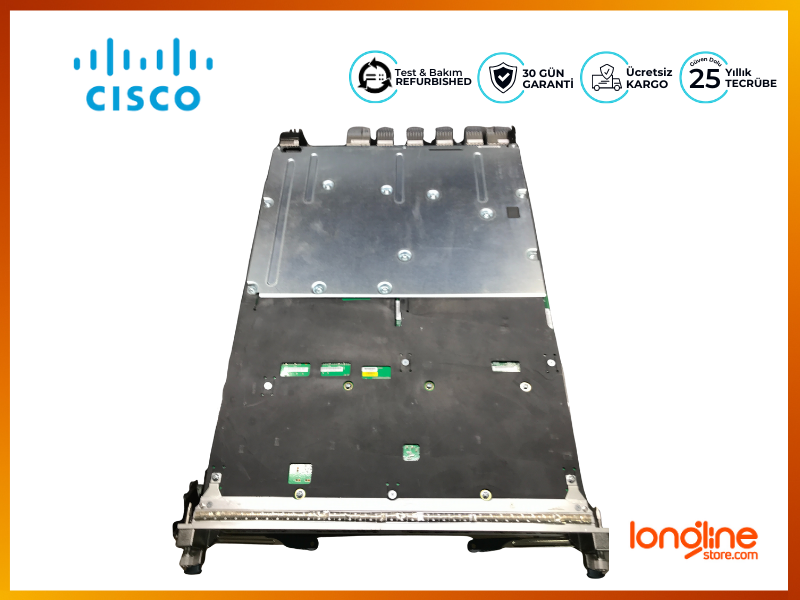

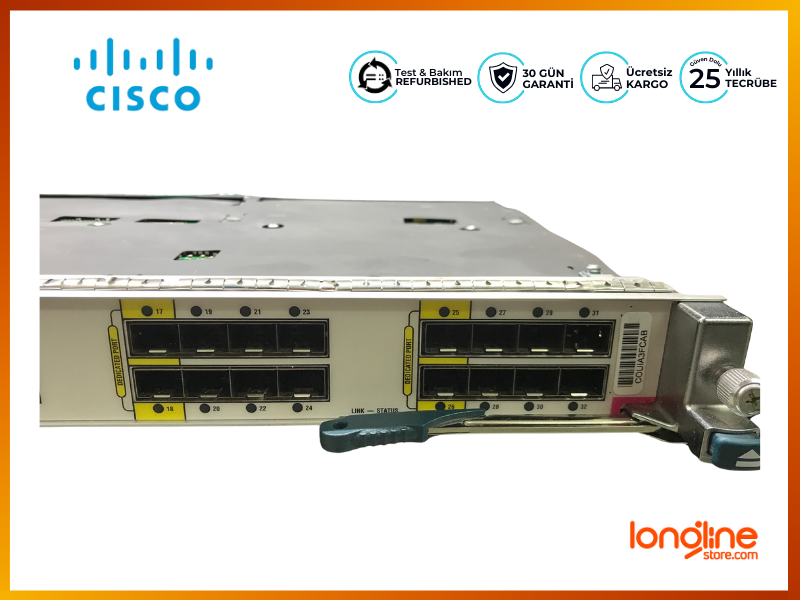

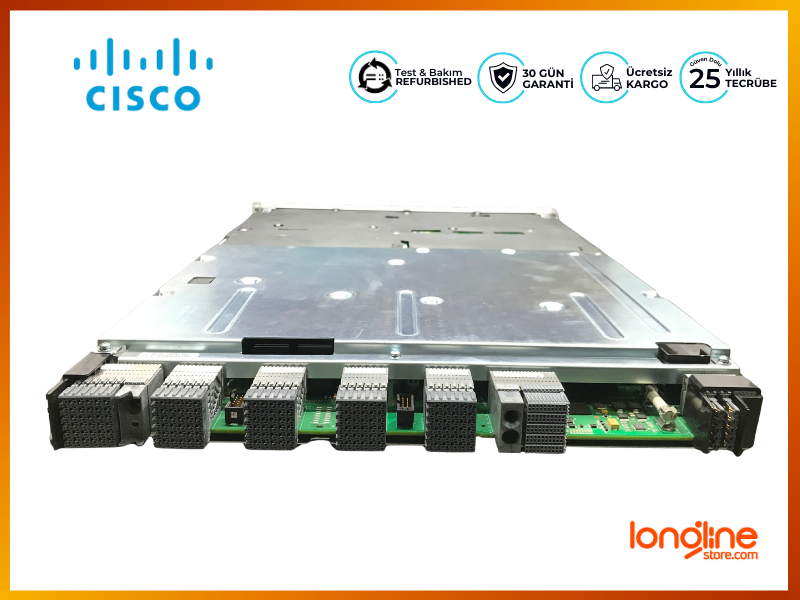

N7K-M132XP-12L 10 GBPS ETHERNET XL MODULE

Device Type

Switch - 32 ports

Enclosure Type

Plug-in module

Subtype

10 Gigabit Ethernet

Compatible Slots

1 x expansion slot

Ports

32 x 10 Gigabit SFP+

Performance

Switching capacity: 80 Gbps

Capacity

IPv4 routes: up to 1000000 å? IPv6 routes: up to 350000 å? NetFlow entries: 512000 å? ACL: 128000

MAC Address Table Size

128K entries

Jumbo Frame Support

9216 bytes

Encryption Algorithm

128-bit AES

Features

MPLS support, VLAN support, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR)

RAM

2 GB

Status Indicators

Port status, link OK, status, link/activity

Interfaces

32 x 10Gb Ethernet - SFP+

MTBF

50,081 hours

Compliant Standards

NEBS level 3, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60601-1-2, GB 4943

Width

15.3 in

Depth

21.9 in

Height

1.7 in

Weight

16.98 lbs
