PWR-C45-1000AC Specification

Minimum Cisco IOS® Software release required

12.1(12c)EW

Minimum Cisco Catalyst Operating System Software required

7.4(1)

Integrated PoE

No (data only)

IEEE 802.3af compliant

No

Input voltage

100 to 240 VAC (±10% for full range)

Input current (rated)

12A at 100 VAC
5A at 240 VAC

Output current (data)

12V at 83.4A

3.3V at 12.5A

Output current (PoE)

-

Output power redundant mode (data)

1000W + 40W

Output power redundant mode (PoE)

-

Output power combined mode (data)

1667W

Output power combined mode (PoE)

-

Heat dissipation

943 BTU/hr

Holdup time

20 ms

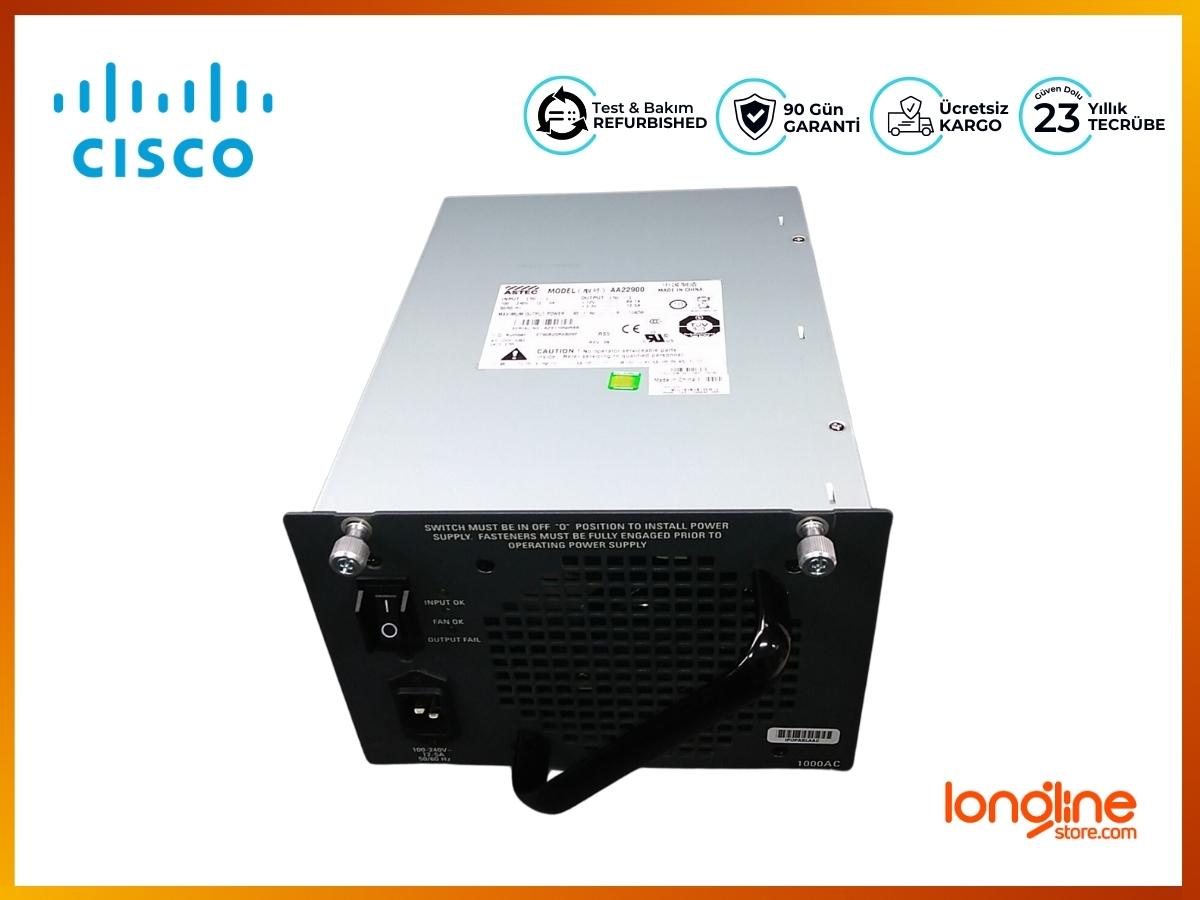

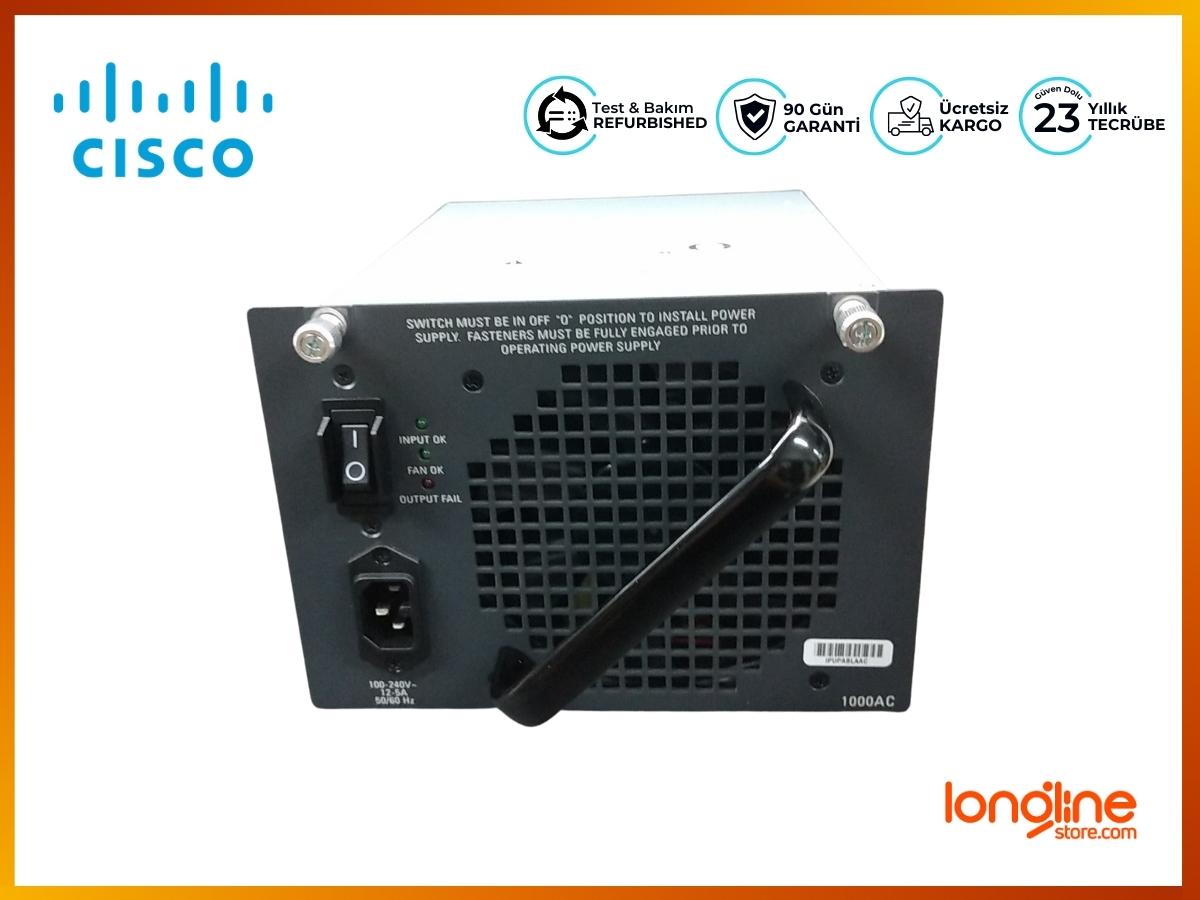

Power-supply indicators and interfaces

●  Fan OK LED(per input): Green• Input OK LED(per input): Green

●  Output Fail LED (per unit): Red

●  Support for Simple Network Management Protocol (SNMP) MIB

Environmental conditions

●  Operating temperature: 32 to 104ºF (0 to 40ºC)

●  Storage temperature: SNMP 40 to 167ºF (SNMP 40 to 75ºC)

●  Relative humidity: 10 to 90 percent, noncondensing

●  Operating altitude: SNMP 60 to 3000m

Safety

●  UL 60950

●  CAN/CSA-C22.2 No. 60950

●  EN 60950

●  IEC 60950

●  TS 001

●  AS/NZS 3260

Electromagnetic compatibility (EMC)

●  FCC Part 15 (CFR 47) Class A

●  ICES-003 Class A

●  EN55022 Class A

●  CISPR22 Class A

●  AS/NZS 3548 Class A

●  VCCI Class A

●  EN 55022

●  EN 55024

●  EN 61000-6-1

●  EN 50082-1

●  EN 61000-3-2

●  EN 61000-3-3

●  ETS 300 386

Industry EMC, safety, and environmental standards

●  GR-63-Core Network Equipment Building Standards (NEBS) Level 3

●  GR-1089-Core Level 3

●  EN 50121-4

●  ETS 300 019 Storage Class 1.1

●  ETS 300 019 Transportation Class 2.3 (pending)

●  ETS 300 019 Stationary Use Class 3.1

●  ETS 300 386

Warranty

Cisco Catalyst 4500 Power Supplies are covered for five (5) years by the Cisco Limited Lifetime Hardware Warranty. Note: If you purchased a Cisco Catalyst 4500E Series PoE Line Card or power supply before May 1, 2009, it is covered by the Cisco 90-Day Limited Hardware Warranty.

Service and support

Cisco offers lifecycle service and support for the Cisco Catalyst 4500 Series, directly and for resale through Cisco distributors. From implementation to operation and optimization, Cisco offers advanced service and technical support.

Advanced service

Cisco Total Implementation Solutions (TIS) offers a full range of implementation solutions, including project management, project engineering, configuration, and staging and rollout coordination. Cisco TIS helps ensure correct installation and deployment.

Technical support

Cisco Smart Net Total Care™ online and telephone support augments the customer's operations-staff resources. Support includes the ability to refresh system software at will as well as a range of Advance Replacement hardware options. Cisco Smart Net Total Care Onsite support adds the services of a field engineer, services that can be critical when customer staffing is insufficient or unavailable for parts-replacement activities.

ROHS compliance

ROHS5

Rated MTBF (Hours)

250,000
