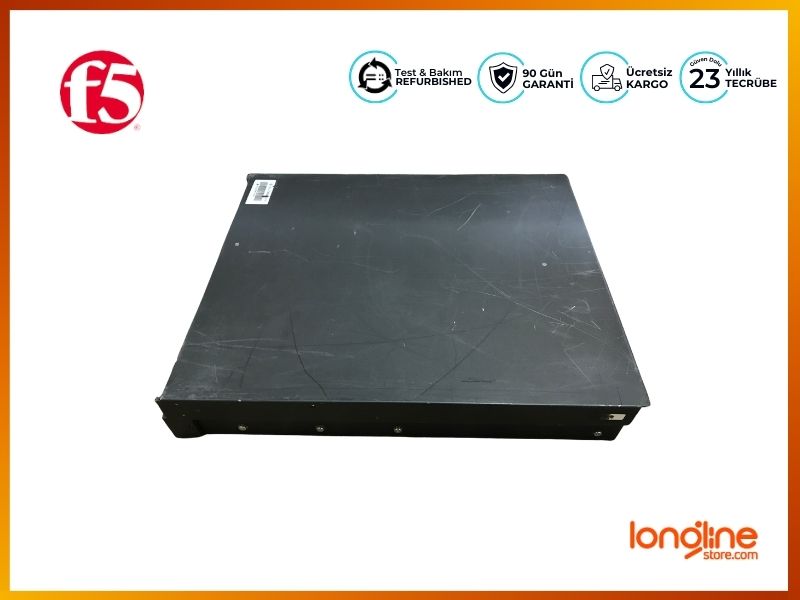

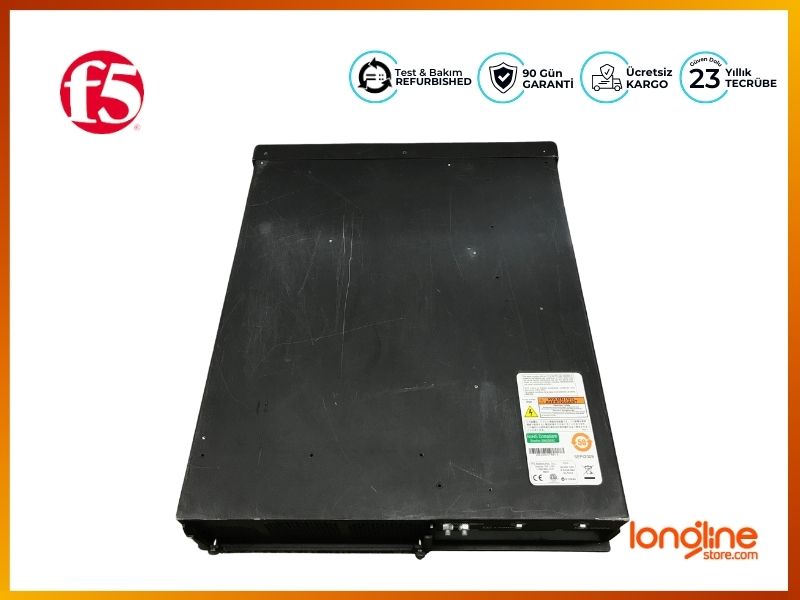

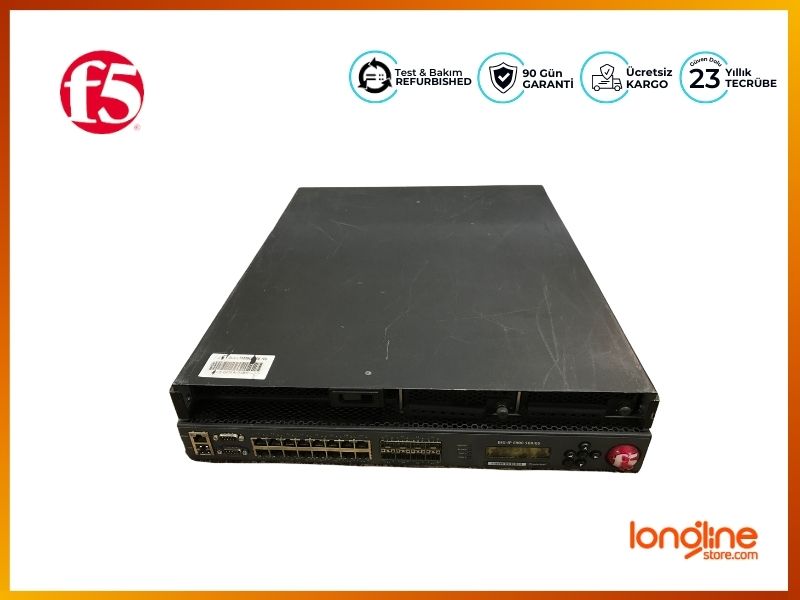

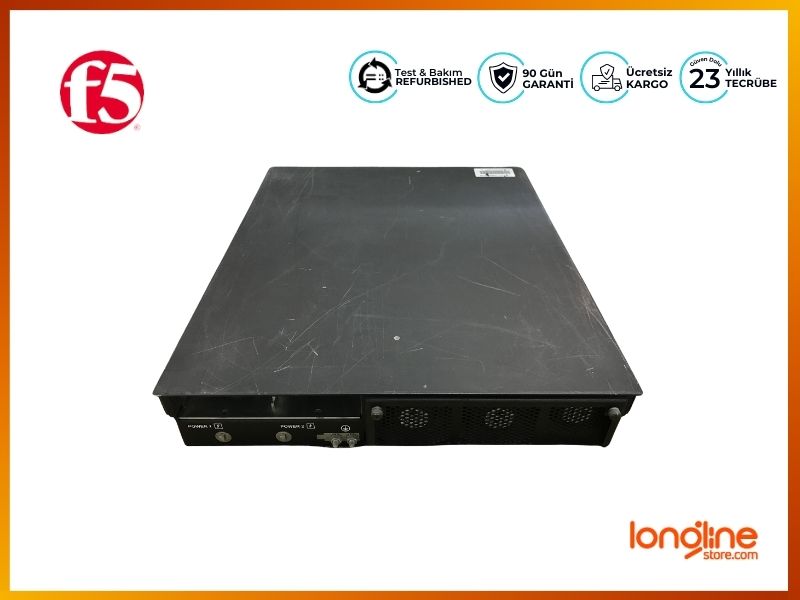

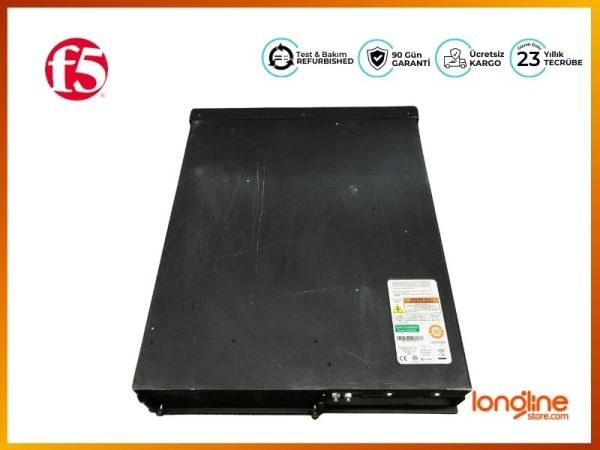

F5 Networks Big-IP 6900 LTM Load Balancing Appliance

Traffic Throughput:
Processing:

6 Gbps

12 Gbps

Hardware SSL:

Included: 500 TPSMaximum: 25,000 TPS,

4 Gbps bulk encryption

Included: 500 TPSMaximum: 58,000 TPS,

9.6 Gbps bulk encryption

FIPS SSL:
Processing:

6 Gbps

12 Gbps

Hardware Compression:

Included: 50 MbpsMaximum: 5 Gbps

Included: 50 MbpsMaximum: 8 Gbps

Processor:

Dual CPU, dual core (4 processors)

Dual CPU, quad core (8 processors)

Memory:

 8 GB

16 GB

Hard Drive:

Two 320 GB drives

 Two 320 GB drives

Gigabit Ethernet CU Ports:

16

16

Gigabit Fiber Ports (SFP):

8 LX; SX or copper (4 SX included)

8 LX; SX or copper (4 SX included)

10 Gigabit Fiber Ports
(SFP+):

N/A

2 SR (sold separately)

Power Supply:

Dual 850W included

Dual 850W included

Typical Consumption:

300W (110V input)

450W (110V input)

Input Voltage:

90-246 VAC +/- 10% auto switching, 50/60hz

90-246 VAC +/- 10% auto switching, 50/60hz

Typical Heat Output:

1024 BTU/hour (110V input)

1536 BTU/hour (110V input)

Dimensions:

3.5”H x 17.75”W x 20.75”D 2U industry standard rack-mount chassis

3.5”H x 17.75”W x 20.75”D 2U industry standard rack-mount chassis

Weight:

45.5 lbs. (dual power supply)

45.5 lbs. (dual power supply)

Operating Temperature:

32° to 104° F (0° to 40° C) per Telcordia GR-63-CORE 5.1.1 and 5.1.2

32° to 104° F (0° to 40° C) per Telcordia GR-63-CORE 5.1.1 and 5.1.2

Operational Relative Humidity

5 to 85% @ 40º C, per Telcordia GR-63-CORE 5.1.1 and 5.1.2

5 to 85% @ 40º C, per Telcordia GR-63-CORE 5.1.1 and 5.1.2

Safety Agency Approval:

UL 60950 (UL1950-3) CSA-C22.2 No. 60950-00 (bi-national standard with UL 60950)
CB TEST CERTIFICATION TO IEC 950 EN 60950

UL 60950 (UL1950-3) CSA-C22.2 No. 60950-00 (bi-national standard with UL 60950)
CB TEST CERTIFICATION TO IEC 950 EN 60950

Certifications/
Susceptibility Standards:

EN55022 1998 Class AEN55024 1998 Class A

FCC Part 15B Class A

VCCI Class A

EN55022 1998 Class AEN55024 1998 Class A

FCC Part 15B Class A

VCCI Class A
