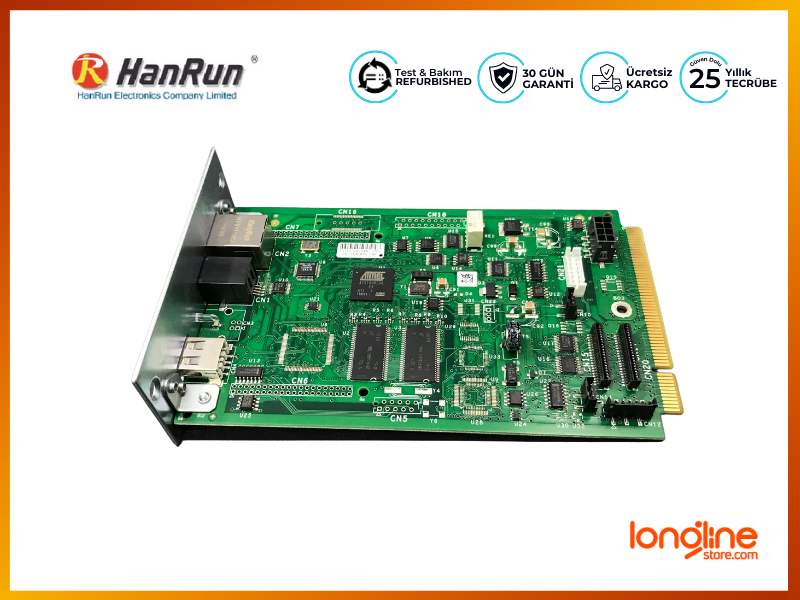

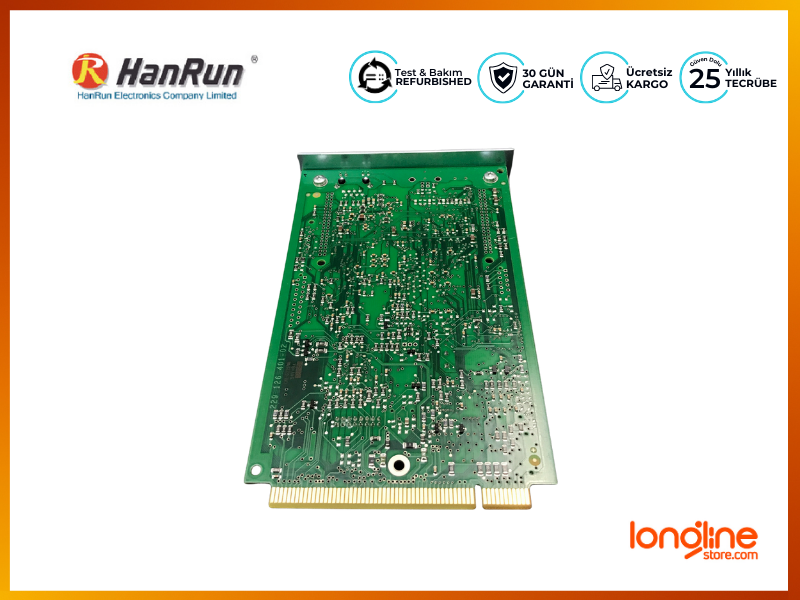

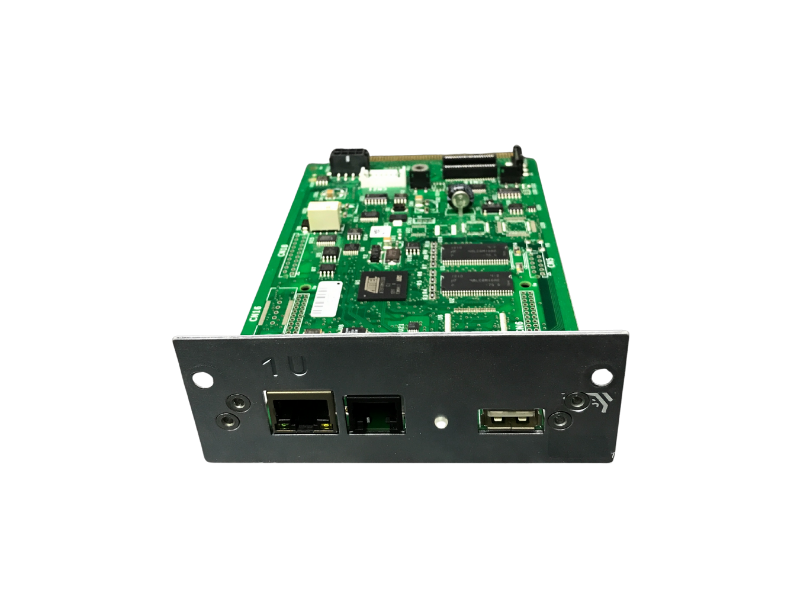

HANRUN HP LTO AUTOLOADER FOR SSL1016 MSL2024 HY911105A

1. Product Type Features:

1) Product Type

Connector

2) Jack Type

RJ45

3) Profile

Standard

4) PCB Mounting Orientation

Through Hole

2. Mechanical Attachment:

1) Jack Configuration

1X1

3. Electrical Characteristics:

1) Shielded

Yes

4. Termination Related Features:

1) EMI Finger

Yes

2) Termination Method

Solder

5. Body Related Features:

1) Port Configuration

Single port

2) EMI Fingers -Top and Sides

With/Without

3) Latch Orientation

Standard - Latch Down

4) PCB Tail Length

3.50±0.50mm

6. Contact Related Features:

1) Preloaded

Yes

2) Contact Termination Type

Through Hole

7. Housing Related Features:

1) Connector Style

Jack

8. Industry Standards:

1) RoHS/ELV Compliance

RoHS compliant, ELV compliant

2) Lead Free Solder Processes

Wave solder capable to 265°C

3) RoHS/ELV Compliance History

Always was RoHS compliant

9. Identification Marking:

1) Left LED Color

Green or Yellow

2) Right LED Color

Green or Yellow

10. Conditions for Usage:

1) Applies To

Printed Circuit Board

2) Environmental Conditions

Office / Premises

3) Operating Temperature (°C )

 0 - 70/-40 - +85

11. Configuration Related Features

1) Magnetic Circuit

3D15

2) Status Indicator

Led

3) Decoupling Capacitor

With/Without

4) Rear PCB Ground Tab

With/Without

5) Signal Lead Quantity

8

12. Operation/Application:

1) Application

10/100 Base-T
