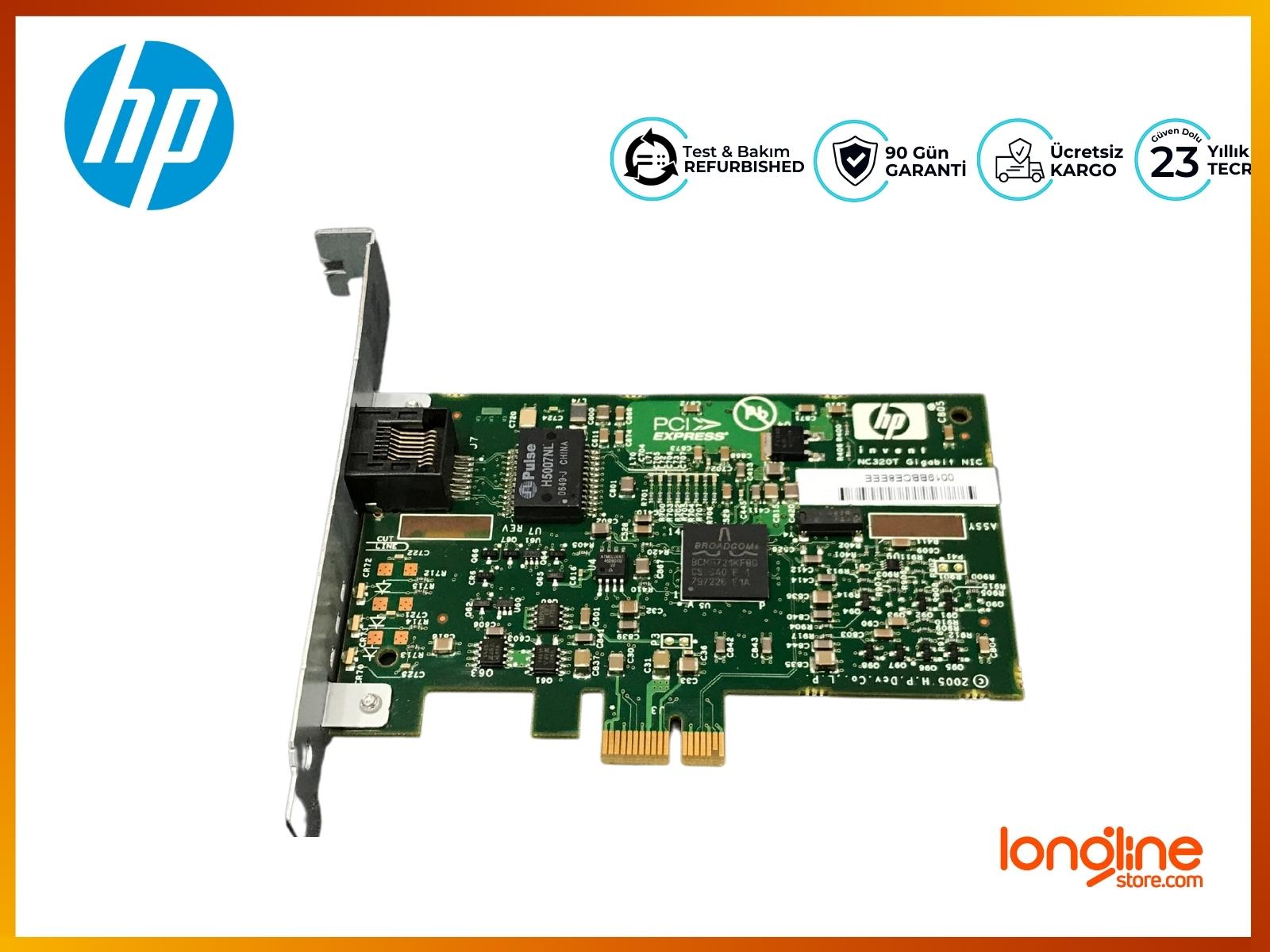

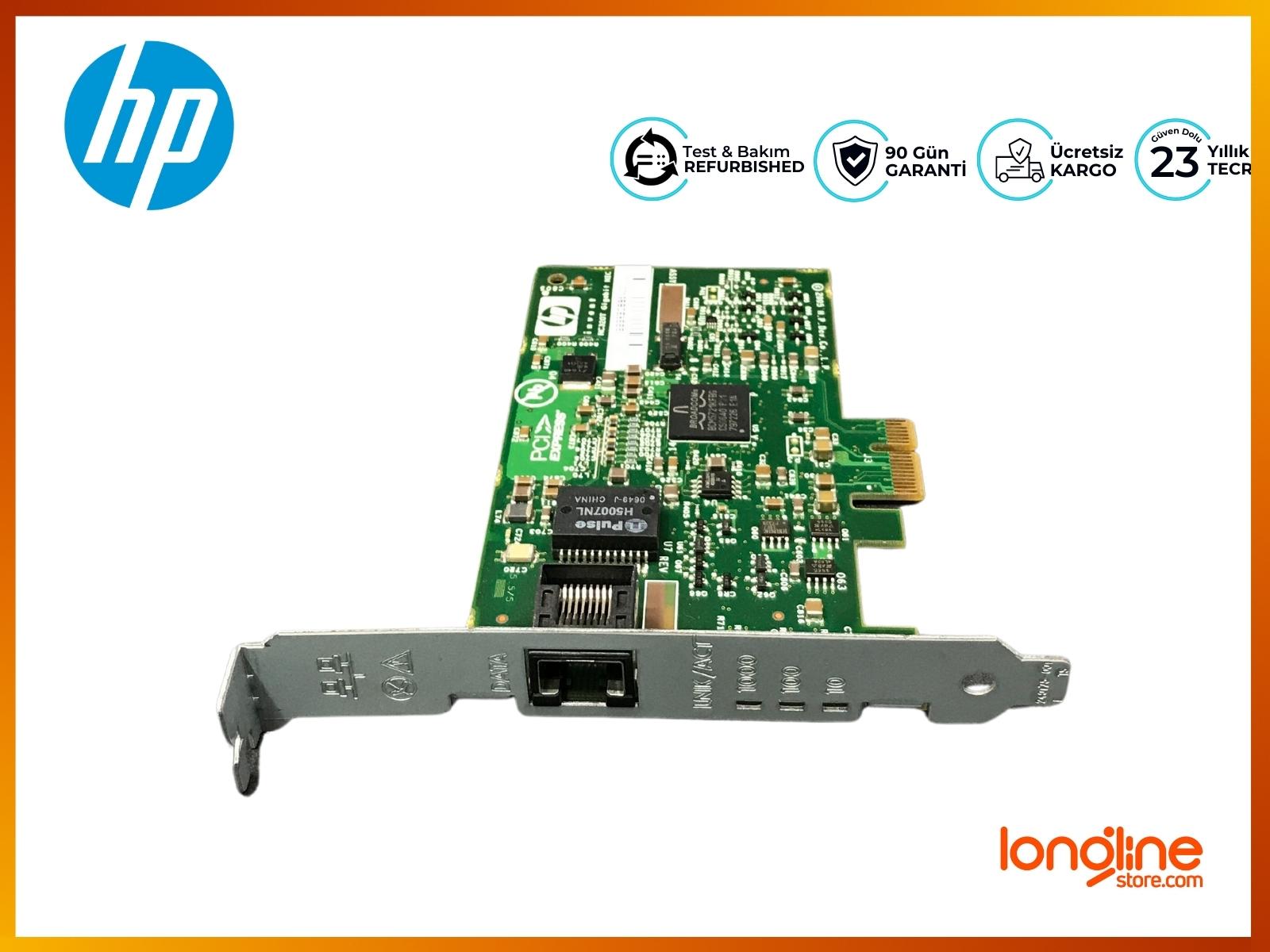

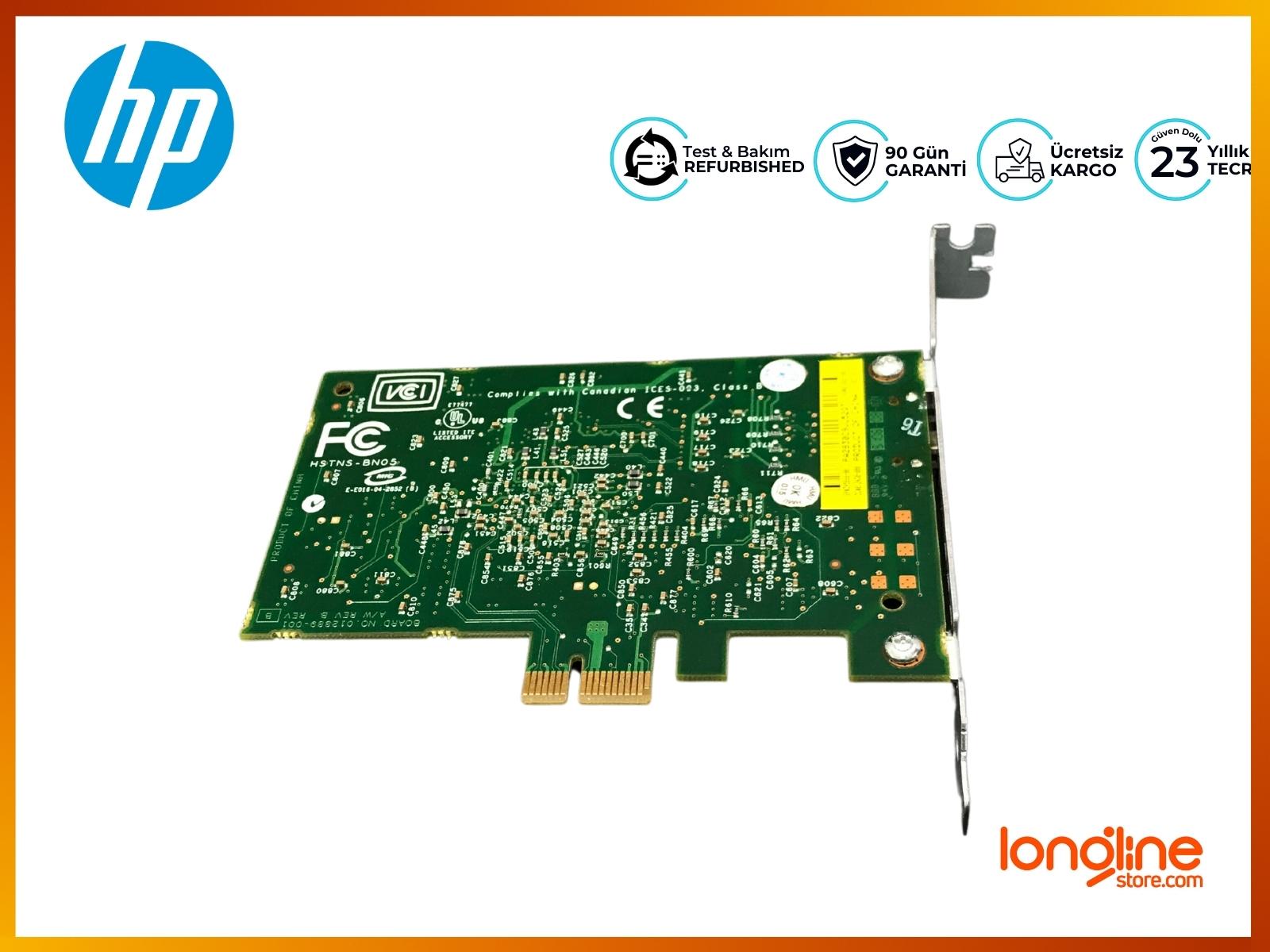

Hp NIC GIGABIT NC320T SP PCI-E 1000T 395866-001 367047-B21

Overview:

The HP NC320T PCI Express Gigabit Server Adapter is a single port Gigabit Ethernet network adapter for Local Area Networks using copper cabling. The NC320T is a single lane (x1) serial device designed for PCI Express slots and it has been tested and validated on all Proliant servers that include PCI Express slots. The NC320T comes with 40KB onboard memory. Along with all the advanced features that Proliant customers have come to expect the NC320T includes support for teaming for failover and load balancing Pre-Boot Execution Environment (PXE) large send offload capability Wake-on-LAN (WOL) and multiple VLAN tagging. The NC320T supports 10/100/1000Mbps Ethernet speeds and works with drivers and utilities that support all PCI and PCI-X server adapters. This software compatibility enables HP customers to protect their current hardware investment in PCI and PCI-X devices while also future-proofing their Proliant servers for the inevitable increase in networking throughput.

Specifications:

Category

Proliant Adapter

Sub-Category

Proliant Network Adapter

Generation

PCI Express x 1

Part Number

367047-B21

Products ID

141817

Device Type

Network Adapter

Form Factor

Plug-in Card

Interface (Bus) Type

PCI Express x 1

Ports

1

Cabling Type

Ethernet 10Base-T, Ethernet 100Base-TX

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Etherne

Data Transfer Rate

1Gbps

Processor

Broadcom

RAM

40KB
