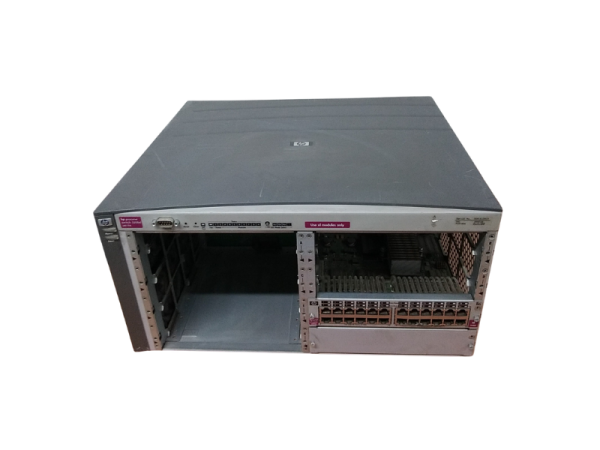

Designed to accommodate the most demanding network needs, the ProCurve Switch 5300xl series offers scalable Layer 2, 3, and 4 switching in compact 4- or 8-slot modular form factors. These secure, convergence-ready switches provide flexibility and high port density. The easy-to-use ProCurve Switch 5300xl series provides third-generation ASIC technology, with excellent investment protection and return on IT.
Features and benefits
Performance
- Architecture: up to 76.8 Gbps crossbar switching fabric provides wire-speed intra- and inter-module switching with up to 48 million pps throughput built on ProCurve custom-designed ASIC technology
Resiliency and high availability
- Router redundancy (XRRP): allows groups of two routers to dynamically back each other up to create highly available routed environments
- IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees
- IEEE 802.1w Rapid Convergence Spanning Tree Protocol: increases network uptime through faster recovery from failed links
- IEEE 802.3ad Link Aggregation Control Protocol (LACP) and ProCurve trunking: support up to 60 trunks, each with up to 8 links (ports) per trunk; trunking across modules is supported
- Hot-swappable modules: permit modules, mini-GBICs, and one of the power supplies in a redundant power supply configuration to be added or swapped without interrupting the network
- Optional redundant power supply: provides uninterrupted power; allows hot-swapping of one of the two supplies when installed
Layer 2 switching
- ProCurve switch meshing: dynamically load-balances across multiple active redundant links to increase available aggregate bandwidth
- VLAN support and tagging: support complete IEEE 802.1Q (4,096 VLAN IDs) and 256 VLANs simultaneously
- IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs
- GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
Layer 3 services
- UDP helper function: UDP broadcasts can be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevent server spoofing for UDP services such as DHCP Layer 3 routing
- Layer 3 IP routing: provides routing of IP at media speed; supports static routes, RIP, RIPv2, and OSPF
- OSPF-ECMP: enables multiple equal-cost links in OSPF environment to increase link redundancy and scale bandwidth
AÇIKLAMA
- Ürünler faturalı olarak tarafınıza gönderilecektir.
- Ürünlerimiz 90 gün süreyle Garantilidir.
- Ürün iade süresi 14 gün olup, iade durumunda kargo bedeli alıcıya aittir.
- Saat 16:00'ya kadar verilen siparişler aynı gün kargoya verilir.
- Pazartesi-Cuma 09:00 - 18:00 mesai saatlerimizdir.
Arayıp da bulamadığınız tüm Network ve Server yedek parçalarını tedarik ediyoruz.
(Cisco, Avaya, Lenovo, HP, IBM, Fujitsu, Samsung, Huawei, Enterasys, Juniper, Alcatel, Sun, Qlogic, Dell, Emulex)
