Specifications:
| Alignment Method | Core alignment |
| Number of fiber | Single |
| Applicable fibers | SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Cladding Diameter | 80 ~ 150μm |
| Cleaved Length | 5 ~ 16mm |
| Typical Splice loss | SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB |
| Return Loss | >> 60dB |
| Estimated Splice Loss | Available |
| Splice Time | Quick mode: 6 sec (Avg.) / SM Auto mode: 8 sec (Avg.) |

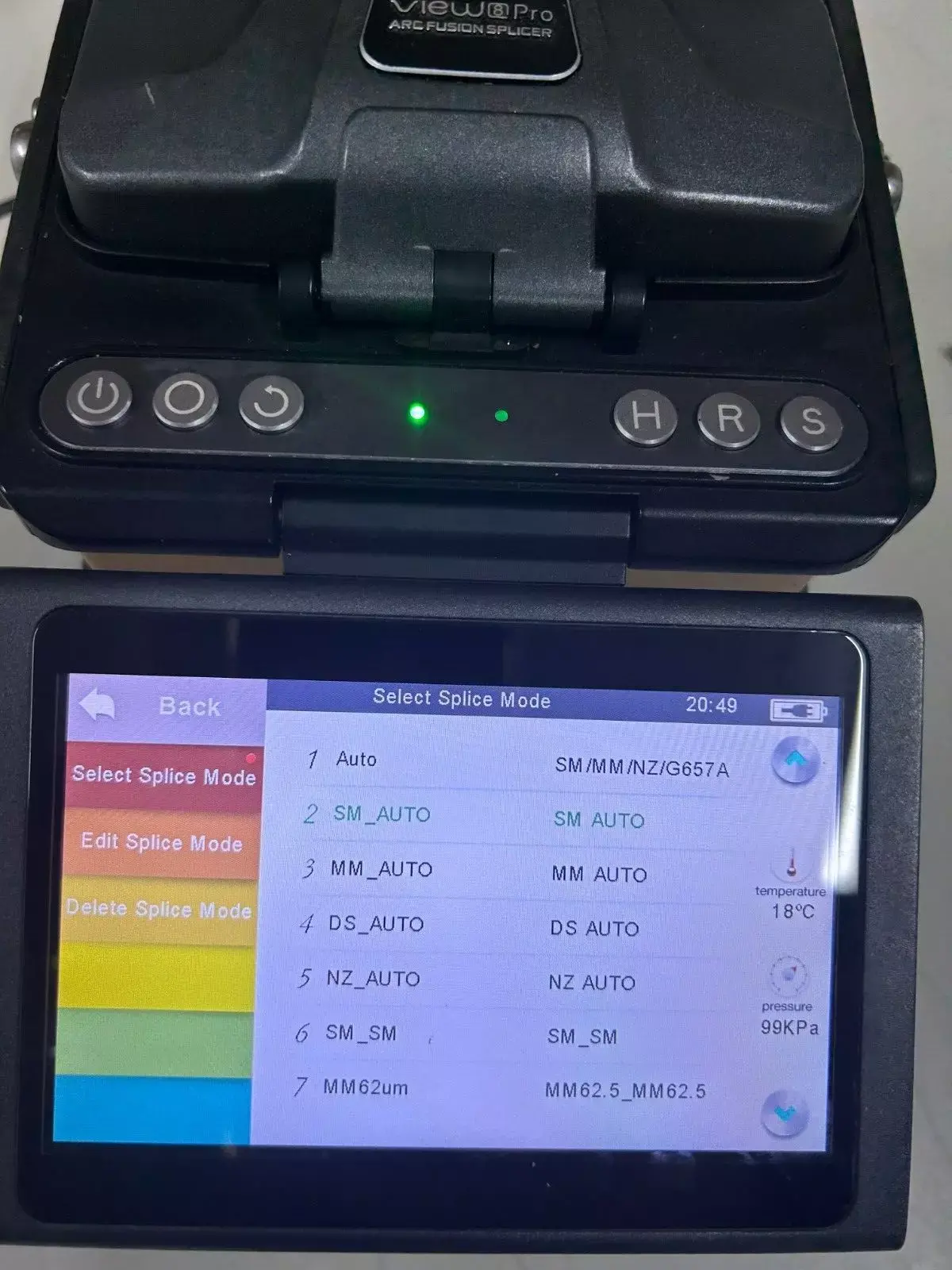

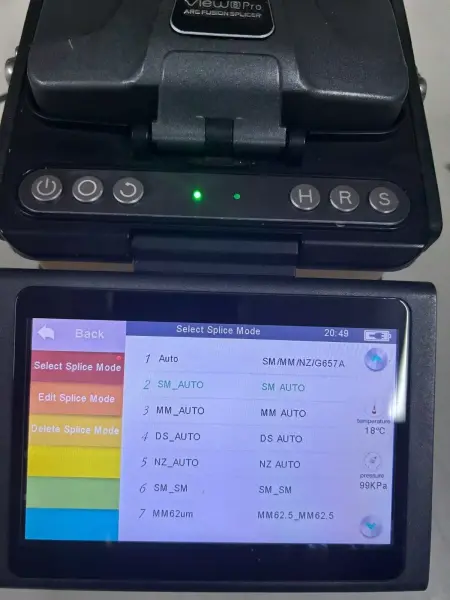

| Splice Mode | Max 128 modes |
| Heating Sleeve | 20 ~ 60mm |
| Heating Time | Quick mode: 9s (Avg.) |
| Heating Mode | Max 32 modes |
| Tension Test | 1.96 ~ 2.25N |
| Dimensions | 143W x 158D x 162H mm (including rubber bumper) / 130W x 157D x 150H mm (excluding rubber bumper) |
| Weight | 2.78kg (with battery) / 2.12kg (without battery) |
| White LED | 2 White LEDs |

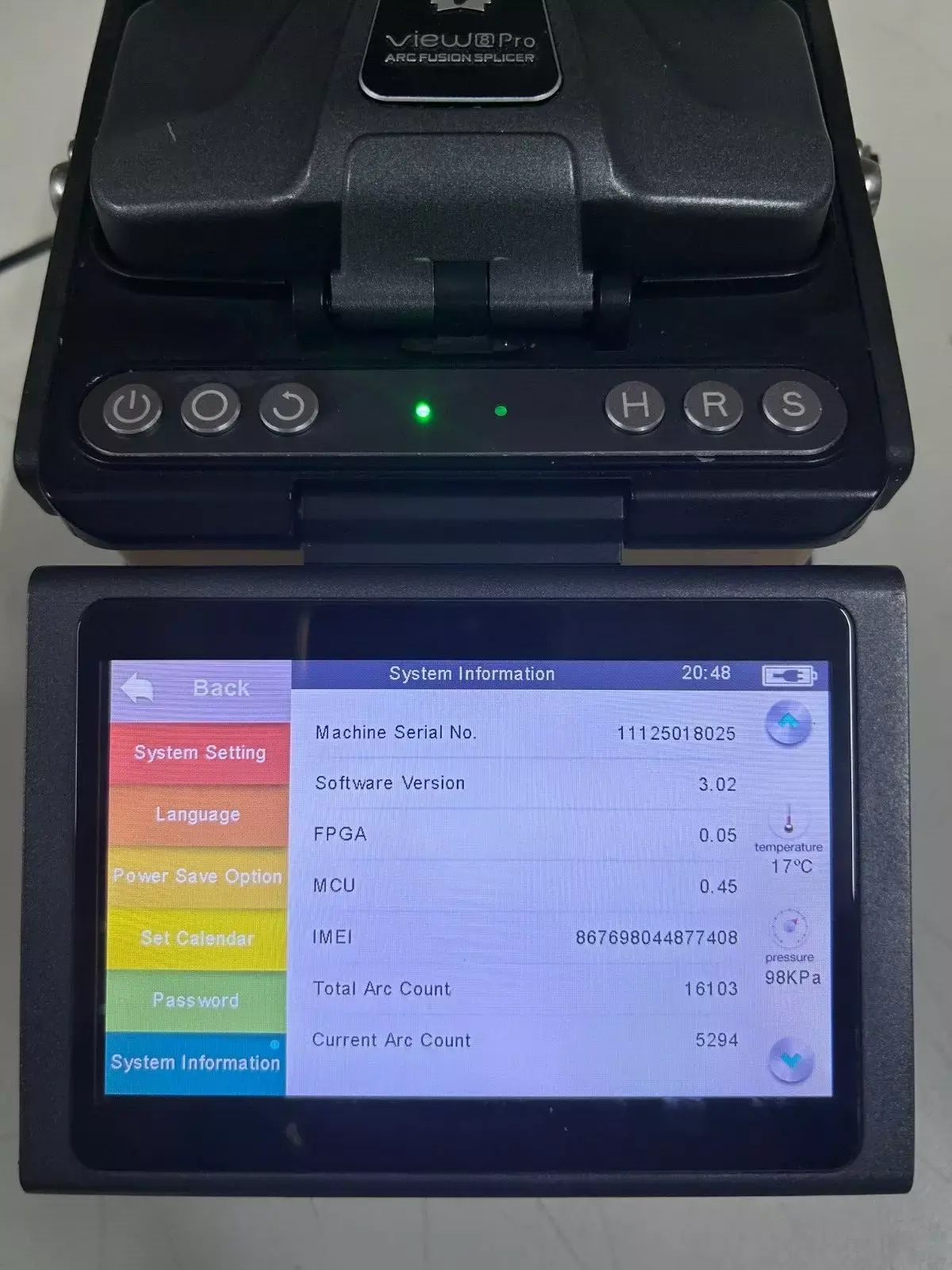

| Monitor | 5.0” Color LCD display, Full touch screen |

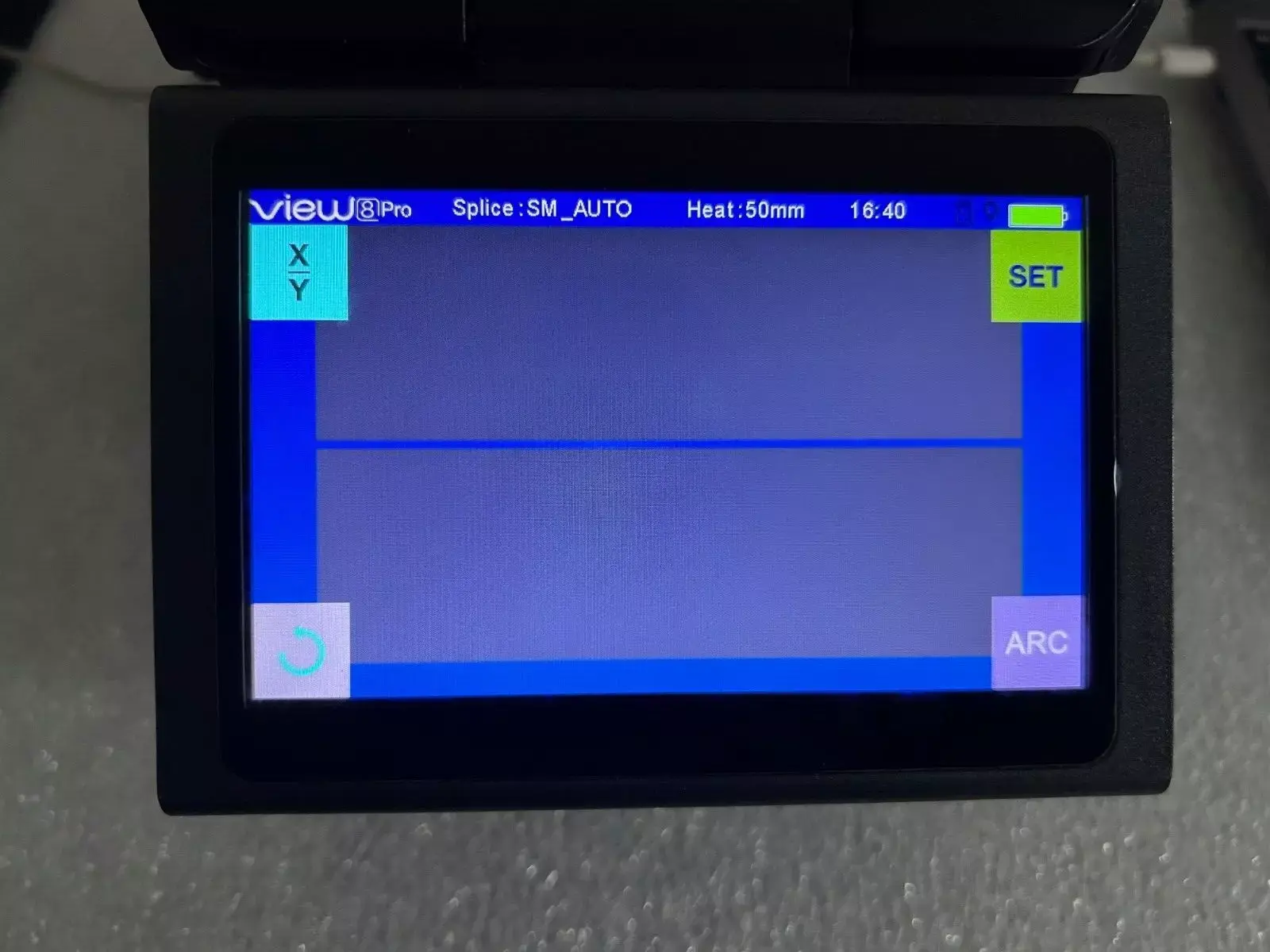

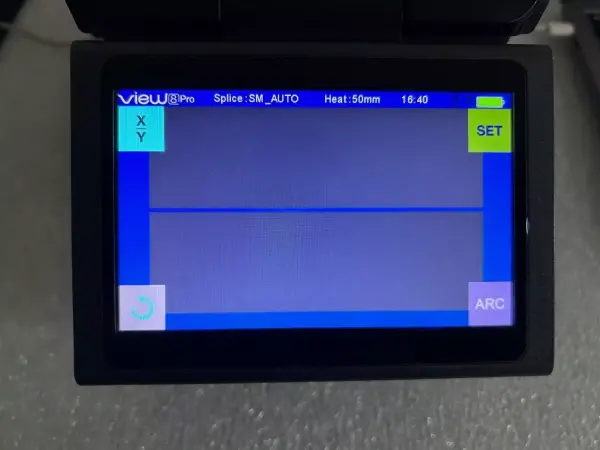

| Fiber View | X, Y, XY, X/Y |
| Magnification | 320 ~ 520x |
| Results Storage | 10,000 Splice data / 10,000 Splice image |
| Power Supply | AC Input 100 ~ 240V, DC Input 9 ~ 14V |
| Terminal | USB Type C / Nano SIM |
| Battery Capacity | 9000mAh Battery Capacity, Typical 355 Cycles (Splice+Heat) |
