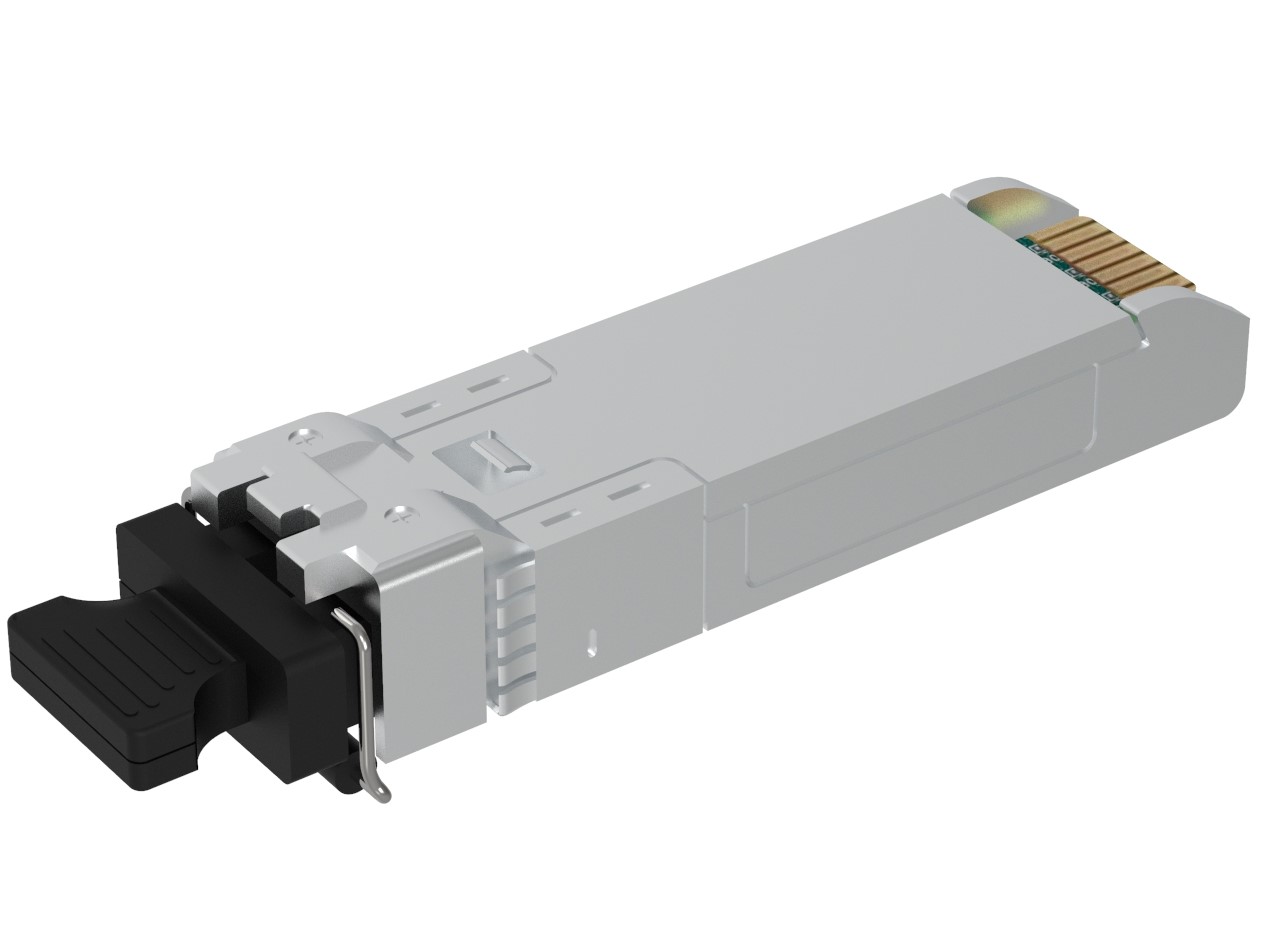

The Intel E25GSFP28SR compatible SFP28 transceiver provides 25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector.Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, data center, and 5G Wireless Network, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Intel Compatible | E25GSFP28SR | Vendor Name | Longline |
Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
Wavelength | 850nm | Max Cable Distance | 100m@OM4/70m@OM3 |
Connector | Duplex LC | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -7.9~1.9dBm | Receiver Sensitivity | ＜-6dBm |
Powerbudget | -1.9dB | Receiver Overload | 2.4dBm |
Power Consumption | ＜1W | Extinction Ratio | ＞2dB |
DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
CDR | TX & RX Built-in CDR | FEC Function | Support RS-FEC, FC-FEC |
Protocols | IEEE 802.3by, SFF-8472, SFF-8432, SFP28 MSA, CPRI, eCPRI | Warranty | 5 Years |
Core Size | 50/125 µm | Packaging Technology | COB Packaging |
