- Form factor:

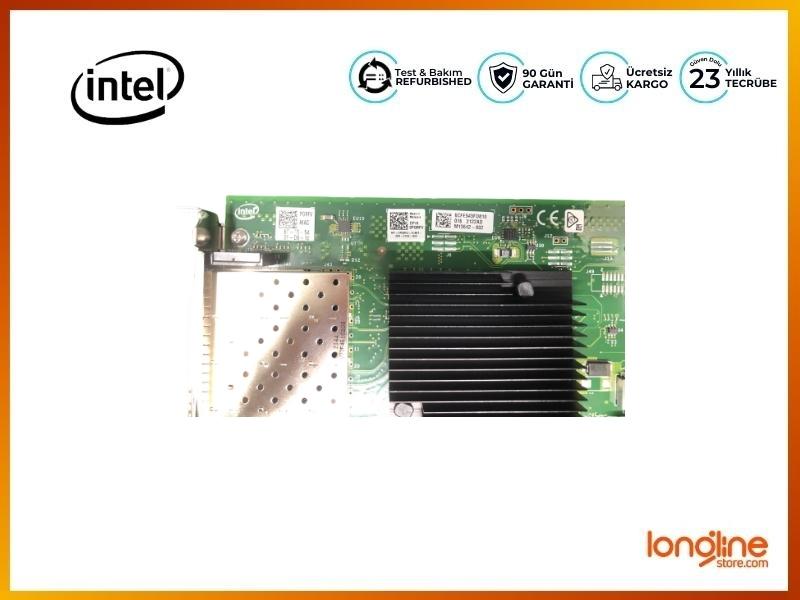

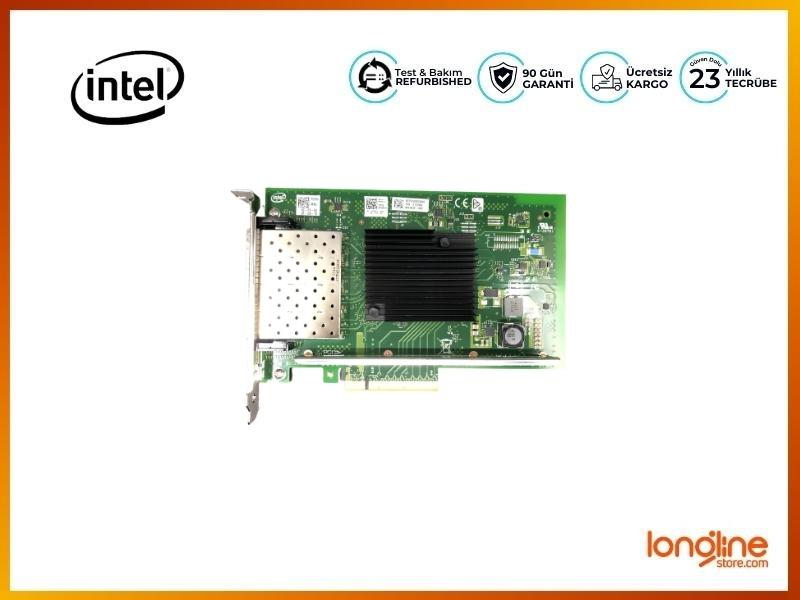

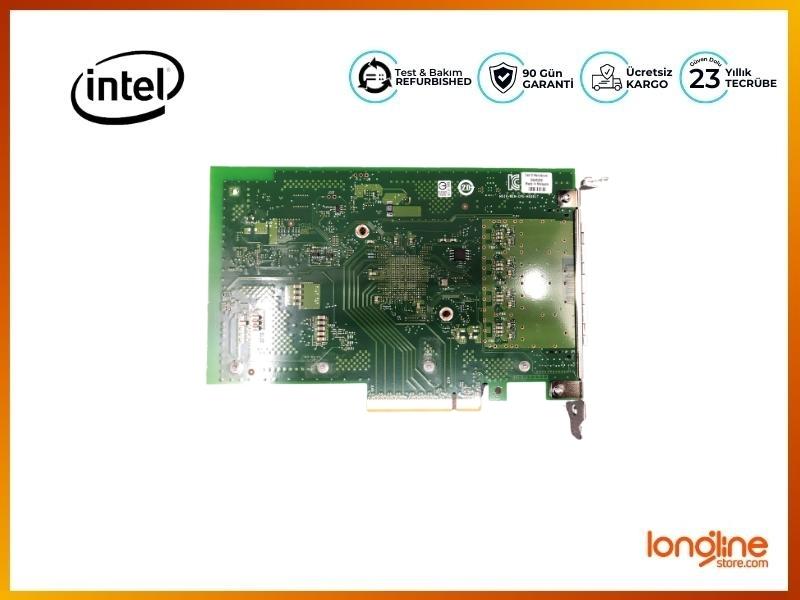

- X710-DA4: Full-height half-length adapter
- All other standard PCIe adapters: Low profile adapter
- OCP adapters: OCP 3.0 SFF adapter
- OCP adapter for SE450: OCP 3.0 SFF with internal locking mechanism
- All ML2 adapters: Low profile adapter
- Host interface:
- PCIe 3.0 x8
- PCI Power Management/ACPI Extensions
- TLP Processing Hint (TPH) Support
- MSI-X Support
- Energy Efficient Ethernet
- Performance:
- Achieves wire-rate throughput on smaller payload sizes (>64 bytes)
- Standard stack Latency: ~7 µs
- Kernel- Bypass Latency: ~3 µs
- Small Packet Developers Tool Kit
- Virtualization features:
- Microsoft Network Virtualization that uses Generic Routing Encapsulation (NVGRE)
- VMware Virtual Extensible LAN (VXLAN)
- GENEVE support
- Intel Virtual Technology (VT) with VMDq for virtualization
- VMware NetQueue and Microsoft VMQ support
- SR-IOV direct assignment support
- Virtual Bridging Support: VEPA/802.1Qbg, BPE/802.1Qbh
- Virtual Functions: Up to 128 per device
- Hardware Queue Pairs: Up to 1.5K
- Management features:
- Advanced filtering capabilities (IPv4, IPv6)
- SNMP
- RMON statistic counters
- Wake on LAN support (WoL support is for OCP and ML2 adapters only; first port only)
- NC-SI for shared management port connectivity through port 1 (NCSI support is for OCP and ML2 adapters only)
- Additional features:
- Jumbo Frame Support: 9728 bytes
- VLAN support
- Flow Control
- 1588 Time Synchronization Support
- TCP/IP Layer 2 features:
- Receive Side Scaling (RSS)
- Large Send Offload (LSO)
- TCP/UDP/IP/SCTP Checksum Offload
- IPv4, IPv6
- Supports iSCSI as an iSCSI software initiator
- IEEE 802.1Q VLAN support with VLAN tag insertion, with stripping and packet filtering for up to 4096 VLAN tags.
- IEEE 802.3x flow control support.
- IEEE 802.1p Class of Service (CoS)/QoS.
- Support for Advanced Packet Filtering.
- Teaming support:
- Adapter Fault Tolerance (AFT)
- Switch Fault Tolerance (SFT)
- Adaptive Load Balancing (ALB)
- VM Load Balancing (VMLB)
- IEEE 802.3ad (link aggregation control protocol)
