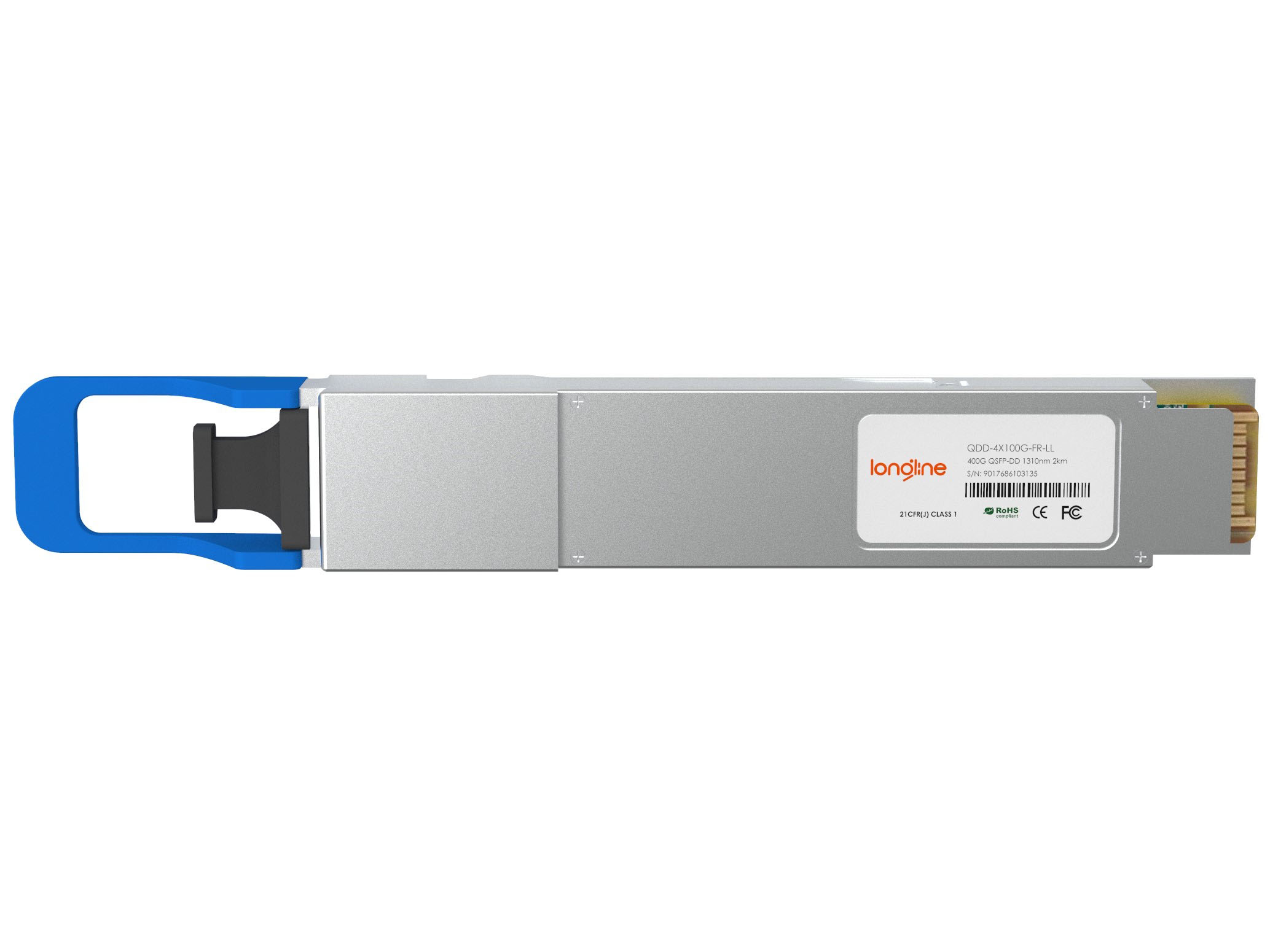

The 400GBASE-XDR4 Module supports link lengths of up to 2km parallel SMF with MTP/MPO-12 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-FR-100G.
Specifications
Juniper Compatible | QDD-4X100G-FR | Vendor Name | Longline |
Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
Wavelength | 1310nm | Max Cable Distance | 2km |
Connector | MTP/MPO-12 (APC) | Media | SMF |
Transmitter Type | 1310nm EML | Receiver Type | PIN |
TX Power | -2.4~4.0dBm | RX Power | 6.4~3.5dBm |
Powerbudget | 4dB | Modulation | 8x 50G PAM4 |
Power Consumption | ≤9W | Extinction Ratio | 3.5dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
DSP | TX and RX | Inbuilt FEC | No |
Core Size | G.652/9um | Inbuilt FEC | No |
Protocols | IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 | Warranty | 5 Years |
