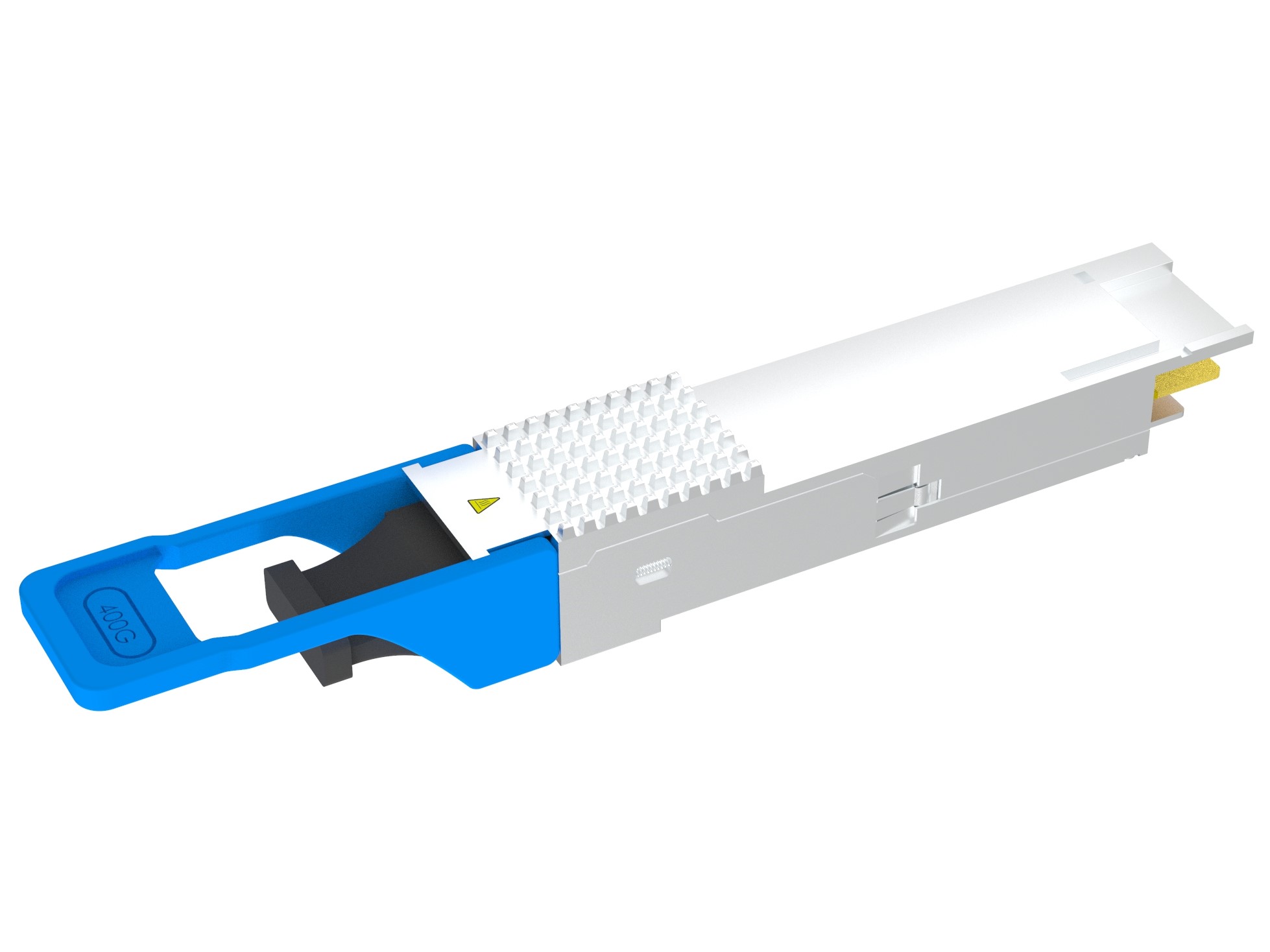

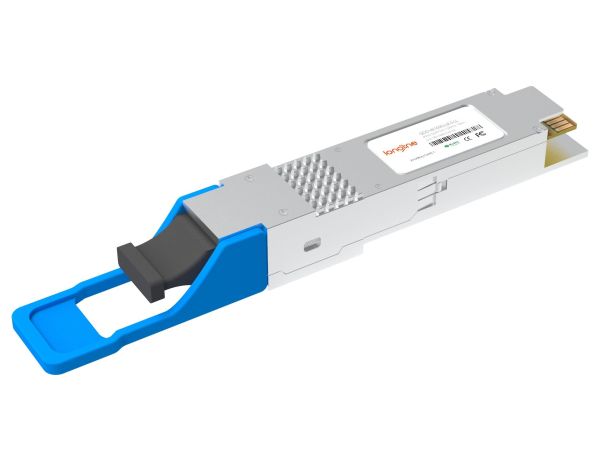

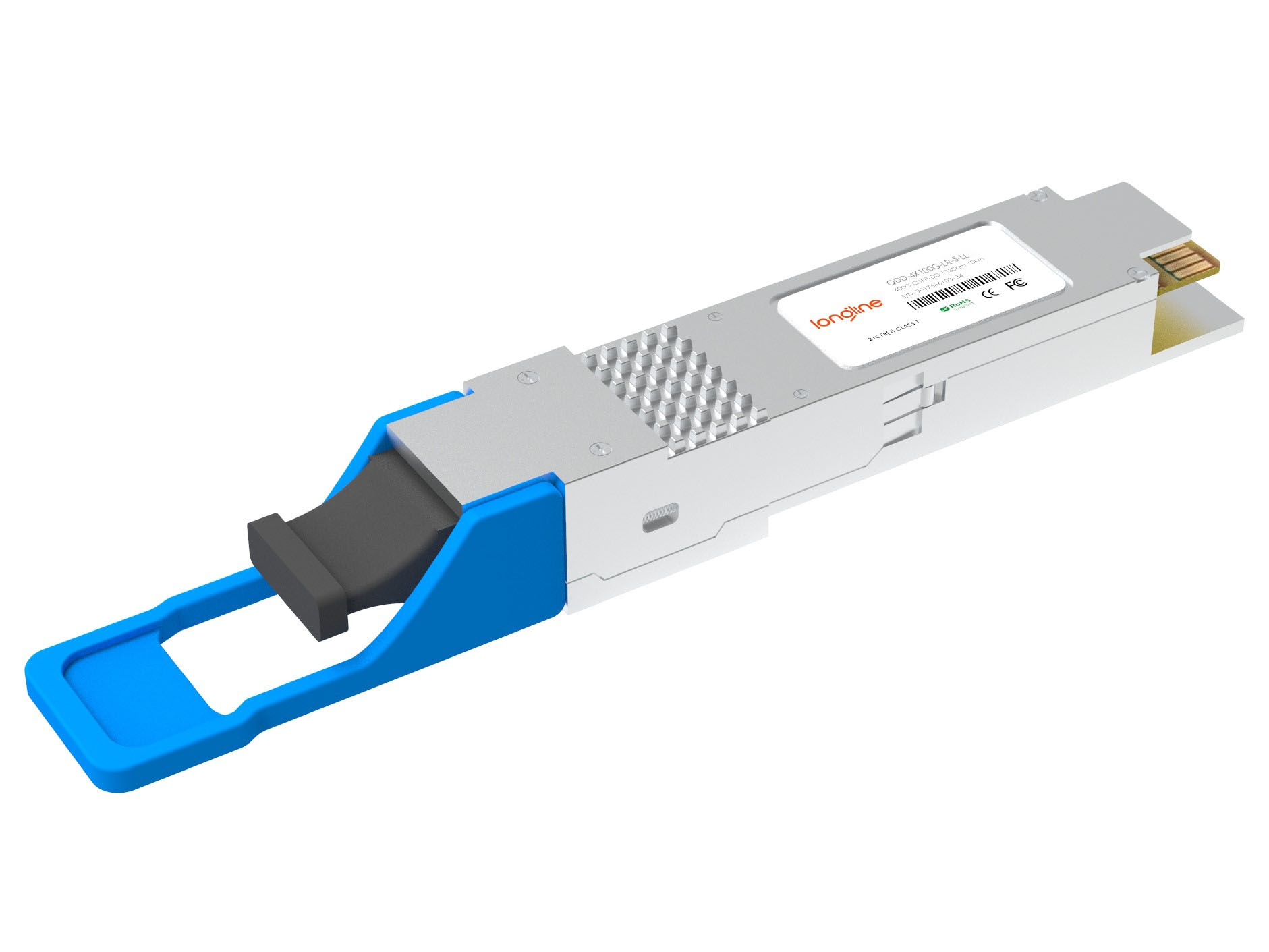

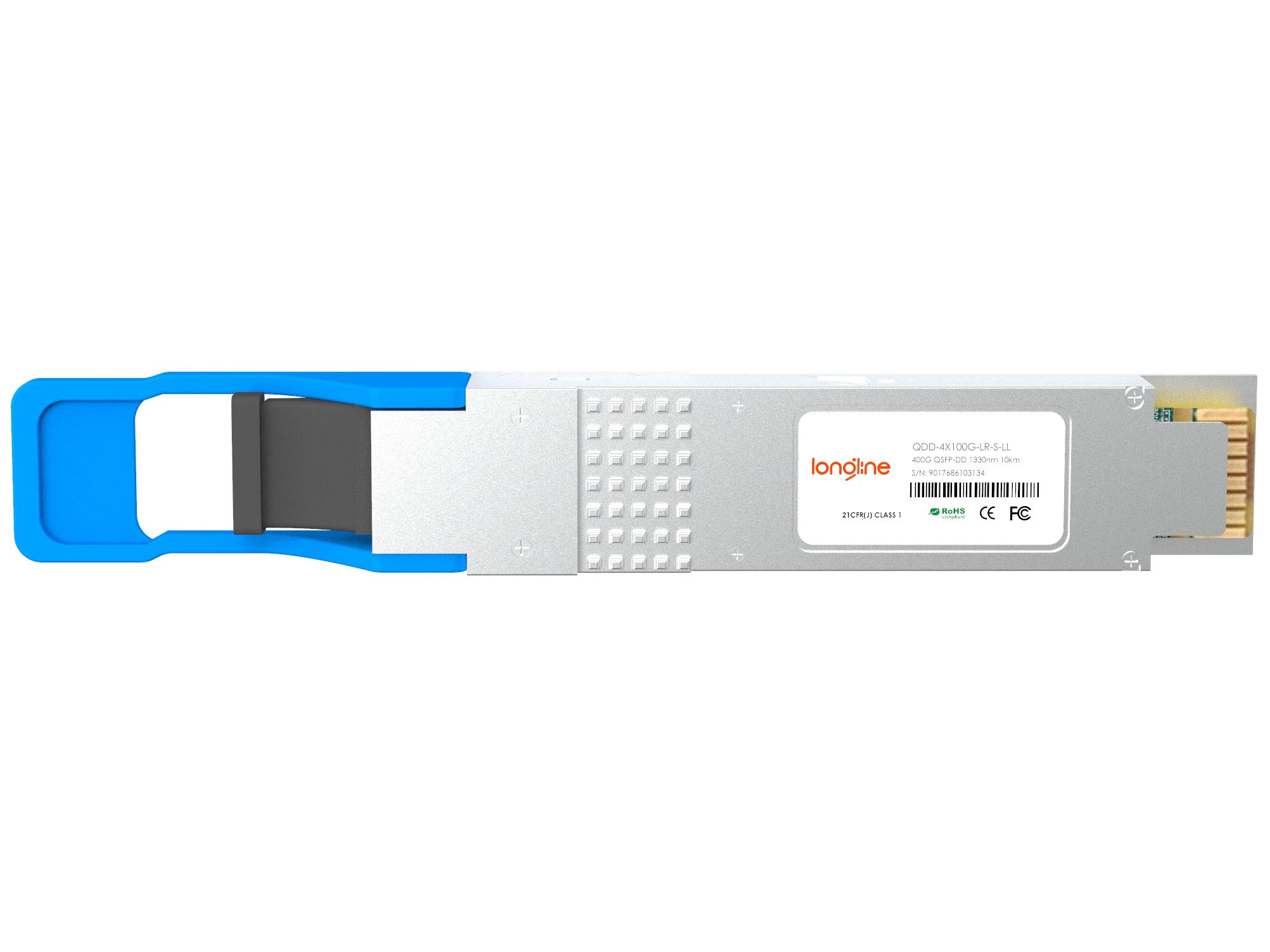

The 400GBASE-PLR4 Module, MTP/MPO-12 connector, up to 10km over parallel single-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-LR-100G.
Specifications
Juniper Networks Compatible | QDD-4X100G-LR | Vendor Name | Longline |
Form Factor | QSFP-DD | Max Data Rate | 206.24Gbps(8x 25.78Gbps) |
Wavelength | 1310nm | Max Cable Distance | 100m |
Connector | MTP/MPO-12 (APC) | Media | MMF |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -1.9~4.8dBm | RX Power | -8.2~5.8dBm |
Powerbudget | 6.3dB | Modulation | 8x 50G PAM4 |
Power Consumption | ≤ 9W | Extinction Ratio | ＞2dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
DSP | TX and RX | Inbuilt FEC | No |
Core Size | G.652/9um | Packaging Technology | COB |
Protocols | IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 | Warranty | 5 Years |
