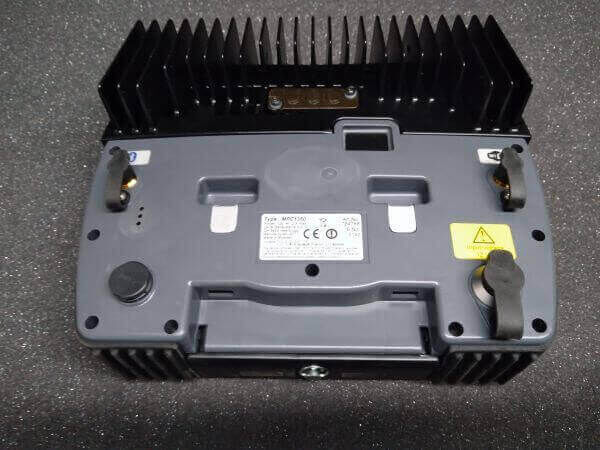

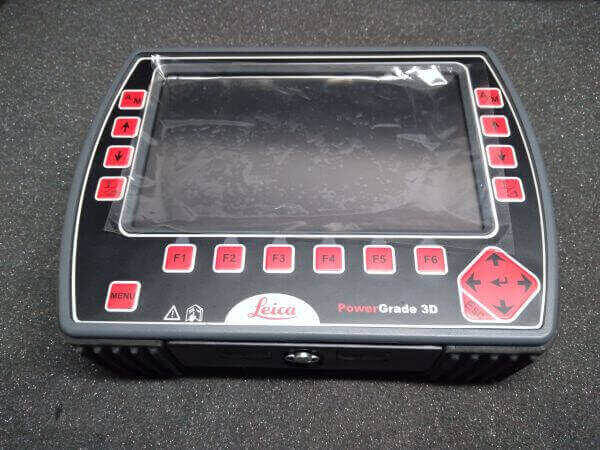

Leica MPC1350 PowerGrade3d - AX1202 GG Antenna

iCON grade 42 panel

Voltage range:

12/24 V DC (nom.)
Nominal voltage 24 V DC,

Power consumption:

1 A @ 24 V cradle and Machine Computer
1.6 A @ 12 V Machine Computer (excluding cradle)

Graphic display:

7" daylight readable colour touch screen

Keypad:

16 keys

Interfaces:

1x RS-422
This port is located at the back of the instrument.
The Machine Computer can be powered directly with 12V (±10%) via this connector.

Instrument ports:

SD card port, USB port, Bluetooth, WLAN

Dimensions:

222 x 170 x 88mm

Weight:

1.5 kg

Docking station

Power consumtion

< 2.5 A with control panel connected and no load at 12 V

Dimensions:

2.4 x 15.2 x 4.4 cm

Weight:

0.320 kg

Communication (Infrared)

1 Mbit

Output:

2 x RS232, RX, TX, 12V/2Amp, GND, 2 x MikroCAN and J1939

Temperature, operating

40°C to +70°C
 Compliance with ISO9022-10-08, ISO9022-11-05 and
MIL-STD-810F Method 502.4-II, MIL-STD-810F Method 501.4-II

Temperature, storage

-55°C to +85°C
 Compliance with ISO9022-10-09, ISO9022-11-06 and MIL-STD-810F Method 502.4-I, MSTD-810F Method 501.4-I

Humidity

Up to 100%*
 Compliance with ISO9022-13-06, ISO9022-12-04 and MIL-STD-810F Method 507.4-I
* The effects of condensation are to be effectively counteracted by periodically drying out
the product

Protection against
Water, Sand and Dust

IP66, IP67
Protection against water jets
Protection against blowing rain
Waterproof to temporary submersion into water (maximum depth of 1m)
Dust-tight, protection against blowing dust
Compliance with IP66 and IP67 according IEC60529 and MIL-STD-810F Method 506.4-I, MILSTD-810F Method 510.4-I, MIL-STD-810F Method 512.4-I

Drops Vibration

Withstands 1.5m drop onto hard surfaces Withstands vibrations during operation on large civil construction machines
Compliance with ISO9022-36-08 and MIL-STD-810F Method 514.5-Cat24

Functional Shock

No loss of lock to satellite signal when used on a pole set-up and submitted to pole bumps up to 150mm

Topple over pole

Survives topple over from a 2m survey pole onto hard wood on a concrete floor
