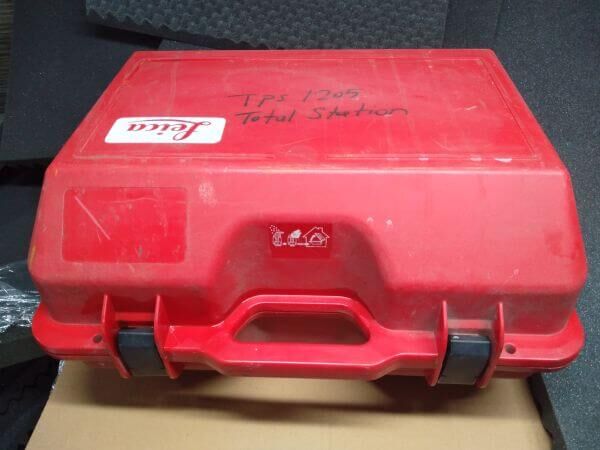

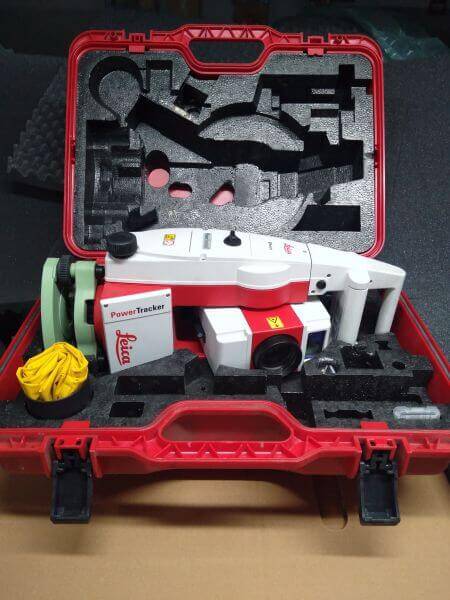

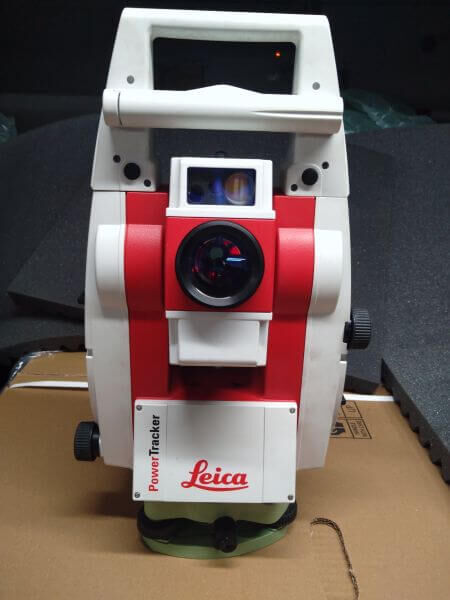

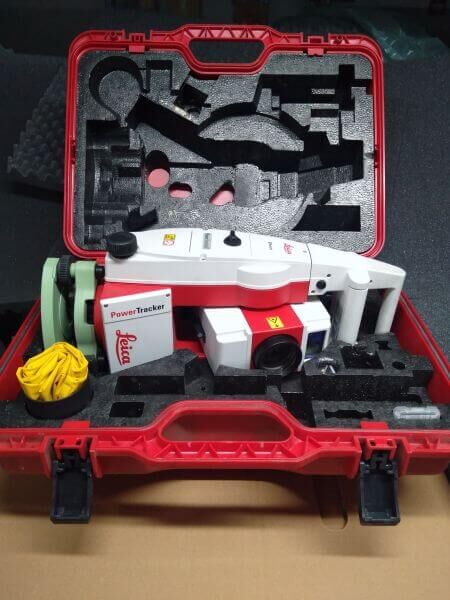

LEICA POWER TRACKER PT1203 TOTAL STATION

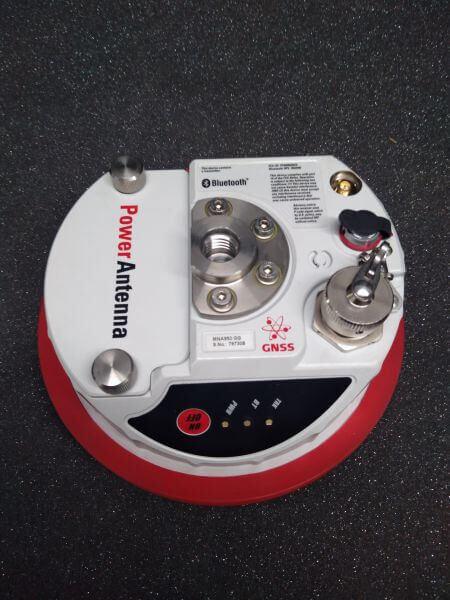

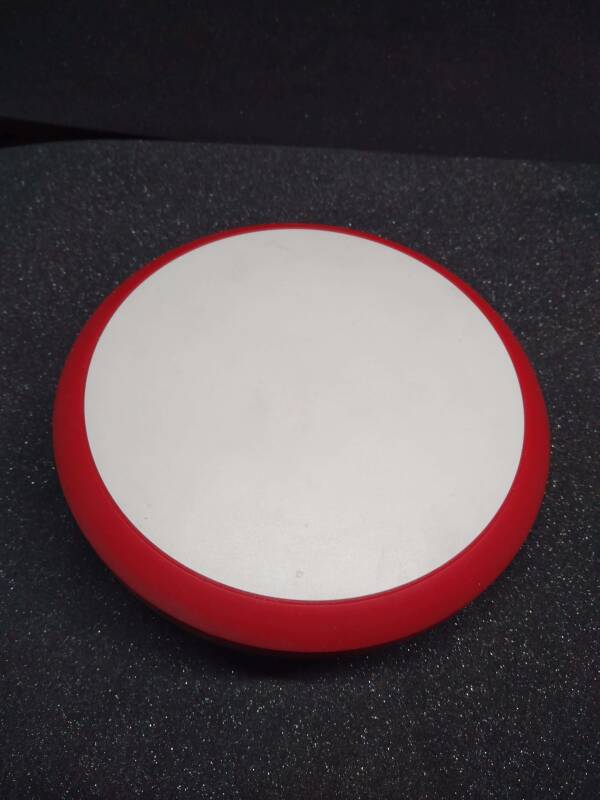

Leica Mna950 GG GPS Receiver
Specifications:
GNSS technology | SmartTrack+ dual frequency |
RTK Technology | SmartCheck+, for advanced, long range RTK |
Kinematic RTK Accuracy (phase), after initialisation | Horizontal: 10 mm + 1 ppm |
Power Supply | Li-Ion 2.2 Ah / 7.4 V for Pole Solution |
Position output rate | Off-machine: 1 Hz standard, 5 Hz option |
RTK data Formats | Leica (Lite), CMR, CMR+, RTCM v2.x / 3.0; |
Ref. Station | Leica Lite |
Communication | RS232, RS422, |
Shock | ISO 9022 |
Vibration | MIL 810.F Cat 24 |
Environmental specifications | IP67 |

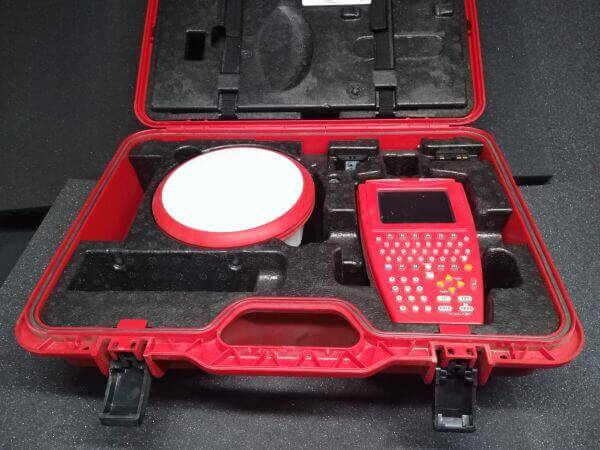

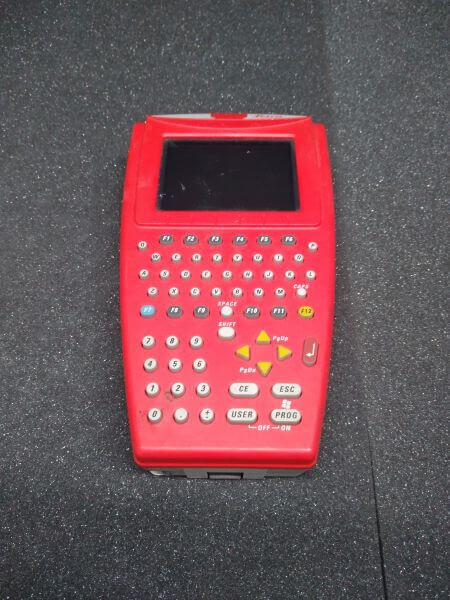

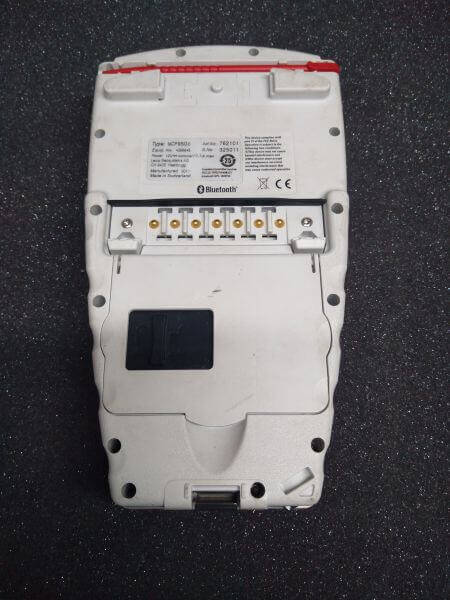

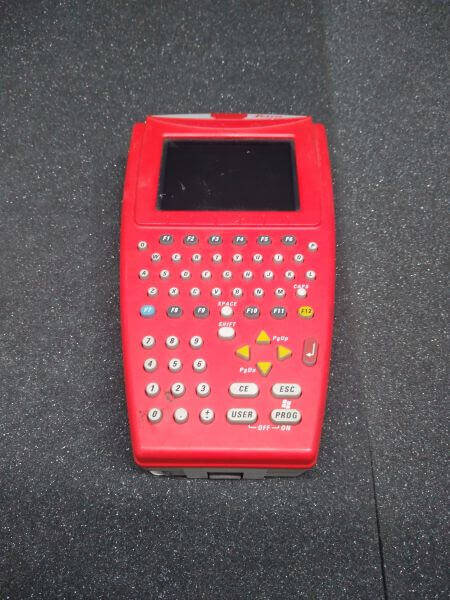

Leica Redline MCP950C Power Controller
Specifications:
Control Unit | |
Display | ¼ VGA (320x240 pixels), graphic LCD, touch screen, illumination |
Touch screen: | Toughened film on glass |
Keyboard | 62 keys (12 function keys, 40 alphanumeric keys), illumination |
Interface | RS232, External Radio Modem or Bluetooth |
Internal Battery | |
Type | Lithium-Ion |
Voltage | 7.4 V |
Capacity | 1.9 Ah |
Operating time | MCP950c typ. 8h |
Weights | |
MCP950c | 0.73 kg |
Smart Holder | 0.32 kg |
GFU 23 Radio Modem | 0.32 kg |
Battery (GEB211): | 0.1 kg |
Environmental specifications | |
Working temperature range: | -30°C to +50°C |
Storage temperature range: | -40°C to +80°C |
Dust / water (IEC 60529): | IP67 |
Waterproof (MIL-STD-810F): | temporary submersion to 1m |

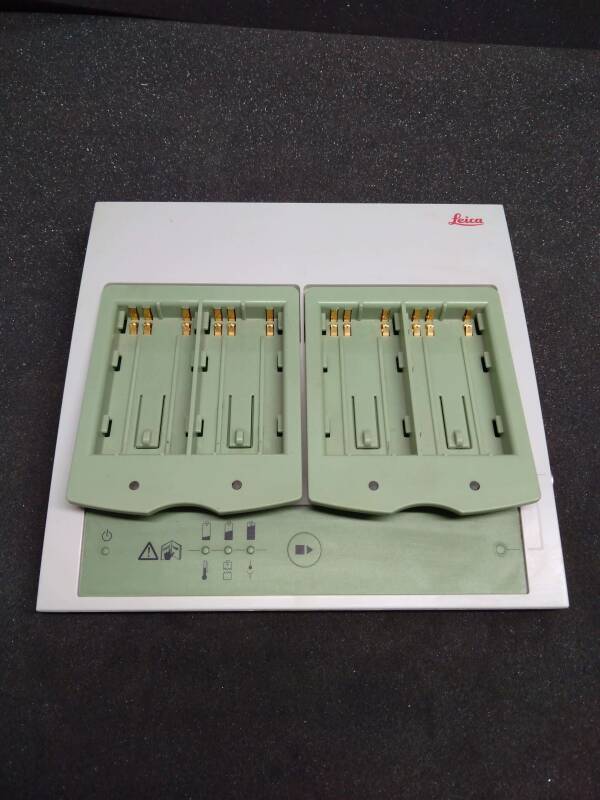

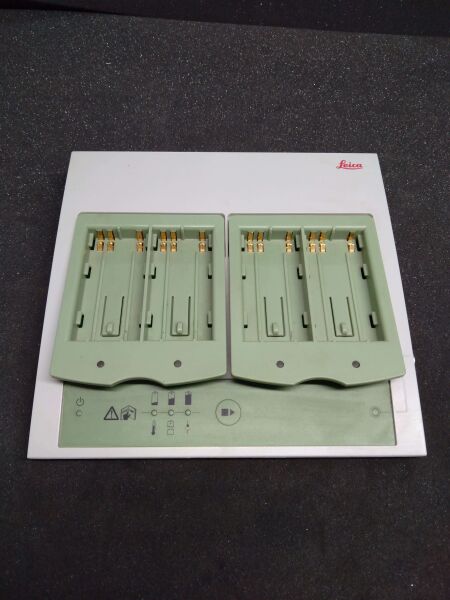

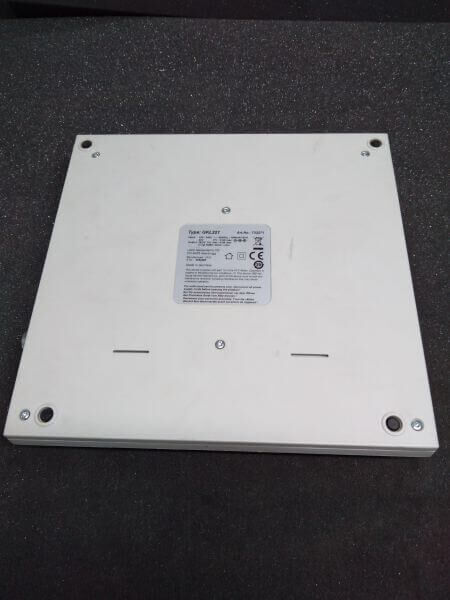

Leica GKL221, Pro Charger Base Stations
Professional Charging Station GKL221
The GKL221 is an intelligent charging station with advanced charging technology. It is suitable for charging all Leica Geosystems batteries and ensures the optimal battery operation with your equipment.
Supply
The GKL221 can be connected to the mains electricity supply with an input voltage range from 100 to 240 V AC, using the country specific power cable. With the optional GDC221 car adapter, the charging station can be connected to the battery circuit of a vehicle.
Battery – Identification
The microprocessor controlled charging station recognises the type of battery connected and derives the charging parameters such as time and current. The batteries are optimally and appropriately charged. This guarantees the maximum possible service life. The charging station can recognise and charge cells of the NiCd, NiMH and Li-Ion types. Up to five batteries can be connected to the charger simultaneously. Two batteries are charged at the same time and the rest are charged in the order they were connected.

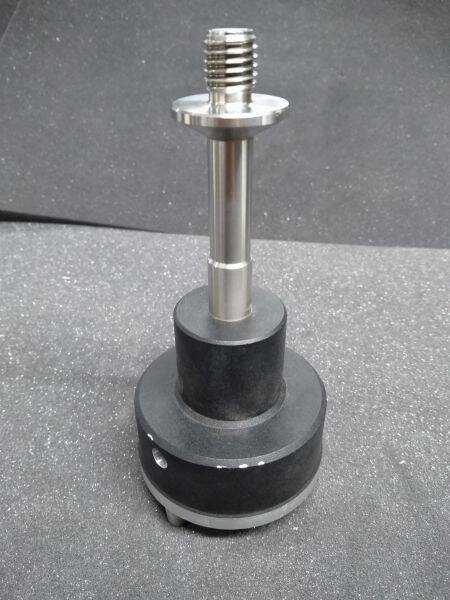

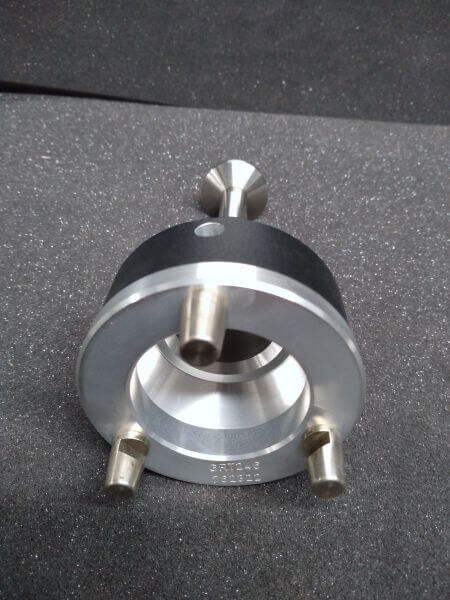

Leica GRT246 762322 Carrier
Carrier for use in tribrachs with optical plummet. The GRT146 Carrier with 5/8" thread is complementary for direct fitting of GNSS antennas. GPS antenna screws on directly.

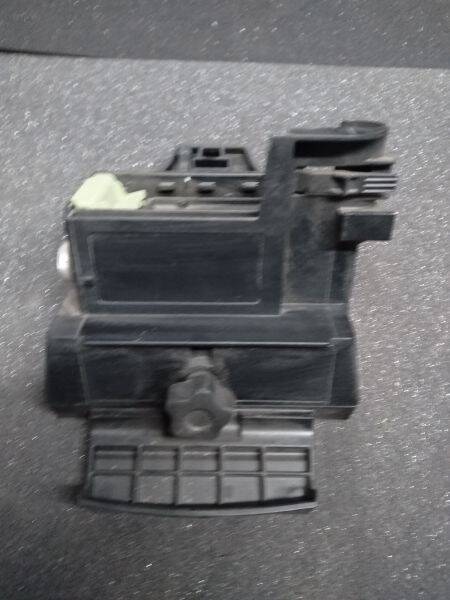

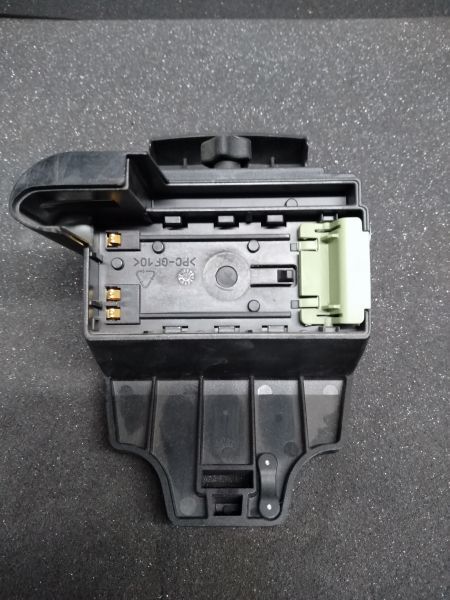

Leica GHT56 Holder
Features
