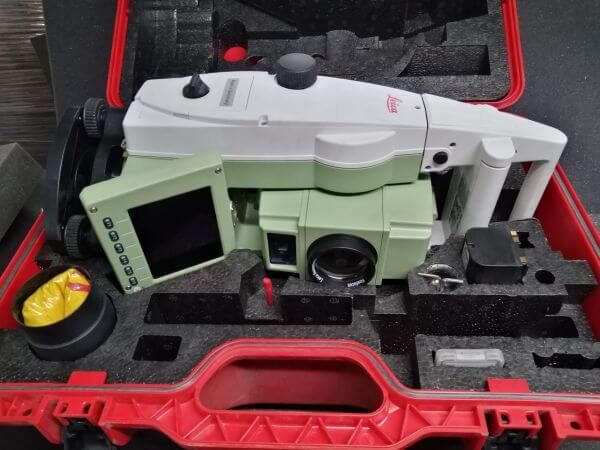

Leica TCP1205 Total station + 1 Adet Batarya

Angle measurement

Accuracy (standard deviation ISO 17123- 3)

5“ (1.5 mgon)

Display least count:

0.1“ (0.5 mgon)

Method

absolute, continuous, diametrical

Compensator

Working range: 4’ (0.07 gon)
Setting accuracy: 1.5” (0.5 mgon)
Method: centralized dual axis compensator

Distance measurement (IR) (Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer)

Standard prism (GPR1):

3000 m (10000 ft)

3 standard prisms (GPR1):

4500 m (14700 ft)

360° prism (GRZ4):

1500 m (5000 ft)

360° mini prism (GRZ101):

800 m (2600 ft)

Mini prism (GMP101):

1200 m (4000 ft)

Reflector tape (60 mm x 60mm):

250 m (800 ft)

Shortest measuring distance:

1.5 m

Accuracy (standard deviation ISO 17123-4) / Measure time

Standard mode: 2 mm + 2 ppm / typ. 1.5 s
Fast mode: 5 mm + 2 ppm / typ. 0.8 s
Tracking mode: 5 mm + 2 ppm / typ. < 0.15 s
Averaging mode: 2 mm + 2 ppm
Display resolution: 0.1 mm

Method

Principle: Phase measurement
Type: Coaxial, infrared laser
Carrier wave: 780 nm
Measuring system: Special frequency system basis 100 MHz = 1.5 m

PinPoint reflectorless distance measurement (RL) (Object in shade, or sky overcast)

Range PinPoint R100

Kodak Gray Card, 90% reflective: 170 m (560 ft)
Kodak Gray Card, 18% reflective: 100 m (330 ft)

Range PinPoint R300

Kodak Gray Card, 90% reflective: 500 m (1640 ft)
Kodak Gray Card, 18% reflective: 300 m (990 ft)

Range of measurement:

1.5 m to 760 m

Display unambiguous:

up to 760 m

Accuracy (standard deviation ISO 17123-4) / Measure time

0 m – 500 m: 3 mm + 2 ppm / typ. 3-6 s, max. 12 s
> 500 m: 5 mm + 2 ppm / typ. 3-6 s, max. 12 s
Atmospheric conditions: Object in shade, sky overcast
Display resolution: 0.1 mm

Laser dot size

At 20 m: 7 mm x 14 mm
At 100 m: 12 mm x 40 mm
At 200 m: 25 mm x 80 mm

Method

Type: Coaxial, visible red laser
Carrier wave: 670 nm
Measuring system PinPoint R100: Special frequency system basis 100 MHz ≅ 1.5 m
Measuring system PinPoint R300: System analyzer basis 100 MHz – 150 MHz

Motorized

Maximum speed

45° / s

Automatic Target Recognition (ATR)

Range ATR / Lock Mode

Standard prism (GPR1): 1000 m (3300 ft) / 800 m (2600 ft)
360° prism (GRZ4): 600 m (2000 ft) / 500 m (1600 ft)
360° mini prism (GRZ101): 350 m (1150 ft) / 300 m (1000 ft)
Mini prism (GMP101): 500 m (1600 ft) / 400 m (1300 ft)
Reflector tape (60 mm x 60mm): 55 m (175ft) / –
Shortest measuring distance: 1.5 m / 5 m

Accuracy / Measure time

Positioning accuracy (GPR1): < 2 mm
Measure time (GPR1): 3-4 s

Maximum speed (LOCK mode)

Tangential (standard mode): 5 m / s at 20 m, 25 m / s at 100 m
Radial (tracking mode): 5 m / s

Searching

Search time in field of view: Typ. 3 s
Field of view: 1° 30’ (1.66 gon)
Definable search windows: Yes

Method

Principle: Digital image processing
Type: infrared laser

PowerSearch (PS)

Range

Standard prism (GPR1): 200 m (650 ft)
360° prism (GRZ4): 200 m (650 ft) (perfectly aligned to the instrument)
Mini prism (GMP101): 100 m (330 ft)
Shortest measuring distance: 1.5 m

Searching

Search time: Typ. < 10 s
Default search area: Hz: 400 gon V: 40 gon
Definable search windows: Yes

Method

Principle: Digital signal processing
Type: infrared laser

Guide Light (EGL)

Range

Working range: 5 m – 150 m

Accuracy

Positioning accuracy: 5 cm at 100 m

General data

Telescope

Magnification: 30 x
Free objective aperture: 40 mm
Field of view: 1°30’ (1.66 gon) / 2.7 m at 100 m
Focusing range: 1.7 m to infinity

Keyboard and Display

Display: ¼ VGA (320*240 pixels), graphic LCD, illumination, touch screen (optional)
Keyboard: 34 keys (12 function keys, 12 alphanumeric keys), illumination
Angle display: 360° ’ “, 360° decimal, 400 gon, 6400 mil, V%
Distance display: meter, int. ft, int. ft/inch, US ft, US ft/inch
Position: face I standard / face II optional

Data storage

Internal memory: 32 MB (optional)
Memory card: CompactFlash cards (32 MB and 256 MB)
Number of data records: 1750 / MB
Interface: RS232, BluetoothTM (optional)

Laser plummet

Centering accuracy: 1.5 mm at 1.5 m (deviation from plumb line)
Laser dot diameter: 2.5 mm at 1.5 m

Endless drives

Number of drives: 1 horizontal / 1 vertical

Circular level

Sensitivity: 6’ / 2 mm

Internal Battery (GEB221)

Type: Lithium-Ion
Voltage: 7.4 V
Capacity: 3.8 Ah
Operating time: Typ. 6 – 8 h

Dimensions

Tilting axis height: 196 mm above tribrach
Height: 345 mm
Width: 226 mm
Length: 203 mm

Weights

Total station: 4.8 – 5.5 kg (depending on type and options)
Battery (GEB221): 0.2 kg
Tribrach (GDF121): 0.8 kg

Environmental specifications

Working temperature range: -20°C to +50°C
Storage temperature range: -40°C to +70°C
Dust / water (IEC 60529): IP54
Humidity: 95%, non-condensing
