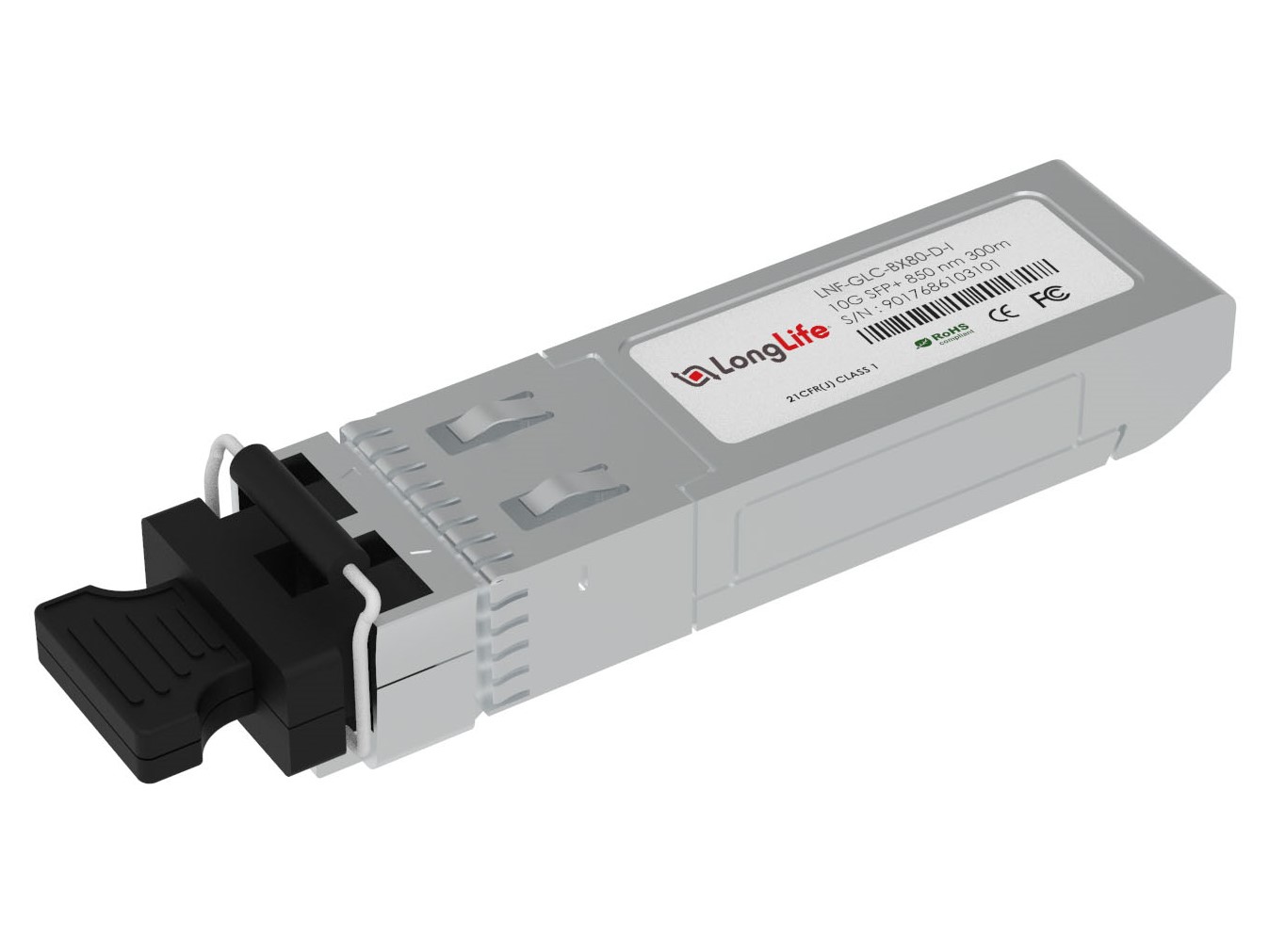

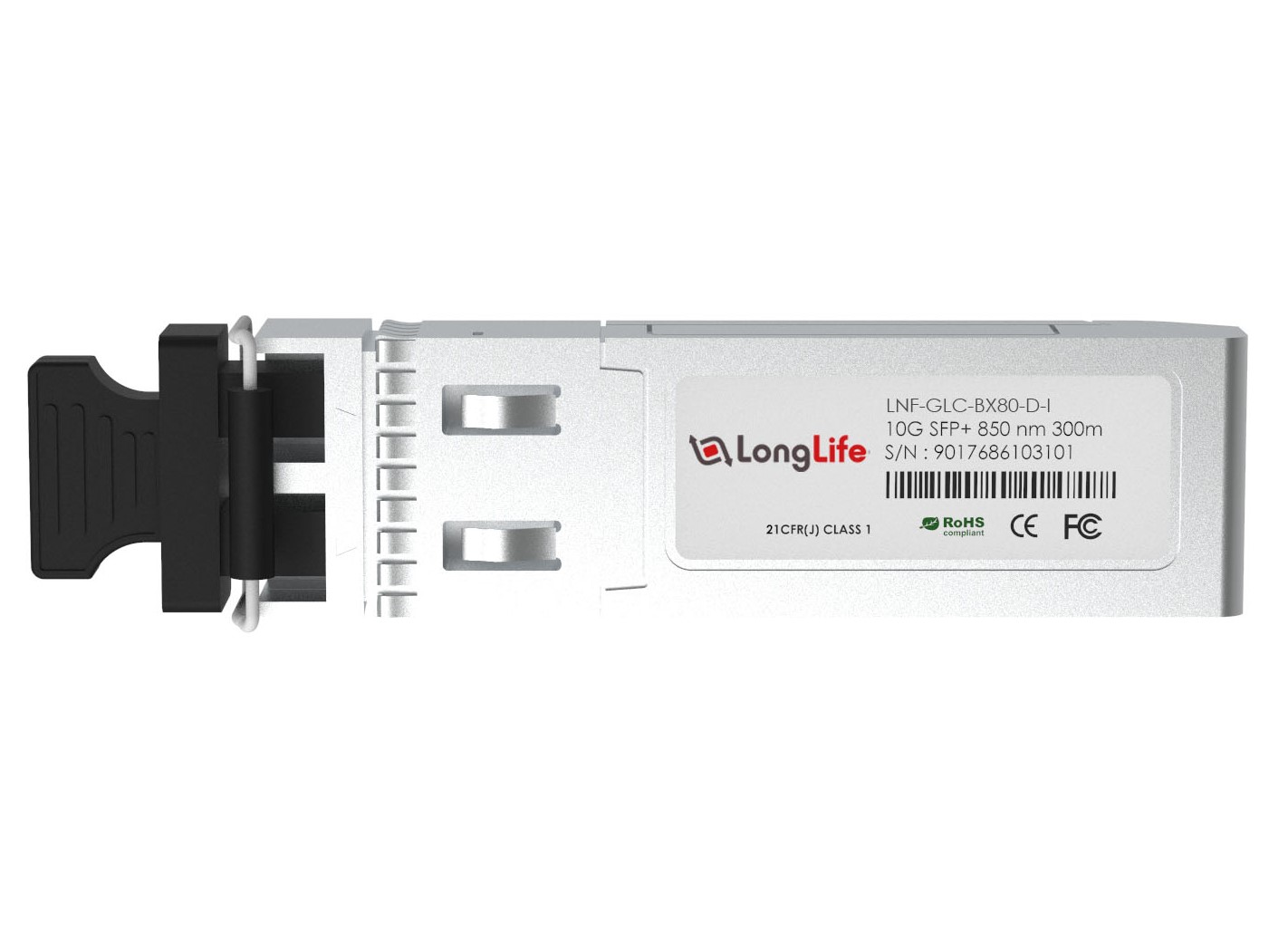

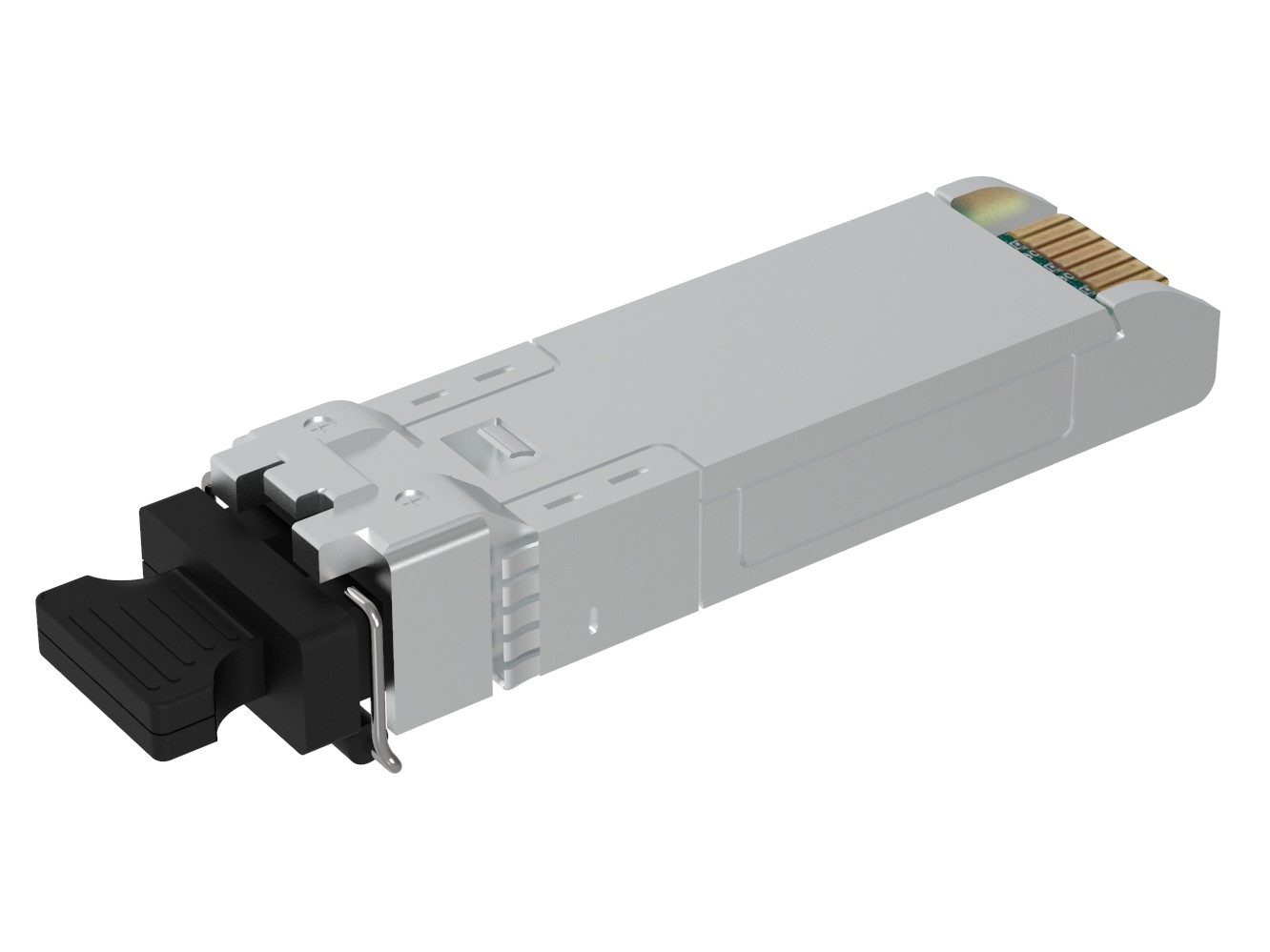

Cisco LNF-GLC-BX80-D-I Compatible 1000BASE-BX SFP Transceiver Module (SMF, 1570nm-TX/1490nm-RX, 80km, LC, DOM)
The Cisco-compatible SFP transceiver provides up to 80km of 1000Base-BX throughput over single-mode fiber (SMF) using 1570nm-TX/1490nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Specifications
| Cisco Compatible | LNF-GLC-BX80-D-I | Vendor Name | Longlife | | Form Factor | SFP | Max Data Rate | 1000Mbps | | Wavelength | 1570nm-TX/1490nm-RX | Max Cable Distance | 80km | | Connector | Simplex LC | Optical Components | DFB BiDi | | Media | SMF | DOM Support | Yes | | TX Power | -2~3dBm | Receiver Sensitivity | < -24dBm | | Commercial Temperature Range | 0 to 70°C (32 to 158°F) | | Fast Ethernet, Gigabit Fibre Channel |
|
|
